The utility model relates to a folding type lifting handle. The utility model is characterized in that two pothooks are positioned on a lifting handle ring, the lifting handle ring and pothooks are combined as a whole by rivets, the two sides of the lifting handle ring are provided with a notch respectively, the pothooks may rotate in certain range and be hung with a plurality of plastic hand bags, the hand lifting location of the lifting handle ring is relatively wider and thicker, thereby alleviating the deep tracks and pain feeling of fingers, when not in use, the pothooks may be screwed in the notch, the volume becomes smaller after a folding, thereby enabling the utility model to be placed into a clothes pocket, the top of the lifting handle ring is provided with a small pore for the piercing of a key ring which may be arranged on the belt around waist once being provided with a leather belt hook. The utility model has the advantages of easy carrying, simple structure, and easy production.
Description
Affiliated technical field
The utility model relates to a kind of handle, particularly a kind of collapsible handle.
Background technology
Various plastics handbags are popularized the whole nation, market particularly, the food market is used more frequent, but the handle of plastics handbag is partly elongated, more when splendid attire, longer than heavy articles and portable time, when a plurality of plastics handbag was particularly arranged, elongated handle partly can be reined in very dark vestige on finger, even pain unbearably can't be mentioned.
Summary of the invention
Partly can on finger, rein in the very dark vestige and the deficiency of pain for overcoming the elongated handle of plastics handbag, the utility model provides a kind of collapsible handle, can alleviate plastics handbag pain of reining in gash and bringing thus on finger, and the pocket or wear on belt between waist of packing into.
The technical scheme that its technical problem that solves the utility model adopts is: on an oval-shaped handle circle, two hooks are housed, two of the handle circle respectively have a notch, the handle circle with the hook by becoming as a whole after the rivet combination, hook can rotate within the specific limits, an aperture is arranged at the top of handle circle, is used to penetrate key-ring, and other mixes on the belt that just can be worn on easily behind the alligator between waist.
During use, the handle of polybag partly is hung on two hooks, because the portable part of handle circle is comparatively generous, can alleviate the pain that the elongated handle of polybag is partly reined in gash and brought thus on finger, time spent not, to link up with and screw in the notch, the pocket or wear on belt between waist of packing into.
The beneficial effects of the utility model are: this collapsible handle can not only hang a plurality of plastics handbags, and can alleviate the pain that the plastics handbag is reined in gash and brought thus on finger, dwindle owing to volume after folding simultaneously, can pack into easily pocket or be hung on the belt between waist, easy to carry, simple in structure, be easy to produce.
Description of drawings
Below in conjunction with drawings and Examples the utility model is described in further detail.

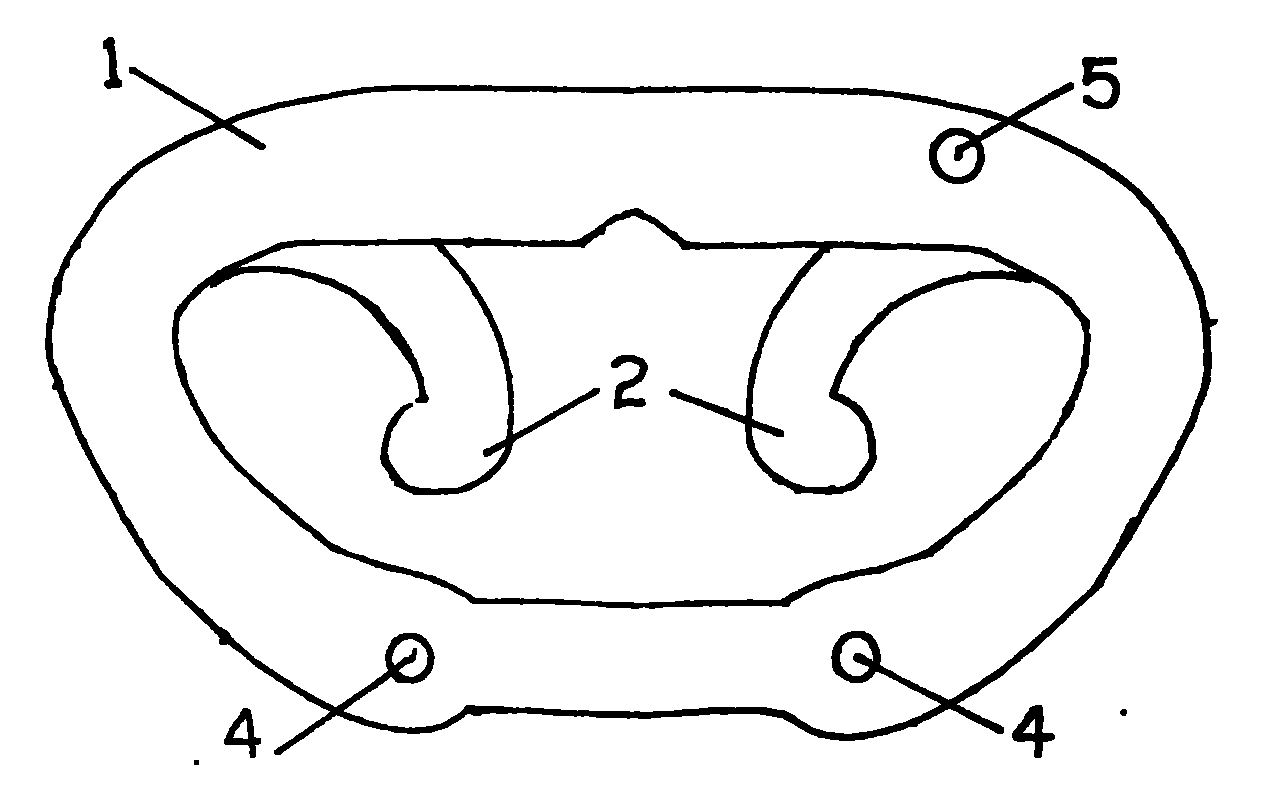

Fig. 1 is a basic view of the present utility model.
Fig. 2 is a side generalized section of the present utility model.
Fig. 3 is the view after the utility model folds.
Fig. 4 is the I-I cutaway view of Fig. 3.
1. handle circles among the figure, 2. hook, 3. notch, 4. rivet, 5. key-ring hole.
The specific embodiment.
At Fig. 1, collapsible handle is by handle circle (1) among Fig. 2, hook (2), combine by rivet (4), two of the handle circle respectively have a notch (3), and hook can movablely in certain scope also can screw in the notch, and a key-ring hole (5) is arranged on the handle circle, be used to penetrate key-ring, other mixes alligator and just can be worn on easily on the belt between waist.
Fig. 3 is the view of the utility model after folding, can dwindle overall volume after two hooks are upwards screwed in notch, in the pocket of can packing into easily or on the belt between waist of wearing.
Claims (2)
1, a kind of collapsible handle is equipped with two hooks on the handle circle, and handle circle and hook are by becoming one after the rivet combination, and it is characterized in that: two of the handle circle respectively have a notch (3).
2, the described collapsible handle of root a tree name claim 1 is characterized in that: a key-ring hole (5) is arranged at the top of handle circle.
