CN2900375Y - Split water bottle - Google Patents
Split water bottle Download PDFInfo
- Publication number
- CN2900375Y CN2900375Y CN 200620103471 CN200620103471U CN2900375Y CN 2900375 Y CN2900375 Y CN 2900375Y CN 200620103471 CN200620103471 CN 200620103471 CN 200620103471 U CN200620103471 U CN 200620103471U CN 2900375 Y CN2900375 Y CN 2900375Y
- Authority
- CN
- China
- Prior art keywords
- bottle
- water bottle
- split water
- utility
- model
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Landscapes
- Details Of Rigid Or Semi-Rigid Containers (AREA)
- Stackable Containers (AREA)
Abstract
The utility model discloses a split water bottle, which comprises a bottle body and a bottle cap. The bottle cap is connected with a bottle mouth through a screw. The product is characterized in that the bottle body is composed of an upper bottle body and a lower bottle body connected with each other through the screw. The split water bottle, of simple structure, can be divided into a cup and a filler. While offering a water bottle to travelers, the utility model also provides them with a cup for brewing team and brushing teeth, thus rendering convenience to users.
Description
Technical field
The utility model relates to a kind of water bottle, belongs to daily living article.
Background technology
At present, known dress water bottle, as beverage bottle and mineral water bottle, only bottleneck is threaded with bottle cap, and purposes is comparatively single.
Summary of the invention
The purpose of this utility model provides a kind of multiduty split type water bottle.
Split type water bottle of the present utility model has bottle, bottle cap, and bottle cap is connected with whorl of bottleneck, it is characterized in that bottle is made up of the upper bottle body that is threaded and lower bottle body two parts.
Split type water bottle structure of the present utility model is simple, and can be divided into two becomes cup and funnel.Especially when dress water bottle is provided for the journey personnel, provide again and made tea, drinking-water, the cup of brushing teeth has overcome the problem of existing water bottle function singleness, brings great convenience to the user.
Description of drawings

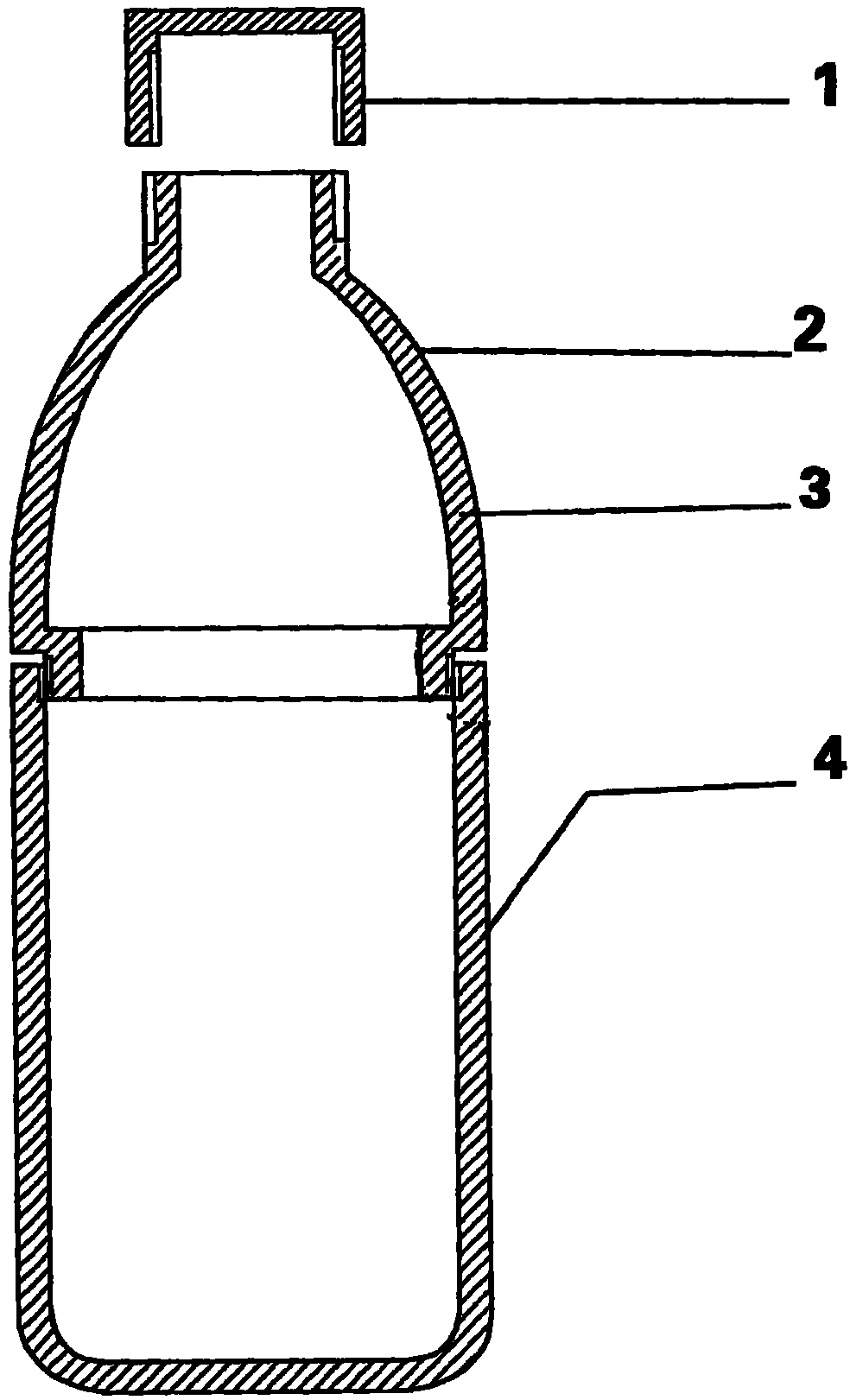

Fig. 1 is the constructional drawing of split type water bottle.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is further specified.
With reference to Fig. 1, split type water bottle has bottle 2, bottle cap 1, and bottle cap is connected with whorl of bottleneck, it is characterized in that bottle 2 is made up of the upper bottle body 3 that is threaded and lower bottle body 4 two parts.This split type water bottle can be made by plastics or metal.
Claims (1)
1. split type water bottle has bottle (2), bottle cap (1), and bottle cap is connected with whorl of bottleneck, it is characterized in that bottle (2) is made up of the upper bottle body that is threaded (3) and lower bottle body (4) two parts.
