CN2853637Y - Package box with folding cover - Google Patents
Package box with folding cover Download PDFInfo
- Publication number
- CN2853637Y CN2853637Y CN 200520046050 CN200520046050U CN2853637Y CN 2853637 Y CN2853637 Y CN 2853637Y CN 200520046050 CN200520046050 CN 200520046050 CN 200520046050 U CN200520046050 U CN 200520046050U CN 2853637 Y CN2853637 Y CN 2853637Y
- Authority
- CN
- China
- Prior art keywords
- sidewall
- box
- limit
- packing box
- cover
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cartons (AREA)
Abstract
The utility model discloses a package box with flexible cover, comprising a box cover, a bottom, and four same side walls, wherein four flexible layers are arranged at the connected parts between the box cover and the four side walls, the bottom ends of te first and the third side walls are arranged with dovetail plug edge, the bottom ends of second and fourth side walls are arranged with support edges, the box bottom is composed of said plug edges and support edges, the side edge of first side wall is connected to the lower end edge to be adhered with the side edge of fourth side wall, one end of box cover has upper end edge adhered with another end. The utility model has novel structure, while the cover can extend up and down, when packing things, the cover is closed and pressed to realize sealing function. When in free condition, the package box can be unfolded into one plane to be stored and transported easily. And it can be folded quickly with low production cost.
Description
Technical field
The utility model relates to the technical field of packing box.
Background technology
A lot of commodity, particularly small-sized gift need adopt the packing box of unique outlook, novel structure as the packing of candy, tealeaves etc., to attract client.Yet existing this class packing box often only covets external good-looking, therefore many complex structures, packing box that cost of manufacture is high have been designed, this class packing box not only is inconvenient to deposit owing to be subjected to the influence of external shape, but also has defective such as accumulating inconvenience.
Summary of the invention
The purpose of this utility model overcomes above defective exactly, and a kind of not only novel structure is provided, and simple for production, accumulating is easily with the packing box of telescoping cover.
In order to realize above purpose, the concrete technical scheme of the utility model is as follows:
A kind of packing box with telescoping cover, at the bottom of comprising lid, box, four identical sidewalls, wherein lid and four sidewall bonded assembly places are provided with four stretchable layers, the bottom of first and the 3rd sidewall is provided with dovetail form and plugs together the limit, the bottom of second and the 4th sidewall is provided with the support edge, plugs together the limit by these two at the bottom of the box and the support edge is formed; The side of first sidewall also is connected with the limit, lower end, and is bonding with the side of the 4th sidewall; One end of lid also is provided with the limit, upper end, and is bonding with the other end.
Preferable, between sidewall, wear silk ribbon, not only can fasten lid, and also attractive in appearance.
Preferable, the dovetail form that is provided with in the bottom of first and the 3rd sidewall plugs together joint-cutting on the limit, and such two dovetail forms plug together the limit and can inject mutually, and the structure of whole packing box is just more firm.
The beneficial effects of the utility model: the packing box of band telescoping cover described in the utility model is given the modern design of structure, and lid is provided with stretchable layer, can stretch up and down, on draw and get final product uncover, depress during sealing and get final product, fasten silk ribbon again, not only attractive in appearance, and sealing effectiveness is fabulous.Secondly, the time spent can not be launched into a plane, the convenient storage and transportation to the packing box of band telescoping cover described in the utility model fully; During use, the simple and easy fast speed folding forming of energy, cost of manufacture is low.
Description of drawings
Fig. 1 is the expansion planar view of the packing box of band telescoping cover described in the utility model.
Fig. 2 and Fig. 3 and the folding process that the packing box of band telescoping cover described in the utility model is shown.

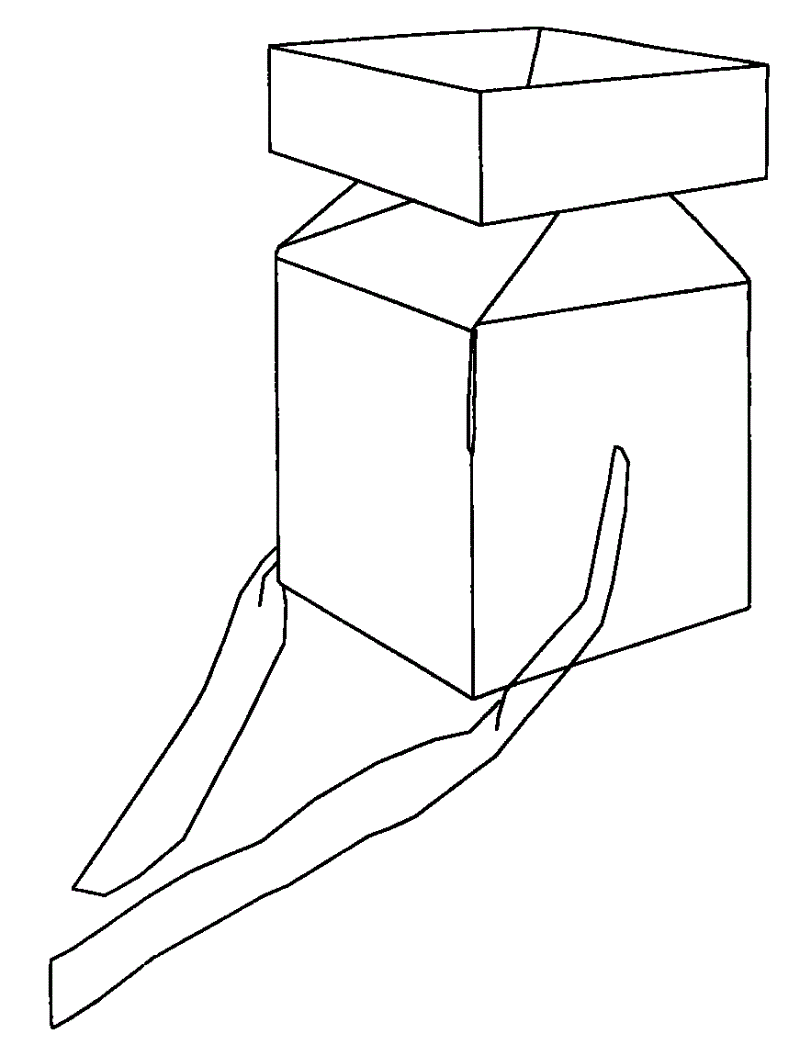

Fig. 4 and Fig. 5 are the block diagrams of the packing box of band telescoping cover described in the utility model.
The specific embodiment
Below in conjunction with the drawings and specific embodiments the utility model is described in further detail.
As shown in Figure 1, the packing box of band telescoping cover described in the utility model, at the bottom of comprising lid 1, box, four identical sidewalls 5, lid and four sidewall bonded assembly places are provided with four stretchable layers 2, wherein the bottom of first and the 3rd sidewall is provided with dovetail form and plugs together limit 8, the bottom of second and the 4th sidewall is provided with support edge 6, plugs together the limit by these two at the bottom of the box and the support edge is formed; The side of first sidewall also is connected with limit, lower end 9, and an end of lid also is provided with limit 10, upper end.During use, folding is bonding with the side of limit, lower end 9 and the 4th sidewall outside the folding line 3 on four stretchable layers 2, and limit, upper end 10 is bonding with the other end of lid, so just has been folded into the packing box of three-dimensional band telescoping cover.
More excellent, on sidewall, establish perforate 4, put on silk ribbon, so not only can fasten lid, and also attractive in appearance.
Also the dovetail form that can be provided with in the bottom of first and the 3rd sidewall plugs together and establishes joint-cutting 7 on the limit, and such two dovetail forms plug together the limit and can inject mutually, and the structure of whole packing box is just more firm.
Claims (3)
1. packing box with telescoping cover, at the bottom of comprising lid (1), box, four identical sidewalls (5), it is characterized in that, lid and four sidewall bonded assembly places are provided with four stretchable layers (2), the bottom of first and the 3rd sidewall is provided with dovetail form and plugs together limit (8), the bottom of second and the 4th sidewall is provided with support edge (6), plugs together the limit by these two at the bottom of the box and the support edge is formed; The side of first sidewall also is connected with limit, lower end (9), and is bonding with the side of the 4th sidewall; One end of lid also is provided with limit (10), upper end, and is bonding with the other end.
2. the packing box of band telescoping cover according to claim 1 is characterized in that: this packing box is installed with silk ribbon between sidewall.
3. the packing box of band telescoping cover according to claim 1 is characterized in that: the dovetail form that this packing box is provided with in the bottom of first and the 3rd sidewall plugs together joint-cutting on the limit, two dovetail forms plug together the limit and inject mutually.
