Hip bath device for treating gynecopathy Download PDF

Info

Publication number
CN2853065Y
CN2853065Y CN200520125017.6U CN200520125017U CN2853065Y CN 2853065 Y CN2853065 Y CN 2853065Y CN 200520125017 U CN200520125017 U CN 200520125017U CN 2853065 Y CN2853065 Y CN 2853065Y
Authority
CN
China
Prior art keywords
bidet
electric heating
heating rod
gynecological diseases
adjustable legs
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Fee Related
Application number
CN200520125017.6U
Other languages
Chinese (zh)
Inventor
李桂梅
尹凤爱
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Individual
Original Assignee
Individual
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Individual filed Critical Individual
Priority to CN200520125017.6U priority Critical patent/CN2853065Y/en
Application granted granted Critical
Publication of CN2853065Y publication Critical patent/CN2853065Y/en
Anticipated expiration legal-status Critical
Expired - Fee Related legal-status Critical Current

Links

Images

Classifications

    • Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
    • Y02A50/00—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE in human health protection, e.g. against extreme weather
    • Y02A50/30—Against vector-borne diseases, e.g. mosquito-borne, fly-borne, tick-borne or waterborne diseases whose impact is exacerbated by climate change

Landscapes

  • Devices For Medical Bathing And Washing (AREA)

Abstract

一种治疗妇科病坐浴器，属于医疗器械装置技术领域。有些妇科疾病要通过用药外洗的方法来治疗，外洗时所用的器具一般为洗脸盆，使用它坐着非常不舒服容易产生疲劳，药液也不能自动加温影响了治疗效果。该实用新型的技术方案为：坐浴容器2内分别固定有带孔座板3和电热棒4，坐浴容器2上端固定有支撑扶手1，其底部固定有支撑架5；支撑架5上设置有可调整腿6。它的优点是：患者使用它把可调整腿调到适宜坐浴高度胳膊扶到支撑扶手上坐浴时非常轻松自如，药液温度可通过电热棒来加温操作过程简单方便，该坐浴器制造成本低有着很好的推广前景。

Figure 200520125017

A bidet for treating gynecological diseases belongs to the technical field of medical instruments and devices. Some gynecological diseases need to be treated by washing with medicines. The utensils used for washing are generally washbasins. Sitting in them is very uncomfortable and prone to fatigue, and the medicine liquid cannot be heated automatically, which affects the therapeutic effect. The technical scheme of the utility model is as follows: a perforated seat plate 3 and an electric heating rod 4 are respectively fixed in the bidet container 2; There are 6 adjustable legs. Its advantages are: the patient uses it to adjust the adjustable legs to a suitable height for the sitz bath, and it is very easy to take a sitz bath with the arms on the support armrest, and the temperature of the liquid medicine can be heated by the electric heating rod. The operation process is simple and convenient. The low manufacturing cost has a good promotion prospect.

Figure 200520125017

Description

一种治疗妇科病坐浴器A bidet for treating gynecological diseases

技术领域：本实用新型涉及医疗器械装置技术领域，更具体的讲是一种治疗妇科病坐浴器。Technical field: The utility model relates to the technical field of medical devices, more specifically, a bidet for treating gynecological diseases.

背景技术：有些妇科疾病要通过用药外洗的方法来治疗，外洗时所用的器具一般为洗脸盆，使用它坐着非常不舒服容易产生疲劳，药液也不能自动加温影响了治疗效果。Background technology: Some gynecological diseases need to be treated by external washing with medicine. The utensil used for external washing is generally a washbasin, which is very uncomfortable to sit on and prone to fatigue, and the medicinal liquid cannot be automatically heated, which affects the therapeutic effect.

发明内容：为克服上述缺点，本实用新型的目的是设计一种治疗妇科病坐浴器。它的技术方案为：坐浴容器2内分别固定有带孔座板3和电热棒4，坐浴容器2上端固定有支撑扶手1，其底部固定有支撑架5；支撑架5上设置有可调整腿6。该实用新型的优点是：该治疗妇科病坐浴器结构设计合理实用，构思巧妙新颖，患者使用它把可调整腿调到适宜坐浴高度胳膊扶到支撑扶手上坐浴时非常轻松自如，药液温度可通过电热棒来加温操作过程简单方便，该坐浴器制造成本低有着很好的推广前景。Summary of the invention: In order to overcome the above shortcomings, the purpose of this utility model is to design a bidet for treating gynecological diseases. Its technical scheme is: the perforated seat plate 3 and the electric heating rod 4 are respectively fixed in the bidet container 2, the support handrail 1 is fixed on the upper end of the bidet container 2, and the support frame 5 is fixed on the bottom; Adjust leg 6. The utility model has the advantages that the sitz bath device for treating gynecological diseases has a reasonable and practical structural design, ingenious and novel conception, and the patient uses it to adjust the adjustable legs to a suitable sitz bath height and puts his arms on the supporting armrests to take a sitz bath very easily. The liquid temperature can be heated by an electric heating rod, and the operation process is simple and convenient, and the bidet has low manufacturing cost and has a good promotion prospect.

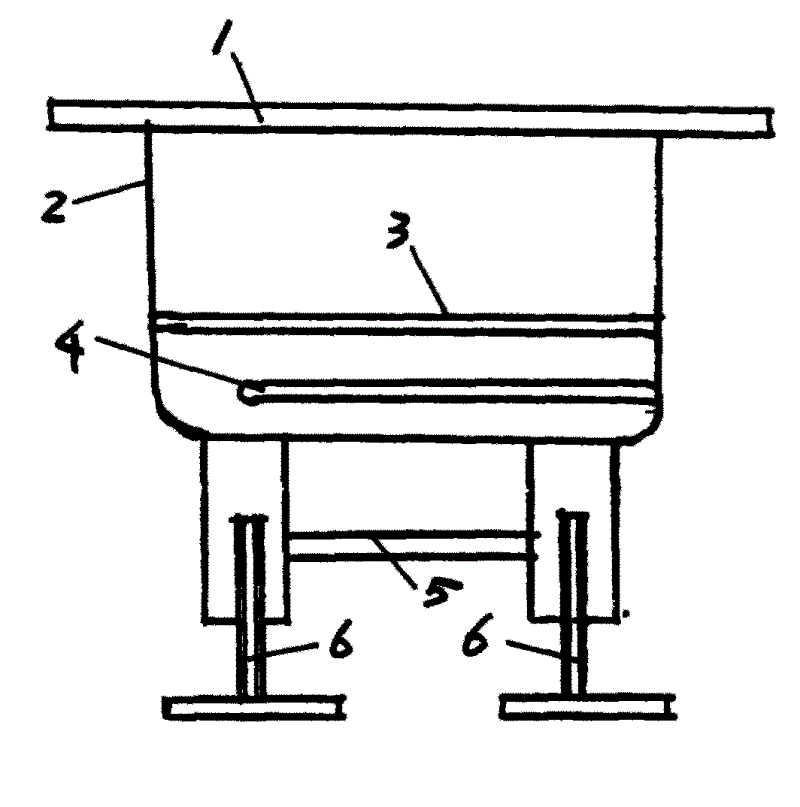

附图说明：图1主视图，图2俯视图。附图中：1、支撑扶手，2、坐浴容器，3、带孔座板，4、电热棒，5、支撑架，6、可调整腿。Description of drawings: Fig. 1 front view, Fig. 2 top view. In the accompanying drawings: 1, support armrest, 2, sitz bath container, 3, seat plate with holes, 4, electric heating rod, 5, support frame, 6, adjustable legs.

具体实施方式：坐浴容器2内分别固定有带孔座板3和电热棒4，坐浴容器2上端固定有支撑扶手1，其底部固定有支撑架5；支撑架5上设置有可调整腿6。把药液放入坐浴容器2中，把可调整腿6调到适宜坐浴高度胳膊扶到支撑扶手1上，患者坐到带孔座板3上进行坐浴；当药液温度低时，通过电热棒4给药液加温即可。Specific implementation method: seat plate with holes 3 and electric heating rod 4 are respectively fixed in the bidet container 2, a support armrest 1 is fixed on the upper end of the bidet container 2, and a support frame 5 is fixed on the bottom; the support frame 5 is provided with adjustable legs 6. Put the medicinal liquid into the hip bath container 2, adjust the adjustable legs 6 to the height of the hip bath, and put the arms on the support armrest 1, and the patient sits on the perforated seat plate 3 to perform the hip bath; when the temperature of the medicinal liquid is low, The drug solution can be heated by the electric heating rod 4 .

Claims (1)

1、一种治疗妇科病坐浴器，其特征是：坐浴容器(2)内分别固定有带孔座板(3)和电热棒(4)，坐浴容器(2)上端固定有支撑扶手(1)，其底部固定有支撑架(5)；支撑架(5)上设置有可调整腿(6)。1. A bidet for treating gynecological diseases, characterized in that: a perforated seat plate (3) and an electric heating rod (4) are respectively fixed in the bidet container (2), and a supporting handrail is fixed on the upper end of the bidet container (2) (1), the bottom of which is fixed with a support frame (5); the support frame (5) is provided with adjustable legs (6).
