Abstract
本实用新型属于厨房用具技术领域，涉及一种快速节能锅。解决现时的节能锅，只是在锅底面增加了加强锅底强度的加强筋，吸热面增加不多，遇到风吹，火焰流向偏往一边，产生紊流，会因加强筋的遮挡而在锅体底面与加强筋之间出现死角，使火焰无法接触到锅体的底面，导致节能效果甚微。所述的快速节能锅包括锅体1，在所述的锅体1的燃烧部上设有向下延伸的突起部2。由于突起部2的设立，不但使锅体1的燃烧面积在外形尺寸不变的情况下受到增大，而且使燃烧火焰在锅体1上的行程得到增加，火焰的热能积聚在突起部2与锅体1形成的沟槽之间，热能得以充分交换，热效率高，锅体受热快且节能，节能效果在30％以上。
The utility model belongs to the technical field of kitchen utensils and relates to a fast energy-saving pot. The solution to the current energy-saving pot is to add ribs on the bottom surface of the pot to strengthen the strength of the pot bottom. The heat-absorbing surface does not increase much. There is a dead angle between the bottom surface of the pot body and the reinforcing rib, so that the flame cannot touch the bottom surface of the pot body, resulting in little energy saving effect. The fast energy-saving pot includes a pot body 1, and a protruding portion 2 extending downward is provided on the burning part of the pot body 1. Due to the establishment of the protruding part 2, not only the combustion area of the pot body 1 is increased without changing the external dimensions, but also the stroke of the combustion flame on the pot body 1 is increased, and the heat energy of the flame is accumulated between the protruding part 2 and the pot body 1. The heat energy can be fully exchanged between the grooves formed by the pot body 1, the heat efficiency is high, the pot body is heated quickly and energy is saved, and the energy saving effect is over 30%.
Description
Technical field
The utility model belongs to the kitchen utensils technical field, relates to a kind of fast energy-saving pot.
Background technology
Pot for cooking rice or frying pan are placed on when hotting plate on the stove, and flame will spread with the air-flow following current towards periphery from the centre bottom of pot, and in diffusion process, the heat energy in the flame reaches on pot body.Current energy-conservation pot, just increased the reinforcement of strengthening the bottom of a pan intensity at the bottom of a pan face, make the bottom area of pot body be increased, but that heat-absorbent surface increases is few, and flame is when circulating between reinforcement and pot body bottom surface, in case run into wind, flame flow toward on one side, produces turbulent flow to partially, can the dead angle occur because of blocking between pot body bottom surface and reinforcement of reinforcement, make flame can't touch the bottom surface of pot body, cause energy-saving effect very little.
Summary of the invention
The purpose of this utility model is to provide a kind of no matter flame to produce following current or turbulent flow, all can absorb the fast energy-saving pot of the heat energy of flame effectively.
For realizing the purpose of this utility model, described fast energy-saving pot comprises a pot body, is provided with the jut of downward extension in the burning portion of described pot body.
Because jut distributes in the burning portion of pot body, in case flame touches a pot body, flame will wriggle between jut and flow, it will be than the length on the pot body light face at the stroke on the pot body outer surface, the heat energy of flame not only can directly reach on pot dignity and the jut, but also can reach indirectly on pot dignity by jut, make pot body can absorb the heat energy of flame effectively, even wind is arranged to bottom of pot body, also will stopping because of jut, and make flame can not depart from a pot body very soon, allow flame and pot body keep excellent contact.
Description of drawings
The drawing of accompanying drawing is described as follows:

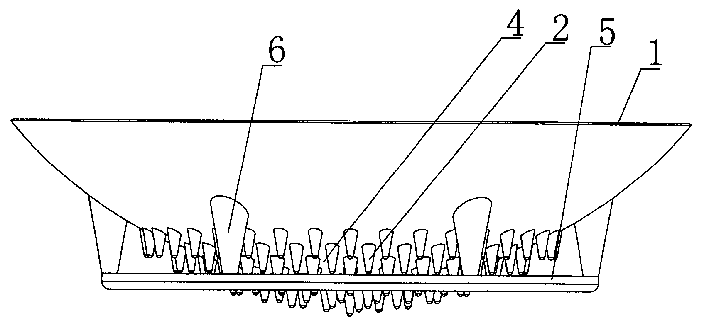

Fig. 1 is the structure chart of one of them embodiment of the utility model.
Fig. 2 is the upward view of Fig. 1.
Fig. 3 is the A-A cutaway view of Fig. 2.
Fig. 4 is the stereogram of Fig. 1.
Fig. 5 is the wherein structure chart of another embodiment of the utility model.
Fig. 6 is the upward view of Fig. 5.
Fig. 7 is the B-B cutaway view of Fig. 6.
Fig. 8 is the stereogram of Fig. 5.
Below in conjunction with accompanying drawing, the specific embodiment of the utility model fast energy-saving pot is described in further detail:
As shown in FIG., the utility model fast energy-saving pot comprises pot body 1, jut 2.
Pot body 1 can be made by cast iron, stainless steel or aluminium etc., for closely to contact, can weld together between jut 2 and pot body 1, also can disposable die casting or various fixed mode such as cast molding, good heat conductivity is arranged.As shown in Fig. 1～4, described pot body 1 is cylindrical, and its combustion front is a planar structure, is used to cook, roll soup etc., and jut 2 is arranged on the planar base surface 3 of pot body 1, makes whole planar base surface 3 that good heat-absorption properties be arranged.Because it is more that planar base surface 3 upper process portions 2 distribute, be placed on the stove and can produce because of bottom surface is uneven, and little easy clashing and breaking of the many volumes of jut 2 factor amounts and be mingled with the decline that foreign material cause the thermal efficiency, described pot body 1 is provided with downward extend through jut 2 ends can be erected at support ring 5 on the stove feet.Described support ring 5 is arranged on the jut 2.By utilizing support ring 5, make pot body 1 bottom can on the stove feet, find a plane, can make pot body 1 horizontal on stove, keep flame to be added in equably on the planar base surface 3.
As shown in Fig. 5～8, described jut 2 is arranged on the coronal of the sphere 4 of pot body 1, and this structure is applicable to cooking.Described pot body 1 is provided with the support ring 5 that can be erected on the stove feet.Described support ring 5 is arranged on the fixed leg 6 that is extended out by pot body 1.Make frying pan also be convenient to horizontal on the feet of stove, and can not stop that flame enters in pot body 1 bottom and the jut 2.
Described jut 2 is outwards gradually little shape, as coniform, is convenient to casting.Described jut 2 ringwise or matrix array arrange, make on planar base surface 3 or sphere 4, to be evenly distributed, and easy to manufacture.
The utility model fast energy-saving pot is owing to jut 2 sets up, the burning area of pot body 1 is increased under the situation of profile size constancy, and make the stroke of combustion flame on pot body 1 obtain increasing, the heat energy of flame accumulates between the groove of jut 2 and 1 formation of pot body, heat energy is able to abundant exchange, thermal efficiency height, the pot body is heated fast and energy-conservation, and energy-saving effect is more than 30%.
Claims (9)
1. a fast energy-saving pot comprises a pot body (1), it is characterized in that being provided with in the burning portion of described pot body (1) jut (2) of downward extension.
2. 1 described fast energy-saving pot as requested is characterized in that described jut (2) is arranged on the planar base surface (3) of a pot body (1).
3. 2 described fast energy-saving pots as requested is characterized in that described pot body (1) is provided with downward extend through jut (2) end and can be erected at support ring (5) on the stove feet.
4. 3 described fast energy-saving pots as requested is characterized in that described support ring (5) is arranged on the jut (2).
5. 1 described fast energy-saving pot as requested is characterized in that described jut (2) is arranged on the coronal of the sphere (4) of a pot body (1).
6. 5 described fast energy-saving pots as requested is characterized in that described pot body (1) is provided with the support ring (5) that can be erected on the stove feet.
7. 6 described fast energy-saving pots as requested is characterized in that described support ring (5) is arranged on the fixed leg (6) that is extended out by pot body (1).
8. 1,2,3,4,5,6 or 7 described fast energy-saving pots as requested is characterized in that described jut (2) is outwards gradually little shape.
9. 1,2,3,4,5,6 or 7 described fast energy-saving pots as requested is characterized in that described jut (2) is arranged in array.
