Technical field
The utility model relates to the vessel field, mainly is a kind of culture dish that is used for culturing micro-organisms.
Background technology
(patent No. is United States Patent (USP): 5021351) disclose a kind of vessel, its constructional feature is: the cross section of ware lid is trapezoidal, be certain angle between the outer wall of rib that ware covers and ware body, its deficiency is: sealing is bad between ware lid and the ware body, and inconvenience has been carried ware lid and ware body together, and the inversion that turns over after especially inconvenience covers the ware lid with the ware body is beneficial to carry out microorganism culturing.
Summary of the invention
The purpose of this utility model is the defective that solves above-mentioned prior art, provides a kind of simple in structure, is convenient to the culture dish of taking and placing.
The technical scheme that the utility model adopted.This culture dish mainly comprises ware body and ware lid, wherein, ware body sidewall, ware lid sidewall that ware body and ware lid includes ware body diapire, ware lid diapire respectively and upwards extends to form in week outside this diapire certainly, thus be formed with ware body opening and ware cover gab respectively.After ware body and ware covered, between had formed airtight host cavity, thereby can carry out microorganism culturing.Ware body and ware lid can be positive circle, ellipse, square, pentagon, hexagon or any other suitable shape.Wherein, outside surface at described ware body sidewall roughly is provided with annulus one on the middle part, and the size of this annulus refers to conflict this annulus and carried ware body and ware lid even be that impetus upset ware body and ware cover and be advisable with this annulus of forefinger or middle finger with mother to make things convenient for experimental implementation person's one hand.Generally speaking, the external diameter of this annulus needs the external diameter more than or equal to ware lid sidewall.
The effect that the utility model is useful is: because the outside surface of ware body sidewall roughly is provided with annulus one in the middle part, this annulus has the effect that is similar to handle, thereby has solved inconvenient problem of having carried ware body and ware lid simultaneously; And can be that impetus covers the inversion that turns over ware body and ware easily with the annulus, be beneficial to carry out microorganism culturing.
Description of drawings
Fig. 1 is a main TV structure synoptic diagram of the present utility model;
Fig. 2 is a backsight structural representation of the present utility model;
Fig. 3 is a left TV structure synoptic diagram of the present utility model;
Fig. 4 is a right TV structure synoptic diagram of the present utility model;
Fig. 5 is the structural representation of looking up of the present utility model;
Fig. 6 is a plan structure synoptic diagram of the present utility model;

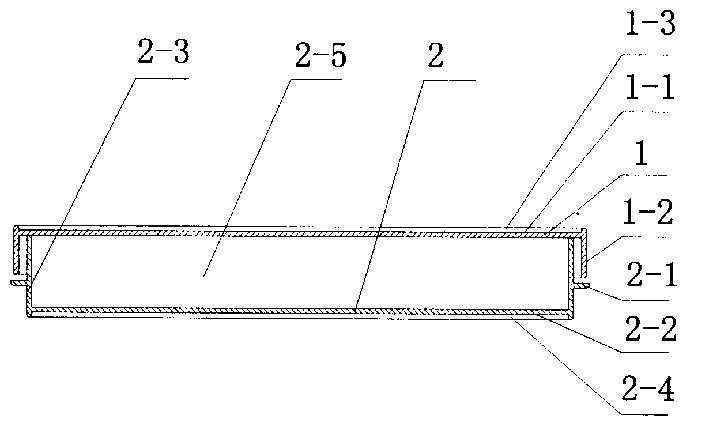

Fig. 7 is a sectional structure synoptic diagram of the present utility model;
Fig. 8 is the perspective view under the utility model closure state;
Fig. 9 is the perspective view under the utility model open mode;
Description of drawings: ware lid 1, ware lid diapire 1-1, ware lid sidewall 1-2, ware cover gab 1-3, ware body 2, annulus 2-1, ware body diapire 2-2, ware body sidewall 2-3, ware body opening 2-4, host cavity 2-5.
Embodiment
Below in conjunction with accompanying drawing the utility model is described further: this culture dish, mainly comprise ware body 2 and the ware lid 1 made by transparent material, wherein, ware body sidewall 2-3, ware lid sidewall 1-2 that ware body 2 and ware lid 1 has ware body diapire 2-2, ware lid diapire 1-1 respectively and extends vertically upward in week outside this diapire certainly, thereby ware body 2 and ware lid 1 are formed with ware body opening 2-4 and ware cover gab 1-3 respectively.。After ware body 2 and ware lid 1 closed, between had formed airtight host cavity 2-5, thereby can carry out microorganism culturing.The singlehanded ware of opening of experimenter covers 1 for convenience, and the internal diameter of ware lid sidewall 1-1 is slightly larger than footpath outside the ware body sidewall 2-3, thereby is loose fit between ware body 2 and the ware lid 1.For making host cavity 2-5 keep sealing, the internal surface of the upper limb of ware body sidewall 2-3 and ware lid diapire 1-1 needs smooth, thereby after ware body 2 and ware lid 1 close, very close to each other between the internal surface of the upper limb of ware body sidewall 2-3 and ware lid diapire 1-1.Ware body 2 and ware lid 1 can be positive circle, ellipse, square, pentagon, hexagon or any other suitable shape, have only drawn positive circle as preferable technical scheme in the present patent application diagram.The topmost technical characterictic of the utility model is roughly to be provided with annulus 2-1 one in the place, middle part at the outside surface of described ware body sidewall 2-3, the size of this annulus 2-1 with make things convenient for experimental implementation person singlehanded with thumb with conflict this annulus 2-1 and carried ware body 2 and ware lid 1 even be that overturn ware body 2 and ware of impetus covers 1 and be advisable under the situation of not opening ware body 2 and ware lid 1 of forefinger or middle finger with this annulus 2-1.In preferable technical scheme, the external diameter of this annulus 2-1 needs the external diameter more than or equal to ware lid sidewall 1-2.For preventing " to raise " ware lid diapire 1-1 because of the ware lid sidewall 1-2 annulus 2-1 that conflicts, thereby cause the internal surface of ware lid diapire 1-1 not combine, leave certain clearance (shown in Figure 7) between the lower rim of ware lid sidewall 1-2 and the upper surface of annulus 2-1 with the upper limb sealing of ware body sidewall 2-3.During use, the experimenter only needs the singlehanded external diameter that pinches annulus 2-1 with thumb and forefinger or middle finger, can be under the situation of not opening ware lid 1 and ware body 2 with ware lid 1 with ware body 2 is carried together even be that impetus flips upside down ware lid 1 and ware body 2 together with the external diameter of annulus 2-1, easy to operate.
Claims (8)
1, a kind of culture dish, mainly comprise ware body (2) and ware lid (1), wherein ware body (2) and ware lid (1) includes ware body diapire (2-2) respectively, ware lid diapire (1-1) and the ware body sidewall (2-3) that extends to form from diapire, ware lid sidewall (1-2), thereby be formed with ware body opening (2-4) and ware cover gab (1-3) respectively, the host cavity (2-5) of portion's formation within it after ware body (2) and ware lid (1) close, it is characterized in that: on the outside surface of ware body sidewall (2-3), be provided with one annulus (2-1), and when ware body (2) was upwards placed with opening, the position of this annulus (2-1) was than the position height of ware body diapire (2-2).
2, culture dish according to claim 1 is characterized in that: the external diameter of described ware lid sidewall (1-2) is not more than the external diameter of annulus (2-1).
3, culture dish according to claim 1 is characterized in that: ware body (2) and ware lid (1) leave the gap between the lower surface of ware lid sidewall (1-2) and the upper surface of annulus (2-1) when closing.
4, culture dish according to claim 1 is characterized in that: be between the internal surface of ware body sidewall (2-3) upper limb and ware lid diapire (1-1) and be sealed and matched.
5, culture dish according to claim 1 is characterized in that: position between annulus (2-1) is positioned among the ware body sidewall (2-3).
6, culture dish according to claim 1 is characterized in that: ware body sidewall (2-3), ware lid sidewall (1-2) is perpendicular with ware body diapire (2-2), ware lid diapire (1-1) respectively.
7, culture dish according to claim 1 is characterized in that: the internal diameter of ware lid sidewall (1-2) is slightly larger than the external diameter of ware body sidewall (2-3), thereby ware lid (1) is loose fit with ware body (2).
8, according to any one described culture dish of claim 1-7, it is characterized in that: described ware body (2) and ware lid (1) are made by transparent material.
