CN2666279Y - Multifunction bed for school students

Info

Publication number: CN2666279Y
Application number: CN 200320108608
Authority: CN
Inventors: 万曼影; 杨喜法; 龙翔
Original assignee: Shanghai Jiaotong University
Current assignee: Shanghai Jiaotong University
Priority date: 2003-12-04
Filing date: 2003-12-04
Publication date: 2004-12-29
Anticipated expiration: 2013-12-04

Abstract

A multifunctional student bed mainly comprises a bed decking for people sleeping on, a bed bracket, a wardrobe, a computer desk, a writing board, a keyboard bracket, inclined-plane drawers, a bookshelf, and a mosquito net bracket. The bed decking which is positioned on the upper layer and the two bed brackets are formed into the whole framework, the two sides of which is provided with the mosquito net bracket. Under the bed decking, the wardrobe is on the right side, while a set of inclined-plane drawers are on the left side, and the computer desk is in the middle, and the bookshelf attaches to the wardrobe and is connected with the computer desk. Under the computer desk a drawing type writing board is arranged, wherein, a keyboard bracket and a small drawer are arranged under the writing board. The panel of the inclined-plane drawer is formed into an pedal with a width of 8cm to 10cm for people to get on and off bed, thereby saving the conventional ladder or pedal. The utility model has a plurality of functions of sleeping on, studying on, and storing objects, makes full use of space. Besides, the utility model has the advantages of compact structure, complete application, reasonable layout, and beautiful appearance.

Description

The multifunctional student bed

Technical field

The utility model relates to a kind of student's bed, particularly a kind of multifunctional student bed that integrates bed, computer desk, bookshelf, writing counter and wardrobe belongs to technical field of furniture manufacture.

Background technology

Along with the continuous improvement of school's lodging condition, though most of school has been equipped with various modern facilities, so that student's study, many colleges and universities still adopt traditional bunk beds.Traditional bunk beds moulding is simple, and purposes is single, and the people of the shop of sleeping will pass through ladder or step up and down, and is very inconvenient; As the bunk nobody in bed, just become the place of stacking foreign material, not only take up space but also not attractive in appearance.And the new-type bunk beds that the postgraduate of part colleges and universities dormitory adopts, its computer desk majority is embedded, the people must be in below the bed board during reading and writing, because be subjected to the restriction of bed plate height, tall classmate very easily meets and discusses, daylighting simultaneously is bad, also usually need daytime to turn on light, cause energy waste; The ladder of two bed junctions share for two people in the past, also can clash when two classmates want simultaneously bunk bed.In the prior art, number of patent application be the multifunctional student bed of ZL03141796.5 have following some be not suitable for the situation that students use: 1, wardrobe is excessive; 2, layout is unreasonable, and writing counter causes between the classmate in a side and influences each other easily, causes the daylighting of part writing counter bad simultaneously; 3, consider that student's books are more, but the place that books are placed in this patent design is too small, is not suitable for students and uses; 4, mosquito net is students' a necessity, but this patent does not have design to hang up the support of mosquito net.

Summary of the invention

For overcoming the deficiencies in the prior art and defective, the utility model designs a kind of wardrobe, bookshelf, writing desk, computer desk of integrating, and is multiple functional, the multifunctional student bed that floor space is little.Mainly comprise the mosquito net frame, bed board, pedal, inclined drawer, plane drawer, wardrobe, safety screen, bookshelf, computer desk, drawing and pulling type clipboard, drawing and pulling type Keyboard supporting board, little drawer, bedstead, movable shelf.

Bed board and two bedsteads of being placed in bedstead top are formed general frame.Safety screen is equipped with in the bed board outside, for bed board is ventilative, and safety screen part hollow out; The mosquito net frame has been installed on the bedstead of both sides.Space below bed board, the right are wardrobe and bookshelf, the rear board of the instant bookshelf of left plate of wardrobe; The left side is equipped with three inclined drawer and plane drawer from top to bottom, and the inclined drawer panel is made the bottom and tilted the 8-10cm width to the inside as pedal, the pedal 13～15cm that only need extend internally, and inboard drawer supports by slideway; The centre is a computer desk, can put display and main frame on the computer desk table top, the computer desk left side joins with the inclined drawer right plate, and the computer desk right side extend in the bookshelf and joins with the wardrobe left plate, one deck as bookshelf, in the computer desk inboard that takes over, open an electric wire perforation, so that electric wire is more neat when the discharge brain, computer desk table top arranged beneath has the drawing and pulling type clipboard, drawing and pulling type Keyboard supporting board and a little drawer, keyboard is placed on the drawing and pulling type Keyboard supporting board; It is one group of bookshelf that adjacent wardrobe is positioned at the computer desk top, there are two dividing plates that bookshelf is divided into three layers, the left plate of wardrobe is as the base plate of bookshelf, it is a movable shelf that adjacent wardrobe is positioned at the computer desk below, brain server or other things can discharge, can dismantle if the space is not enough, host computer can be placed on above the bottom shelf.

The multi-purpose bed collection bed of this utility model, clothing kitchen, writing counter, computer desk one utilize the space abundant, novel structure, and purposes is complete, and is rationally distributed, handsome in appearance.

Description of drawings

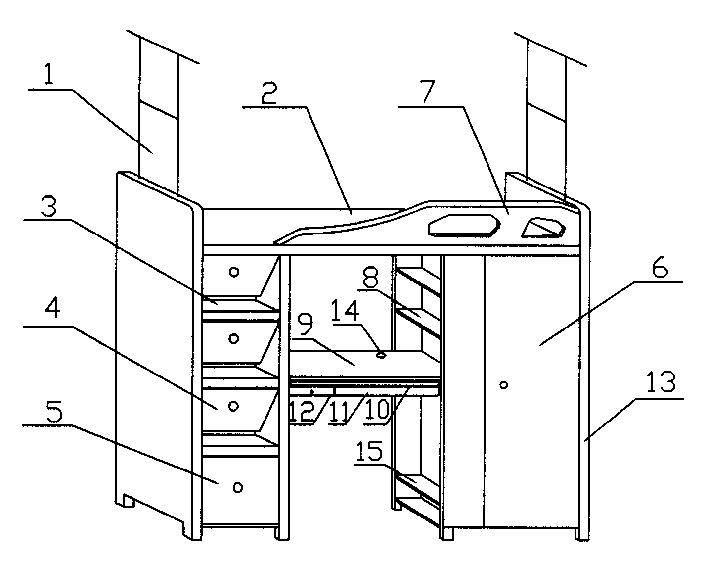

Accompanying drawing is a multifunctional student bed structure layout drawing

1 is the mosquito net frame among the figure, the 2nd, and bed board, the 3rd, pedal, the 4th, inclined drawer, the 5th, common plane drawer, the 6th, wardrobe, the 7th, safety screen, the 8th, bookshelf, the 9th, computer desk, the 10th, drawing and pulling type clipboard, the 11st, drawing and pulling type Keyboard supporting board, the 12nd, little drawer, the 13rd, bedstead, the 14th, through wires hole, the 15th, movable shelf.

The specific embodiment

Below in conjunction with accompanying drawing concrete enforcement of the present utility model is further described.

As shown in Figure 1, the utility model mainly comprises mosquito net frame 1, bed board 2, pedal 3, inclined drawer 4, plane drawer 5, wardrobe 6, safety screen 7, bookshelf 8, computer desk 9, drawing and pulling type clipboard 10, drawing and pulling type Keyboard supporting board 11, little drawer 12, bedstead 13, movable shelf 15.

Bed board 2 and two bedsteads 13 of being placed in bedstead 13 tops are formed general frame.Safety screen 7 is equipped with in bed board 2 outsides, for bed board 2 is ventilative, and safety screen 7 part hollow outs; Mosquito net frame 1 has been installed on both sides bedstead 13.Space below bed board 2, the left side are equipped with three inclined drawer 4 and plane drawer 5 from top to bottom, and inclined drawer 4 panels are made the bottom and tilted the 8-10cm width to the inside as pedal 3,3 need of pedal, the 13～15cm that extends internally, and inboard drawer supports by slideway; The centre is a computer desk 9, can put display and main frame on computer desk 9 table tops, and the right is wardrobe 6 and bookshelf 8; Computer desk 9 left sides and inclined drawer 4 right plates join, computer desk 9 right sides extend in the bookshelf 8 and join with wardrobe 6 left plates, as one deck of bookshelf 8, there are two dividing plates that bookshelf 8 is divided into three layers, in computer desk 9 inboard that takes over, open a through wires hole 14, so that electric wire is more neat when the discharge brain, computer desk 9 table top arranged beneath have drawing and pulling type clipboard 10, drawing and pulling type Keyboard supporting board 11, with a little drawer 12, keyboard is placed on the drawing and pulling type Keyboard supporting board 11; It is movable shelves 15 that adjacent wardrobe 6 is positioned at computer desk 9 belows, and brain server or other things can discharge.

Bedstead 13 is made tabular, the about 200cm of distance between two bedsteads 13, and the about 74cm of bed board 2 width, bed board 2 be apart from the about 154cm wardrobe 6 wide about 50cm of ground level, computer desk 9 wide about 80cm,, drawing and pulling type clipboard 10 is apart from ground 80cm, the high 60cm of mosquito net frame.

Claims

1, a kind of multifunctional student bed mainly comprises mosquito net frame (1), bed board (2), pedal (3), inclined drawer (4), plane drawer (5), wardrobe (6), safety screen (7), bookshelf (8), computer desk (9), drawing and pulling type clipboard (10), drawing and pulling type Keyboard supporting board (11), little drawer (12), bedstead (13), movable shelf (15); It is characterized in that: the bed board (2) that is placed in bedstead (13) top is formed general frame with two bedsteads (13), safety screen (7) is equipped with in bed board (2) outside, mosquito net frame (1) has been installed on both sides bedstead (13), space below bed board (2), the left side is equipped with three inclined drawer (4) and plane drawer (5) from top to bottom, inclined drawer (4) panel is made the bottom and is tilted the 8-10cm width to the inside as pedal (3), pedal (3) 13～15cm that extends internally, inboard drawer supports by slideway; The centre is computer desk (9), and the right is wardrobe (6) and bookshelf (8); Computer desk (9) left side joins with inclined drawer (4) right plate, computer desk (9) right side extend in the bookshelf (8) and joins with wardrobe (6) left plate, there are two dividing plates that bookshelf (8) is divided into three layers, in computer desk (9) inboard that takes over, open an electric wire perforation (14), computer desk (9) table top arranged beneath has drawing and pulling type clipboard (10), drawing and pulling type Keyboard supporting board (11), with a little drawer (12), computer desk (9) underside shelf (15), brain server or other things can discharge.

2, multifunctional student bed according to claim 1, its feature also is: bedstead (13) is made tabular, the about 200cm of distance between two bedsteads (13), the about 74cm of bed board (2) width, apart from the about 154cm of ground level, the wide about 50cm of wardrobe (6), the wide about 80cm of computer desk (9), drawing and pulling type clipboard (10) is apart from ground 80cm, the high 60cm of mosquito net frame.
