Abstract

The utility model introduces an improved mosquito net, which consists of a frame and a net body. The frame consists of more than one cross bar and corner bar. More than one vertical pulley is arranged in the cross bar and the corner bar, and a turning pulley is arranged at the corner where the cross bar and the corner bar are connected. The net body is arranged on the frame, and one end of the net body is provided with a plurality of rope bodies, which are respectively wound on the vertical and turning pulleys. After the rope bodies are wound on the vertical and turning pulleys, they are concentrated on one side of the frame. Therefore, after the mosquito net is fixed at an appropriate place, it can be vertically folded and unfolded without disassembling it for storage.

Description

mosquito net

technical field

The utility model is an improved mosquito net, especially a mosquito net which can be vertically stowed and placed without being disassembled and stored after being fixed at a suitable place.

Background technique

Known mosquito net (referring to Fig. 6) is made up of a combination 50, a hollow top post 51, a mosquito net cloth 53, many main rods 54, many folding rods 55, a movable pipe 6, and a rope 7 . Wherein the combination body 50 is hollow; the top post 51 is threadedly connected to the combination body 50, and forms a junction 52 at the bottom edge of the item post 51; the mosquito net cloth 53 is clamped between the combination body 50 and the item post 51 The plurality of main rods 54 are respectively equidistantly pivoted at the joint portion 52; the plurality of folding rods 55 are pivotally arranged at appropriate positions of the main rods 54 corresponding to the main rods 54, and the outside of the mosquito net cloth 53 extends correspondingly Be fixed at the end of the folding rod 55, so that the mosquito net cloth 53 is surrounded by the outer edge of the main rod 54 and the folding rod 55; The slotted hole 61 is provided with an elastic body 62 in the slotted hole 61, so that the elastic body 62 can be elastically stretched in the slotted hole 61; one end of the rope 7 is fixed on the movable pipe 6, and the other end passes through the top post 51, Combination body 50, to connect outside the stud 51.

Although the above-mentioned mosquito net can be used by the user to stretch its mosquito net cloth (as shown in Figure 7), and to store it in a folded manner, whenever the mosquito net is in use, the user must take out the folded mosquito net for use. , must be folded after use, and a place is to be found to store the mosquito net, so the above-mentioned known structure cannot meet actual needs.

Utility model content

The purpose of this utility model is to make the mosquito net be fixed in a suitable place and can be vertically received and placed without dismantling and storing.

In order to achieve the above object, the improved mosquito net of the present utility model adopts a frame body and a net body to form, and the frame body is composed of more than one cross bar and angle bar, and the cross bar and angle bar can be provided with More than one vertical pulley, and a turning pulley is set at the corner where the cross bar and the corner bar are connected. The net body is arranged on the above-mentioned frame body, and one end of the net body is provided with a plurality of rope bodies. Afterwards, it is fixed on the net body in a staggered manner, and the plurality of rope bodies are respectively wound on the above-mentioned vertical pulleys and turning pulleys, and the rope bodies are wound around the vertical and turning pulleys and then concentrated on one side of the frame to form a Rope group. Through the above structure, after the mosquito net is fixed in a proper place, it can realize the functions of vertical retraction and deployment without disassembly and storage.

Description of drawings

Figure 1 is a schematic diagram of the three-dimensional appearance of the utility model.

Fig. 2 is a three-dimensional appearance schematic diagram of the meshless body of the present invention.

Fig. 3 is a partially enlarged schematic diagram of the utility model.

4 to 5 are schematic diagrams of the usage status of the utility model.

Fig. 6 is a schematic diagram of a sectional state of a known mosquito net.

Fig. 7 is a schematic diagram of the use state of the known mosquito net.

In Figures 1 to 6 above, among them:

1-frame

11-horizontal bar 12-corner bar 13-vertical pulley

14-turning pulley 15-perforation 16-harness hole

2- mesh body

21-rope body

211-rope group

22-Counterweight

3-ceiling

31-hook part 31

4-bed body

50-combination 51--top column

52-joint 53-mosquito net cloth

54-main rod 55-folding rod

6-Active tube

61-slot 62-elastic body

7- Rope

Detailed ways

Please refer to Fig. 1, 3: this embodiment of the utility model is a kind of improved mosquito net, and it is made up of a frame body 1 and a net body 2, and above-mentioned frame body 1 is made up of more than one cross bar 11 and angle bar 12 , more than one vertical pulley 13 can be set in the cross bar 11 and the corner bar 12, and a turning pulley 14 is provided at the corner where the cross bar 11 and the corner bar 12 are connected, and the cross bar 11 and the corner bar 12 are adjacent to each other. , a perforation 15 is provided near the vertical pulley 13, and a wire gathering hole 16 is provided at an appropriate place of the frame body 1. The frame body 1 can cooperate with the hook portion 31, so that the frame body 1 is fixed on the ceiling by the hook portion 31 3 up;

The net body 2 is disposed on the above-mentioned frame body 1, and the net body 2 can also be disassembled from the frame body 1, so that the user can clean the net body 2. One end of the net body 2 is provided with a plurality of rope bodies 21, and the rope bodies 21 are fixed on the net body 2 in a front-to-back staggered manner, and a plurality of rope bodies 21 pass through the above-mentioned perforations 15 respectively and are wound around the above-mentioned vertical pulley 13 and On the turning pulley 14. The rope body 21 winds around the vertical and turning pulleys 13, 14 and then gathers in the wire-collecting hole 16 at an appropriate place on one side of the frame body 1 to form a rope body group 211 . And one end of the net body 2 is provided with a counterweight part 22, and the counterweight part 22 can be a rod body that can be passed through one end of the net body 2; thus, a brand-new mosquito net is formed by the above-mentioned structure.

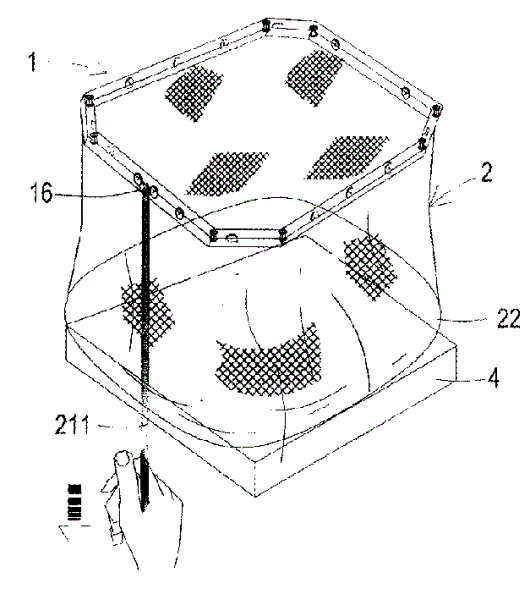

Refer to the usage status of the utility model shown in Fig. 4 ~ 5. When the mosquito net of the present utility model is in use, first place the frame body 1 with the hook portion 3-1 at the desired position of the user, so that the frame body 1 is fixed on the predetermined position on the ceiling 3, and when the user wants to use the mosquito net At this time, the net body 2 can be in the state of covering the bed body 4 (or other objects to be covered), so that the net body 2 is naturally drooped by the counterweight part 22 at one end; when the user wants to fold the net body 2, only It is necessary to pull the rope body group 211 that is wound around the vertical and turning pulleys 13, 14 and then concentrated in the wire collection hole 16 on one side of the frame body 1, so that the rope body group 211 cooperates with the vertical pulley 13 and the turning pulley 14 to make the A plurality of rope bodies 21 form a state of being pulled, and link the net body 2 at one end of the rope body 21, so that the net body 2 is pulled upward together with its counterweight 22, and the net body is pulled up by the rope body group 211. 2. When pulling up to a predetermined position (or pulling to the top close to the frame body 1), the user only needs to fix the rope body group 211. In addition, the utility model rope body group 211 can also be installed on a drive Components, such as motors, make the rope body group 211 wind through the drive assembly, and cooperate with the vertical pulley 13 and the turning pulley 14 to make the rope body 21 form a pulled state, and link the rope body 21 at one end. Net body 2, net body 2 is pulled up together with its counterweight part 22, when rope body group 211 pulls net body 2 up to predetermined position (or when pulling to the top close to frame body 1), The action of closing the net body 2 can be completed, so that the mosquito net can be fixed on the appropriate place on the ceiling 3 without dismantling and realize the effect of vertically closing and releasing the net body 2 .

Claims (6)

1, a kind of mosquito net, it comprises a frame body and a net body, it is characterized in that, described frame body is made up of more than one cross bar and angle bar, and more than one vertical pole can be set in described cross bar and angle bar Pulleys, and a turning pulley is provided at the corner where the cross bar and the corner bar are connected. The net body is arranged on the above-mentioned frame body, and one end of the net body is provided with a plurality of rope bodies, and the rope bodies are staggered in front and back. The method is fixed on the net body, and the plurality of rope bodies are respectively wound on the above-mentioned vertical pulleys and turning pulleys, and the rope bodies are wound around the vertical and turning pulleys and concentrated on one side of the frame body to form a rope body group. . 2 . The mosquito net according to claim 1 , wherein the frame body is provided with a hook portion by which the frame body can be fixed on the ceiling. 3. The mosquito net according to claim 1, characterized in that perforations are opened on the cross bars and corner bars adjacent to the vertical pulleys. 4. The mosquito net according to claim 1, characterized in that a thread gathering hole is also provided on the frame body. 5. The mosquito net according to claim 1, characterized in that one end of the net body is provided with a counterweight. 6 . The mosquito net according to claim 5 , wherein the weight portion is a rod that can be passed through one end of the net body. 6 .
