Abstract
本实用新型高效节能电热文火煲涉及的是一种家庭厨房高效节能电热炊具，适用于各类食品焖、煨、炖、蒸、煲等烹饪，也适用于中草药煎、熬以及食品加热保温。高效节能电热文火煲具有煲体、煲盖、电气控制盒、导热板、绝缘板、炉芯、保温层，其特征在于还具有整体式底盘、泄水螺钉、泄水导柱，整体式底盘装置在煲体下部，导热板装置在整体式底盘上，绝缘板、炉芯、保温层装置在整体式底盘内，整体式底盘上有泄水槽，泄水槽上有泄水孔，泄水槽螺钉装置在泄水孔内，通过泄水导柱与煲体底部固定连接。炉芯装置在导热板下部，导热板与炉芯之间装置有绝缘板，炉芯下部装置有保温层。
The utility model relates to a high-efficiency energy-saving electric heating simmering cooker, which relates to a high-efficiency energy-saving electric heating cooking utensil for a family kitchen, which is suitable for braising, simmering, stewing, steaming, stewing and other cooking of various foods, and is also suitable for frying and boiling Chinese herbal medicines and heating and keeping food. The high-efficiency and energy-saving electric heating slow fire cooker has a cooker body, a cooker cover, an electrical control box, a heat conduction plate, an insulating plate, a furnace core, and an insulation layer. In the lower part of the pot body, the heat conduction plate is installed on the integral chassis, the insulating plate, the furnace core, and the insulation layer are installed in the integral chassis, and there is a drain groove on the integral chassis, and there is a drain hole on the drain groove, and the drain groove screw is installed on the In the drain hole, the drain guide column is fixedly connected with the bottom of the pot body. The furnace core is installed at the lower part of the heat conduction plate, an insulating plate is installed between the heat conduction plate and the furnace core, and an insulation layer is installed at the lower part of the furnace core.
Description
Technical field
What the utility model efficient energy-saving electrothermal slow fire casserole related to is a kind of family kitchen efficient energy-saving electrothermal cooker, is applicable to that varieties of food items is stewing, simmers, stewes, culinary arts such as steaming, pot, is applicable to that also Chinese herbal medicine fries in shallow oil, endures and food heating and heat-insulating.
Background technology
Common electric heating slow fire casserole, electric heating slow fire furnace body bottom are filled and are lined with insulation material, though passage is arranged on the bell, steam unnecessary in the stove is discharged, but because furnace binding relatively seals, it is slower that unnecessary steam is discharged the outer speed of body of heater, and the unnecessary steam of considerable part can be penetrated in the body of heater, add improper use, soup is routed up, and soup will be penetrated into the bottom by the dress electric switch, influences the service life of safe in utilization and product.Though there are electric heating slow fire drop-bottom and pallet to divide body device to become the back-covered structure at present, complex structure, assembly process is many.
Summary of the invention
The purpose of this utility model is to provide a kind of efficient energy-saving electrothermal slow fire casserole at above-mentioned weak point, housing with novel structure, adopt the monoblock type chassis, sluicing guide pillar, sluicing screw, automatically steam discharge, draining, the monoblock type chassis structure is simple, easy to assembly, good looking appearance is generous, durable in use, safe and reliable, be the energy-conserving and environment-protective product.
The efficient energy-saving electrothermal slow fire casserole takes following scheme to realize: efficient energy-saving electrothermal slow fire casserole structure comprises pot body, pot lid, electric control box, heat-conducting plate, insulation board, combustion chamber, heat-insulation layer, monoblock type chassis, sluicing screw, sluicing guide pillar.The monoblock type base apparatus is in pot body bottom, the heat-conducting plate device is on the monoblock type chassis, and insulation board, combustion chamber, heat-insulation layer device are in the monoblock type chassis, and the combustion chamber device is in the heat-conducting plate bottom, device has insulation board between heat-conducting plate and the combustion chamber, and the combustion chamber lower device has heat-insulation layer.The sluicing groove is arranged on the monoblock type chassis, on the sluicing groove spilled water hole is arranged, pot body bottom is provided with the sluicing guide pillar, is used to support the monoblock type chassis.The sluicing screw device is fixedlyed connected with pot body bottom by the sluicing guide pillar in spilled water hole.Pot lid is equipped with on pot body top, and pot has covered passage.The sluicing screw is provided with the sluicing through hole, can ventilate, sluice.Pot body is made of shell, inner bag, heat-insulation layer, between shell and the inner bag heat-insulation layer is housed, and shell and inner bag can adopt metal material or plastic material.Pot is provided with step or boss in the body, can install interlayer board on step or the boss, and interlayer board is provided with the heat transfer hole, can place on the heat transfer plate be used to heat, the waste heat heat tracing food that sends heat preservation food container utilization pot body bottom.
Efficient energy-saving electrothermal slow fire casserole reasonable in design, easy to use, as long as it is the food of the cooking is boiled on kitchen range, add various condiment, then food containers is placed on the heat-conducting plate on top, monoblock type chassis in pot body, cover bell, connect power supply, select heating power, set the heat tracing time, hot plate with slow fire and select top grade for use, low grade is selected in insulation for use, eats U.S., genuineness, nutritious clearly through crisp mashed tasty, the soup of the food of stewing.It only needs the small-power work of 80W, and per hour power consumption only needs several sharing money, very saves energy.Cooking process is not chosen and is looked after, whole cooking process flames of anger heating, and no oil smoke and pernicious gas produce, and help kitchen environment health and health like this.It is the kitchen cooker of a kind of energy-efficient, safety, environmental protection.
The efficient energy-saving electrothermal slow fire casserole is because pot body case and inner bag adopt metal or plastics, and configuration design is elegant in appearance, nonpoisonous and tasteless, durable in use, cleaning is convenient.Because adopt the monoblock type chassis, heat-conducting plate is equipped with on the monoblock type chassis, insulation board, combustion chamber, heat-insulation layer device are in the monoblock type chassis, and be simple and compact for structure, safe and reliable.Have the sluicing groove on the monoblock type chassis, spilled water hole is equipped with the sluicing screw, and the sluicing guide pillar can play ventilation, draining, connection location three effect greatly, makes steam unnecessary in the electric heating slow fire casserole produce convection current and forms circulation.The soup that electric heating slow fire casserole inner pressurd vessel leaks is in time discharged, and guarantees safe handling, life-saving.Can install interlayer board on the step of setting or the boss in pot body, can place the heat preservation food container that needs heating, the waste heat, the steam heated heat preservation food that utilize pot body bottom to send make full use of waste heat, and a guarantor is dual-purpose, easy to use, diversified.
Description of drawings
The utility model is described in further detail below with reference to accompanying drawing.

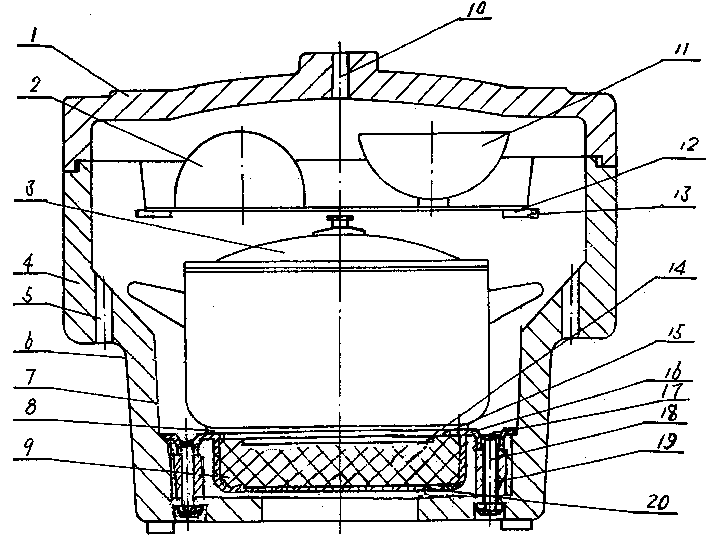

Fig. 1 is an efficient energy-saving electrothermal slow fire casserole schematic diagram.
Fig. 2 is an efficient energy-saving electrothermal slow fire casserole structural representation.
Fig. 3 is an efficient energy-saving electrothermal slow fire casserole monoblock type chassis schematic diagram.
Fig. 4 is an efficient energy-saving electrothermal slow fire casserole sluicing screw schematic diagram.
The specific embodiment
With reference to accompanying drawing 1～4, efficient energy-saving electrothermal slow fire casserole structure comprises that pot body, pot cover 1, electric control box 21, heat-conducting plate 8, insulation board 15, combustion chamber 14, heat-insulation layer 9, monoblock type chassis 16, sluicing screw 18, sluicing guide pillar 19.Monoblock type chassis 16 devices are in pot body bottom, and heat-conducting plate 8 devices are on monoblock type chassis 16, and combustion chamber 14 devices are in heat-conducting plate 8 bottoms, and device has insulation board 15 between heat-conducting plate 8 and the combustion chamber 14, and combustion chamber 14 lower devices have heat-insulation layer 9.Louvre 20 is arranged at 16 bottoms, monoblock type chassis, sluicing groove 17 is arranged on the monoblock type chassis 16, spilled water hole 26 is arranged on the sluicing groove, sluicing screw 18 devices are in spilled water hole 26, sluicing screw 18 outer cover are equipped with sluicing guide pillar 19, fixedly connected with pot body bottom by sluicing guide pillar 19.Sluicing screw 18 is provided with sluicing through hole 27, is connected with spilled water hole 26 on the 16 sluicing grooves 17 of monoblock type chassis, is used for ventilation, sluices.Pot body top is equipped with pot and is covered 1, and pot has covered passage 10.On pot body bleeder port 5 is arranged.Pot body is made of shell 6, inner bag 7, heat-insulation layer 4, between shell 6 and the inner bag 7 heat-insulation layer 4 is housed, and shell 6 can adopt metal material or plastic material to constitute with inner bag 7.Be provided with step or boss 13 in pot body, can install interlayer board 12 on step or the boss 13, interlayer board 12 is provided with the heat transfer hole, can place on the thermal insulation board be used to heat, waste heat heating, heat preservation food that heat preservation food 2, container 11 utilize pot body bottoms to send, realize that a pot is dual-purpose, make full use of heat energy, saves energy.Device has indicator lamp 22, switch 23, timer 24 on the electric control box 21, attaching plug 25, combustion chamber 14 link to each other with electric control box 21 by lead respectively, by electric control box 21 control combustion chamber heating power shelves and food stewing time, power switch and on/off, the indication of power shelves etc., control safe and reliable, extremely easy to use.
Claims (6)
1, a kind of efficient energy-saving electrothermal slow fire casserole, have pot body, pot lid, electric control box, heat-conducting plate, insulation board, combustion chamber, heat-insulation layer, it is characterized in that also having the monoblock type chassis, sluicing screw, sluicing guide pillar, the monoblock type base apparatus is in pot body bottom, the heat-conducting plate device is on the monoblock type chassis, insulation board, combustion chamber, heat-insulation layer device are in the monoblock type chassis, the sluicing groove is arranged on the monoblock type chassis, on the sluicing groove spilled water hole is arranged, sluicing grooved screw device is fixedlyed connected with pot body bottom by the sluicing guide pillar in spilled water hole.
2, efficient energy-saving electrothermal slow fire casserole according to claim 1 is characterized in that the combustion chamber device in the heat-conducting plate bottom, and device has insulation board between heat-conducting plate and the combustion chamber, and the combustion chamber lower device has heat-insulation layer.
3, efficient energy-saving electrothermal slow fire casserole according to claim 1, the body that it is characterized in that stewing is made of shell, inner bag, heat-insulation layer, between shell and the inner bag heat-insulation layer is housed.
4, according to claim 1 or 3 described efficient energy-saving electrothermal slow fire casseroles, the shell of the body that it is characterized in that stewing and inner bag adopt metal material or plastic material to constitute.
5, efficient energy-saving electrothermal slow fire casserole according to claim 1 is provided with step or boss in the body that it is characterized in that stewing, and installs interlayer board on step or the boss.
6, efficient energy-saving electrothermal slow fire casserole according to claim 5 is characterized in that interlayer board is provided with the heat transfer hole.
