The utility model of sanitary apparatus is a water-saving type sanitary apparatus water closet to fulfill convenient utilization and flexible control; the utility model is provided with a water closet on a hand basin, so as to substitute the water closet on toilet seats or squating toilets; thus, the novel water closet mounted on the hand basin can be directly connected with the toilet seat and the squating toilet. The utility model is characterized in saving water, conserving production cost and lowering sewage emission. In appearances, a water closet is under the hand basin, but two small water closets in the same size are fixed inside to frequently flush water in the toilet seat and the squating toilet; or, a discharge valve close to the toilet seat or the squating toilet can be utilized; that is to say, flushing is fulfilled with water in one water closet; as for continuous use of the toilet, we can use water in the other water closet to perform the flushing. The water volume of each small water closet exceeds that of prior water closets, and can fulfill much cleaner flushing for toilet seats or squating toilets.
Description
China is lack of water big country, and more than 400 urban water supply wretched insufficiency just arranged in domestic more than 600 cities.Lack of water has become many cities at present and has faced the problem of taking seriously that presses for.Flush toilet becomes " rich and influential family " of " spending freely " water resource.As everyone knows, the washroom uses the water of wash basin, all has been to use directly to bleed off, and never thinks regeneration.
For using water wisely, there are many people to release and install water tank at wash basin, have plenty of, the type water tank of wash basin is directly connected on the water tank of toilet bowl and Asiatic water closet pan, has plenty of, and the type water tank of wash basin is directly connected on toilet bowl and the Asiatic water closet pan.For being arranged, enough water flushes the toilet, all these inventors have preserved the water tank on the toilet bowl and Asiatic water closet pan in the past, are to have saved certain water resource, but have three kinds of disadvantages: 1, produce this sanitary equipment many again water tank, many again cover drainage pipes strengthen cost of production.2, according to people's traditional habit, all use the water tank on toilet bowl and the Asiatic water closet pan, and do not go to use the water tank of installing on the wash basin to flush the toilet, can not accomplish better water saving.3, use inconvenience, come the stranger not know to use which water tank to flush the toilet, give guest's inconvenience.
The purpose of the utility model sanitaryware just is at the problems referred to above, release a kind of easy to use, control water saving ability sanitary equipment water tank flexibly, arbitrarily control draining, I install water tank at wash basin, but I cancel the water tank that disposes on toilet bowl, the Asiatic water closet pan, and the novel water tank of installing on the wash basin is directly connected on toilet bowl and the Asiatic water closet pan.The main drawback of this novel water tank is, if use the water in the water tank, the water that can not use up as old-fashioned water tank in the water tank can have Automatic Water System, makes water tank keep normal water.
For this reason, I work out the novel water tank that solves this drawback.
This novel sanitation sanitary equipment, it is characterized in that: be provided with wash basin on the storage tank top, the storage tank two side is provided with drainage switch, be connected with stay cord between drainage switch and the draining valve, draining valve communicates with tee piece, tee piece is communicated with the water inlet pipe of water closet, is provided with the overflow pipe of control storage tank water height in the storage tank, also is provided with the separating plate that casing is divided into two parts in the storage tank.
The utility model sanitaryware (Fig. 1) simple in structure, (Fig. 3) easy to use, (Fig. 2) elegant in appearance, compared following advantage with old-fashioned sanitary equipment with old-fashioned water saving ware:
1, accomplish using water wisely, the dual water of cancellation past wash basin and toilet bowl and Asiatic water closet pan becomes single water.
2, save cost of production, cancelled the Automatic Water System of giving in the past in toilet bowl and the Asiatic water closet pan outfit water tank.
3, reduce effluent discharge, reduced the burden of urban sewage discharge.
(Fig. 3) further specifies this novel sanitation sanitary equipment in conjunction with the accompanying drawings.

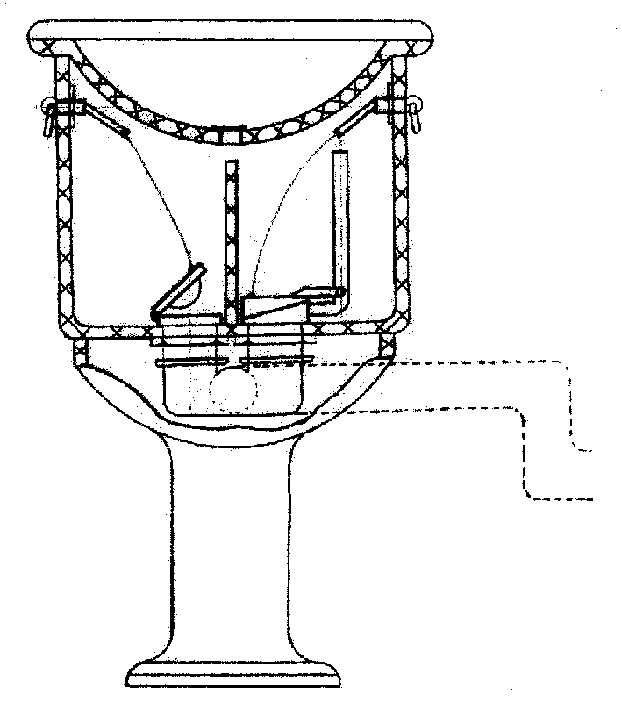

As scheme institute and give, the utility model sanitaryware structure is, and storage tank 6 stores the draining from wash basin 1 into, and drainage switch 2 pulling valves row stay cords 9 open draining valve 5, make water flow to tee piece 7 again and flow to gutter 8 through water closet 10 or pans.Overflow pipe 4, overflow pipe are deposited the automatic stream of the part that exceeds for the water of storage tank and are exceeded and establish.Separating plate 3 to separate wall and is in order to be that a water tank is divided into two little water tanks watching outward, and we use the water that washes away on toilet bowl, the Asiatic water closet pan always, the available discharging valve that closes on toilet bowl or Asiatic water closet pan, just wash away with the water in the water tank, use the lavatory continuously, we just can use the water in another water tank to wash away.Water in each little water tank all exceeds the water amount of old water tank in the past, like this toilet bowl or Asiatic water closet pan is washed away the cleaning more that is bound to.
Our washroom structure difference, toilet bowl and Asiatic water closet pan and wash basin are settled also different, but this novel sanitation sanitary equipment still are that the right side is all practical no matter toilet bowl and Asiatic water closet pan are installed in the left side of wash basin.Because inner two the little water tanks of this storage tank do not have the main negative branch of size, the draining valve that the left side that toilet bowl and Asiatic water closet pan are installed in wash basin just can be used the left side always discharges water and flushes the toilet, the draining valve that the right side that toilet bowl and Asiatic water closet pan are installed in wash basin just can be used the right always discharges water and flushes the toilet, and can accomplish easy to use.
Claims (1)
1, a kind of novel sanitation sanitary equipment, it is characterized in that: be provided with wash basin (1) on storage tank (6) top, the storage tank two side is provided with drainage switch (2), be connected with stay cord (9) between drainage switch and the draining valve (5), draining valve communicates with tee piece (7), tee piece is communicated with the water inlet pipe (8) of water closet (10), is provided with the overflow pipe (4) of control storage tank water height in the storage tank, also is provided with the separating plate (3) that casing is divided into two parts in the storage tank.
