Abstract

The utility model relates to an improved structure for soft circuit board connectors. The utility model comprises a main body seat, a plurality of first terminals, a plurality of second terminals, an active cover, and other components etc. The utility model is mainly characterized in that when the soft circuit board needs to be plugged in, the active cover can be opened outward by the pivot rotation of the pivot rotation arc pieces which are arranged at both sides thereof, and then the soft circuit board can be plugged in, then the active cover is pivot rotated to return the original position. Therefore, the support arm of the first terminal can be driven to move upward by the hook part of the linkage board thereof. The hook part of the linkage board also moves the contact convex card of the contact arm thereof to be electrically contacted with the soft circuit board. And when the active cover returns to the original position, the active cover can resist the electrically contact between the soft circuit board and the contact convex card of the second terminal contact arm. Besides, the first terminal thereof is embedded and blocked in the socket of the main body seat except by the support arm and the contact arm thereof but also by the retaining part of the fixation arm thereof which is blocked at the upper edge wall surface of the main body socket. Meanwhile, a level direction insert of the first terminal is plugged into the fixation socket of the main body. Therefore, the utility model has steady location effect.

Description

Soft Circuit Board Union improves structure

Technical field

The utility model relates to connector, refers to a kind of circuit board connector especially.

Background technology

The Soft Circuit Board Union of commonly using such as Fig. 1-shown in Figure 2, be to have following disappearance through looking into it:

1, the terminal that is embedded of the noumenal seat 7 of connector 8 since only its contact arm 81 of mat be fixed in the caulking groove 71 with support arm 82, and by interior butting section 831,832 backstops of terminal 8 both sides at caulking groove 71 both sides ora terminalis faces 711,712, so terminal 8 is relatively poor with the assembling steadiness of caulking groove 71.

2, the direct contact tappet 811 of application of force extruding flexible circuit board 9 and the contact arm 81 of terminal 8 when flexible circuit board 9 inserts (with reference to figure 1) and removable cover 90 and returns to original position downwards, contacting between therefore operation painstaking (with reference to figure 2), and flexible circuit board 9 and the contact tappet 811 gets loose easily and causes the situation of loose contact.

Summary of the invention

The purpose of this utility model, the Soft Circuit Board Union that provide that a kind of electro-contact effect is good, package assembly is firm and circuit board inserts rapid operation improves structure.

For achieving the above object, the utility model circuit board connector, system includes: a noumenal seat, before and after it, be arranged with some caulking grooves, noumenal seat also has an intercalation space that is communicated with aforementioned each caulking groove, and the two side of this noumenal seat then can be for the removable cover that is pivoted in addition: some the first terminals are that its support arm of mat and contact arm are embedded in each caulking groove of the rear side of noumenal seat respectively, the inside front of its contact arm then has contact tappet, then has linking arm between contact arm and the support arm; Some second terminals, cording have contact arm with at a distance of the suitable registration arm of distance, its registration arm of mat can be embedded in each caulking groove of the front side of noumenal seat, the inside front of its contact arm then has contact tappet; One removable cover, rear side is an interlock plate, be to be to be hubbed between the two side of noumenal seat, open the intercalation space that ageing circuit board can insert noumenal seat when removable cover outwards pivots, when the removable cover pivot returns to original position, can electrically contact with the contact tappet of the contact arm of aforementioned first and second terminal again by its interlock plate interlock flexible circuit board; It is characterized in that: this first terminal, side-lower is to be arranged with a pivot groove can supply the crotch portion of the interlock plate of removable cover to hook in its support arm, and the top of its linking arm is to extend vertical extent one fixed arm behind the suitable length laterally, this fixed arm and upwards form a stopper can be for block ora terminalis arm face on the caulking groove of noumenal seat, but and fixed arm and extend the holddown groove that the noumenal seat below is gone in a dummy slider intercalation to horizontal direction; This removable cover, side-line formation one has the crotch portion of concave arc behind its interlock plate, and the front side of its two side has short slot and be convexly equipped with a guiding skewback, and the rear side of two side has the guiding nahlock that extends outside pivot arc piece and the pivot arc piece, and its importing skewback of mat can make removable cover embed in the chute of its two side to approach 90 degree angle directions with noumenal seat with the guiding nahlock; This noumenal seat, tie up to its rear side and be preset with holddown groove in addition, its two side then symmetry has the block of different-thickness, and each block and have chute, and the thin block of aforementioned both sides and communicating with the default short slot in two side for the pivot joint of the pivot arc piece of removable cover.

Description of drawings

Fig. 1 system commonly uses that the product flexible circuit board has inserted but removable cover does not return to the sectional schematic diagram of original position as yet.

Fig. 2 system commonly uses that the product flexible circuit board has inserted and removable cover has returned to the sectional schematic diagram of original position.

Fig. 3 is the wherein stereogram of noumenal seat of the utility model embodiment.

Fig. 4 is the wherein stereogram of removable cover of the utility model embodiment.

Fig. 5 is the wherein plane enlarged drawing of the first terminal of the utility model embodiment.

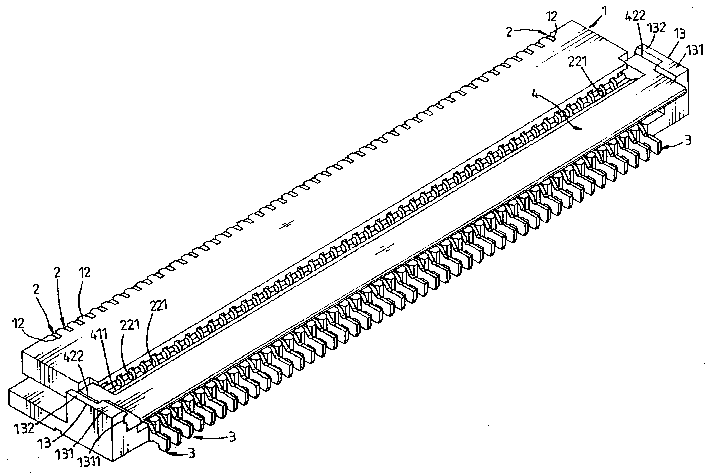

Fig. 6 is the three-dimensional combination figure of the utility model embodiment.

Fig. 7 is the compound section figure of the utility model embodiment.

Fig. 8 be the utility model embodiment wherein removable cover outwards pivot and open and the sectional schematic diagram of flexible circuit board after inserting.

Fig. 9 be the utility model embodiment wherein flexible circuit board insert the disconnected schematic diagram that back and removable cover return to original position.

Embodiment

As Fig. 3-shown in Figure 9, a kind of Soft Circuit Board Union of the utility model improves structure, is to include:

One noumenal seat 1, system is provided with some caulking grooves 11,12 (in addition with reference to figure 7) respectively for being embedded some second terminals 3 and the first terminal 2 respectively before and after it, and noumenal seat 1 also has an intercalation space A (with reference to figure 7) who is communicated with aforementioned each caulking groove, and 13 of the two sides of this noumenal seat 1 can be for being pivoted a removable cover 4 in addition;

Some the first terminals 2 are that its support arm of mat 21 and contact arm 22 are embedded in each caulking groove 12 of the rear side of noumenal seat 1 respectively, and the inside front of its contact arm 22 then has contact tappet 221, then has linking arm 23 between contact arm 22 and the support arm 21;

Some second terminals 3, cording have contact arm 31 with at a distance of the suitable registration arm 32 of distance, its registration arm 32 of mat can be embedded in each caulking groove 11 of the front side of noumenal seat 1, the inside front of its contact arm 31 then has contact tappet 311;

One removable cover 4, rear side is an interlock plate 41, be to be to be hubbed between the two side 13 of noumenal seat 1, flexible circuit board 5 (with reference to figure 8) can insert the intercalation space A of noumenal seat 1 when removable cover 4 outwards pivots unlatching, can electrically contact (with reference to figure 9) with the contact tappet 221,311 of the contact arm 22,31 of aforementioned first and second terminal 2,3 by its interlock plate 41 interlock flexible circuit boards 5 again when removable cover 4 pivots return to original position;

It is characterized in that:

This first terminal 2, side-lower is to be arranged with a pivot groove 211 can supply the crotch portion 411 of the interlock plate 41 of removable cover 4 to hook in its support arm 21, and the top of its linking arm 23 is to extend vertical extent one fixed arm 24 behind the suitable length laterally, this fixed arm 24 and upwards form a stopper 25 can be for block ora terminalis arm face 121 on the caulking groove 12 of noumenal seat 1, but and fixed arm 24 1 ends and extend the holddown groove 15 that noumenal seat 1 below is gone in a dummy slider 241 intercalations to horizontal direction;

This removable cover 4, its interlock plate 41 back side-lines formation one have the crotch portion 411 of concave arc, and the front side of its two side 42 has short slot 420 and be convexly equipped with a guiding skewback 421, and the rear side of two side 42 then has the guiding nahlock 423 that pivot arc piece 422 and pivot arc piece 422 outsides extend, and it imports mat skewback 421 and can make this removable cover 4 embed in the chute 131 of its two side 13 to approach 90 degree angle directions with noumenal seat 1 with guiding nahlock 423;

This noumenal seat 1, tie up to its rear side and be preset with holddown groove 15 in addition, its two side 13 then symmetry has the block 131,132 of different-thickness, and each block 131,132 also has

chute

1311,1321, and the thin block 132 of aforementioned both sides and communicating with two side 13 default short slots 133 for the pivot joint of the pivot arc piece 422 of removable cover 4;

By aforementioned feature, but the importing skewback 421 of removable cover 4 its both sides of mat with import nahlock 423 to be in the

chute

1311,1321 of two side 13 that angles near 90 degree embed this noumenal seat 1 with noumenal seat 1, removable cover 4 can be covered on noumenal seat 1 backward along work two chutes 131,132 after 90 degree even pivot then, and the pivot arc piece 422 that just makes its both sides is positioned at short slot 133 positions of the both sides of noumenal seat 1, and also makes the crotch portion 411 of the interlock plate 41 of removable cover 4 can hook the pivot groove 211 of the support arm 21 of each the first terminal 2; Be with when desire is inserted flexible circuit board 5, but its two routine pivot arc piece 422 of removable cover 4 mats pivots and outwards opens, with flexible circuit board 5 being inserted (with reference to figure 8), and then removable cover 4 pivoted and reversion original position (with reference to figure 9), can be by the support arm 21 of the crotch portion 411 interlock the first terminals 2 of its interlock plate 41 to top offset, and the contact tappet 221 of its contact arm 22 of interlock electrically contacts with flexible circuit board 5, then just can compress flexible circuit board 5 and electrically contact with the contact tappet 311 of the contact arm 31 of second terminal 3 when removable cover 4 returns to original position.

In addition, 13 front sides, two side of aforementioned noumenal seat 1 be symmetry have that a rectangular projection 134 can be beneficial to the vibrations feeder sort the feeding operation.

In sum, the utility model can be concluded and be had following effect:

1, the first terminal 2 is except its support arm 21 of mat and contact arm 22 are embedded in the caulking groove 12 of noumenal seat 1, more by stopper 25 blocks of its fixed arm 24 ora terminalis wall 121 on the caulking groove 12 of noumenal seat 1, and go in the holddown groove 15 of noumenal seat 1 by dummy slider 241 intercalations of its horizontal direction simultaneously, therefore have firm locating effect.

2, when desire is inserted flexible circuit board 5, but its both sides pivot arc piece 422 of removable cover 4 mats pivots and outwards opens, with flexible circuit board 5 being inserted, and then removable cover 4 pivoted and the reversion original position, can electrically contact with flexible circuit board 5 to the contact tappet 221 of top offset and its contact arm 22 of interlock by the support arm 21 of the crotch portion 411 interlock the first terminals 2 of its interlock plate 41, then just can compress flexible circuit board 5 when removable cover 4 returns to original position electrically contacts with the contact tappet 311 of the contact arm 31 of second terminal 3, therefore relatively also reaching flexible circuit board 5 can be with first, two-terminal 2,3 contact tappet 221,311 have more stable electrical contact, thereby have the effect that reduces loose contact product raising ratio defective product.

3, but its both sides of removable cover 4 mats import skewback 421 and guide nahlock 423 and directly embed in its two

chute

1311,1321 with the angle direction with noumenal seat 1 nine ten degree, and the assembling of this kind angle also is convenient to cooperate the automation assembling of automation assembly mechanical.

4,13 front sides, two side of connector body seat 1 are to be arranged with rectangular projection 134, can be beneficial to the feeding operation of vibrations feeder.

5, flexible circuit board 5 insert connector body seats 1 and removable cover 4 to cover action laborsaving simply again.

Claims

1, a kind of Soft Circuit Board Union improves structure, is to include:

One noumenal seat is arranged with some caulking grooves before and after it, noumenal seat also has an intercalation space that is communicated with aforementioned each caulking groove, and the two side of this noumenal seat then can supply to be pivoted a removable cover in addition:

Some the first terminals are that its support arm of mat and contact arm are embedded in each caulking groove of the rear side of noumenal seat respectively, and the inside front of its contact arm then has contact tappet, then has linking arm between contact arm and the support arm;

Some second terminals, cording have contact arm with at a distance of the suitable registration arm of distance, its registration arm of mat can be embedded in each caulking groove of the front side of noumenal seat, the inside front of its contact arm then has contact tappet;

One removable cover, rear side is an interlock plate, be to be to be hubbed between the two side of noumenal seat, open the intercalation space that ageing circuit board can insert noumenal seat when removable cover outwards pivots, when the removable cover pivot returns to original position, can electrically contact with the contact tappet of the contact arm of aforementioned first and second terminal again by its interlock plate interlock flexible circuit board;

It is characterized in that:

This first terminal, side-lower is to be arranged with a pivot groove can supply the crotch portion of the interlock plate of removable cover to hook in its support arm, and the top of its linking arm is to extend vertical extent one fixed arm behind the suitable length laterally, this fixed arm and upwards form a stopper can be for block ora terminalis arm face on the caulking groove of noumenal seat, but and fixed arm and extend the holddown groove that the noumenal seat below is gone in a dummy slider intercalation to horizontal direction;

This removable cover, side-line formation one has the crotch portion of concave arc behind its interlock plate, and the front side of its two side has short slot and be convexly equipped with a guiding skewback, and the rear side of two side has the guiding nahlock that extends outside pivot arc piece and the pivot arc piece, and its importing skewback of mat can make removable cover embed in the chute of its two side to approach 90 degree angle directions with noumenal seat with the guiding nahlock;

This noumenal seat, tie up to its rear side and be preset with holddown groove in addition, its two side then symmetry has the block of different-thickness, and each block and have chute, and the thin block of aforementioned both sides and communicating with the default short slot in two side for the pivot joint of the pivot arc piece of removable cover.

2, Soft Circuit Board Union according to claim 1 improves structure, it is characterized in that the front side, two side of this noumenal seat is that symmetry has a rectangular projection.
