CN2537828Y - Oil saving purifier for motorcycle

Info

Publication number: CN2537828Y
Application number: CN02221875U
Authority: CN
Inventors: 周一兵
Original assignee: JILONG MACHINERY MANUFACTURING Co Ltd CHONGQING
Current assignee: JILONG MACHINERY MANUFACTURING Co Ltd CHONGQING
Priority date: 2002-03-14
Filing date: 2002-03-14
Publication date: 2003-02-26
Anticipated expiration: 2012-03-14

Abstract

The utility model relates to a motorcycle fuel saving and purifying device. The utility model comprises a fuel steam recycling device installed between the fuel tank and the carburetor, a secondary air rejecting device installed on the cylinder head of the engine, and a three-way catalytic converter installed in the sound silencer. The fuel steam recycling device and the secondary air rejecting device are respectively controlled by a negative pressure pipe connected with the air intake opening of the engine. The fuel steam recycling device comprises an activated carbon canister (1) and an air controlling valve (2) at the upper part of the activated carbon canister; polyurethane froth (3) and activated carbon (4) are alternatively installed in the activated carbon canister. The secondary air rejecting device comprises a secondary air rejecting pipe (15), a leaf valve (16), and an air isolating valve (17). The utility model has the advantages that the structure is simpler, the fuel saving rate is high, and the noxious gas in the emitted exhaust gas is small. The noxious gas in the emitted exhaust gas of the motorcycle engine is lower than the common motorcycle, and the utility model can reach the standards of the national and the relevant local environment protection laws and regulations.

Description

A kind of motorcycle oil-saving purifier

Technical fieldThe utility model relates to the additional device of motor, particularly a kind of motorcycle oil-saving purifier.

Technical background

The fuel-steam that the motorcycle tank ventilating hole is discharged is atmosphere pollution not only, and causes fuel loss; Contain harmful gases such as carbon monoxide, hydrocarbon in the waste gas that motorcycle engine is discharged, more very big to the pollution of environment.In order to save fuel oil, to reduce the harmful gas that motor is discharged, people have designed diversified motor additional device.It is that ZL99229032, name are called the utility model patent of " the comprehensive oil-saving purifier of automobile " that the Chinese patent communique is announced the patent No. on March calendar year 2001 28, it is characterized in that fuel supply line is provided with efficient magnet steel, string has air supplementing fog intensifying device between air-strainer and the Carburetor, waste pipe is provided with heat exchanger, be connected by secondary intake pipes between the outlet of heat exchanger and the import of air supplementing fog intensifying device, the import of heat exchanger is serially connected with air throttle, ozonizer and empty filter; Have additional exhaust tube in the import of air-strainer, be connected with the engine crankcase air outlet after being serially connected with the condensation oil trap on the exhaust tube.This patented technology increases than the prior art fuel saving ratio, and harmful gas emission reduces, but its structure is comparatively complicated.

The content of innovation and creation

The purpose of this utility model is to provide that a kind of structure is comparatively simple, fuel saving ratio is high, and it is few to give off in the tail gas harmful gas, can reach the motorcycle oil-saving purifier of national environmental protection statutory standard.

A kind of motorcycle oil-saving purifier, comprise the fuel-steam recover that is installed between fuel tank and the Carburetor, be installed in AIR Air Injector Reactor on the engine cylinder head, be installed in the TWC Three Way Catalytic catalyst in the silencing apparatus, it is characterized in that: fuel-steam recover and AIR Air Injector Reactor all communicate with engine intake, and the TWC Three Way Catalytic catalyst is located at the outlet of waste pipe.

Described a kind of motorcycle oil-saving purifier, its fuel-steam recover comprises the air shut-off valve on activated carbon canister and activated carbon canister top, activated carbon canister and air shut-off valve are an integral body; Alternate polyurethane foam and active carbon are housed in the activated carbon canister; The lower end of activated carbon canister is provided with relief opening and drain opening; Air shut-off valve is made up of valve body, valve gap, diaphragm, elastic element, and the suction tude of air shut-off valve is connected with the air outlet of fuel tank, and steam outlet pipe communicates with Carburetor; The negative pressure pipe communicates with the suction port of motor; Diaphragm is subjected to the variation in pressure of the negative pressure pipe that communicates with engine intake and moves up and down; The inflammable gas of active carbon adsorption is imported in the Carburetor.Thereby reduced the pollution of the hydrocarbon and nitrogen oxide in the fuel-steam to atmosphere, can also reach the purpose of saving fuel oil, motorcycle per 100 km fuel consumption can reduce about 10% after tested.

Described a kind of motorcycle oil-saving purifier is characterized in that AIR Air Injector Reactor comprises secondary air injection tube, leaf valve, air cutoff valve; Leaf valve is made up of valve seat, valve gap, reed; Air cutoff valve is made up of suction port seat, valve body, loam cake, valve film, poppet shaft, valve core spring and piston; Secondary air injection tube one end communicates with engine exhaust pipe, and the other end communicates with the air outlet of leaf valve, and the suction port of leaf valve communicates with the air outlet of air cutoff valve, and the suction port of air cutoff valve communicates with atmosphere; Be contained in air cutoff valve on the negative pressure pipe that covers communicate with engine intake; Move up and down with the control valve diaphragm, drive the suction port that piston opens or closes air cutoff valve thereupon.Utilize negative exhaust pressure that fresh air is imported in the engine exhaust port and mix, make it that oxidation reaction take place, reduced noxious gas emission with waste gas.Can prevent also that high engine speeds when running from producing blows out phenomenon.

Described a kind of motorcycle oil-saving purifier is characterized in that the surface of TWC Three Way Catalytic catalyst is cellular, and is coated with precious metal; Its role is to the carbon monoxide in the waste gas, hydrocarbon are converted into carbon dioxide and water.

The utility model is compared with prior art, has that structure is comparatively simple, fuel saving ratio is high, gives off the few advantage of harmful gas in the tail gas.Contrast adopts the harmful gas in the motorcycle engine exhaust gas discharged of the present utility model to be lower than common motorcycle by experiment, and [CO] reaches below 2.5%, and [HC] reaches below the 300ppm, can reach the standard of country and relevant local environmental regulation.

Description of drawings

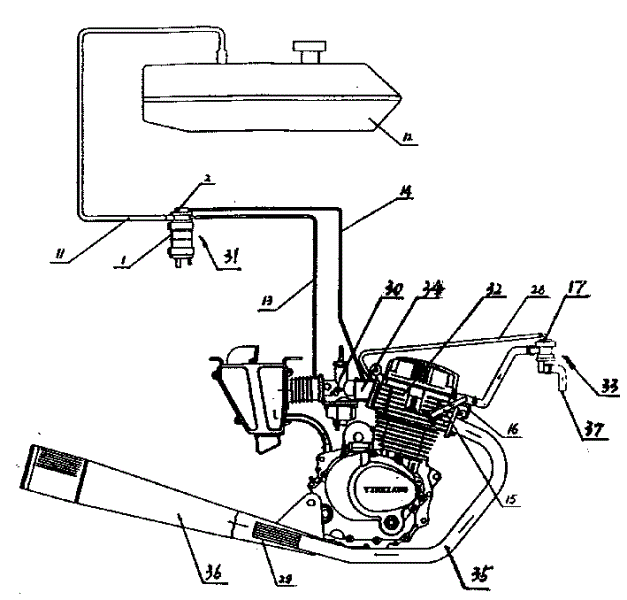

Fig. 1 is a model utility mounting point schematic representation.

Fig. 2 is a fuel-steam recover structural representation.

Fig. 3 is the structural representation of the air cutoff valve of AIR Air Injector Reactor.

Fig. 4 is the structural representation of the leaf valve of AIR Air Injector Reactor.

Fig. 5 is a TWC Three Way Catalytic catalyst structural representation.

Embodiment

Referring to Fig. 1, with top is air shut-off valve 2, the bottom be the lower end be provided with relief opening 5 and drain opening 6, in the activated carbon canister 1 of alternate polyurethane foam 3 and active carbon 4 is housed fuel-steam recover 31 be contained between fuel tank 12 and the Carburetor 30, the suction tude 11 of air shut-off valve 2 is connected with fuel tank 12 air outlets, and steam outlet pipe 13 communicates with Carburetor 30;

Referring to Fig. 2, the valve body 7 and the activated carbon canister 1 of air shut-off valve 2 are an integral body, elastic element 10 and diaphragm 9 are installed in it, with valve gap 8 sealings, the negative pressure pipe 14 of air shut-off valve 2 communicates with the suction port 34 of motor 32, and diaphragm 9 is subjected to the variation in pressure of negative pressure pipe 14 and moves up and down, and participates in burning in the inflammable gas importing Carburetor 30 with active carbon 4 absorption, thereby reduced the pollution of the hydrocarbon and nitrogen oxide in the fuel-steam, can also reach the purpose of saving fuel oil atmosphere;

Referring to Fig. 1, Fig. 3 and Fig. 4, one end of the secondary air injection tube 15 of AIR Air Injector Reactor 33 communicates with engine exhaust pipe 35, the other end with by valve seat 18, valve gap 19, the air outlet of the leaf valve 16 that reed 20 is formed communicates, the suction port of leaf valve 16 with by suction port seat 21 valve bodies 22, loam cake 23, valve film 24, poppet shaft 25, valve core spring 26 communicates with the air outlet of the air cutoff valve 17 that piston 27 is formed, the suction port 37 of air cutoff valve 17 communicates with atmosphere, the negative pressure pipe 28 that is contained on the loam cake 23 of air cutoff valve 17 communicates with engine intake 34, and control valve diaphragm 24 moves up and down, and drives the suction port that piston 27 opens or closes air cutoff valve thereupon.Utilize negative exhaust pressure that fresh air is imported in the engine exhaust pipe 35 and mix, make it that oxidation reaction take place, reduced noxious gas emission with waste gas.Can prevent also that high engine speeds when running from producing blows out phenomenon.

Referring to Fig. 1 and Fig. 5, the TWC Three Way Catalytic catalyst 29 that the surface is cellular and is coated with precious metal is installed in the silencing apparatus 36, the carbon monoxide in the waste gas, hydrocarbon can be converted into carbon dioxide and water.

Claims

1, a kind of motorcycle oil-saving purifier, comprise the fuel-steam recover (31) that is installed between fuel tank (12) and the Carburetor (30), be installed in AIR Air Injector Reactor (33) on motor (32) cylinder head, be installed in the TWC Three Way Catalytic catalyst (29) in the silencing apparatus (36), it is characterized in that: fuel-steam recover (31) and AIR Air Injector Reactor (33) all communicate with engine intake (34), and TWC Three Way Catalytic catalyst (29) is located at the outlet of the outlet pipe (35) of motor (32).

2, a kind of motorcycle oil-saving purifier according to claim 1 is characterized in that fuel-steam recover (31) comprises the air shut-off valve (2) on activated carbon canister (1) and activated carbon canister top, and activated carbon canister and air shut-off valve are an integral body; Alternate polyurethane foam (3) and active carbon (4) are housed in the activated carbon canister; The lower end of activated carbon canister is provided with relief opening (5) and drain opening (6); Air shut-off valve (2) is made up of valve body (7), valve gap (8), diaphragm (9), elastic element (10), and the suction tude of air shut-off valve (11) is connected with the air outlet of fuel tank (12), and steam outlet pipe (13) communicates with Carburetor (30); Negative pressure pipe (14) communicates with the suction port (34) of motor.

3, a kind of motorcycle oil-saving purifier according to claim 1 is characterized in that AIR Air Injector Reactor (33) comprises secondary air injection tube (15), leaf valve (16), air cutoff valve (17); Leaf valve is made up of valve seat (18), valve gap (19), reed (20); Air cutoff valve is made up of with piston (27) suction port seat (21), valve body (22), loam cake (23), valve film (24), poppet shaft (25), valve core spring (26); Secondary air injection tube (15) one ends communicate with engine exhaust pipe (35), the other end communicates with the air outlet of leaf valve (16), the suction port of leaf valve (16) communicates with the air outlet of air cutoff valve (17), and the suction port of air cutoff valve (37) communicates with atmosphere; The negative pressure pipe (28) that is contained on the loam cake (23) of air cutoff valve (17) communicates with engine intake (34).

4, a kind of motorcycle oil-saving purifier according to claim 1 is characterized in that the surface of TWC Three Way Catalytic catalyst (29) is cellular, and is coated with precious metal.
