Abstract
A turbine type automatic cleaner comprises a circular turbine casing and a turbine which is arranged in the turbine casing by a shaft, wherein the back side of the turbine casing is provided with an upper cover of the turbine casing, and the front side of the turbine is provided with a brush which is arranged on the shaft. The turbine casing is provided with an oblique inlet port, a hard inlet pipe is connected with the position relative to the inlet port, and the circumference of the turbine casing is upwards provided with a water-proof cover. The brush is directly pulled by flow to rotate. The utility model has the advantages of water saving, electric saving, high work efficiency and good cleaning effect. The utility model not only can clean vehicles, but also can clean indoor and outdoor buildings.
Description
The utility model belongs to the brush technical field that is used for the cleaning objects surface.
The hand-operated tools that is used for the cleaning of objects surface at present mainly contains flush-type and plug-type, and water resource waste is serious during use, and operating efficiency is lower, and labour intensity is big, and cleaning performance is not good.Though electronic cleaning means high efficiency, complex structure is manufactured the cost height, and it is convenient inadequately to use.The patent No. is " multi-functional jet cleaning device " utility model of 97214622, cleans preferably and water-saving result though have, and its mechanism is too complicated, is difficult to promote the use of.
The purpose of this utility model provide a kind of simple in structure, save water and energy, cleaning performance is good scrubs apparatus.
For achieving the above object, the utility model by the following technical solutions: it has the turbine case of a circle and is installed in turbine in the turbine case by rotating shaft, and the turbine case loam cake is equipped with at the turbine case back side, and there is the hairbrush in the rotating shaft of being contained in the front of turbine.Have oblique water inlet on the turbine case, be connected with the hard water inlet pipe, bucker upwards also is housed in turbine case week corresponding to the water inlet.
The utility model has several water-dividing chambers on turbine case, corresponding to each water-dividing chamber one delivery port is arranged.The utility model also has water flow control valve on water inlet pipe.
The utility model has the advantages that simple in structurely, directly utilize current to promote the hairbrush rotation, water saving, economize on electricity, high efficiency is scrubbed effective, easy to use.Both can scrub vehicle, and can carry out the indoor and outdoor building again and clean, applied widely.
The utility model is described in further detail below in conjunction with drawings and Examples.

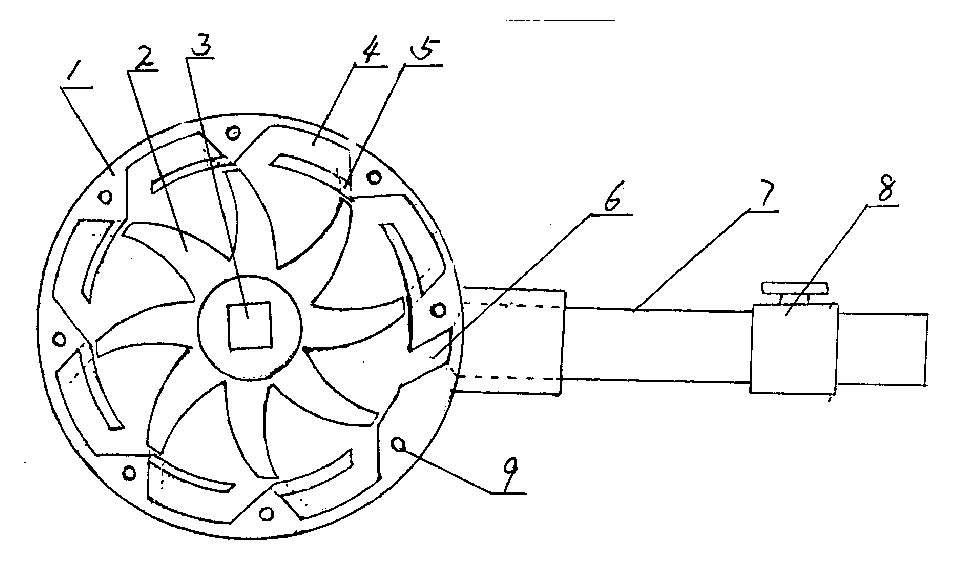

Fig. 1 is the front view of the utility model when being unkitted hairbrush, turbine case loam cake and bucker, mainly shows the structure of turbine case and turbine;
Fig. 2 is the front view of hairbrush;
Cut open figure in Fig. 3 turbine case;
Fig. 4 is the front view of rotating shaft;
Fig. 5 is the stereogram of bucker.
In the embodiment that accompanying drawing provides, the utility model has the turbine case 1 of a circle, has several holes 9 on the turbine case 1, and the screw 12 that utilizes screw to pass on the turbine case loam cake 11 is installed in the back side of turbine case 1 with it.Rotating shaft 3 is pegged graft by two parts and is constituted, and existing circular portion has projected square part again, and has two round boss 13, so that install.At rotating shaft 3 middle parts turbine 2 is housed, the turbine type hairbrush 10 in the rotating shaft of being contained in is arranged in the front of turbine 2.Have oblique water inlet 6 on the turbine case 1, and have several water-dividing chambers 4, each water-dividing chamber has a delivery port 5.Be connected with the hard water inlet pipe 7 that doublely to do handgrip corresponding to water inlet 6 places, on water inlet pipe 7, have water flow control valve 8.The horn-like rubber waterproof cover 14 that water droplet flashes when preventing work upwards also is being housed in turbine case 1 week.
During work, available flexible pipe is connected the utility model with the water source with certain pressure, by water flow control valve 8 control water yield sizes, and when current enter turbine case 1 by water inlet 6, directly impulse turbine 2 rotations, thus drive hairbrush 10 rotations by rotating shaft 3.The current that enter turbine case 1 also are divided in the water-dividing chamber 4 on the turbine case 1 when promoting turbine 2 rotations, and are discharged and impulse turbine formula hairbrush 10 again by the flat inclined delivery port 5 of water-dividing chamber bottom.
Claims (3)
1, a kind of turbine type automatic cleaning machine, it is characterized in that having turbine case (1) and be installed in turbine (2) in the turbine case (1) by rotating shaft (3), turbine case loam cake (11) is equipped with at turbine case (1) back side, there is the hairbrush (10) in rotating shaft of being contained in (3) front of turbine (2), have oblique water inlet (6) on the turbine case (1), locate to be connected with hard water inlet pipe (7) corresponding to water inlet (6), bucker (14) upwards also is housed in turbine case (1) week.
2, turbine type automatic cleaning machine according to claim 1 is characterized in that having several water-dividing chambers (4) on turbine case (1), corresponding to each water-dividing chamber (4) delivery port (5) is arranged.
3, turbine type automatic cleaning machine according to claim 1 is characterized in that having water flow control valve (8) on water inlet pipe (7).
