CN2464646Y - Foldable hexahedron package box - Google Patents
Foldable hexahedron package box Download PDFInfo
- Publication number
- CN2464646Y CN2464646Y CN 01203815 CN01203815U CN2464646Y CN 2464646 Y CN2464646 Y CN 2464646Y CN 01203815 CN01203815 CN 01203815 CN 01203815 U CN01203815 U CN 01203815U CN 2464646 Y CN2464646 Y CN 2464646Y
- Authority
- CN
- China
- Prior art keywords
- plate
- coaming
- capping
- connecting plate
- fold line
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cartons (AREA)
Abstract
The utility model relates to a foldable hexahedron package box. The lower part of one coaming is extended with a hexagonal backplane and both sides of the coaming are respectively provided with a fan-shaped and a triangular connecting plates. The lower side of the other coaming is provided with a backplane sticking plate. The upper opening of one coaming is extended with a sealing cover and an insertion tongue is arranged on the sealing cover. Coamings on both sides of the sealing cover are respectively provided with a lapping plate and an inner sealing cover is arranged on an opposing coaming. The utility model can be rapidly pulled and spread into a box shape or folded into a flat plate shape in the state of non-use, which is in favor of storage and transportation.
Description
The utility model relates to fold blank to constitute the tubular body container, has by tubular body to extend and inwardly be folded to form osed top end, particularly a kind of six Foldable package boxes around the tubular body end continuously.
The existing packing chest made from the cardboard material generally by 4 coaming plates, also is that dash shield, rear end panel, 2 gusset plates are crowded around the bonding back and constituted tubular body, and bottom and extension by 4 coaming plates suitable for reading are inwardly folding, press card with closed at both ends mutually.This type of tetrahedron square box can be folded into tabular soon under non-working condition, store shared volume in the transportation to reduce.Though existing hexahedron packing box can make packing box appearance looks novelty, but its cassette shapes is fixed, lid also is provided with six short coaming plates, shape is also fixed, box body, lid all can not be folded into tabular, thereby under non-working condition, occupy equally than large space, give to store to transport and make troubles.
The purpose of this utility model provides a kind of hexahedron Foldable package box, can improve the moulding of packing box, can be folded into plate shapedly again under non-working condition, is taken up space to reduce.
For achieving the above object, the utility model is taked following design plan: establish fold line between the coaming plate of 6 equalizations, the hexagon base plate is extended in the below of a coaming plate therein, it is parallel with the coaming plate base to establish broken line at this base plate middle part, under its adjacent coaming plate in left side, extend fan-shaped connecting plate, the straight line of this connecting plate and coaming plate base are 120 degree angles, on the mean line of fan-shaped connecting plate, establish fold line, below this connecting plate left side coaming plate, extend the triangle connecting plate, identical at set fan-shaped connecting plate in hexagon base plate right side and triangle connecting plate with above-mentioned 2 connecting plate shapes structure, establish a base plate adhesion sheet below all the other coaming plates, the base of each coaming plate is folding wire; The hexagon capping is extended in the upper edge of a coaming plate therein, extend tongue on limit, the hexagon first half left and right sides, establish fold line between tongue and capping, lap plate is extended in upper edge at capping both sides coaming plate, and establish fold line, extend interior capping in the coaming plate upper edge relative with the coaming plate of establishing capping, and establish fold line, interior capping is 100-120 degree angle near fold line place dual-side abduction and fold line.
This hexahedron Foldable package box is after blank shape is made in shearing, 2 coaming plates of blank ragged edge are docked, constitute tubular body, then with base plate adhesion sheet and base plate invagination, and adhesion sheet is bonded on the plate inner surface, again with triangle connecting plate and fan-shaped connecting plate invagination and the two is adhered to one another, the side of triangle connecting plate overlaps with fan-shaped connecting plate middle part fold line, this moment fan-shaped connecting plate and base plate broken line in-line, base plate and each connecting plate are pushed in tubular body, and 6 coaming plates merge in twos relatively, become tabular, with the finished product of this state, be convenient to carton factory and user and store as the packed in cases box, transportation, carry.The user need only stretch it when using this packing box, and its base plate is flattened can be used.After the material of packing into, with the lap plate and the interior capping invagination on coaming plate top, the coaming plate upper limb place that tubular body 2 faces are not established extension forms 2 jacks, and is corresponding with 2 tongue positions in the capping, when capping folding be covered in box body suitable for reading after, tongue is inserted jack box body can be sealed.This hexahedron packing box has solved existing hexahedron packing box and can not fold, and big problem takes up space.
The utility model is described in further detail below in conjunction with accompanying drawing.

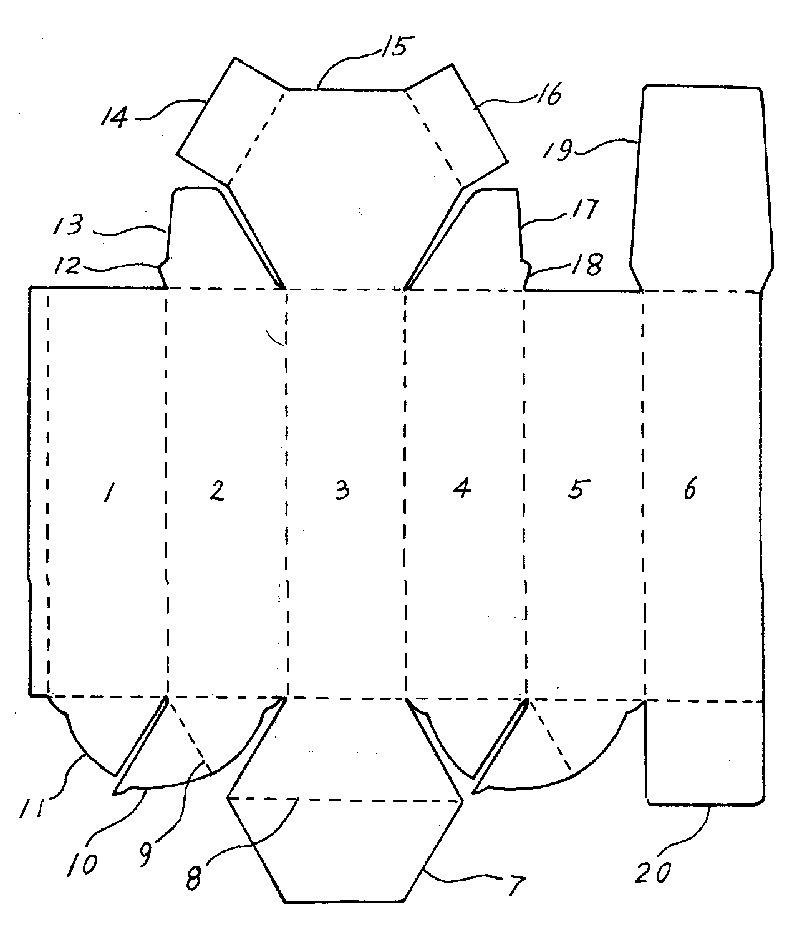

Fig. 1 is the utility model blank expansion drawing
Fig. 2 is this hexahedron Foldable package box bottom surface bonding scheme drawing
Fig. 3 is a stereo appearance figure of the present utility model
As shown in Figure 1, between the coaming plate (1-6) of 6 equalizations, establish fold line, hexagon base plate 7 is extended in coaming plate 3 belows therein, it is parallel with the coaming plate base to establish broken line 8 at this base plate middle part, below its adjacent coaming plate 2 in left side, extend fan-shaped connecting plate 10, the straight line of this connecting plate and coaming plate base plate are 120 degree angles, on the mean line of quadrant, establish fold line 9, below this connecting plate left side coaming plate 1, extend triangle connecting plate 11, connecting plate 10 and 11 is near semi-circular shape after launching side by side, identical at set fan-shaped connecting plate in hexagon base plate right side and triangle connecting plate with above-mentioned 2 connecting plates structure, below all the other coaming plates, extend base plate adhesion sheet 20, the base of each coaming plate is folding wire, hexagon capping 15 is extended in coaming plate 3 upper edges therein, on limit, the hexagon first half left and right sides, extend tongue 14,16, establish fold line between tongue and capping, lap plate 13 is extended in coaming plate upper edge in band capping coaming plate both sides, 17, and establish fold line, capping 19 in extend the coaming plate upper edge relative with establishing the capping coaming plate, and establish fold line, interior capping is 100-120 degree angle near fold line place dual-side abduction and fold line.For the box body that makes 13,17 pairs of expansion of above-mentioned lap plate has certain support power, can extend a triangle inner support sheet 12,18 near the fold line place in above-mentioned lap plate outer side edges, inner support sheet outer side edges and fold line angle are the 100-120 degree.The length of capping equals the distance between hexagon capping two opposite side in can also making, and makes its outer end withstand relative coaming plate.For the ease of cutting out and reasonable materials, fan-shaped connecting plate and triangle connecting plate are near semicircle shape after launching side by side.
Claims (4)
1, a kind of hexahedron Foldable package box, be provided with 6 coaming plates, it is characterized in that: extend the hexagon base plate in the below of a coaming plate wherein, it is parallel with the coaming plate base to establish broken line at this base plate middle part, under its adjacent coaming plate in left side, extend fan-shaped connecting plate, the straight line of this connecting plate and coaming plate base are 120 degree angles, on the mean line of fan-shaped connecting plate, establish fold line, below this connecting plate left side coaming plate, extend the triangle connecting plate, identical at set fan-shaped connecting plate in hexagon base plate right side and triangle connecting plate with above-mentioned 2 connecting plate shapes structure, establish a base plate adhesion sheet below all the other coaming plates, the base of each coaming plate is folding wire; The hexagon capping is extended in the upper edge of a coaming plate therein, extend tongue on limit, the hexagon first half left and right sides, establish fold line between tongue and capping, lap plate is extended in upper edge at capping both sides coaming plate, and establish fold line, extend interior capping in the coaming plate upper edge relative with the coaming plate of establishing capping, and establish fold line, interior capping is 100-120 degree angle near fold line place dual-side abduction and fold line.
2, hexahedron Foldable package box according to claim 1 is characterized in that: a triangle inner support sheet is extended near the fold line place in the above-mentioned lap plate outside, and inner support sheet outer side edges and fold line angle are the 100-120 degree.
3, hexahedron Foldable package box according to claim 1, it is characterized in that: the length of interior capping equals the distance of hexagon capping two opposite side.
4, hexahedron Foldable package box according to claim 1 is characterized in that: fan-shaped connecting plate and triangular plate are near semi-circular shape after launching side by side.
