The utility model relates to a tea infuser, comprising a container, an inner cup, an outer cup, and a cup cover used for covering. The outer cup is arranged in the container, the inner cup is arranged in the outer cup, and a positioning piece is clamped with a positioning opening to form into an airtight state. A blocking block below a protuberant apron of the top end of the inner cup is clamped in a groove which is between two protuberant blocks above a flange of the top end of the outer cup, and the blocking block and the groove is in a positioning state. The utility model relates to a tea infuser which is easy to control the concentration of tea extract, and the time of making tea; making and filtering tea can be completed once.
Description
The utility model relates to a kind of tealeaves and brews device, relates in particular to a kind ofly to be easy to control tea juice concentration, brewing time, and brews and filter one step completed tealeaves and brew device.
Along with growth in the living standard, people more and more pay attention to recreation, invite several friends' heart-to-heart talk of sampling tea on ordinary days, it is many people's favorite, the right product tea time, the employed device that brews, because of uncontrollable brew tea juice concentration and time and can't make brew filtration and once finish, and make the temperament and interest of sampling tea have a greatly reduced quality.
The present being seen device that brews, shown in Fig. 7,8, mostly combine by a kettle body 5 and a lid 6, its kettle body 5 top end opening bottoms sealing, side outwards is convexly equipped with a delivery port 51, and another side is established a handgrip 52, and dispose into a lid 6 in top end opening, yet, undesirable on project organization because of the known device that brews, following shortcoming is consequently arranged in the use:
When 1, brewing tealeaves, can't observe the tea juice concentration change because of integral body is opaque, make the person of brewing can't obtain to be fit to the tea juice of individual taste, more may be of a specified duration excessively because of brewing time, and produce bitterness sense.
When 2, brewing, have a little impurity in the tealeaves, brew no any filter in the device, need, quite inconvenience in the use by another water purifier filtration.
The purpose of this utility model provides and a kind ofly is easy to control tea juice concentration, brewing time, and brews and filter one step completed tealeaves and brew device.
For achieving the above object, the utility model is taked following design: a kind of tealeaves brews device, it comprises: container, interior cup, outer cup, and the bowl cover that can Gong cover, it is characterized in that: the top flange of described outer cup extends a boss, and end face is provided with the projection of several equal ring spacings, and the projection both sides respectively are provided with the inclined-plane, then form groove between two projections, and establish a positioning port to having a gradient and centre in the bottom surface; The protruding wall on cup top extends a handgrip in described, and the bottom surface is provided with the fixture block of several equal ring spacings, the fixture block both sides are provided with rake, then form draw-in groove between two fixture blocks, and in the bottom surface to having a gradient and being provided with at least three fins, this three fins central authorities junction then toward dividing into positioning piece, also presss from both sides between three fins and establishes filter screen; Described outer cup places described container, and described interior cup is inserted in the outer cup, and keeper engages with positioning port, forms air-tight state, and the fixture block of protruding wall below, interior glass of top, snaps in the groove between two projections of flange top, outer cup top, and both are positioning states.
The cup basal surface of described outer cup can be provided with at least three pad pin.
Described outer cup can be eccentric position and engage with container.
The utility model is owing to adopt above-mentioned design to make it have the following advantages:
When 1, brewing, be all transparent can the variation from External Observation tea juice concentration because of brewing the member container 1 that device forms, interior cup 3, outer cup 2 and bowl cover 4, the reason brewing time is not of a specified duration excessively, and makes tea juice produce bitterness sense.
2, brew after, only need to rotate or pick up handle 313,2 circulations of air of cup 3 and outer cup can make tea juice be put in the container 1 by filter screen 34 in making, and reach to brew the one step completed effect of filtration.
The utility model is described in further detail below in conjunction with accompanying drawing.
Fig. 1 is a stereogram of the present utility model
Fig. 2 is a three-dimensional exploded view of the present utility model
Fig. 3 is a decomposing section of the present utility model

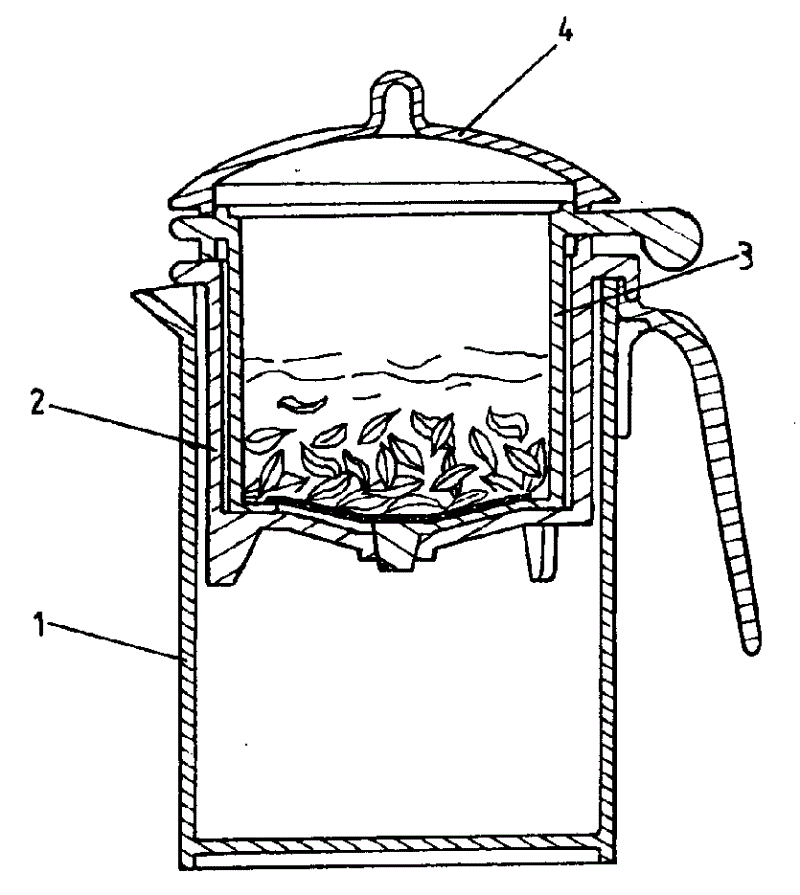

Fig. 4 is a combination section of the present utility model
Fig. 5 is an enforcement illustration of the present utility model
Fig. 6 is that of the present utility model another implemented illustration
Fig. 7 is known stereogram
Fig. 8 is known profile
As shown in Figure 1, 2, the utility model brews device and comprises:
One container 1, but open bottom end is sealed and carrying liquid above it, side is established a handle 11, carries pendulum for holding, and the handle front end is central and establish a breach 111, and its apical margin appropriate location has a semi-triangular pour spout 12.
One outer cup 2, insert in the container 1, and be held in container 1 apical margin location by the flange 21 on top, flange 21 extends in the breach 11 of a boss 213 for card people handle 1, these flange 21 end faces are provided with the projection 211 of several equal ring spacings, projection 211 both sides respectively are provided with an inclined-plane 2111, then form groove 212 between two projections 211, outer cup 2 bottom surfaces are to having gradient, centre is established a positioning port 22, and the pad pin 23 more than three is established in the bottom, makes when outer cup 2 is placed in desktop separately, is stood and is firmly stood by the support of filling up pin 23.
Cup 3 in one, insert in the outer cup 2, the also corresponding outer cup 2 in bottom surface is provided with gradient, this gradient can help tea juice dirty rapidly, and the bottom surface is provided with at least three fins 33, these three fins, 33 central junctions are then toward dividing into positioning piece 331, folder is established filter screen 34 between three fins 33, a protruding wall 31 is established on interior cup 3 tops, protruding wall 31 extends leader 313, and these protruding wall 31 bottom surfaces are provided with the fixture block 311 of several equal ring spacings, and fixture block 311 both sides respectively are provided with a rake 3111, then form draw-in groove 312 between two fixture blocks 311, interior cup 3 inwall apical margins are established a bulge loop 32.
One bowl cover 4, it is held in the bulge loop 32 of interior cup 3 inwall apical margins and locatees.
When the utility model uses, as Fig. 3, shown in Figure 4, outer cup 2 is inserted in the container 1, make the flange 21 and the container 1 apical margin location on top and boss 213 is snapped in the breach 111, make outer cup 2 and container 1 location, again interior cup 3 is put into outer cup 2, insert the tea juice of desiring to brew in the interior cup 3, the keeper 331 of interior cup 3 bottom surfaces engages with the positioning port 22 of outer glass 2 bottom surface central authorities, form air-tight state, and several fixture blocks 311 of interior cup 3 snap in several grooves 212 of outer cup 2, making both be positioning states is covered on bowl cover 4 on the interior cup 3 again, make it the driving fit location, again, inclined-plane 2111 is skewed with rake 3111, tealeaves in interior cup 3 is poured hot water, and make when soaking hot water and producing tea juice and reach the concentration that the individual likes, only need swing handle 313 gently, make fixture block 311 rakes 3111 carry over inclined-plane 2111 and slide to (as shown in Figure 6) on the projection 211, or draw high in handle 313 makes, outer glass 32 the two present a drop (as Fig. 5) keeper 331 and positioning port 22 disengagings, in the formation, outer cup 3,2 cross-ventilations, and because of in, outer cup 3,2 bottom surfaces are a gradient and make tea juice fast after the filter screen 34 of interior cup 3 bottoms filters, flow in the container 1 by positioning port 22 again, pour spout 12 again, pour in the cup promptly drinkable.
As shown in Figure 4, outer cup 2 is to be the eccentric setting that is connected with container 1, and makes the space that broad is arranged between outer cup 2 and the pour spout 12, can be for pouring out the tea juice that brews smoothly.
The utility model brews device container 1, interior cup 3, outer cup 2 and bowl cover all has transparent material to make, thereby makes the color that is easy to observe tea juice be easy to control the tea juice concentration.
Claims (3)
1, a kind of tealeaves brews device, and it comprises: container, interior cup, outer cup, and the bowl cover that can Gong cover is characterized in that:
The top flange of described outer cup extends a boss, and end face is provided with the projection of several equal ring spacings, and the projection both sides respectively are provided with the inclined-plane, then form groove between two projections, and establish a positioning port in the bottom surface to having a gradient and centre;
The protruding wall on cup top extends a handgrip in described, and the bottom surface is provided with the fixture block of several equal ring spacings, the fixture block both sides are provided with rake, then form draw-in groove between two fixture blocks, and in the bottom surface to having a gradient and being provided with at least three fins, this three fins central authorities junction then toward dividing into positioning piece, also presss from both sides between three fins and establishes filter screen;
Described outer cup places described container, and described interior cup is inserted in the outer cup, and keeper engages with positioning port, forms air-tight state, and the fixture block of protruding wall below, interior glass of top, the groove above the flange of the outer cup of card people top between two projections, and both are positioning states.
2, a kind of tealeaves according to claim 1 brews device, it is characterized in that: the cup basal surface of outer cup is provided with at least three pad pin.
3, a kind of tealeaves according to claim 1 brews device, it is characterized in that: outer cup is eccentric position and engages with container.
