The utility model relates to connecting structure for plastic wall plates and suspended ceiling plates, which is used in inner decorating wall plates and inner ornament wall plates of buildings. The utility model is mainly provided with a plastic wall plate negative head and a plastic wall plate positive head, wherein the plastic wall plate positive head and the plastic wall plate negative head are respectively processed on the side surface of a plastic wall plate, the front end of the plastic wall plate positive head is provided with an arc head, and the upper surface and the lower surface of the positive head are planes. The plastic wall plate negative head is provided with an inner groove. The surfaces of the inner groove are planes and are composed of the upper plane, the bottom surface and the upright surface of the inner groove of the plastic wall plate negative head. The whole decorative surface of a wall plate decorated by the utility model is smooth like one plate. The utility model can be used in PVC plastic plate decorative wall plates and suspended ceiling plates.
Description
The utility model plastic wall panels ceiling board connected structure relates to a kind of interior decoration that is used to build, interior decoration wallboard connected structure.
The PVC plastic wall panels ceiling board that prior art is produced is when decorateing construction, because connected structure is unreasonable, the multiple wall of wallboard top, ceiling out-of-flatness easily skid off time-consuming taking a lot of work in operation.
The purpose of this utility model provides a kind of plastic wall panels ceiling board connected structure of novelty, makes the easy construction of wallboard ceiling board, beautiful decoration, saves man-hour.
Plastic wall panels ceiling board connected structure takes following mode to realize: the plastic wall panels connected structure has the cloudy head of plastic wall panels, plastic wall panels sun head.The cloudy head of plastic wall panels is processed respectively in the plastic wall panels side with plastic wall panels sun head.A plastic wall panels sun front end has the circular arc head, and sun is upper and lower to have the plane.The cloudy head of plastic wall panels has inside groove, the cloudy inside groove of wallboard and be the plane.The plane is smooth on the cloudy inside groove of wallboard upward matches on the plane with wallboard sun head, and fine-tuning spacing when the positive head of wallboard assembles with cloudy also is processed with hole, cloudy inside groove fixed wall nail position of wallboard in addition, when being used to install wallboard is fixed on wall.Be the cloudy inside groove facade of wallboard between plane and the cloudy groove bottom of wallboard on the cloudy inside groove of wallboard.
The plastic wall panels connected structure, place, hole, cloudy inside groove lower plane nail position of wallboard at plastic wall panels in construction is fixed on plastic wall panels on the wall with the air cannon nailing, again will another piece plastic wall panels sun head inserting in the cloudy head of fixing wallboard by cloudy inside groove facade location of wallboard, is to clamp-on to be not easy to come off to adopt an air cannon nailing to be fixed on the wall at the place, a hole, the cloudy head nail position of plastic wall panels that inserts again during cloudy of a wallboard sun insertion wallboard.The whole decorative cover of wallboard that adopts the utility model connected structure to decorate is smooth, and shape is as a plate, and this linking can be used for PVC plastic plate decorative wall panels and ceiling board etc.
The utility model is described in further detail below with reference to accompanying drawing.
Fig. 1 is a plastic wall panels connected structure schematic diagram.

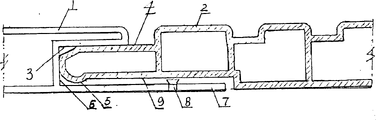

Fig. 2 is that plastic wall panels is connected enlarged diagram.

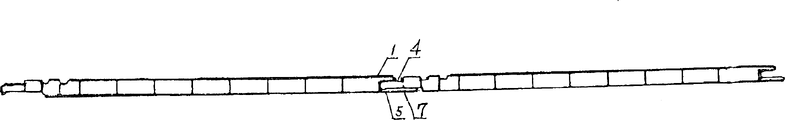

Fig. 3 is a plastic wall panels assembled state schematic diagram.
Have the cloudy head of plastic wall panels (1), plastic wall panels sun head (2), process in the plastic wall panels side respectively with reference to accompanying drawing plastic wall panels connected structure.Plastic wall panels sun head (2) has plane (4), lower plane (9), front end has circular arc head (5), it is the plane that the cloudy head of plastic wall panels (1) constitutes the cloudy inner groove surface of wallboard (7) by the cloudy inside groove facade (6) of wallboard, and hole (8), cloudy inside groove fixed wall nail position of wallboard is arranged.The cloudy head of wallboard leaves certain interior nail space with a sun bottom, assembling back.
Claims (2)
1. plastic wall panels ceiling board connected structure, have the cloudy head of plastic wall panels, plastic wall panels sun head, it is characterized in that the cloudy head of plastic wall panels, plastic wall panels sun head, process respectively in the plastic wall panels side, a plastic wall panels sun front end has the circular arc head, the cloudy head of plastic wall panels has inside groove, and the cloudy inner groove surface of wallboard is the plane.
2. plastic wall panels ceiling board connected structure according to claim 1 is characterized in that plastic wall panels sun is upper and lower and has a plane.
