Abstract

The utility model discloses a mixing and dispersing machine for plastic raw materials, which relates to the field of mixing and dispersing machines. The plastic raw material mixing and dispersing machine includes a mixing and dispersing machine main body, the upper surface of the mixing and dispersing machine main body is provided with a telescopic rod, the outer surface of the mixing and dispersing machine main body is provided with a control panel, and the upper surface of the telescopic rod is connected with a connecting seat. In this plastic raw material mixing and dispersing machine, the mixing barrel can slide through the limit assembly. At this time, the supporting seat is pulled to drive the mixing barrel to move, and then the mixing barrel is rotated along the two supporting seats, so that the processing in the mixing barrel can be completed. The raw materials are collected, and at the same time, it is convenient to clean the mixing tank. The sliding seat is fixed under the action of the limit component, and the mixing tank can be quickly fixed without manual push for alignment.

Description

A plastic raw material mixing and dispersing machine

technical field

The utility model relates to the technical field of mixing and dispersing machines, in particular to a mixing and dispersing machine for plastic raw materials.

Background technique

The mixing and dispersing machine adopts a high-speed agitator, which forms a strong turbulent flow locally and has a strong dispersion and emulsification effect on the material.

At present, when mixing plastic raw materials, it is necessary to disperse and emulsify the plastic raw materials so that the materials can be quickly dispersed and dissolved. When mixing and dispersing plastic raw materials, it is necessary to pour the raw materials into the mixing tank for stirring.

At present, the mixing tank needs to be manually pushed, aligned with the stirring rod, and then the sealing cover is connected to the mixing tank through bolts, so that during processing, the mixing tank is only connected by the sealing cover, which is prone to shaking. At the same time, during installation, it is necessary to The installation can only be carried out after manual alignment, which makes the installation efficiency low, so we propose a plastic raw material mixing and dispersing machine.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the existing technology, the utility model provides a plastic raw material mixing and dispersing machine, which solves the problem that the mixing tank is only connected by the sealing cover, which is prone to shaking, and at the same time, it needs to be manually aligned before installation. A problem that makes the installation efficiency low.

(2) Technical solution

In order to achieve the above purpose, the utility model is realized through the following technical solutions: a mixing and dispersing machine for plastic raw materials, comprising:

The main body of the mixing and dispersing machine, the upper surface of the main body of the mixing and dispersing machine is provided with a telescopic rod, the outer surface of the main body of the mixing and dispersing machine is provided with a control panel, and the upper surface of the telescopic rod is connected with a connecting seat;

A motor, the motor is installed on the lower surface of the connecting seat;

a base, the base is arranged on the lower surface of the main body of the mixing and dispersing machine;

A mixing barrel, two supporting seats are connected to the two sides of the mixing barrel for rotation, and sliding seats are connected to the lower surfaces of the two supporting seats, and the sliding seats are slidably connected to the inner wall of the base;

The base is provided with two limit assemblies, the moving assembly includes a limit seat, a fixed seat and a socket, the limit seat is slidably connected to the inner wall of the base, and the socket socket is inserted into the limit seat and the inner wall of the base.

Preferably, a stirring rod is provided on the lower surface of the connecting seat, and the motor and the stirring rod are connected through a belt and a pulley.

Preferably, multiple installation frames are provided on both sides of the base, the mixing bucket is located directly below the stirring rod, and multiple pulleys are provided on the lower surface of the sliding seat.

Preferably, both sides of the mixing bucket are connected with two limiting seats, two sliding grooves are opened on the inner wall of the base, and the limiting seats are slidably connected to the inner walls of the sliding grooves.

Preferably, the upper surface of the base is connected to two fixing seats, the inner wall of the fixing seats is threaded with a threaded rod, and one end of the threaded rod inside the fixing seats is rotatably connected to the socket.

The utility model discloses a plastic raw material mixing and dispersing machine, which has the following beneficial effects:

1. The plastic raw material mixing and dispersing machine, through the limit component, makes the mixing barrel slide, and at this time pulls the support seat to drive the mixing barrel to move, and then makes the mixing barrel rotate along the two support seats, which is convenient for the mixing barrel The processed raw materials are collected, and at the same time, it is convenient to clean the mixing tank.

2. The plastic raw material mixing and dispersing machine, after the cleaning is completed, push the support seat to make the sliding seat slide, and fix the sliding seat under the action of the limit component, so that the mixing tank can be quickly fixed without manual push to align.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are only some embodiments of the utility model, and those skilled in the art can also obtain other drawings based on these drawings without creative work.

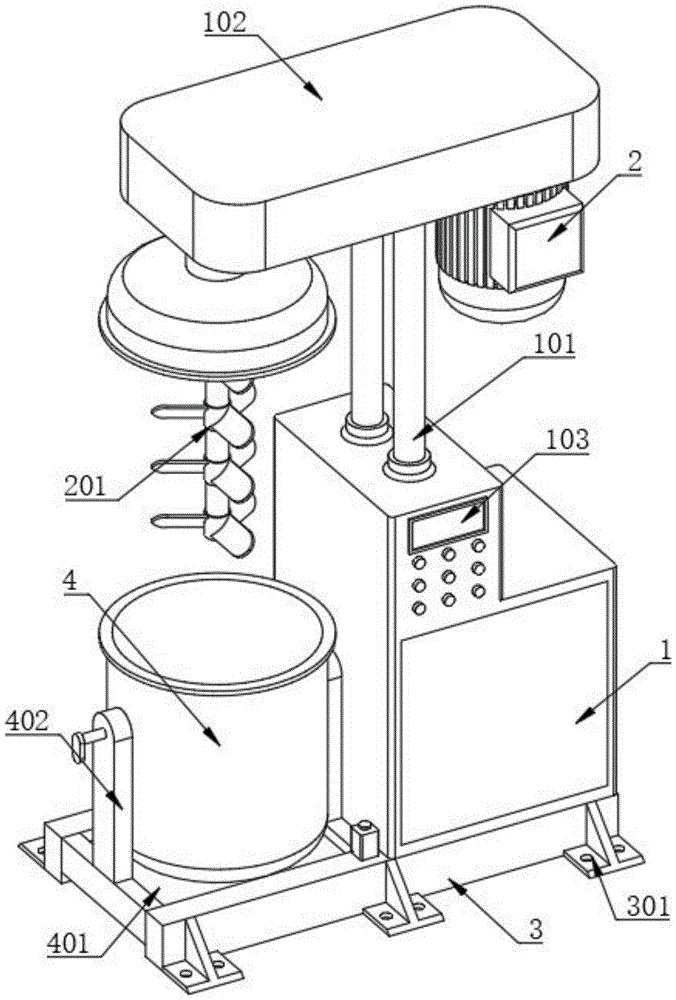

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a schematic diagram of the bottom surface structure of the utility model;

Fig. 3 is a sectional view of the utility model;

Fig. 4 is an enlarged view of A in Fig. 3 of the present utility model.

In the figure: 1, the main body of the mixing and dispersing machine; 101, the telescopic rod; 102, the connecting seat; 103, the control panel; 2, the motor; 201, the stirring rod; 3, the base; 301, the mounting frame; Sliding seat; 402, support seat; 5, limit seat; 501, chute; 6, fixed seat; 601, screw mandrel; 602, socket seat.

Detailed ways

In order to make the purpose, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention are clearly and completely described. Obviously, the described embodiments are part of the embodiments of the present invention, rather than Full examples. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The embodiment of the present application provides a plastic raw material mixing and dispersing machine, which solves the problem that the mixing tank is only connected by the sealing cover, which is prone to shaking, and at the same time, it needs to be manually aligned before installation, which makes the installation efficiency low. The problem is that the sliding seat 401 is driven by the two chute 501 to slide, so that the mixing tank 4 and the stirring rod 201 can be quickly aligned, and at the same time, under the action of the socket 602, the mixing tank 4 is fixed to prevent it from shaking.

In order to better understand the above-mentioned technical solution, the above-mentioned technical solution will be described in detail below in conjunction with the accompanying drawings and specific implementation methods.

Embodiment one,

The embodiment of the utility model discloses a mixing and dispersing machine for plastic raw materials.

Shown in accompanying drawing 1-4, comprise mixing and dispersing machine main body 1, motor 2, base 3 and mixing bucket 4, the upper surface of mixing and dispersing machine main body 1 is provided with telescopic rod 101, and the outer surface of mixing and dispersing machine main body 1 is provided with The control panel 103, the upper surface of the telescopic rod 101 is connected with the connecting seat 102;

The motor 2 is installed on the lower surface of the connecting seat 102, the base 3 is arranged on the lower surface of the mixing and dispersing machine main body 1, two supporting seats 402 are connected to the two sides of the mixing bucket 4 in rotation, and the lower surfaces of the two supporting seats 402 are connected with sliding Seat 401, sliding seat 401 is slidably connected on the inner wall of base 3;

The base 3 is provided with two limit assemblies, the moving assembly includes a limit seat 5, a fixed seat 6 and a socket 602, the limit seat 5 is slidably connected to the inner wall of the base 3, and the socket 602 is inserted into the limit On the inner wall of seat 5 and base 3;

The lower surface of the connection seat 102 is provided with a stirring rod 201, and the motor 2 and the stirring rod 201 are connected by a belt and a pulley, and the motor 2 can drive the stirring rod 201 to rotate;

Both sides of the base 3 are provided with a plurality of mounting frames 301, the mixing bucket 4 is directly below the stirring rod 201, and the lower surface of the sliding seat 401 is provided with a plurality of pulleys, which make the movement of the sliding seat 401 more convenient;

When it is necessary to mix and disperse the plastic raw materials, the plastic raw materials are first poured into the mixing tank 4. At this time, the telescopic rod 101 is started to descend through the control panel 103, so that the connecting seat 102 is lowered. At this time, the stirring rod 201 is inside the mixing tank 4. ;

Simultaneously, the sealing cover connected by rotation on the outer surface of the stirring rod 201 fits the mixing bucket 4, and now the mixing bucket 4 is connected with the sealing cover by bolts;

Now start the motor 2, so that the motor 2 drives the stirring rod 201 to rotate through the belt and the pulley, and mix and disperse the plastic raw materials. After the processing is completed, carry out the above-mentioned opposite movement, so that the stirring rod 201 is removed from the mixing bucket 4;

Now, by the limit assembly, the mixing bucket 4 can be slid, and now the supporting base 402 is pulled to drive the mixing bucket 4 to move, and then the mixing bucket 4 is rotated along the two supporting bases 402, so that the mixing bucket 4 can be processed The completed raw materials are collected, and at the same time, the mixing tank 4 is convenient to be cleaned;

After the cleaning is completed, push the supporting seat 402 to make the sliding seat 401 slide, and fix the sliding seat 401 under the action of the stopper assembly, so that the mixing bucket 4 can be quickly fixed without artificially pushing for alignment.

Embodiment two,

The embodiment of the utility model discloses a mixing and dispersing machine for plastic raw materials.

According to the accompanying drawings 1-4, the base 3 is provided with two limit assemblies, the moving assembly includes a limit seat 5, a fixed seat 6 and a socket 602, the limit seat 5 is slidably connected to the inner wall of the base 3, The socket 602 is plugged into the limit seat 5 and the inner wall of the base 3;

The both sides of mixing bucket 4 are connected with two limit seats 5, and the inner wall of base 3 is provided with two chute 501, and limit seat 5 is slidably connected on the inner wall of chute 501, makes through two chute 501 The sliding of the sliding seat 401 is more stable;

The upper surface of the base 3 is connected with two fixing seats 6, and the inner wall of the fixing seats 6 is threadedly connected with a screw rod 601, and one end of the screw rod 601 inside the fixing seat 6 is connected to the socket 602 in rotation;

At this time, by rotating the two screw mandrels 601, the screw mandrels 601 are moved along the inner wall of the fixed seat 6, and the socket seat 602 is driven to slide along the base 3, so that the socket seat 602 is separated from the limit seat 5;

Pull support seat 402 now, make slide seat 401 slide, drive mixing bucket 4 to move, rotate mixing bucket 4 this moment, be convenient to the raw material processed in mixing bucket 4 is collected, be convenient to mixing bucket 4 is cleaned simultaneously;

After cleaning is completed, by pushing the support seat 402, the sliding seat 401 is slid, and the screw mandrel 601 is reversely rotated, so that the socket seat 602 is plugged on the inner wall of the limit seat 5, and the limit seat 5 and the slide seat 401 are cleaned. Fixing, at this moment, the mixing tank 4 can be quickly fixed, and there is no need to manually push for alignment.

Working principle: When it is necessary to mix and disperse the plastic raw materials, the plastic raw materials are first poured into the mixing tank 4, at this time, the telescopic rod 101 is started to descend through the control panel 103, so that the connecting seat 102 is lowered, and the stirring rod 201 is in the mixing tank at this time 4 inside;

Simultaneously, the sealing cover connected by rotation on the outer surface of the stirring rod 201 fits the mixing bucket 4, and now the mixing bucket 4 is connected with the sealing cover by bolts;

Now start the motor 2, so that the motor 2 drives the stirring rod 201 to rotate through the belt and the pulley, and mix and disperse the plastic raw materials. After the processing is completed, carry out the above-mentioned opposite movement, so that the stirring rod 201 is removed from the mixing bucket 4;

At this time, by rotating the two screw mandrels 601, the screw mandrels 601 are moved along the inner wall of the fixed seat 6, and the socket seat 602 is driven to slide along the base 3, so that the socket seat 602 is separated from the limit seat 5;

Now, by pulling the supporting seat 402, the sliding seat 401 drives the two position-limiting seats 5 to slide on the inner wall of the chute 501, and now the mixing tank 4 is driven by the sliding seat 401 and the supporting seat 402 to move;

Now by rotating the mixing bucket 4, the mixing bucket 4 is rotated along the two support bases 402, so that the raw materials processed in the mixing bucket 4 are conveniently collected, and the mixing bucket 4 is conveniently cleaned up;

After the cleaning is completed, pour the plastic material to be processed into the mixing tank 4 again, push the support seat 402 to make the sliding seat 401 slide, and then reversely rotate the screw rod 601 so that the socket seat 602 is inserted into the limit seat On the inner wall of 5, the limit seat 5 and the sliding seat 401 are fixed, and at this time, the mixing tank 4 can be quickly fixed, and alignment is not required to be manually pushed.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principles of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (5)

1. A mixing and dispersing machine for plastic raw materials, comprising: The mixing and dispersing machine main body (1), the upper surface of the mixing and dispersing machine main body (1) is provided with a telescopic rod (101), the outer surface of the mixing and dispersing machine main body (1) is provided with a control panel (103), the The upper surface of the telescopic rod (101) is connected with a connecting seat (102); A motor (2), the motor (2) is installed on the lower surface of the connecting seat (102); A base (3), the base (3) is arranged on the lower surface of the main body (1) of the mixing and dispersing machine; Stirring barrel (4), the two sides of described stirring barrel (4) are rotatably connected with two support bases (402), and the lower surface of two support bases (402) is connected with sliding base (401), and described sliding base ( 401) slidingly connected on the inner wall of the base (3); It is characterized in that: the base (3) is provided with two limit assemblies, the moving assembly includes a limit seat (5), a fixed seat (6) and a socket (602), and the limit seat (5) The sliding connection is on the inner wall of the base (3), and the socket (602) is inserted into the limit seat (5) and the inner wall of the base (3). 2. A plastic raw material mixing and dispersing machine according to claim 1, characterized in that: the lower surface of the connecting seat (102) is provided with a stirring rod (201), and the motor (2) and the stirring rod (201 ) are connected by a belt and a pulley. 3. A plastic raw material mixing and dispersing machine according to claim 1, characterized in that: a plurality of mounting brackets (301) are arranged on both sides of the base (3), and the mixing bucket (4) is placed on the stirring rod Directly below (201), the lower surface of the sliding seat (401) is provided with a plurality of pulleys. 4. A plastic raw material mixing and dispersing machine according to claim 1, characterized in that: both sides of the mixing bucket (4) are connected with two limit seats (5), and the base (3) Two sliding grooves (501) are opened on the inner wall, and the limit seat (5) is slidably connected to the inner wall of the sliding grooves (501). 5. A plastic raw material mixing and dispersing machine according to claim 1, characterized in that: the upper surface of the base (3) is connected to two fixed seats (6), and the inner wall of the fixed seat (6) A threaded screw (601) is connected to the upper thread, and one end of the screw (601) inside the fixed seat (6) is rotatably connected to the socket (602).
