CN219332477U

CN219332477U - Foot basin with traditional Chinese medicine

Info

Publication number: CN219332477U
Application number: CN202222694301.1U
Authority: CN
Inventors: 刘青青
Original assignee: Yiwu Affiliated Hospital of Zhejiang University School of Medicine
Current assignee: Yiwu Affiliated Hospital of Zhejiang University School of Medicine
Priority date: 2022-10-13
Filing date: 2022-10-13
Publication date: 2023-07-14
Anticipated expiration: 2032-10-13

Abstract

The utility model relates to the technical field of foot soaking basins and discloses a traditional Chinese medicine foot soaking basin, which comprises a foot soaking basin, wherein a massage layer is fixedly connected to the bottom of the foot soaking basin, a fixed ring is fixedly connected to the inside of the massage layer, a connecting rod is fixedly connected to one end of the fixed ring, a massage rod is rotatably connected to the surface of the connecting rod, a massage bead is fixedly connected to the surface of the massage rod, a heating layer is fixedly connected to the bottom of the massage layer, a storage battery is fixedly connected to the inside of the heating layer, an electric heating wire is electrically connected to one end of the storage battery, and a medicine storage box is fixedly connected to the inner side wall of the foot soaking basin. This traditional chinese medicine bubble foot bath is connected massage stick and massage layer through setting up of massage layer, solid fixed ring and massage stick, adds traditional chinese medicine with the inside of medicine storage box, with foot and massage pearl contact, round trip movement foot is favorable to massaging the sole, alleviates user's tired sense, increases user's comfort.

Description

Foot basin with traditional Chinese medicine

Technical Field

The utility model relates to the technical field of foot soaking basins, in particular to a traditional Chinese medicine foot soaking basin.

Background

The nursing of traditional Chinese medicine is an independent discipline for researching nursing technology of various diseases of traditional Chinese medicine under the basic theoretical guidance of traditional Chinese medicine. With the rapid development of modern society, people pay more and more attention to health maintenance. Wherein, the use of traditional Chinese medicine for health preservation is one of the popular modes of people, so a traditional Chinese medicine foot soaking basin is provided.

At present, the traditional Chinese medicine foot soaking basin in the market has the following defects;

(1) When a user needs to soak feet, the foot sole is not convenient to massage, the fatigue of the user is not easy to be relieved, and the comfort of the user is not easy to be increased;

(2) The heating is not easy, the carrying is not convenient, the water changing is not convenient, and the cross infection is not easy to be avoided.

Disclosure of Invention

(one) solving the technical problems

Aiming at the defects of the prior art, the utility model provides a traditional Chinese medicine foot basin, which solves the problems that when a user needs to soak feet, the traditional Chinese medicine foot basin is unfavorable for massaging soles, is difficult for relieving fatigue of the user, is difficult for increasing comfort of the user, is unfavorable for heating, is inconvenient to carry, is inconvenient to change water and is unfavorable for avoiding cross infection.

(II) technical scheme

In order to achieve the above purpose, the utility model is realized by the following technical scheme: the utility model provides a traditional chinese medicine bubble foot bath, includes bubble foot bath, the bottom fixedly connected with massage layer of bubble foot bath, the inside fixedly connected with solid fixed ring of massage layer, the one end fixedly connected with connecting rod of solid fixed ring, the surface rotation of connecting rod is connected with the massage stick, the fixed surface of massage stick is connected with the massage pearl, the bottom fixedly connected with zone of heating of massage layer, the inside fixedly connected with battery of zone of heating, the one end electric connection of battery has the heating wire, the inside wall fixedly connected with medicine storage box of bubble foot bath.

Optionally, the surface threaded connection of solid fixed ring has the bolt, the draw-in groove has been seted up at the top of bubble foot basin.

Optionally, the both sides of bubble foot bath all fixedly connected with installation piece, one side fixedly connected with lifting rod of installation piece.

Optionally, the inside sliding connection of draw-in groove has the fixture block, the surface fixedly connected with lid of fixture block.

Optionally, the inside joint of medicine storage box has the filter screen, the bottom fixedly connected with base of zone of heating.

Optionally, universal wheels are fixedly connected to the bottom of the base, and the number of the universal wheels is a plurality of.

(III) beneficial effects

The utility model provides a traditional Chinese medicine foot basin, which has the following beneficial effects:

1. this traditional chinese medicine bubble foot bath is connected massage stick and massage layer through setting up of massage layer, solid fixed ring and massage stick, adds traditional chinese medicine with the inside of medicine storage box, with foot and massage pearl contact, round trip movement foot is favorable to massaging the sole, alleviates user's tired sense, increases user's comfort.

2. This traditional chinese medicine bubble foot bath, through the setting of zone of heating, heating wire and lifting rod, add moderate water source with bubble foot bath's inside, open the battery, heat through the heating wire, hold lifting rod, can empty the water after the bubble foot, be favorable to heating, portable, conveniently trade water, be favorable to avoiding cross infection.

Drawings

FIG. 1 is a schematic diagram of the overall structure of the present utility model;

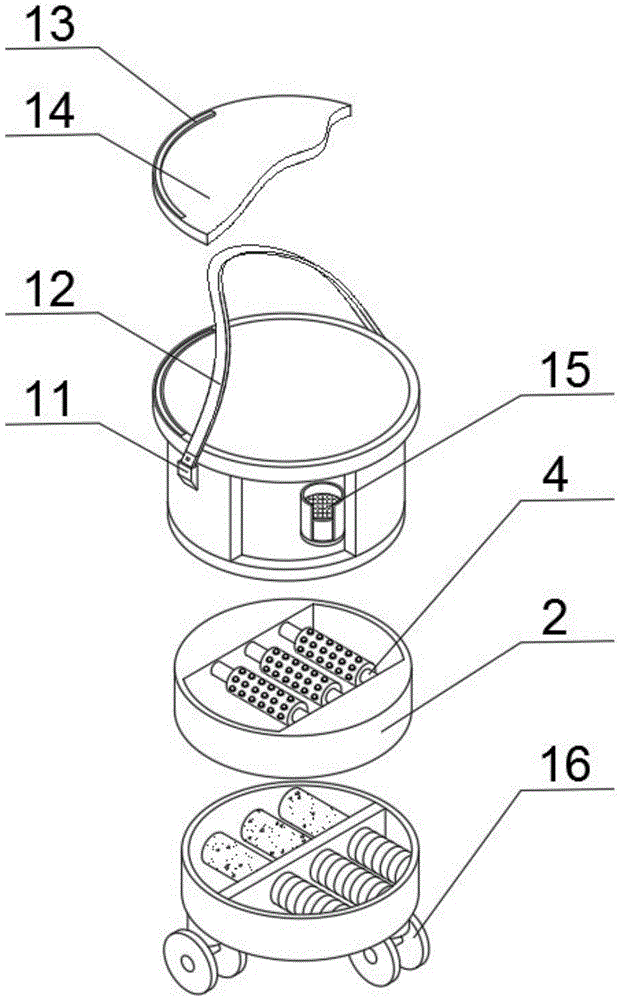

FIG. 2 is a schematic diagram of the overall split structure of the present utility model;

FIG. 3 is a schematic view of a heating layer structure according to the present utility model;

fig. 4 is a schematic view of the structure of the massage rod of the present utility model.

In the figure: 1. foot soaking basin; 2. a massage layer; 3. a fixing ring; 4. a connecting rod; 5. a massage rod; 6. massage beads; 7. a heating layer; 8. a storage battery; 9. heating wires; 10. a drug storage box; 11. a mounting block; 12. a lifting rod; 13. a clamping block; 14. a cover; 15. a filter screen; 16. and a universal wheel.

Detailed Description

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.

Referring to fig. 1 to 4, the present utility model provides a technical solution: the utility model provides a traditional chinese medicine bubble foot bath, including bubble foot bath 1, the bottom fixedly connected with massage layer 2 of bubble foot bath 1, the inside fixedly connected with solid fixed ring 3 of massage layer 2, the one end fixedly connected with connecting rod 4 of gu fixed ring 3, the surface rotation of connecting rod 4 is connected with massage stick 5, the fixed surface connection of massage stick 5 has massage pearl 6, through the setting of massage layer 2, gu fixed ring 3 and massage stick 5, connect massage stick 5 and massage layer 2 through gu fixed ring 3, add traditional chinese medicine with the inside of medicine storage box 10, contact foot and massage pearl 6, the back and forth movement foot, be favorable to massaging the sole, alleviate user's tired sense, increase user's comfort, the bottom fixedly connected with heating layer 7 of massage layer 7, the inside fixedly connected with battery 8 of heating layer 7, the one end electric connection of battery 8 has heating wire 9, the inside wall fixedly connected with medicine storage box 10 of bubble foot bath 1, through the setting of heating layer 7, heating wire 9 and lifting rod 12, add moderate amount of water source with bubble foot bath 1, open battery 8, heat through 9, carry out the heating wire 12, can be favorable to carrying out the cross-over water, the water can be easily carried out, the easy to empty after the water is easy to be polluted, the easy to be carried;

the surface of the fixed ring 3 is connected with a bolt in a threaded manner, the top of the foot soaking basin 1 is provided with a clamping groove, and the connection effect is achieved through the arrangement of the clamping groove;

the two sides of the foot soaking basin 1 are fixedly connected with the mounting blocks 11, one side of the mounting block 11 is fixedly connected with the lifting rod 12, and the effect of portability is achieved through the arrangement of the lifting rod 12;

the clamping block 13 is connected in a sliding manner in the clamping groove, the cover 14 is fixedly connected to the surface of the clamping block 13, and the heat dissipation is slowed down by the arrangement of the cover 14;

the filter screen 15 is clamped in the medicine storage box 10, the base is fixedly connected with the bottom of the heating layer 7, and the stable effect is achieved through the arrangement of the base

The bottom fixedly connected with universal wheel 16 of base, the quantity of universal wheel 16 is a plurality of, through the setting of universal wheel 16, is convenient for remove the device.

In the utility model, the working steps of the device are as follows:

1. the massage rod 5 is connected with the massage layer 2 through the fixing ring 3, the traditional Chinese medicine is added into the medicine storage box 10, the feet are contacted with the massage beads 6, and the feet are moved back and forth, so that the massage of the soles is facilitated;

2. a proper amount of water source is added into the foot soaking basin 1, the storage battery 8 is opened, the electric heating wire 9 is used for heating, the lifting rod 12 is held by hand, and the foot soaking basin can be toppled over after foot soaking, so that the heating is facilitated;

although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a traditional chinese medicine bubble foot bath, includes bubble foot bath (1), its characterized in that: the foot bath comprises a foot bath body, and is characterized in that a massaging layer (2) is fixedly connected to the bottom of the foot bath body (1), a fixing ring (3) is fixedly connected to the inside of the massaging layer (2), a connecting rod (4) is fixedly connected to one end of the fixing ring (3), a massaging rod (5) is connected to the surface of the connecting rod (4) in a rotating mode, a massaging bead (6) is fixedly connected to the surface of the massaging rod (5), a heating layer (7) is fixedly connected to the bottom of the massaging layer (2), a storage battery (8) is fixedly connected to the inside of the heating layer (7), an electric heating wire (9) is electrically connected to one end of the storage battery (8), and a medicine storage box (10) is fixedly connected to the inner side wall of the foot bath body (1).

2. The traditional Chinese medicine foot basin according to claim 1, wherein: the surface thread of the fixed ring (3) is connected with a bolt, and the top of the foot soaking basin (1) is provided with a clamping groove.

3. The traditional Chinese medicine foot basin according to claim 1, wherein: the foot soaking basin is characterized in that the two sides of the foot soaking basin (1) are fixedly connected with mounting blocks (11), and one side of each mounting block (11) is fixedly connected with a lifting rod (12).

4. The traditional Chinese medicine foot basin according to claim 2, wherein: the inside sliding connection of draw-in groove has fixture block (13), the surface fixedly connected with lid (14) of fixture block (13).

5. The traditional Chinese medicine foot basin according to claim 1, wherein: the inside joint of medicine storage box (10) has filter screen (15), the bottom fixedly connected with base of zone of heating (7).

6. The traditional Chinese medicine foot basin according to claim 5, wherein: the bottom of base fixedly connected with universal wheel (16), the quantity of universal wheel (16) is a plurality of.
