CN219332263U

CN219332263U - Sickbed with arc-shaped bed plate

Info

Publication number: CN219332263U
Application number: CN202320387048.7U
Authority: CN
Inventors: 罗为民
Original assignee: Shenzhen Nexit Industry Co ltd
Current assignee: Shenzhen Nexit Industry Co ltd
Priority date: 2023-03-06
Filing date: 2023-03-06
Publication date: 2023-07-14
Anticipated expiration: 2033-03-06

Abstract

The utility model discloses a sickbed with an arc-shaped bed plate, which comprises a bed frame and a bed plate, wherein the bed plate is arranged on the bed frame and comprises a fixed plate and a movable plate, and the movable plate is provided with a plurality of movable plates which are respectively arranged on two sides of the fixed plate and hinged with the fixed plate; the movable plate comprises a first movable plate, a second movable plate and a third movable plate, the first movable plate is arranged on one side of the fixed plate, the second movable plate and the third movable plate are arranged on the other side of the fixed plate, and the second movable plate and the third movable plate are connected together through a hinge structure; the lower part of the first movable plate is provided with a first rotating motor, and the lower part of the second movable plate is provided with a second rotating motor; under the drive of first rotating motor and second rotating motor, support first fly leaf and second fly leaf, satisfy patient's upper body, the crooked demand of shank.

Description

Sickbed with arc-shaped bed plate

Technical Field

The utility model relates to the field of medical equipment, in particular to a sickbed with an arc-shaped bed plate.

Background

At present, the hospital beds on the market are generally divided into two types, namely a straight plate type hospital bed and a lifting type hospital bed, and the straight plate type hospital bed can meet the basic requirements required by patients, but when the patients sit up, the patients feel uncomfortable and are easy to cause harm to bodies, so that the illness state of the patients is not easy to treat and recover. The lifting sickbed replaces the basic performance of a straight plate type sickbed and solves the problem of sitting up of patients, but the existing lifting sickbed only relates to single upper body lifting or lower body lifting, has a single structure and weak functionality, and cannot meet the requirements of patients.

Disclosure of Invention

Aiming at the defects in the technology, the utility model provides the magnetic resonance sickbed with the arc-shaped bed board, and different motions of a plurality of different bed boards are realized by arranging a plurality of structures, so that different use requirements are met.

In order to achieve the above purpose, the utility model provides a sickbed with an arc-shaped bed board, which comprises a bed frame and a bed board, wherein the bed board is arranged on the bed frame and comprises a fixed board and a movable board, the movable board is provided with a plurality of movable boards, and the movable boards are respectively arranged on two sides of the fixed board and are hinged with the fixed board; the movable plate comprises a first movable plate, a second movable plate and a third movable plate, the first movable plate is arranged on one side of the fixed plate, the second movable plate and the third movable plate are arranged on the other side of the fixed plate, and the second movable plate and the third movable plate are connected together through a hinge structure; the lower part of the first movable plate is provided with a first rotating motor, and the lower part of the second movable plate is provided with a second rotating motor; under the drive of first rotating motor and second rotating motor, support first fly leaf and second fly leaf, satisfy patient's upper body, the crooked demand of shank.

Preferably, the two ends of the bedstead are provided with protection plates, each protection plate comprises a first protection plate and a second protection plate, the first protection plates are arranged on one side of the first movable plate, the lower ends of the first protection plates are connected with the bedstead through connecting columns, a movement motor is arranged beside the connecting columns, and the connecting columns and the connecting parts of the bedstead extend outwards to form bayonets.

Preferably, a chute is arranged on one side of the bedstead, which is close to the connecting column, the connecting column is arranged in the chute, and the first protection plate moves along the chute under the drive of the movement motor.

Preferably, the first protection plate is provided with a through hole for the bed frame to pass through.

Preferably, a buckle matched with the bayonet is arranged on one side of the first protection plate, which is close to the connecting column

Preferably, a rotating shaft is arranged at the lower end of the third movable plate, and two ends of the rotating shaft are respectively and movably connected with the third movable plate and the bedstead.

Preferably, the two sides of the bedstead are also provided with handrails which are folded, stored and attached together.

The beneficial effects of the utility model are as follows: compared with the prior art, the sickbed with the arc-shaped bed plate has the advantages that the bed plate is of a multi-block structure and is matched with the corresponding driving structure, so that different bed plates can be effectively moved, and different requirements of patients are met; in addition, a movable protection plate is particularly arranged on the bed plate close to one side of the head of a patient, and the protection plate can move to the lower end of the bed plate so as to support the bed plate, so that the supporting pressure of the motor can be effectively reduced, and the service life of the whole structure is longer.

Drawings

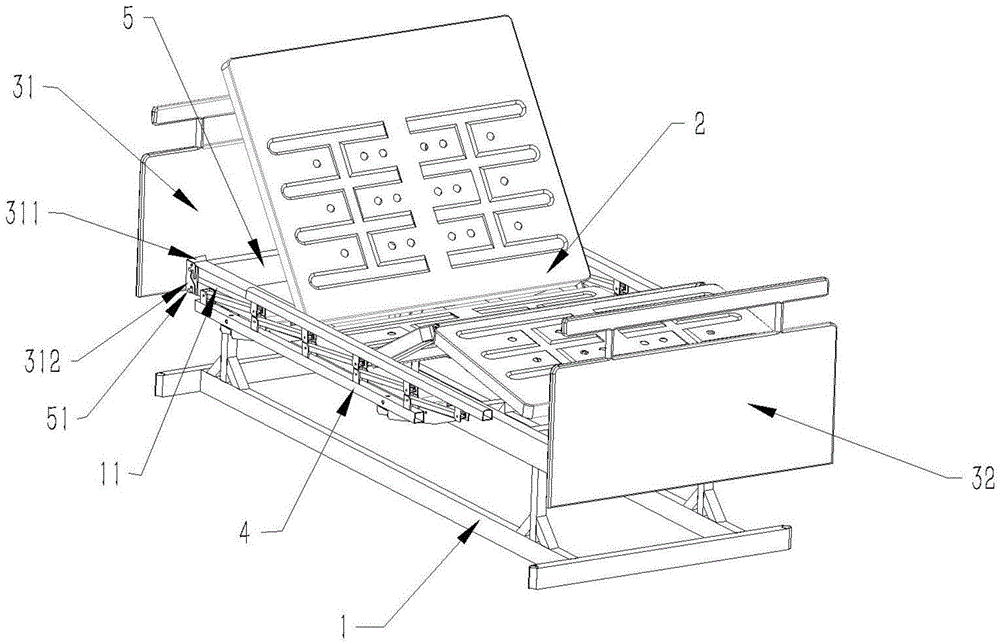

FIG. 1 is a main block diagram of the present utility model;

FIG. 2 is a side view of the present utility model;

fig. 3 is a perspective view of the present utility model.

The main reference numerals are as follows:

1. bedstead 2, bed board 4, armrests 5, connecting posts 6 and fixing shafts

11. Groove 21, first moving plate 22, fixed plate 23, second moving plate

24. Third moving plate 31, first guard plate 32, second guard plate 51, bayonet

211. The support 311 and the through hole 312 are engaged.

Detailed Description

In order to more clearly illustrate the utility model, the utility model is further described below with reference to the accompanying drawings.

Referring to fig. 1 to 3, the present utility model provides a sickbed with an arc-shaped bed board, which comprises a bed frame 1 and a bed board 2, wherein the bed board 2 is installed on the bed frame 1, the bed board 2 comprises a fixed board 22 and a movable board, the movable board is provided with a plurality of movable boards, which are respectively arranged at two sides of the fixed board 22 and hinged with the fixed board 22; the movable plate comprises a first movable plate 21, a second movable plate 23 and a third movable plate 24, wherein the first movable plate 21 is arranged on one side of the fixed plate 22, the second movable plate 23 and the third movable plate 24 are arranged on the other side of the fixed plate 22, and the second movable plate 23 and the third movable plate 24 are connected together through a hinge structure; the lower part of the first movable plate 21 is provided with a first rotating motor, and the lower part of the second movable plate 23 is provided with a second rotating motor; under the drive of first rotating motor and second rotating motor, support first fly leaf and second fly leaf, satisfy patient's upper body, the crooked demand of shank. In the embodiment, the two motors are used for driving and matched with the hinge structure, so that the movable plate moves, and the bed plate moves in different structures.

In order to solve the problem, two ends of the bedstead 1 are provided with protection plates, each protection plate comprises a first protection plate 31 and a second protection plate 32, the first protection plate 31 is arranged on one side of the first movable plate 21, the lower end of the first protection plate 31 is connected with the bedstead 1 through a connecting column 5, a movement motor is arranged beside the connecting column 5, and the connecting part of the connecting column 5 and the bedstead 1 extends outwards to form a bayonet 51; the bedstead 1 is equipped with spout 11 near the one side of spliced pole, and spliced pole 5 installs in spout 11, and under the drive of motion motor, first guard plate 31 moves along spout 11. The first protection plate is provided with a through hole for the bed frame to pass through. The side of the first protection plate 31 close to the connecting column is provided with a buckle 312 matched with the bayonet 51. In this embodiment, utilize first guard plate as the auxiliary support structure of first rotation motor, just so can effectively alleviate the supporting pressure of first rotation motor, thereby can effectively prolong the life cycle of whole device, more specifically is, be equipped with the through-hole that supplies the bedstead to pass on the first guard plate, when the motor of movement drives first guard plate and moves like this, first guard plate moves along the spout on the bedstead, thereby cooperatees with the supporting part of first motion plate, realized supporting first motion plate, thereby alleviateed the supporting pressure of first rotation motor.

The lower end of the third movable plate 23 is provided with a rotating shaft, and two ends of the rotating shaft are respectively movably connected with the third movable plate 23 and the bedstead 1. Two sides of the bedstead 1 are also provided with armrests 4, and the armrests 4 are folded, stored and attached together. In a specific implementation process, the first motion motor is a telescopic motor; the lower side of the first movable plate is provided with a fixed shaft 6 which is fixedly connected with an output shaft of the first motion motor, the inner side of the bed frame is provided with an extension part, the extension part is provided with the first motion motor, when the first motion motor is started, the output shaft is driven to extend, the fixed shaft is driven to move upwards at the moment, and the first movable plate and the fixed plate are connected in a hinge manner, so that the first movable plate rotates, and one end of the first movable plate is tilted; the same way as the first motor is the movement operation mode of the second motor, and the description is omitted here.

The above disclosure is only a few specific embodiments of the present utility model, but the present utility model is not limited thereto, and any changes that can be made by those skilled in the art fall within the protection scope of the present utility model.

Claims

1. The sickbed with the arc-shaped bed plate comprises a bed frame and a bed plate, wherein the bed plate is arranged on the bed frame, and is characterized in that the bed plate comprises a fixed plate and a movable plate, and the movable plate is provided with a plurality of movable plates which are respectively arranged on two sides of the fixed plate and hinged with the fixed plate; the movable plate comprises a first movable plate, a second movable plate and a third movable plate, the first movable plate is arranged on one side of the fixed plate, the second movable plate and the third movable plate are arranged on the other side of the fixed plate, and the second movable plate and the third movable plate are connected together through a hinge structure; the lower part of the first movable plate is provided with a first rotating motor, and the lower part of the second movable plate is provided with a second rotating motor; under the drive of first rotating motor and second rotating motor, support first fly leaf and second fly leaf, satisfy patient's upper body, the crooked demand of shank.

2. The sickbed with the arc-shaped bed plate according to claim 1, wherein the protection plates are arranged at two ends of the bed frame and comprise a first protection plate and a second protection plate, the first protection plate is arranged on one side of the first movable plate, the lower end of the first protection plate is connected with the bed frame through a connecting column, a moving motor is arranged beside the connecting column, and the connecting position of the connecting column and the bed frame extends outwards to form a bayonet.

3. The sickbed with the arc-shaped bed plate according to claim 2, wherein a chute is arranged on one side of the bedstead, which is close to the connecting column, the connecting column is arranged in the chute, and the first protection plate moves along the chute under the drive of the movement motor.

4. The hospital bed with the arc-shaped bed board according to claim 2, wherein the first protection plate is provided with a through hole for the bed frame to pass through.

5. The sickbed with the arc-shaped bed plate according to claim 2, wherein a buckle matched with the bayonet is arranged on one side of the first protection plate, which is close to the connecting column.

6. The sickbed with the arc-shaped bed plate according to claim 1, wherein a rotating shaft is arranged at the lower end of the third movable plate, and two ends of the rotating shaft are respectively and movably connected with the third movable plate and the bed frame.

7. The hospital bed with the arc-shaped bed board according to claim 1, wherein handrails are further arranged on two sides of the bed frame, and the handrails are arranged together in a foldable, accommodating and fitting way.
