The utility model discloses a waterproof water pump motor control cabinet which comprises a cabinet body and a cabinet door, wherein the cabinet door is located on one side of the cabinet body and is movably connected through a hinge, a sealing gasket is fixedly connected to the inner side of the cabinet door, a wiring hole is formed in the bottom of the cabinet body, a waterproof sleeve is detachably connected to the inside of the wiring hole, a heat dissipation fan is installed at the bottom of the cabinet body, and a surrounding edge is fixedly connected to the lower end face of the cabinet body. This waterproof type water pump motor control cabinet is through being provided with sealing washer and surrounding edge to with the wiring hole setting in the bottom of the cabinet body, thereby make water pump motor control cabinet possess fine waterproof nature, fine avoided water by the gap department of cabinet door and the cabinet body and the wiring hole enter into the cabinet body in, fine improvement water pump motor control cabinet's result of use.
Description
Technical Field
The utility model relates to the technical field of control cabinets, in particular to a waterproof water pump motor control cabinet.
Background
The control cabinet is characterized in that switching equipment, a measuring instrument, protection appliances and auxiliary equipment are assembled in a closed or semi-closed metal cabinet or on a screen according to the electric wiring requirement, the arrangement of the control cabinet meets the requirement of normal operation of a power system, the control cabinet is convenient to overhaul, the safety of personnel and surrounding equipment is not endangered, a circuit can be switched on or off by means of manual or automatic switches in normal operation, the circuit is switched off or alarmed by means of the protection appliances in fault or abnormal operation, various parameters in operation can be displayed by the measuring instrument, certain electric parameters can be adjusted, a signal is prompted or sent out when the electric parameters deviate from the normal working state, the control cabinet is commonly used in various distribution and transformation offices, and a water pump and a motor in a cold material factory can be controlled by using control;
the existing water pump motor control cabinet is poor in waterproofness, water vapor easily enters the cabinet body from a gap of the cabinet door, and naturally dissipates heat by means of the heat dissipation holes.
Disclosure of Invention
The utility model aims to provide a waterproof type water pump motor control cabinet, which aims to solve the problems that the existing water pump motor control cabinet is poor in waterproof property, water vapor is easy to enter a cabinet body from a gap of a cabinet door, and natural heat dissipation is carried out by means of heat dissipation holes.
In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a waterproof type water pump motor control cabinet, includes the cabinet body and cabinet door, the cabinet door is located one side of the cabinet body, and through hinge swing joint, the inboard fixedly connected with sealing washer of cabinet door, the bottom of the cabinet body is provided with the wiring hole, the inside of wiring hole can be dismantled and be connected with waterproof cover, the heat dissipation fan is installed to the bottom of the cabinet body, the lower terminal surface fixedly connected with surrounding edge of the cabinet body.
Preferably, the inside fixedly connected with mounting bracket of the cabinet body, the multiunit mounting hole has been seted up on the surface of mounting bracket.
Preferably, a lock catch is detachably connected to one side of the cabinet door, and a lock head is detachably connected to one side of the cabinet body.
Preferably, a heat dissipation hole is formed in one side of the wiring hole.
Preferably, the lower end face of the cabinet body is welded with a fixing foot, and the upper end face of the fixing foot is provided with a bolt hole.
Compared with the prior art, the utility model has the beneficial effects that: the waterproof water pump motor control cabinet is provided with the sealing gasket and the surrounding edge, and the wiring hole is formed in the bottom of the cabinet body, so that the water pump motor control cabinet has good waterproof performance, water is well prevented from entering the cabinet body from the gap between the cabinet door and the cabinet body and the wiring hole, and the use effect of the water pump motor control cabinet is well improved;
this waterproof type water pump motor control cabinet is through being provided with the radiator fan, and the radiator fan can distribute the heat in the cabinet body, has improved the radiating effect to water pump motor control cabinet.
Drawings

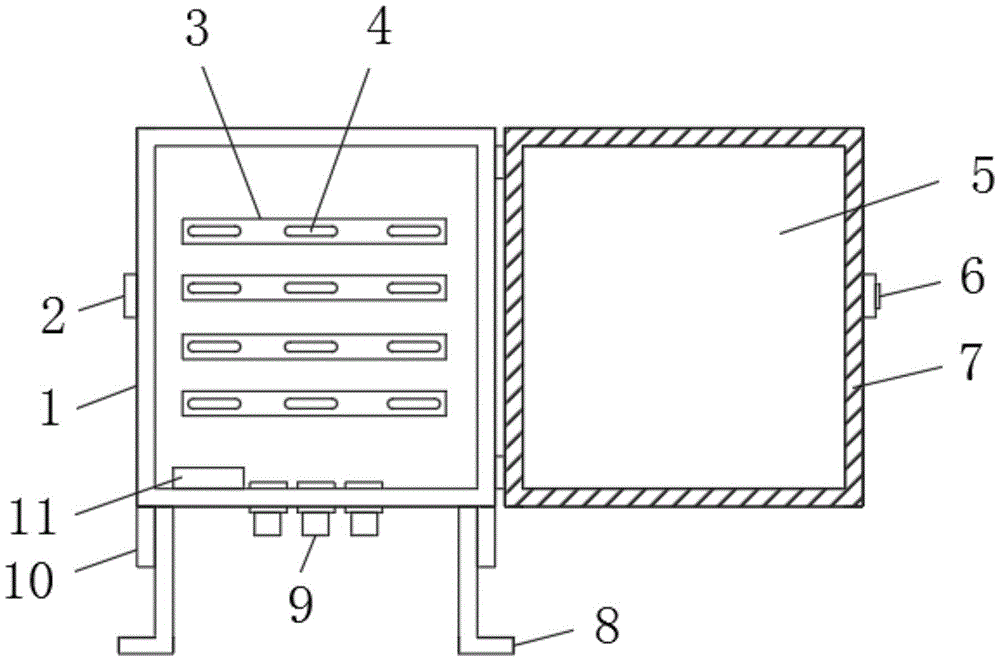

FIG. 1 is a schematic diagram of the overall structure of the present utility model;
FIG. 2 is a schematic top view of the lower end surface of the cabinet of the present utility model;
fig. 3 is a schematic top view of the surrounding edge of the present utility model.
In the figure: 1. a cabinet body; 2. a lock head; 3. a mounting frame; 4. a mounting hole; 5. a cabinet door; 6. locking; 7. a sealing gasket; 8. a fixed foot; 9. a waterproof jacket; 10. surrounding edges; 11. a heat dissipation fan; 12. a heat radiation hole; 13. and a wiring hole.
Detailed Description
The utility model is further described in connection with the following detailed description, in order to make the technical means, the creation characteristics, the achievement of the purpose and the effect of the utility model easy to understand.
In the description of the present utility model, it should be noted that the directions or positional relationships indicated by the terms "upper", "lower", "inner", "outer", "front", "rear", "both ends", "one end", "the other end", etc. are based on the directions or positional relationships shown in the drawings, are merely for convenience of describing the present utility model and simplifying the description, and do not indicate or imply that the devices or elements referred to must have a specific direction, be configured and operated in the specific direction, and thus should not be construed as limiting the present utility model. Furthermore, the terms "first," "second," and the like, are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present utility model, it should be noted that, unless explicitly specified and limited otherwise, the terms "mounted," "provided," "connected," and the like are to be construed broadly, and may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; can be directly connected or indirectly connected through an intermediate medium, and can be communication between two elements. The specific meaning of the above terms in the present utility model will be understood in specific cases by those of ordinary skill in the art.
Referring to fig. 1-3, the present utility model provides a technical solution: the waterproof water pump motor control cabinet comprises a cabinet body 1 and a cabinet door 5, wherein the cabinet door 5 is positioned on one side of the cabinet body 1 and is movably connected through a hinge, the inner side of the cabinet door 5 is fixedly connected with a sealing gasket 7, the bottom of the cabinet body 1 is provided with a wiring hole 13, the inside of the wiring hole 13 is detachably connected with a waterproof sleeve 9, the bottom of the cabinet body 1 is provided with a heat dissipation fan 11, and the lower end surface of the cabinet body 1 is fixedly connected with a surrounding edge 10;
the inside fixedly connected with mounting bracket 3 of cabinet body 1, multiunit mounting hole 4 has been seted up on the surface of mounting bracket 3, the installation to the controller is fixed has been made things convenient for, the lock catch 6 is connected with in the detachable one side of cabinet door 5, the detachable tapered end 2 that is connected with in one side of cabinet body 1, cabinet door 5 that is can lock with cabinet body 1, one side of wiring hole 13 is provided with louvre 12, play fine radiating effect, the lower terminal surface welding of cabinet body 1 has fixed foot 8, the bolt hole has been seted up to the up end of fixed foot 8, the convenience is fixed cabinet body 1 through the bolt installation.
Working principle: through being provided with sealing washer 7 and surrounding edge 10 to set up wiring hole 13 in the bottom of the cabinet body 1, thereby make water pump motor control cabinet possess fine waterproof nature, fine avoided water to get into to the cabinet body 1 by cabinet door 5 and cabinet body 1 gap department and wiring hole, fine improved water pump motor control cabinet's result of use, through being provided with radiator fan 11, radiator fan 11 can distribute the heat in the cabinet body 1, has improved the radiating effect to water pump motor control cabinet.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a waterproof type water pump motor control cabinet, includes cabinet body (1) and cabinet door (5), cabinet door (5) are located one side of cabinet body (1), and through hinge swing joint, its characterized in that: the novel cabinet is characterized in that a sealing gasket (7) is fixedly connected to the inner side of the cabinet door (5), a wiring hole (13) is formed in the bottom of the cabinet body (1), a waterproof sleeve (9) is detachably connected to the inside of the wiring hole (13), a heat dissipation fan (11) is mounted at the bottom of the cabinet body (1), and a surrounding edge (10) is fixedly connected to the lower end face of the cabinet body (1).
2. The waterproof water pump motor control cabinet of claim 1, wherein: the novel cabinet is characterized in that an installation frame (3) is fixedly connected to the inside of the cabinet body (1), and a plurality of groups of installation holes (4) are formed in the surface of the installation frame (3).
3. The waterproof water pump motor control cabinet of claim 1, wherein: one side of the cabinet door (5) is detachably connected with a lock catch (6), and one side of the cabinet body (1) is detachably connected with a lock head (2).
4. The waterproof water pump motor control cabinet of claim 1, wherein: and a heat dissipation hole (12) is formed in one side of the wiring hole (13).
5. The waterproof water pump motor control cabinet of claim 1, wherein: the lower terminal surface welding of the cabinet body (1) has fixed foot (8), the bolt hole has been seted up to the up end of fixed foot (8).
