Abstract
The utility model discloses a wastewater filtering device, which relates to the technical field of wastewater treatment and comprises a filtering box, wherein first cavities are formed in the front side and the rear side of the left side of the upper side of the inner wall of the filtering box, second cavities are formed in the front side and the rear side of the right side of the upper side of the inner wall of the filtering box, and cleaning devices are arranged on the inner walls of the two first cavities; the cleaning device comprises a first waterproof motor fixedly connected to one side of the inner wall of the first cavity, a first screw rod is fixedly connected to the output end of the first waterproof motor, and brush plates are connected to the rod walls of the two corresponding first screw rods in a threaded mode. The utility model can automatically clean the filter screen layer device in the equipment without dismantling the installation work, ensures the filtering effect and quality of the equipment, increases the using effect of the equipment, simultaneously can avoid the problem of increasing the working strength of an operator for dismantling the installation device, and improves the adaptability of the equipment.
Description
Technical Field
The utility model relates to the technical field of wastewater treatment, in particular to a wastewater filtering device.
Background
The wastewater treatment is to treat wastewater by physical, chemical and biological methods, so as to purify the wastewater and reduce pollution, so that the wastewater is recovered and reused, water resources are fully utilized, devices used in the wastewater treatment process are called wastewater treatment devices, and various types of wastewater treatment devices, such as a filtering device, a precipitation device, a purifying device and the like are wastewater treatment devices.
For example, the waste water filtering device is a common device for filtering and removing large-particle impurities in waste water, but because the large-particle impurities in the waste water are required to be filtered, the cleaning or replacement of the filter screen layer in the device is a common work, and because the filter screen layer in the conventional filtering device is fixed in equipment, the inconvenience of cleaning or replacing the filter screen layer device by the equipment is caused, the working strength of the device for removing the device by an operator can be increased, and the using effect of the equipment is affected.
Disclosure of Invention
The utility model aims to provide a waste water filtering device, which solves the problems that the prior art needs to filter large-particle impurities in waste water, so that the cleaning or replacement of a filter screen layer in the device is common work, and the filter screen layer in the conventional filtering device is fixed in equipment, so that the inconvenience is caused when the equipment cleans or replaces the filter screen layer device, the working strength of an operator for removing an installation device is increased, and the using effect of the equipment is affected.
In order to achieve the above purpose, the present utility model provides the following technical solutions: the waste water filtering device comprises a filtering box, wherein first cavities are formed in the front side and the rear side of the left side of the upper side of the inner wall of the filtering box, second cavities are formed in the front side and the rear side of the right side of the upper side of the inner wall of the filtering box, and cleaning devices are arranged on the inner walls of the two first cavities;
the cleaning device comprises a first waterproof motor fixedly connected to one side of the inner wall of a first cavity, a first screw rod is fixedly connected to the output end of the first waterproof motor, two corresponding brush plates are connected to the rod walls of the first screw rod in a threaded mode, an inclined filter screen plate is fixedly connected to one side of the inner wall of the filter box, and flushing devices are arranged on the inner wall of the second cavity.
Preferably, the flushing device comprises a second waterproof motor fixedly connected to one side of the inner wall of the second cavity, a second screw rod is fixedly connected to the output end of the second waterproof motor, two corresponding rod walls of the second screw rods are connected with a cleaning shell in a threaded mode, a plurality of flushing ports are formed in the left side of the inner wall of the cleaning shell, and a water delivery device is arranged on the left side of the upper surface of the filtering box.
Preferably, the water supply device comprises a water storage tank fixedly connected to one side of the upper surface of the filter tank, one side of the inner wall of the second cavity is fixedly connected with a pump body, the output end of the pump body is fixedly connected with an elastic tube, an inclined falling port is formed in one side of the inclined filter screen plate, the lower surface of the filter tank is fixedly connected with a storage box at the lower side of the inclined falling port, the installation work is not required to be removed, the filter screen layer device in the equipment can be cleaned automatically, the filtering effect and quality of the equipment are guaranteed, the use effect of the equipment is improved, the problem of the working strength of the installation device is avoided from being removed by an operator, and the adaptability of the equipment is improved.
Preferably, one ends of the two first screw rods respectively penetrate through one side of the corresponding first cavity inner wall to extend to the inner wall of the filtering box and are rotationally connected with one side of the filtering box inner wall, one ends of the two second screw rods respectively penetrate through one side of the corresponding second cavity inner wall to extend to the inner wall of the filtering box and are rotationally connected with one side of the filtering box inner wall, the input end of the pump body penetrates through one side of the second cavity inner wall and one side surface of the water storage tank to extend to the inner wall of the water storage tank, and one end of the elastic tube penetrates through one side of the second cavity inner wall to extend to the inner wall of the filtering box and is fixedly connected with one side surface of the cleaning shell.
Preferably, the upper side of the inner wall of the water storage tank is clamped with a tank cover.
Preferably, the left side surface and the right side surface of the filter box are fixedly connected with liquid pipes.
Preferably, four corners of the lower surface of the filter box are fixedly connected with supporting box legs, and the front surface of the filter box is provided with a glass observation window.
The utility model has the technical effects and advantages that:
1. through setting up rose box, first cavity, second cavity, first waterproof motor, first lead screw, brush board, oblique filter screen board, second waterproof motor, second lead screw, wash the shell, wash a mouthful, storage water tank, the pump body, the elastic tube, fall a mouthful to one side, the storage box, this equipment need not to demolish the installation work, can clear up the filter screen layer device in the equipment by oneself, guarantee the filterable effect and the quality of equipment, when increasing equipment result of use, can also avoid the increase operating personnel to demolish the working strength problem of installation device, improve the adaptability of equipment.
2. Through setting up first lead screw, first cavity, second lead screw, second cavity, rose box, pump body, storage water tank, elastic tube, washing shell, guarantee connection stability and security between device and the device in the equipment, the adaptability of increase equipment.
3. Through setting up storage water tank, case lid, liquid pipe, rose box, supporting case leg, glass observation window, guarantee that the device can not take place the problem of jam in the equipment, guarantee the basic service function of equipment, guarantee the surface of equipment can not take place the problem of corruption, reduce the operation degree of difficulty of equipment, increase the result of use of equipment.
Drawings

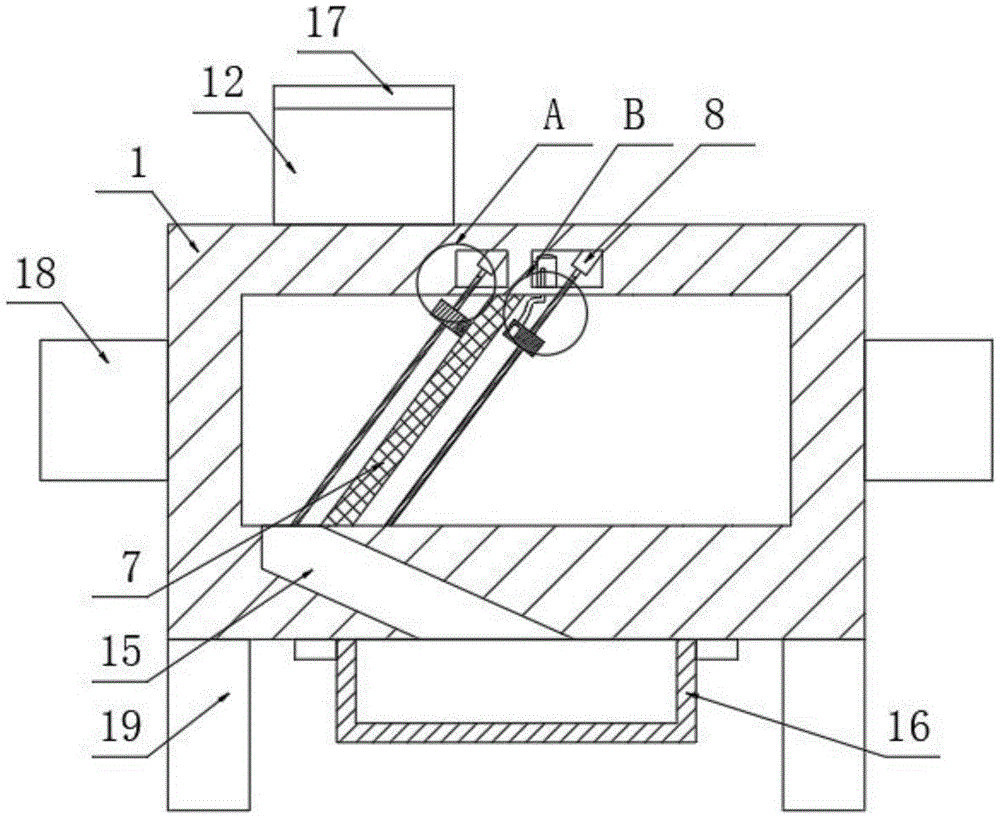

Fig. 1 is a schematic diagram of the overall front cross-sectional structure of the present utility model.
Fig. 2 is an enlarged schematic view of the portion a in fig. 1 according to the present utility model.
Fig. 3 is an enlarged view of the B part in fig. 1 according to the present utility model.
Fig. 4 is a schematic overall perspective view of the present utility model.
In the figure: 1. a filter box; 2. a first cavity; 3. a second cavity; 4. a first waterproof motor; 5. a first screw rod; 6. brushing a plate; 7. an inclined filter screen plate; 8. a second waterproof motor; 9. a second screw rod; 10. cleaning the shell; 11. a flushing port; 12. a water storage tank; 13. a pump body; 14. an elastic tube; 15. a slanting falling opening; 16. a storage box; 17. a case cover; 18. a liquid pipe; 19. supporting the box legs; 20. and a glass viewing window.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
The utility model provides a wastewater filtering device as shown in figures 1-4, which comprises a filtering box 1, wherein a first cavity 2 is formed in the front side and the rear side of the left side of the upper side of the inner wall of the filtering box 1, a second cavity 3 is formed in the front side and the rear side of the right side of the upper side of the inner wall of the filtering box 1, and cleaning devices are arranged on the inner walls of the two first cavities 2; the cleaning device includes the first waterproof motor 4 of fixed connection in first cavity 2 inner wall one side, the first lead screw 5 of output fixedly connected with of first waterproof motor 4, first lead screw 5 is the nickel base alloy material, the common threaded connection of pole wall of two corresponding first lead screws 5 has brush plate 6, the inner wall of rose box 1 is located one side fixedly connected with oblique filter screen plate 7 of brush plate 6, the inner wall of two second cavities 3 all is provided with washing unit, washing unit includes the second waterproof motor 8 of fixed connection in second cavity 3 inner wall one side, the output fixedly connected with second lead screw 9 of second waterproof motor 8, the common threaded connection of pole wall of two corresponding second lead screws 9 has washing shell 10, a plurality of flushing openings 11 have been seted up in the left side of washing shell 10 inner wall, the left side of rose box 1 upper surface is provided with water supply unit, water supply unit includes fixed connection in rose box 1 upper surface one side 12, one side fixedly connected with pump body 13 of second cavity 3 inner wall, the output fixedly connected with elastic tube 14 of 13, the downside of rose box 1 inner wall is located the inclined filter screen plate 7 one side and is equipped with down the filter screen plate 15, the filter box that can be installed to the slope, the filter box that can be used for the improvement quality of the equipment that can be improved, the improvement can also be adjusted to the equipment of the quality of the equipment is installed to the equipment that can be dismantled to the slope, the equipment is installed to the improvement, the improvement of the quality of the performance of the equipment is required to the equipment, the improvement of the performance of the equipment is installed to the equipment.
As shown in fig. 1, one ends of the two first screw rods 5 respectively penetrate through one side of the inner wall of the corresponding first cavity 2 to extend to the inner wall of the filter box 1, and are rotationally connected with one side of the inner wall of the filter box 1, one ends of the two second screw rods 9 respectively penetrate through one side of the inner wall of the corresponding second cavity 3 to extend to the inner wall of the filter box 1, and are rotationally connected with one side of the inner wall of the filter box 1, the input end of the pump body 13 penetrates through one side of the inner wall of the second cavity 3 and one side surface of the water storage tank 12 to extend to the inner wall of the water storage tank 12, one end of the elastic tube 14 penetrates through one side of the inner wall of the second cavity 3 to extend to the inner wall of the filter box 1 and are fixedly connected with one side surface of the cleaning shell 10, connection stability and safety between devices in equipment are guaranteed, and adaptability of the equipment is improved.
As shown in fig. 1 and 3, the upper side joint of storage water tank 12 inner wall has case lid 17, and the equal fixedly connected with liquid pipe 18 of left and right sides surface of rose box 1, the equal fixedly connected with supporting box leg 19 in four corners department of rose box 1 lower surface, and the front surface of rose box 1 is provided with glass observation window 20, guarantees the problem that the device can not take place to block up in the equipment, guarantees the basic service function of equipment, guarantees the problem that the surface of equipment can not take place to corrode, reduces the operation degree of difficulty of equipment, increases the result of use of equipment.
The working principle of the utility model is as follows: when the device is used, a sewage conveying device and other finally imported devices are connected with a liquid pipe 18 in the device through a pipeline, when sewage passes through the filter box 1, the sewage can be filtered by the inclined filter screen 7 in the filter box 1, the basic function of the device on sewage filtration is guaranteed, after the device is used for a period of time, the condition of surface impurities of the inclined filter screen 7 can be watched through the glass observation window 20, the surface of one side of the inclined filter screen 7 can be cleaned by driving the brush plate 6 on the first screw rod 5 through the first waterproof motor 4 in the filtration process, large-particle impurities are scraped to the inclined drop port 15, and the large-particle impurities are imported into the storage box 16 under the action of the inclined drop port 15 so as to be exported uniformly, and the structural positions of the screw rods in the device are all waterproof, so that the normal use function of the device is not affected;
the brush plate 6 can also work in the equipment working process, when the interior of the hole in the inclined filter screen plate 7 has impurities, the inclined filter screen plate 7 can be cleaned through the structure driven by the second waterproof motor 8, at this time, the cleaning equipment is not in a working state, the second waterproof motor 8 drives the cleaning shell 10 to move on the surface of the inclined filter screen plate 7 through the second screw rod 9, at this time, the pump body 13 guides the water which is placed in the water storage tank 12 into the cleaning shell 10 in advance, the water in the cleaning shell 10 can be guided into the surface of the inclined filter screen plate 7 through the flushing port 11 to clean the surface of the inclined filter screen plate 7, so that the normal use function of the inclined filter screen plate 7 can be guaranteed, the storage box 16 in the equipment is fixed with the filter box 1 through the fixing bolt, and other cleaning and fixing can be conveniently carried out.
Finally, it should be noted that: the foregoing description is only illustrative of the preferred embodiments of the present utility model, and although the present utility model has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described, or equivalents may be substituted for elements thereof, and any modifications, equivalents, improvements or changes may be made without departing from the spirit and principles of the present utility model.
Claims (7)
1. The utility model provides a waste water filter device, includes rose box (1), its characterized in that: the filter box comprises a filter box body (1), wherein a first cavity (2) is formed in the front side and the rear side of the left side of the upper side of the inner wall of the filter box body (1), a second cavity (3) is formed in the front side and the rear side of the right side of the upper side of the inner wall of the filter box body (1), and cleaning devices are arranged on the inner walls of the two first cavities (2);
the cleaning device comprises a first waterproof motor (4) fixedly connected to one side of the inner wall of a first cavity (2), a first screw rod (5) is fixedly connected to the output end of the first waterproof motor (4), brush plates (6) are connected to the rod walls of the first screw rods (5) in a threaded mode in a common mode, an inclined filter screen plate (7) is fixedly connected to one side, located on the brush plates (6), of the inner wall of the filter box (1), and flushing devices are arranged on the inner walls of the second cavities (3).
2. A wastewater filtration device according to claim 1, wherein: the flushing device comprises a second waterproof motor (8) fixedly connected to one side of the inner wall of the second cavity (3), a second screw rod (9) is fixedly connected to the output end of the second waterproof motor (8), two corresponding rod walls of the second screw rods (9) are connected with a cleaning shell (10) in a threaded mode in a common mode, a plurality of flushing ports (11) are formed in the left side of the inner wall of the cleaning shell (10), and a water delivery device is arranged on the left side of the upper surface of the filtering box (1).
3. A wastewater filtration device according to claim 2, wherein: the water supply device comprises a water storage tank (12) fixedly connected to one side of the upper surface of the filter tank (1), one side of the inner wall of the second cavity (3) is fixedly connected with a pump body (13), the output end of the pump body (13) is fixedly connected with an elastic tube (14), an inclined falling port (15) is formed in one side of the lower side of the inner wall of the filter tank (1), which is positioned on one side of the inclined filter screen plate (7), and the lower surface of the filter tank (1) is positioned on the lower side of the inclined falling port (15) and is fixedly connected with a storage box (16).
4. A wastewater filtration device according to claim 3 wherein: one end of each first screw rod (5) penetrates through one side of the inner wall of the corresponding first cavity (2) to extend to the inner wall of the filtering box (1) respectively, and is rotationally connected with one side of the inner wall of the filtering box (1), one end of each second screw rod (9) penetrates through one side of the inner wall of the corresponding second cavity (3) to extend to the inner wall of the filtering box (1) respectively, and is rotationally connected with one side of the inner wall of the filtering box (1) respectively, the input end of the pump body (13) penetrates through one side of the inner wall of the second cavity (3) and one side surface of the water storage tank (12) to extend to the inner wall of the water storage tank (12), and one end of the elastic tube (14) penetrates through one side of the inner wall of the second cavity (3) to extend to the inner wall of the filtering box (1) and is fixedly connected with one side surface of the cleaning shell (10).
5. A wastewater filtration device according to claim 3 wherein: the upper side of the inner wall of the water storage tank (12) is clamped with a tank cover (17).
6. A wastewater filtration device according to claim 1, wherein: the left side surface and the right side surface of the filter box (1) are fixedly connected with liquid pipes (18).
7. A wastewater filtration device according to claim 1, wherein: the four corners of the lower surface of the filter box (1) are fixedly connected with supporting box legs (19), and the front surface of the filter box (1) is provided with a glass observation window (20).
