CN219303240U

CN219303240U - LED display screen convenient to assemble

Info

Publication number: CN219303240U
Application number: CN202221270174.6U
Authority: CN
Inventors: 罗鑫泉
Original assignee: Chengdu Haoliang Technology Co ltd
Current assignee: Chengdu Haoliang Technology Co ltd
Priority date: 2022-05-25
Filing date: 2022-05-25
Publication date: 2023-07-04
Anticipated expiration: 2032-05-25

Abstract

The utility model discloses an LED display screen convenient to assemble, which comprises a display main screen, a folding auxiliary screen and a mounting frame, wherein the display main screen comprises an outer frame and a main screen, the main screen is arranged in the middle of the outer frame and is fixedly connected with the outer frame, the folding auxiliary screens are symmetrically arranged at the left side and the right side of the outer frame and are rotationally connected with the outer frame, the mounting frame is fixedly arranged at the rear end face of the outer frame, the folding auxiliary screens are arranged at the two sides of the display main screen, the folding auxiliary screens at the two sides can be flexibly turned and folded, the folding auxiliary screens can be stably turned out when the folding auxiliary screen is needed to be used, and can be locked through a locking frame and a triangular block when the folding auxiliary screen is not used, so that the purpose of flexible carrying is realized.

Description

LED display screen convenient to assemble

Technical Field

The utility model relates to the technical field of LED display screens, in particular to an LED display screen convenient to assemble.

Background

At present, the LED display screen is often required to be supported and installed by a corresponding frame in use.

The traditional Chinese patent with the publication number of CN103077665B discloses a portable foldable LED display screen, which comprises a foldable box body, wherein the foldable box body comprises a left half box body and a right half box body which are hinged, the portable foldable LED display screen also comprises a first LED display screen and a second LED display screen, and the first LED display screen and the second LED display screen are symmetrically arranged on the front surface of the left half box body and the front surface of the right half box body respectively; the first LED display screen is in close proximity to the second LED display screen. And wireless communication connection is established between the first LED display screen and the second LED display screen through the first inter-screen wireless communication module and the second inter-screen wireless communication module.

Aiming at the related technology, the inventor considers that the existing LED display screen has a simple structure, and a plurality of display screens are fixed through the mounting frame in the actual use process, so that the LED display screen is inconvenient for a user to flexibly fold and carry, and meanwhile, the traditional LED display screen cannot be assembled rapidly.

Disclosure of Invention

In order to achieve the effect of assembling fast and portable, the application provides an LED display screen convenient to assemble.

The utility model is realized in the following way:

the utility model provides a LED display screen convenient to assemble, includes display main screen, folding auxiliary screen and mounting bracket, display main screen includes outer frame and home screen, the middle part at outer frame is installed to the home screen, and home screen and outer frame fixed connection, folding auxiliary screen symmetry sets up the left and right sides at outer frame, and folding auxiliary screen rotates with outer frame to be connected, mounting bracket fixed mounting is at the rear end face of outer frame.

Further, the outer frame comprises a frame plate and a locking frame, wherein the locking frame is symmetrically arranged on the front end face of the frame plate and is vertically and fixedly connected with the frame plate, and the lower end face of the frame plate is symmetrically provided with a thread groove.

Furthermore, the triangular block is arranged at the head of the locking frame and fixedly connected with the locking frame, and the triangular block is made of rubber materials.

Further, the mounting frame comprises a bracket and a supporting frame, wherein the supporting frame is uniformly arranged on the upper end face of the bracket, and the supporting frame is vertically and fixedly connected with the bracket.

Further, the bracket comprises a bottom plate and an F-shaped bracket, the F-shaped bracket is vertically arranged on the upper end face of the bottom plate, and thread grooves are formed in the bottom plate and the F-shaped bracket.

Further, the support frame comprises an upright post and a supporting plate, wherein the supporting plate is arranged at the head part of the upright post and is vertically and fixedly connected with the upright post.

Further, a screw is further arranged on the lower end face of the upright post, and the screw and the upright post are integrally formed.

Compared with the prior art, the utility model has the beneficial effects that:

(1) The folding auxiliary screens are arranged on the two sides of the display main screen, so that the folding auxiliary screens on the two sides can be flexibly turned and folded, the folding auxiliary screens can be stably turned out when the folding auxiliary screens are needed to be used, and the folding auxiliary screens can be locked through the locking frame and the triangular blocks when the folding auxiliary screens are not used, so that the purpose of flexible carrying is achieved.

(2) The support frame is conveniently supported and placed on the rear end face of the outer frame through the support frame, the support frame can be stably stored and placed on the support frame when not in use, the support frame can be taken down from the support frame when in use, and then the support frame is installed in the threaded holes at the lower ends of the bottom plate and the frame plate, so that the display screen is supported and placed through the support frame.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present utility model, the drawings that are needed in the embodiments will be briefly described below, it being understood that the following drawings only illustrate some examples of the present utility model and therefore should not be considered as limiting the scope, and other related drawings may be obtained according to these drawings without inventive effort for a person skilled in the art.

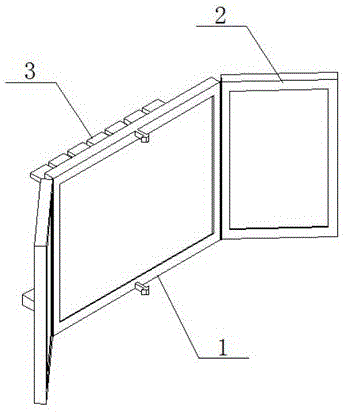

FIG. 1 is a perspective view of the device of the present utility model when the secondary screen is unfolded;

FIG. 2 is a front view of the device of FIG. 1;

FIG. 3 is a perspective view of the device of the present utility model with the secondary screen folded;

FIG. 4 is a right side view of the device shown in FIG. 3;

fig. 5 is a top view of the device shown in fig. 3.

In the figure: 1. displaying a main screen; 11. an outer frame; 111. a frame plate; 112. a locking frame; 113. triangular blocks; 12. a main screen; 2. folding the auxiliary screen; 3. a mounting frame; 31. a bracket; 311. a bottom plate; 312. an F-shaped bracket; 32. a support frame; 321. a column; 322. a supporting plate; 323. and (3) a screw.

Detailed Description

For the purpose of making the objects, technical solutions and advantages of the embodiments of the present utility model more apparent, the technical solutions of the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model, and it is apparent that the described embodiments are some embodiments of the present utility model, but not all embodiments. All other embodiments, based on the embodiments of the utility model, which are apparent to those of ordinary skill in the art without inventive faculty, are intended to be within the scope of the utility model. Thus, the following detailed description of the embodiments of the utility model, as presented in the figures, is not intended to limit the scope of the utility model, as claimed, but is merely representative of selected embodiments of the utility model.

Referring to fig. 1, 2, 3, 4 and 5, an LED display screen convenient to assemble comprises a display main screen 1, a folding auxiliary screen 2 and a mounting frame 3, wherein the display main screen 1 comprises an outer frame 11 and a main screen 12, the main screen 12 is mounted in the middle of the outer frame 11, the main screen 12 is fixedly connected with the outer frame 11, the outer frame 11 comprises a frame plate 111 and a locking frame 112, the locking frame 112 is symmetrically arranged on the front end surface of the frame plate 111, the locking frame 112 is vertically and fixedly connected with the frame plate 111, the lower end surface of the frame plate 111 is symmetrically provided with a thread groove, the head of the locking frame 112 is provided with a triangular block 113, the triangular block 113 is fixedly connected with the locking frame 112, the triangular block 113 is made of rubber material, the LED display screen convenient to assemble is designed by researching the structure and the using process of the traditional LED display screen, the main screen 12 is fixedly mounted through the outer frame 11 when a user needs to use, meanwhile, the folding auxiliary screen 2 is symmetrically arranged on two sides of the outer frame 11, so that the folding auxiliary screen 2 can be flexibly and rotatably matched with the outer frame 11, when the folding auxiliary screen 2 is attached to the front end face of the display main screen 1, the folding auxiliary screen 2 can be clamped by the head-mounted triangular block 113 of the locking frame 112, so that the folding auxiliary screen is more convenient to carry, meanwhile, the support frame 32 is ensured to be placed by the support frame 31 through the fixing bracket 31 on the rear end face of the frame plate 111, the support frame 32 can be conveniently and stably mounted in the thread groove of the F-shaped support 312 through the screw 323, the support frame 31 can be conveniently and stably taken down from the support frame 32 when the folding auxiliary screen is needed, the support fixing of the support frame 32 on the lower end faces of the bottom plate 311 and the frame plate 111 is facilitated, the problem that the structure of the conventional LED display screen is simple is solved, in the actual use process, a plurality of display screens are fixed through the mounting frame, so that the display screens are inconvenient for a user to flexibly fold and carry, and meanwhile, the traditional LED display screens cannot be assembled quickly;

the folding auxiliary screen 2 is symmetrically arranged on the left side and the right side of the outer frame 11, the folding auxiliary screen 2 is rotationally connected with the outer frame 11, and auxiliary display use is ensured by arranging the folding auxiliary screen 2;

the mounting bracket 3 fixed mounting is at the rear end face of outer frame 11, mounting bracket 3 includes bracket 31 and support frame 32, the even up end at bracket 31 of support frame 32, and support frame 32 and bracket 31 vertical fixation connection, bracket 31 includes bottom plate 311 and F shape support 312, F shape support 312 installs perpendicularly at the up end of bottom plate 311, and screw thread groove has all been seted up on bottom plate 311 and the F shape support 312, support frame 32 includes stand 321 and layer board 322, the head at stand 321 is installed to layer board 322, and the perpendicular fixed connection of layer board 322 and stand 321, screw 323 is still installed to the lower terminal surface of stand 321, screw 323 and stand 321 integrated into one piece, through setting up the structure to mounting bracket 3 and guarantee to install support frame 32 through bracket 31, the convenience is accomodate the use that can be nimble through support frame 32.

The above description is only of the preferred embodiments of the present utility model and is not intended to limit the present utility model, and various modifications and variations may be made to the present utility model by those skilled in the art. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model should be included in the protection scope of the present utility model.

Claims

1. LED display screen convenient to assemble, including show main screen (1), folding vice screen (2) and mounting bracket (3), its characterized in that: the display main screen (1) comprises an outer frame (11) and a main screen (12), the main screen (12) is installed in the middle of the outer frame (11), the main screen (12) is fixedly connected with the outer frame (11), the folding auxiliary screens (2) are symmetrically arranged on the left side and the right side of the outer frame (11), the folding auxiliary screens (2) are rotationally connected with the outer frame (11), and the installation frame (3) is fixedly installed on the rear end face of the outer frame (11).

2. The LED display screen convenient to assemble according to claim 1, wherein the outer frame (11) comprises a frame plate (111) and a locking frame (112), the locking frame (112) is symmetrically arranged on the front end face of the frame plate (111), the locking frame (112) is fixedly connected with the frame plate (111) vertically, and the lower end face of the frame plate (111) is symmetrically provided with a thread groove.

3. The LED display screen convenient for assembly according to claim 2, wherein the triangular block (113) is mounted on the head of the locking frame (112), the triangular block (113) is fixedly connected with the locking frame (112), and the triangular block (113) is made of rubber.

4. An LED display screen convenient to assemble according to claim 3, characterized in that the mounting frame (3) comprises a bracket (31) and a supporting frame (32), the supporting frame (32) is uniformly arranged on the upper end surface of the bracket (31), and the supporting frame (32) is fixedly connected with the bracket (31) vertically.

5. The LED display screen convenient to assemble according to claim 4, wherein the bracket (31) comprises a bottom plate (311) and an F-shaped bracket (312), the F-shaped bracket (312) is vertically installed on the upper end surface of the bottom plate (311), and thread grooves are formed in the bottom plate (311) and the F-shaped bracket (312).

6. The LED display screen convenient to assemble according to claim 4, wherein the supporting frame (32) comprises a stand (321) and a supporting plate (322), the supporting plate (322) is installed at the head of the stand (321), and the supporting plate (322) is fixedly connected with the stand (321) vertically.

7. The LED display screen convenient to assemble according to claim 6, wherein the lower end face of the upright post (321) is further provided with a screw (323), and the screw (323) and the upright post (321) are integrally formed.
