The utility model discloses a continuous stamping die for metal pieces, which comprises a first supporting frame and a second supporting frame, wherein a stamping mechanism for stamping the metal pieces is fixedly arranged at the top of the first supporting frame, a conveying mechanism for conveying metal piece base materials to the stamping mechanism is fixedly arranged at the top of the second supporting frame, two groups of adjusting grooves are formed in the surface of the first supporting frame, and a guiding mechanism for guiding and conveying the metal frame base materials is arranged in the adjusting grooves. According to the utility model, the stamping mechanism is arranged to stamp and shape the metal plate to be stamped and formed, the conveying mechanism can continuously convey the large sheet, the stamping mechanism can continuously stamp and process, the guide mechanism can move along the inside of the adjusting groove, and the plates with different sizes can be guided and positioned through the arrangement.
Description
Technical Field
The utility model relates to the technical field of dies, in particular to a continuous stamping die for metal parts.
Background
The metal material refers to a metal block, a metal sheet, a metal rod, a metal tube, or the like, which are manufactured from a metal material and have various specifications and shapes.
In the process of producing and processing large-size metal plates, the feeding is inconvenient usually caused by the self weight, and if a large number of idle stroke stops are caused to the stamping of the metal parts by adopting a manual auxiliary feeding mode, the stamping efficiency of the metal parts is impressed, and therefore, the continuous stamping die for the metal parts is provided.
Disclosure of Invention
The utility model aims to provide a continuous stamping die for metal parts, which is used for solving the problems in the background technology.
In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a continuous stamping die of metalwork, includes first support frame and second support frame, the top fixed mounting of first support frame has the stamping mechanism to the metalwork punching press, the top fixed mounting of second support frame has the conveying mechanism to the stamping mechanism to the metalwork substrate, two sets of adjustment tank have been seted up on the surface of first support frame, the inside of adjustment tank is provided with the guiding mechanism to the metal frame substrate and carries in the direction.
Further, the stamping mechanism comprises a supporting column, a mounting seat and a stamping cylinder, wherein the mounting seat is fixedly arranged at the top of the first supporting frame through the supporting column, the stamping cylinder is fixedly arranged at the top of the mounting seat, the upper die is fixedly connected with the output end of the stamping cylinder, and the lower die is fixedly arranged at the top of the first supporting frame and corresponds to the position of the upper die.
Further, conveying mechanism includes the connecting plate, places board, slide rail, slider, lead screw sleeve, threaded rod and servo motor, the top of second support frame is through two sets of connecting plate fixed mounting and is placed the board, the top fixed mounting of second support frame has two sets of slide rails, the surface sliding connection of slide rail has the slider, place the surface of board and correspond the position of slider and seted up the through groove, two sets of the top fixedly connected with spliced pole of slider, the top of spliced pole extends to the top of placing the board through the through groove, two sets of rotate between the connecting plate and install the threaded rod, one side fixed mounting of connecting plate has servo motor, servo motor's output and the one end fixed connection of threaded rod, the surface of threaded rod is provided with the lead screw sleeve rather than looks adaptation, the outer wall and the spliced pole fixed connection of lead screw sleeve, two sets of one side fixedly connected with mounting panel of spliced pole, the top fixed mounting of mounting panel has a fixed cylinder, the output fixedly connected with locating plate of fixed cylinder.
Further, guiding mechanism includes regulating plate, first deflector and second deflector, one side fixed mounting of regulating plate has first deflector and second deflector, the surface of regulating plate is provided with lock nut, lock nut's bottom joint is to the inside of adjustment tank.
Further, one side of the first guide plate is arranged in an inclined mode.
Furthermore, a cushion pad is laid at the bottom of the positioning plate, and the cushion pad is made of rubber materials.
Further, the top of the placing plate and the top of the lower die are positioned on the same horizontal plane.
Compared with the prior art, the utility model has the following beneficial effects: according to the utility model, the stamping mechanism is arranged to stamp and shape the metal plate to be stamped and formed, the conveying mechanism can continuously convey the large sheet, the stamping mechanism can continuously stamp and process, the guide mechanism can move along the inside of the adjusting groove, and the plates with different sizes can be guided and positioned through the arrangement.
Drawings

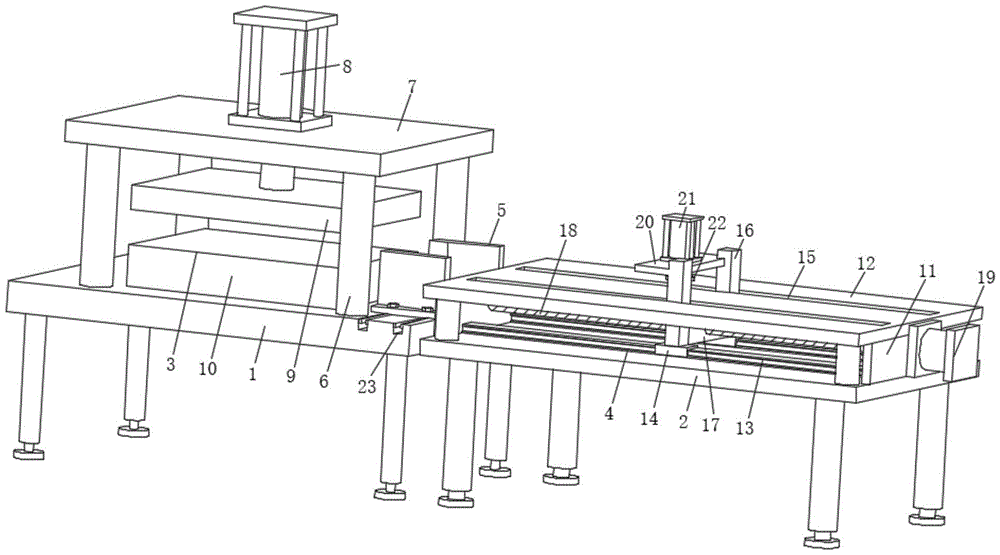

FIG. 1 is a schematic perspective view of the present utility model;
FIG. 2 is a schematic diagram of the front view structure of the present utility model;
fig. 3 is a schematic perspective view of the guiding mechanism of the present utility model.
In the figure: the device comprises a first support frame, a second support frame, a stamping mechanism 3, a conveying mechanism 4, a guide mechanism 5, a support column 6, a mounting seat 7, a stamping cylinder 8, an upper die 9, a lower die 10, a connecting plate 11, a placing plate 12, a slide rail 13, a slide block 14, a through groove 15, a connecting column 16, a screw rod sleeve 17, a threaded rod 18, a servo motor 19, a mounting plate 20, a fixing cylinder 21, a positioning plate 22, an adjusting groove 23, an adjusting plate 24, a first guide plate 25, a second guide plate 26 and a locking nut 27.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Referring to fig. 1, the present utility model provides a technical solution: the utility model provides a continuous stamping die of metalwork, includes first support frame 1 and second support frame 2, the top fixed mounting of first support frame 1 has the punching press mechanism 3 that carries out the punching press to the metalwork, the top fixed mounting of second support frame 2 has the conveying mechanism 4 to the punching press mechanism 3 to the metalwork substrate, two sets of adjustment tank 23 have been seted up on the surface of first support frame 1, the inside of adjustment tank 23 is provided with the guiding mechanism 5 that carries the direction to the metalwork substrate.
Wherein, can carry out stamping forming to the sheet metal that needs stamping forming through setting up stamping mechanism 3, and the conveying mechanism 4 that sets up can carry out continuous transport to the sheetlet to can make stamping mechanism 3 carry out punching press processing in succession, and the guiding mechanism 5 that sets up can remove along the inside of adjustment tank 23, and this setting can lead the location to the sheet of equidimension not.
Referring to fig. 1, the stamping mechanism 3 includes a support column 6, a mounting seat 7 and a stamping cylinder 8, the top of the first support frame 1 is fixedly provided with the mounting seat 7 through the support column 6, the top of the mounting seat 7 is fixedly provided with the stamping cylinder 8, the output end of the stamping cylinder 8 is fixedly connected with an upper die 9, and the top of the first support frame 1 is fixedly provided with a lower die 10 corresponding to the position of the upper die 9.
When the conveying mechanism 4 conveys the metal sheet to be punched to the punching mechanism 3, the punching cylinder 8 is started to drive the upper die 9 to move towards the lower die 10 and the metal sheet at the top of the lower die 10, so that the metal sheet can be punched and formed.
Referring to fig. 1 and 2, the conveying mechanism 4 includes a connecting plate 11, a placing plate 12, sliding rails 13, sliding blocks 14, a screw rod sleeve 17, a threaded rod 18 and a servo motor 19, the top of the second supporting frame 2 is fixedly provided with the placing plate 12 through two groups of connecting plates 11, the top of the placing plate 12 and the top of the lower die 10 are located at the same horizontal plane, the top of the second supporting frame 2 is fixedly provided with two groups of sliding rails 13, the outer surface of the sliding rails 13 is slidably connected with the sliding blocks 14, the surface of the placing plate 12 and the position corresponding to the sliding blocks 14 are provided with a through groove 15, the tops of the two groups of sliding blocks 14 are fixedly connected with a connecting column 16, the top of the connecting column 16 extends to the top of the placing plate 12 through the through groove 15, the threaded rod 18 is rotatably mounted between the two groups of connecting plates 11, one side of the connecting plate 11 is fixedly provided with the servo motor 19, the output end of the servo motor 19 is fixedly connected with one end of the threaded rod 18, the outer surface of the threaded rod 18 is provided with the screw rod sleeve 17 matched with the screw rod sleeve 17, the outer wall of the screw rod sleeve 17 is fixedly connected with the connecting column 16, the top of the connecting column 16 is fixedly connected with a positioning cylinder 21, one side of the positioning cylinder 21 is fixedly connected with the positioning cylinder 21, and the positioning cylinder 21 is fixedly connected with the top of the positioning cylinder 20.
When the metal plate needs to be conveyed, the metal plate is firstly placed above the placing plate 12, then one end of the metal plate is contacted with the connecting column 16, then the fixing cylinder 21 is started to operate, then the positioning plate 22 can be used for extruding and positioning the metal plate, then when the stamping mechanism 3 needs to be used for stamping, the servo motor 19 is started to operate, the servo motor 19 can be operated to drive the threaded rod 18 to rotate, then the screw rod sleeve 17, the connecting column 16 and the sliding block 14 can be driven to move along the outer surface of the sliding rail 13, so that the metal plate can be conveyed, the movement of the connecting column 16 conveyed by the threaded rod 18 is more stable, and the metal plate can be changed into stop motion when being stamped by using the servo motor 19 as a driving power source.
Referring to fig. 1 and 3, the guide mechanism 5 includes an adjusting plate 24, a first guide plate 25 and a second guide plate 26, wherein the first guide plate 25 and the second guide plate 26 are fixedly installed on one side of the adjusting plate 24, a lock nut 27 is disposed on the surface of the adjusting plate 24, the bottom of the lock nut 27 is clamped into the adjusting groove 23, and one side of the first guide plate 25 is disposed in an inclined manner.
After the position of the conveyed metal plate is fixed, the first guide plate 25 and the second guide plate 26 are moved along the adjusting groove 23 by rotating the locking nut 27, so that the position of the conveyed metal plate can be fixed by using the two groups of guide mechanisms 5, and the first guide plate 25 with one side obliquely arranged can guide the metal plate more conveniently by using the second guide plate 26.
Referring to fig. 1, a cushion pad is laid on the bottom of the positioning plate 22, and the cushion pad is made of rubber material.
Wherein, the positioning plate 22 made of rubber material can prevent the metal plate from being scratched when the metal plate 22 is extruded and positioned.
When the metal plate stamping device is used, firstly, the stamping mechanism 3 is arranged to stamp and shape the metal plate needing stamping and shaping, the arranged conveying mechanism 4 can continuously convey a large sheet, the stamping mechanism 3 can continuously conduct stamping and processing, the arranged guide mechanism 5 can move along the inside of the adjusting groove 23, the plates with different sizes can be guided and positioned through the arrangement, when the conveying mechanism 4 conveys the metal plate needing stamping to the stamping mechanism 3, the stamping cylinder 8 is started to drive the upper die 9 to move towards the lower die 10 and the metal plate at the top of the lower die 10, so that the metal plate can be stamped and shaped, when the metal plate needs to be conveyed, firstly, the plate is placed above the placing plate 12, then one end of the metal plate can be in contact with the connecting column 16, then the fixed cylinder 21 is started to operate, then the positioning plate 22 can be extruded and positioned, then when the stamping mechanism 3 needs to be utilized to stamp, the servo motor 19 is started to operate, the servo motor 19 can drive the threaded rod 18 to rotate, then the sleeve 17 can be connected with the threaded rod 16 to be connected with the threaded rod 13 to enable the threaded rod to move along the connecting column 16 to serve as a stable outer surface of the metal plate, and the threaded rod can be conveyed by the threaded rod 16 to serve as a stable driving source.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. Continuous stamping die of metalwork, including first support frame (1) and second support frame (2), its characterized in that: the metal piece stamping device is characterized in that a stamping mechanism (3) for stamping the metal piece is fixedly arranged at the top of the first support frame (1), a conveying mechanism (4) for conveying the metal piece base material to the stamping mechanism (3) is fixedly arranged at the top of the second support frame (2), two groups of adjusting grooves (23) are formed in the surface of the first support frame (1), and a guiding mechanism (5) for guiding and conveying the metal frame base material is arranged in the adjusting grooves (23).
2. A continuous stamping die for metal parts according to claim 1, wherein: the stamping mechanism (3) comprises a supporting column (6), a mounting seat (7) and a stamping cylinder (8), wherein the mounting seat (7) is fixedly arranged at the top of the first supporting frame (1) through the supporting column (6), the stamping cylinder (8) is fixedly arranged at the top of the mounting seat (7), the upper die (9) is fixedly connected with the output end of the stamping cylinder (8), and the lower die (10) is fixedly arranged at the top of the first supporting frame (1) and corresponds to the position of the upper die (9).
3. A continuous stamping die for metal parts according to claim 2, characterized in that: the conveying mechanism (4) comprises a connecting plate (11), a placing plate (12), sliding rails (13), sliding blocks (14), screw rod sleeves (17), threaded rods (18) and a servo motor (19), wherein the top of the second supporting frame (2) is fixedly provided with the placing plate (12) through two groups of connecting plates (11), the top of the second supporting frame (2) is fixedly provided with two groups of sliding rails (13), the sliding blocks (14) are slidably connected with the outer surfaces of the sliding rails (13), penetrating grooves (15) are formed in the surfaces of the placing plate (12) and correspond to the positions of the sliding blocks (14), the tops of the two groups of sliding blocks (14) are fixedly connected with connecting columns (16), the tops of the connecting columns (16) extend to the tops of the placing plate (12) through the penetrating grooves (15), the two groups of connecting plates (11) are rotatably provided with the threaded rods (18), one side of each connecting plate (11) is fixedly provided with the servo motor (19), the output end of each threaded rod (19) is fixedly connected with one end of each threaded rod (18), the outer surface of each threaded rod (18) is provided with the corresponding sleeve (17), the screw rod (16) is fixedly connected with one side of the connecting columns (16), the top of mounting panel (20) fixed cylinder (21) is installed to fixed cylinder (21), the output fixedly connected with locating plate (22).
4. A continuous stamping die for metal parts according to claim 3, characterized in that: the guide mechanism (5) comprises an adjusting plate (24), a first guide plate (25) and a second guide plate (26), wherein the first guide plate (25) and the second guide plate (26) are fixedly arranged on one side of the adjusting plate (24), a lock nut (27) is arranged on the surface of the adjusting plate (24), and the bottom of the lock nut (27) is clamped into the adjusting groove (23).
5. A continuous stamping die for metal parts as defined in claim 4, wherein: one side of the first guide plate (25) is arranged in an inclined mode.
6. A continuous stamping die for metal parts as defined in claim 4, wherein: the bottom of the locating plate (22) is paved with a buffer pad, and the buffer pad is made of rubber materials.
7. A continuous stamping die for metal parts as defined in claim 4, wherein: the top of the placing plate (12) and the top of the lower die (10) are positioned on the same horizontal plane.
