Abstract

The utility model relates to the technical field of underwear. The utility model provides a can heat up cold-proof underwear fast, includes underwear and pants, and the underwear includes front bezel and back piece, is connected through the baldric between front bezel and the back piece, and the cuff has been seted up to the underwear both sides, and the collarband has been seted up at the top, and the pants includes trouser legs and waist of trousers, underwear and pants be same cold-proof cloth and make into cold-proof cloth including heat up moisture absorption layer, heat-proof layer and skin ventilative layer, heat up moisture absorption layer includes weft direction woven magnetic fiber and graphite fiber, heat up moisture absorption layer still includes warp direction woven polypropylene fiber. The utility model provides the thermal underwear which is soft in fabric, can realize rapid temperature rise, has good thermal insulation effect and good moisture-conducting and air-permeable effect, and can rapidly heat; solves the technical problems that the prior art has single fabric, greatly reduces the comfort level of the underwear, has no better air permeability and moisture permeability, is easy to sweat when being worn, and has insufficient softness and comfort.

Description

Thermal underwear capable of quickly heating

Technical Field

The utility model relates to the technical field of underwear, in particular to thermal underwear capable of quickly heating.

Background

The clothes are meant to be cold-proof and warm-keeping and body-protecting mediums; in modern society, clothes are gradually developed into decorative articles of human bodies, and more time, the clothes symbolize the standard of living and social status of a person; meanwhile, on the basis of unchanged basic functions of the clothes, people pay more attention to health care effects of the clothes on bodies, new materials of the clothes are continuously developed, various effects of different materials are added into the clothes by utilizing proper processes, and the functionality of the clothes is increased.

Underwear refers to clothing worn by sticking to the body, including vests, undershirts, shorts, chest smears, bras and the like, is usually in direct contact with the skin, is one of indispensable clothes of modern people, and has the functions of sweat absorption, correction, body supporting and heat preservation.

Along with the increasing requirements of people on the health and comfort of textile fabrics, besides the good special performance of the textile fabrics, the comfort index of the textile fabrics is also required to be ensured, and the textile fabrics particularly relate to underwear such as shirts, intimate apparel, socks and the like, and the thermal insulation, moisture permeability and thinness of the textile fabrics are further required to be considered, so that the conventional fabric for producing the underwear is generally made of one material, has single characteristics, and the softness and moisture absorption of the textile fabrics are not compatible, so that the comfort of wearing the underwear is greatly reduced, and the improved necessity is realized.

Disclosure of Invention

The utility model provides the thermal underwear which is soft in fabric, can realize rapid temperature rise, has good thermal insulation effect and good moisture-conducting and air-permeable effect, and can rapidly heat; solves the technical problems that the prior art has single fabric, greatly reduces the comfort level of the underwear, has no better air permeability and moisture permeability, is easy to sweat when being worn, and has insufficient softness and comfort.

The technical problems of the utility model are solved by the following technical scheme: the utility model provides a can heat up cold-proof underwear fast, includes underwear and pants, and the underwear includes front bezel and back piece, is connected through the baldric between front bezel and the back piece, and the cuff has been seted up to the underwear both sides, and the collarband has been seted up at the top, and the pants includes trouser legs and waist of trousers, underwear and pants be same cold-proof cloth and make into cold-proof cloth including heat up moisture absorption layer, heat-proof layer and skin ventilative layer, heat up moisture absorption layer includes weft direction woven magnetic fiber and graphite fiber, heat up moisture absorption layer still includes warp direction woven polypropylene fiber. The warming moisture absorption layer is the outermost layer, the thermal insulation layer is the middle layer, the skin-friendly breathable layer is the inner layer, the warming moisture absorption layer formed by weaving magnetic fibers, graphite fibers and polypropylene fibers can achieve good heating effect, meanwhile, the warming moisture absorption layer has the capability of absorbing water liquid of the inner layer to the outer layer, the thermal insulation layer has the effects of preventing heat loss, the skin-friendly breathable layer is in contact with skin to ensure comfort, underwear and underpants are formed by sewing thermal insulation cloth, and the warming underwear has the characteristics of rapid warming, good thermal insulation effect and no sweat during wearing.

Preferably, the magnetic fiber accounts for 20% of the temperature-rising and moisture-absorbing layer, the graphite fiber accounts for 30% of the temperature-rising and moisture-absorbing layer, and the polypropylene fiber accounts for 50% of the temperature-rising and moisture-absorbing layer. The polypropylene fiber has the characteristics and advantages of good luster, soft hand feeling, good drapability and small density, the graphite fiber can generate heat after absorbing water vapor, and the magnetic fiber is a fibrous magnetic material.

Preferably, the thermal insulation layer comprises ox head velvet fiber and wool fiber, and the ox head velvet fiber and the wool fiber are crisscrossed and woven. The ox head velvet fiber and the wool fiber are animal fibers, have good warm-keeping effect, and can achieve the effect of rapid temperature rise by being matched with the temperature rising and moisture absorbing layer, so that heat is prevented from being dissipated outwards.

Preferably, the thermal insulation layer and the temperature-rising moisture absorption layer are mutually sunk and floated and are woven in a staggered way. The thermal insulation layer and the temperature-rising moisture absorption layer are in sinkage and floatation staggered weaving, so that the tightness between the thermal insulation layer and the temperature-rising moisture absorption layer can be ensured, and the thermal insulation effect and the strength of cloth are further improved.

Preferably, the skin-friendly breathable layer comprises bamboo fibers and nylon fibers, and the nylon fibers are spirally wound and coated on the outer surfaces of the bamboo fibers. The nylon fiber has good wear resistance, new fracture resistance, fatigue resistance and hygroscopicity, and the skin-friendly breathable layer woven by the nylon fiber and the bamboo fiber has good hygroscopicity and breathability, so that the wearing is more comfortable.

Preferably, the moisture absorption of the temperature-rising moisture absorption layer is greater than that of the thermal insulation layer, and the moisture absorption of the thermal insulation layer is greater than that of the skin-friendly and air-permeable layer. The temperature rising and moisture absorbing layer can absorb the water vapor on the surface of the inner layer and the skin to realize heating, the moisture absorption of the temperature rising and moisture absorbing layer is larger than that of the thermal insulation layer, and the moisture absorption of the thermal insulation layer is larger than that of the skin-friendly and air-permeable layer, so that the water vapor of the inner layer can be absorbed by the temperature rising and moisture absorbing layer.

Preferably, the bottom of the underwear is provided with an abdomen-contracting area which is tightened inwards. The abdomen-contracting area is tightened to the abdomen, so that the underwear has good elasticity, can ensure the close-fitting effect and the warm-keeping effect of the underwear, and can also have the effect of shaping the body.

Preferably, the waist of the underpants is provided with an inward tightening waistband, and the bottoms of the trouser legs are provided with inward tightening elastic bands. The waistband at the waist of trousers can play the effect of preventing the pants landing, and the next to the skin of guaranteeing when wearing, the elastic cord of trouser leg bottom can play the effect of getting into shape, guarantees the next to the skin of trouser leg.

Therefore, the thermal underwear capable of quickly heating has the following advantages: the fabric is soft, the temperature rising and moisture absorbing layer and the heat preservation layer are matched to realize rapid temperature rising, the heat preservation effect is good, the fabric has good moisture-conducting and air-permeable effects, is comfortable to wear, and is not easy to sweat.

Drawings

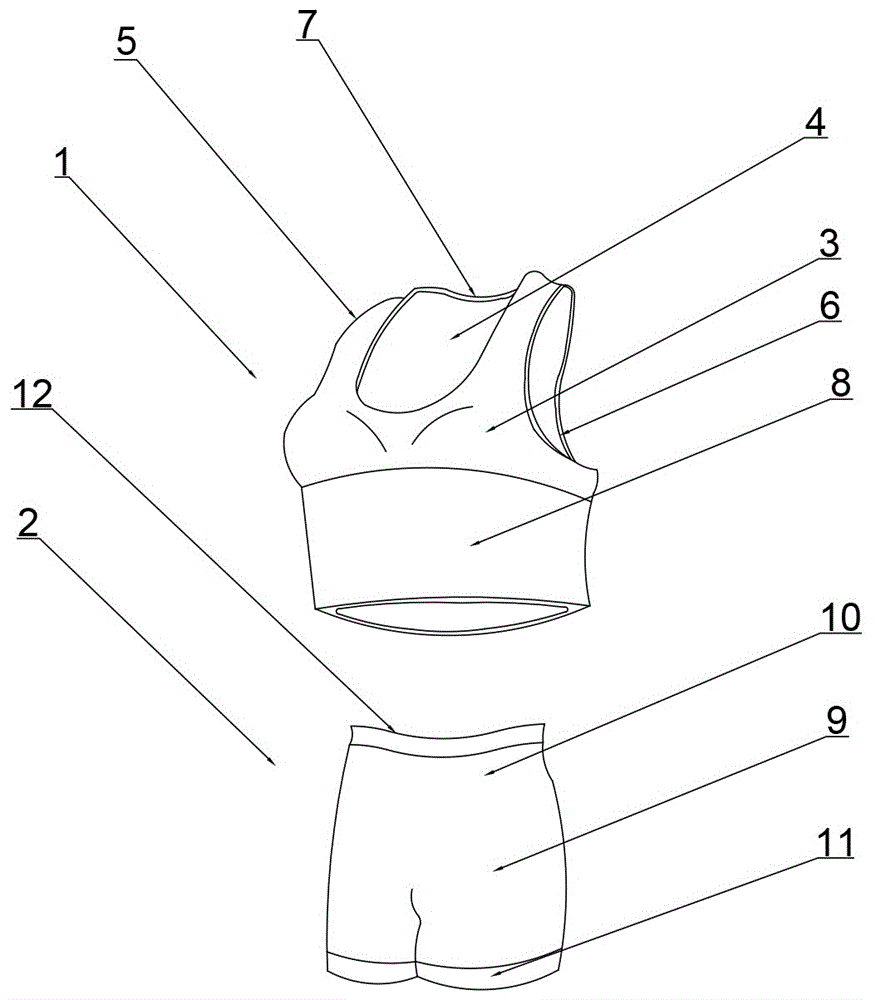

Fig. 1 is a schematic perspective view of a thermal undergarment of the present utility model that can be quickly warmed.

Fig. 2 is a schematic rear view of the structure of fig. 1.

Fig. 3 is a schematic cross-sectional view of the warming fabric of fig. 1.

Fig. 4 is a schematic cross-sectional view of the temperature-rising absorbent layer of fig. 1.

Fig. 5 is a schematic cross-sectional structural view of the thermal layer of fig. 1.

Fig. 6 is a schematic cross-sectional structural view of the skin-friendly air permeable layer of fig. 1.

In the figure, underwear 1, underpants 2, front sheet 3, rear sheet 4, shoulder straps 5, cuffs 6, neckline 7, abdomen-contracting area 8, trouser legs 9, trouser waist 10, elastic belt 11, waistband 12, temperature-rising moisture-absorbing layer 13, thermal layer 14, skin-friendly breathable layer 15, magnetic fiber 16, graphite fiber 17, polypropylene fiber 18, bovine velvet fiber 19, wool fiber 20, bamboo fiber 21, nylon fiber 22.

Detailed Description

The technical scheme of the utility model is further specifically described below through examples and with reference to the accompanying drawings.

Examples:

as shown in figures 1, 2, 3, 4, 5 and 6, the thermal underwear capable of rapidly heating comprises underwear 1 and underpants 2, wherein the underwear 1 comprises a front piece 3 and a rear piece 4, the front piece 3 and the rear piece 4 are connected through shoulder straps 5, 2 cuffs 6 are symmetrically arranged on two sides of the underwear 1, a collar 7 is arranged on the top of the underwear 1, an inward tightening abdomen-drawing area 8 is arranged at the bottom of the underwear 1, the underpants 2 comprises trouser legs 9 and a trouser waist 10, an inward tightening elastic belt 11 is sewn at the bottom of the trouser legs 9, an inward tightening waistband 12 is sewn at the trouser waist 10, the underwear 1 and the underpants 2 are sewn by thermal cloth, the thermal cloth comprises a heating moisture absorption layer 13, a thermal layer 14 and a skin-friendly ventilation layer 15 from outside to inside, the moisture absorption of the heating moisture absorption layer 13 is larger than that of the thermal layer 14, the hygroscopicity of the thermal insulation layer 14 is larger than that of the skin-friendly breathable layer 15, the thermal insulation layer 14 and the temperature-rising moisture absorption layer 13 are formed by mutually sinking and floating staggered weaving, the temperature-rising moisture absorption layer 13 comprises weft-woven magnetic fibers 16 and graphite fibers 17, the temperature-rising moisture absorption layer 13 further comprises warp-woven polypropylene fibers 18, the magnetic fibers 16 account for 20% of the temperature-rising moisture absorption layer 13, the graphite fibers 17 account for 30% of the temperature-rising moisture absorption layer 13, the polypropylene fibers 18 account for 50% of the temperature-rising moisture absorption layer 13, the thermal insulation layer 14 comprises ox head velvet fibers 19 and wool fibers 20, the ox head velvet fibers 19 and the wool fibers 20 are formed by crisscross weaving, the skin-friendly breathable layer 15 comprises bamboo fibers 21 and nylon fibers 22, and the nylon fibers 22 are spirally wound and coated on the outer surface of the bamboo fibers 21.

The warming moisture absorption layer 13 is the outermost layer, the warm keeping layer 14 is the middle layer, the skin-friendly breathable layer 15 is the inner layer, the warming moisture absorption layer 13 woven by the magnetic fibers 16, the graphite fibers 17 and the polypropylene fibers 18 can have good heating effect, meanwhile, the warming moisture absorption layer has the capability of absorbing inner layer water to the outer layer, the warm keeping layer 14 has the effects of preventing heat loss, the skin-friendly breathable layer 15 is contacted with skin to ensure comfort, the underwear 1 and the underpants 2 are sewn by warm keeping cloth, and the warming underwear has the characteristics of rapid warming, good warm keeping effect and no sweat during wearing.

Claims (8)

1. The utility model provides a cold-proof underwear that can heat up fast, includes underwear and pants, and the underwear includes anter and back piece, is connected through the baldric between anter and the back piece, and the cuff has been seted up to the underwear both sides, and the collarband has been seted up at the top, and the pants includes trouser leg and waist of trousers, its characterized in that: the underwear and the underpants are sewn by the same warm-keeping cloth, the warm-keeping cloth comprises a warming moisture-absorbing layer, a warm-keeping layer and a skin-friendly breathable layer, the warming moisture-absorbing layer comprises magnetic fibers and graphite fibers woven in weft directions, and the warming moisture-absorbing layer further comprises polypropylene fibers woven in warp directions.

2. A thermal undergarment according to claim 1 wherein the temperature is rapidly increased, wherein: the magnetic fiber accounts for 20% of the temperature-rising and moisture-absorbing layer, the graphite fiber accounts for 30% of the temperature-rising and moisture-absorbing layer, and the polypropylene fiber accounts for 50% of the temperature-rising and moisture-absorbing layer.

3. A thermal undergarment according to claim 1 wherein the temperature is rapidly increased, wherein: the thermal insulation layer comprises ox head velvet fibers and wool fibers, and the ox head velvet fibers and the wool fibers are formed by crisscross weaving.

4. A thermal undergarment according to claim 3 wherein the temperature is rapidly increased, wherein: the thermal insulation layer and the temperature-rising moisture-absorbing layer are mutually sunk and floated and are woven in a staggered way.

5. A thermal undergarment according to claim 1 wherein the temperature is rapidly increased, wherein: the skin-friendly breathable layer comprises bamboo fibers and nylon fibers, and the nylon fibers are spirally wound and coated on the outer surfaces of the bamboo fibers.

6. A thermal undergarment according to any one of claims 1 to 5 wherein the temperature is rapidly increased, wherein: the hygroscopicity of the warming moisture absorption layer is larger than that of the thermal insulation layer, and the hygroscopicity of the thermal insulation layer is larger than that of the skin-friendly air permeability layer.

7. A thermal undergarment according to claim 1 wherein the temperature is rapidly increased, wherein: the bottom of the underwear is provided with an abdomen-contracting area which is tightened inwards.

8. A thermal undergarment according to claim 1 wherein the temperature is rapidly increased, wherein: the waist of the underpants is provided with a waistband which is tightened inwards, and the bottoms of the trouser legs are provided with elastic bands which are tightened inwards.
