CN219288373U - Water-saving irrigation device - Google Patents
Water-saving irrigation device Download PDFInfo
- Publication number
- CN219288373U CN219288373U CN202320770294.0U CN202320770294U CN219288373U CN 219288373 U CN219288373 U CN 219288373U CN 202320770294 U CN202320770294 U CN 202320770294U CN 219288373 U CN219288373 U CN 219288373U
- Authority
- CN
- China
- Prior art keywords
- water
- irrigation
- pipe
- groups
- water tank
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Greenhouses (AREA)
Abstract
The utility model relates to the technical field of irrigation equipment, and particularly discloses a water-saving irrigation device which comprises a support plate and four groups of moving wheels arranged on the support plate, wherein a water pump is arranged at the top of the support plate; the top of the supporting plate is provided with a water tank, the water outlet end of the water tank is connected with a water pump through a water pipe, and the water outlet end of the water pump is connected with an irrigation piece through a water delivery pipe; the irrigation part comprises a fixed rod and two groups of irrigation rings, the bottom of each irrigation ring is provided with a plurality of water outlet heads, one side of each fixed rod is connected with a mounting pipe, one end of each irrigation ring is connected with a moving block, and a moving groove for sliding the moving block is formed in each fixed rod; according to the utility model, two groups of irrigation rings can be arranged on two sides of a trunk of a tree, so that water is sprayed out from the water outlet head to irrigate the root of the tree, the root system of the tree can be absorbed in time, a water-saving effect is achieved in desert planting, and meanwhile, the two groups of irrigation rings can be matched with a spray head to be used, so that other plants can be irrigated conveniently.
Description
Technical Field
The utility model relates to the technical field of irrigation equipment, in particular to a water-saving irrigation device.
Background
For areas with severe desertification, if there is insufficient water source to sustain tree growth, tree growth can be affected. Personnel are required to perform irrigation operations on a regular basis. In order to reduce the long line laying of the water pipe during irrigation, irrigation equipment or devices are adopted, and the loaded water is moved to the irrigation place for irrigation operation.
The utility model provides an among the water-saving irrigation equipment in gardens that current patent bulletin number is CN216821119U discloses, including base, water pump, spray pipe and accuse flow water-saving irrigation equipment, be equipped with the water tank on the base, the water pump is located on the base, is equipped with the drinking-water pipe on the water pump, and the drinking-water pipe communicates in water tank lateral wall bottom, is equipped with the raceway on the water pump, and the raceway tip is equipped with the connecting pipe mouth, and the spray pipe sets up with the connecting pipe mouth intercommunication, and the spray pipe top is equipped with atomizer, and the water pump is taken out the water in the water tank through the drinking-water pipe and is carried the atomizer department of spray pipe through the raceway, and the atomizing sprays.
Above-mentioned irrigation equipment can irrigate the operation, but irrigates the time, adopts atomizer to spray, and when irrigate the operation, moisture is inconvenient timely irrigate to plant root system department absorption, and atomizer is fixed, and water is unfavorable for effectual irrigation to plant department, needs to improve. Aiming at the problems, a water-saving irrigation device is provided.
Disclosure of Invention
The utility model aims to provide a water-saving irrigation device which solves the problems in the background art.
In order to achieve the above purpose, the present utility model provides the following technical solutions:
the water-saving irrigation device comprises a supporting plate and four groups of moving wheels arranged on the supporting plate, wherein a water pump is arranged at the top of the supporting plate;
the water tank is arranged at the top of the supporting plate, the water outlet end of the water tank is connected with the water pump through a water pipe, and the water outlet end of the water pump is connected with the irrigation piece through a water pipe;
the irrigation part comprises a fixed rod and two groups of irrigation rings, a plurality of water outlet heads are arranged at the bottoms of the irrigation rings, one side of the fixed rod is connected with an installation pipe, one end of each irrigation ring is connected with a moving block, and a moving groove for sliding the moving block is formed in the fixed rod;
the installation pipe is connected with a water delivery piece for delivering water into the irrigation ring, and the fixed rod is connected with an adjusting piece for adjusting the distance between the two groups of moving blocks.
In one alternative: the water delivery piece comprises a hose, a mounting interface for mounting the hose is connected to the mounting tube, and one end, far away from the mounting interface, of the hose is connected with the water inlet end of the irrigation ring.
In one alternative: the adjusting piece comprises a screw rod arranged on the fixed rod, a threaded hole matched with the screw rod is formed in the moving block, and two groups of threads corresponding to the two groups of moving blocks on the screw rod are opposite in rotation direction.
In one alternative: one end of the water supply pipe far away from the water pump is in threaded connection with a mounting pipe, and a valve is mounted on the mounting pipe.
In one alternative: the support frame that is used for protecting the water pump is connected with at the backup pad top, support frame top and water tank contact.
In one alternative: the water tank is of an inverted L shape, the top of the water tank is provided with a water inlet pipe and a vent pipe, the water inlet pipe is connected with a sealing cover, and one side of the bottom of the water tank is connected with a drain pipe.
In one alternative: one side of the supporting plate is connected with a push rod.
In one alternative: two groups of vertical rods are arranged on one side of the water tank and mounted at the top of the supporting plate, one side, far away from the water tank, of the top of the vertical rods is connected with a hook, and a hanging groove matched with the fixing rod is formed between the hook and the vertical rods.
Compared with the prior art, the utility model has the beneficial effects that:
according to the utility model, two groups of irrigation rings can be arranged on two sides of a trunk of a tree, so that water is sprayed out from the water outlet head to irrigate the root of the tree, the root system of the tree can be absorbed in time, a water-saving effect is achieved in desert planting, and meanwhile, the two groups of irrigation rings can be matched with a spray head to be used, so that other plants can be irrigated conveniently;
according to the utility model, the irrigation part is convenient for personnel to take and move, water can be effectively irrigated to a target position, and the waste of water is reduced;
according to the utility model, the vertical rod and the hook are arranged, so that the irrigation parts can be conveniently stored and placed.
Drawings

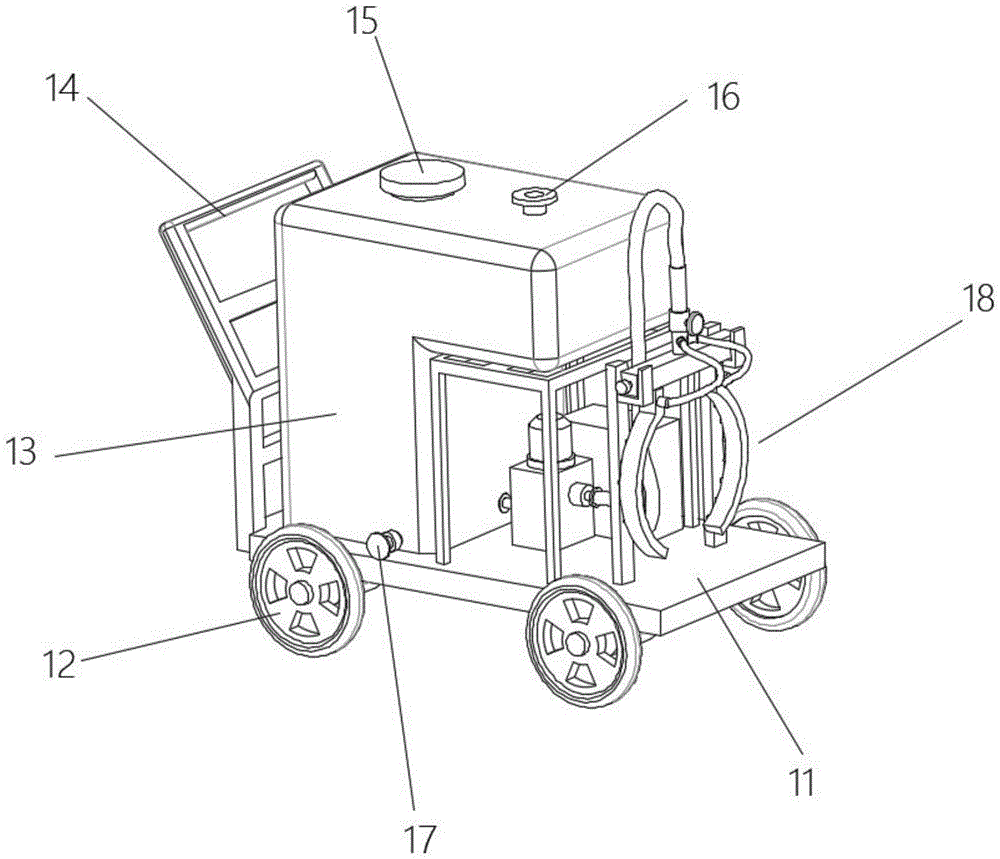

Fig. 1 is a schematic structural view of a water-saving irrigation device.
Fig. 2 is a schematic structural view of an irrigation member in a water-saving irrigation device.
Fig. 3 is a schematic view of a structure of a water-saving irrigation device where a vertical rod is arranged.
In the figure: 11. a support plate; 12. a moving wheel; 13. a water tank; 14. a push rod; 15. a cover; 16. a ventilation pipe; 17. a drain pipe; 18. an irrigation member; 19. installing a pipe; 20. a fixed rod; 21. an irrigation ring; 22. a water outlet head; 23. a moving groove; 24. a moving block; 25. a screw rod; 26. a valve; 27. a hose; 28. a support frame; 29. a water pump; 30. a water supply pipe; 31. a vertical rod; 32. a hook.
Detailed Description
Example 1
Referring to fig. 1-3, in an embodiment of the present utility model, a water-saving irrigation device includes a support plate 11 and four sets of moving wheels 12 mounted on the support plate 11, wherein a water pump 29 is mounted on the top of the support plate 11; the supporting plate 11 can be provided with an electric storage component for supplying power to the water pump 29 and a controller for controlling the water pump 29 to work;
the water tank 13 is arranged at the top of the supporting plate 11, the water outlet end of the water tank 13 is connected with the water pump 29 through a water pipe, and the water outlet end of the water pump 29 is connected with the irrigation piece 18 through a water pipe 30; the water pump 29 can pump the water in the water tank 13;
the irrigation piece 18 comprises a fixed rod 20 and two groups of irrigation rings 21, a plurality of water outlet heads 22 are arranged at the bottom of each irrigation ring 21, one side of each fixed rod 20 is connected with a mounting tube 19, one end of each irrigation ring 21 is connected with a moving block 24, and a moving groove 23 for sliding the moving block 24 is formed in each fixed rod 20;
the mounting pipe 19 is connected with a water delivery member for delivering water into the irrigation ring 21, the water in the water tank 13 can be pumped into the irrigation ring 21 and sprayed out from the water outlet head 22, the fixed rod 20 is connected with an adjusting member for adjusting the distance between the two groups of moving blocks 24, and the distance between the two groups of moving blocks 24 can be adjusted according to the thickness of the tree;
the water delivery piece comprises a hose 27, a mounting interface for mounting the hose 27 is connected to the mounting pipe 19, and one end of the hose 27 away from the mounting interface is connected with a water inlet end of the irrigation ring 21; the water in the installation tube 19 may be fed into the hose 27 and through the hose 27 into the irrigation ring 21.
The adjusting piece comprises a screw rod 25 arranged on the fixed rod 20, a threaded hole matched with the screw rod 25 is formed in the moving block 24, and two groups of threads corresponding to the two groups of moving blocks 24 on the screw rod 25 are opposite in rotation direction; when the screw rod 25 rotates, the two groups of moving blocks 24 can be adjusted to move in opposite directions, so that the distance between the two groups of moving blocks 24 is adjusted, and the distance between the two groups of irrigation rings 21 is adjusted.
One end of the water supply pipe 30, which is far away from the water pump 29, is in threaded connection with the mounting pipe 19, and the valve 26 is arranged on the mounting pipe 19, so that the circulation of water is conveniently controlled.
The top of the supporting plate 11 is connected with a supporting frame 28 for protecting the water pump 29, and the top of the supporting frame 28 is contacted with the water tank 13.
The water tank 13 is of an inverted L shape, the volume of the water tank 13 is large, a large amount of water can be conveniently stored for irrigation operation, the top of the water tank 13 is provided with a water inlet pipe and a vent pipe 16, the water inlet pipe is connected with a sealing cover 15, and one side of the bottom of the water tank 13 is connected with a drain pipe 17; the water can be poured into the water tank 13 from the water inlet pipe, and the ventilation pipe 16 is arranged, so that the inner cavity of the water tank 13 is conveniently communicated with the outside, the too low pressure in the water tank 13 is avoided, and after irrigation is finished, the redundant water in the water tank 13 can be discharged from the drain pipe 17.
One side of the supporting plate 11 is connected with a push rod 14, so that the pushing device can conveniently move.
In the embodiment, water can be poured into the water tank 13 from the water inlet pipe, the distance between the two groups of moving blocks 24 is adjusted according to the thickness of the trunk, so that the distance between the two groups of irrigation rings 21 is adjusted, the irrigation rings 21 can be arranged on two sides of the trunk of a tree, so that the water is sprayed out from the water outlet head 22 to irrigate the root of the tree, the root system of the tree can be absorbed in time, and the water-saving effect is realized in desert planting; the two groups of irrigation rings 21 can be matched with a spray head to be used for conveniently irrigating other plants.
Example 2
Referring to fig. 1 and 3, unlike the embodiment 1, one side of the water tank 13 is provided with two sets of upright posts 31 mounted on the top of the supporting plate 11, one side of the top of the upright posts 31 away from the water tank 13 is connected with a hook 32, and a hanging groove matched with the fixing rod 20 is arranged between the hook 32 and the upright posts 31;
in this embodiment, the fixing rod 20 can be hung to the hook 32 when the irrigation member 18 is received, and as shown in fig. 1, the fixing rod 20 is placed in the hanging groove.
Claims (8)
1. The water-saving irrigation device comprises a supporting plate (11) and four groups of moving wheels (12) arranged on the supporting plate (11), wherein a water pump (29) is arranged at the top of the supporting plate (11);
the method is characterized in that: the top of the supporting plate (11) is provided with a water tank (13), the water outlet end of the water tank (13) is connected with a water pump (29) through a water pipe, and the water outlet end of the water pump (29) is connected with an irrigation piece (18) through a water delivery pipe (30);
the irrigation piece (18) comprises a fixed rod (20) and two groups of irrigation rings (21), a plurality of water outlet heads (22) are arranged at the bottoms of the irrigation rings (21), one side of the fixed rod (20) is connected with an installation pipe (19), one end of the irrigation rings (21) is connected with a moving block (24), and a moving groove (23) for sliding the moving block (24) is formed in the fixed rod (20);
the mounting pipe (19) is connected with a water delivery piece for delivering water into the irrigation ring (21), and the fixed rod (20) is connected with an adjusting piece for adjusting the distance between the two groups of moving blocks (24).
2. A water-saving irrigation device according to claim 1, wherein: the water delivery piece comprises a hose (27), a mounting interface for mounting the hose (27) is connected to the mounting pipe (19), and one end, far away from the mounting interface, of the hose (27) is connected with the water inlet end of the irrigation ring (21).
3. A water-saving irrigation device according to claim 1, wherein: the adjusting piece comprises a screw rod (25) arranged on the fixed rod (20), a threaded hole matched with the screw rod (25) is formed in the moving block (24), and two groups of threads corresponding to the two groups of moving blocks (24) on the screw rod (25) are opposite in rotation direction.
4. A water-saving irrigation device according to claim 1, wherein: one end of the water supply pipe (30) far away from the water pump (29) is connected with the mounting pipe (19) in a threaded mode, and the valve (26) is mounted on the mounting pipe (19).
5. A water-saving irrigation device according to claim 1, wherein: the top of the supporting plate (11) is connected with a supporting frame (28) for protecting the water pump (29), and the top of the supporting frame (28) is contacted with the water tank (13).
6. A water-saving irrigation device according to claim 1, wherein: the water tank (13) is of an inverted L shape, a water inlet pipe and a ventilation pipe (16) are arranged at the top of the water tank (13), a sealing cover (15) is connected to the water inlet pipe, and a drain pipe (17) is connected to one side of the bottom of the water tank (13).
7. A water-saving irrigation device according to claim 1, wherein: one side of the supporting plate (11) is connected with a push rod (14).
8. A water-saving irrigation device according to claim 1, wherein: two groups of vertical rods (31) arranged at the top of the supporting plate (11) are arranged on one side of the water tank (13), one side, far away from the water tank (13), of the top of the vertical rods (31) is connected with a hook (32), and a hanging groove matched with the fixing rod (20) is formed between the hook (32) and the vertical rods (31).
