CN219267189U

CN219267189U - Waterproof printing label of self-adhesive

Info

Publication number: CN219267189U
Application number: CN202223116298.1U
Authority: CN
Inventors: 宗长虹; 梅菊平; 陈继平
Original assignee: Xiamen Xinkai Color Printing Co ltd
Current assignee: Xiamen Xinkai Color Printing Co ltd
Priority date: 2022-11-23
Filing date: 2022-11-23
Publication date: 2023-06-27
Anticipated expiration: 2032-11-23

Abstract

The utility model relates to the technical field of dry adhesive labels, in particular to a waterproof printing label of non-dry adhesive, which comprises a label body and oiled paper; the label comprises a label body, wherein the back of the label body is connected with oilpaper through self-adhesive, the edge of the label body is detachably connected with edge paper, the front of the label body is provided with a flame-retardant film, the outer wall of the flame-retardant film is coated with a waterproof layer, one end of the label body is detachably connected with a tearing piece, one end of the tearing piece extends out of the oilpaper.

Description

Waterproof printing label of self-adhesive

Technical Field

The utility model relates to the technical field of self-adhesive labels, in particular to a self-adhesive waterproof printing label.

Background

The self-adhesive label is also called as self-adhesive label, timely paste, instant paste, etc. and is a composite material with paper, film or special material as surface material, back adhesive layer formed by coating adhesive and silicon-coated protective paper as base paper, and is produced into the finished label after printing, die cutting, etc. When the adhesive tape is applied, the adhesive tape can be adhered to the surfaces of various base materials by using the adhesive tape only by stripping from the base paper, and a labeling machine can be used for automatically labeling products on a production line in the production process.

When the conventional self-adhesive waterproof label is used, the self-adhesive label needs to be torn off from the oiled paper, and when the self-adhesive label is usually torn off and stuck to a product, hands sometimes touch the edge of the self-adhesive label carelessly, and when dust sweat exists on the hands, the hands touch the edge of the self-adhesive label to influence the adhesive property of the self-adhesive label, the two sides of the label are easy to tilt, so that the self-adhesive is easy to fall off when entering water, and the service life of the self-adhesive label is influenced.

Disclosure of Invention

The utility model aims to provide a self-adhesive waterproof printing label, which aims to solve the problems that when the conventional self-adhesive waterproof label is put forward in the prior art to be used, the self-adhesive label needs to be torn off from oil paper, when the self-adhesive label is usually torn off and stuck to a product, hands sometimes touch the edge of the self-adhesive label carelessly, dust and sweat are in the hands, the hands touch the edge of the self-adhesive label, the tackiness of the self-adhesive label is affected, the two sides of the label are easy to tilt, water inlet of the self-adhesive is fallen off, and the service life of the self-adhesive label is affected.

In order to achieve the above purpose, the present utility model provides the following technical solutions: comprises a label body and oiled paper; the tag comprises a tag body, and is characterized in that the back of the tag body is connected with oilpaper through self-adhesive, edge paper is detachably connected to the edge of the tag body, a flame-retardant film is arranged on the front of the tag body, a waterproof layer is smeared on the outer wall of the flame-retardant film, a tearing piece is detachably connected to one end of the tag body, and one end of the tearing piece extends out of the oilpaper.

Preferably, a second uncovering opening is arranged between the four corners of the label body and the four corners of the inner side of the edge paper.

Preferably, a first uncovering opening is arranged at the joint of the tearing sheet and the label body.

Preferably, the flame-retardant film is a transparent polyester flame-retardant film.

Preferably, the waterproof layer is an acrylic waterproof coating waterproof layer.

Compared with the prior art, the utility model has the beneficial effects that:

1. the edge paper arranged at the edge of the label body can be touched by hands, after the label body is attached, through the second uncovering openings arranged between the four corners of the label body and the four corners of the inner side of the edge paper, gaps are reserved between the edge paper and the four sides of the label body, the edge paper can be uncovered from the label body, and when the label body is attached, fingers are prevented from touching the adhesive part of the label body through the arranged edge paper, so that the adhesive firmness of the label body is improved, the corners of the label body are prevented from tilting, and the waterproof performance of the label body is improved;

2. the flame-retardant film is arranged on the outer wall of the tag body, and the flame-retardant film is applied to the front side of the tag body through glue, so that the flame-retardant effect of the tag body is improved, and the waterproof effect of the tag body is improved again through a waterproof layer coated on the flame-retardant film.

Drawings

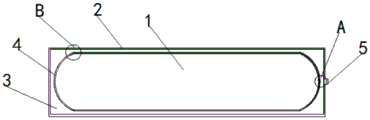

FIG. 1 is a schematic diagram of the structure of the present utility model;

FIG. 2 is a schematic diagram of the A-amp configuration of FIG. 1 according to the present utility model;

FIG. 3 is an enlarged schematic view of the structure B of FIG. 1 according to the present utility model;

FIG. 4 is a schematic cross-sectional view of the present utility model.

In the figure: 1. a tag body; 2. oiled paper; 3. edge paper; 5. tearing the sheet; 6. a first uncovering opening; 7. a second uncovering opening; 11. a flame retardant layer; 12. and a waterproof layer.

Detailed Description

The following description of the embodiments of the present utility model will be made clearly and fully with reference to the accompanying drawings, in which it is evident that the embodiments described are only some, but not all embodiments of the utility model. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.

Examples

Referring to fig. 1-4, there is shown: the embodiment is a preferred implementation manner in the technical scheme, and the self-adhesive waterproof printing label comprises a label body 1 and oiled paper 2; the label body 1 back is connected with the oiled paper 2 through the non-setting adhesive, and label body 1 edge can be dismantled and is connected with limit paper 3, and label body 1 openly is equipped with fire-retardant membrane 11, and waterproof layer 12 has been paintd to fire-retardant membrane 11 outer wall, and label body 1 one end can be dismantled and be connected with tearing piece 5, and tearing piece 5 one end extends oiled paper 2 outsides.

As shown in fig. 1 and 3, a second opening 7 is provided between four corners of the label body 1 and four corners of the inner side of the edge paper 3, and the edge paper 3 can be torn off from the edge of the label body 1 through the second opening 7 provided between the four corners of the label body 1 and the edge paper 3.

As shown in fig. 2 and 3, a first tearing opening 6 is provided at the connection between the tearing sheet 5 and the tag body 1, and when the tag body 1 is attached, the redundant tearing sheet 5 can be removed from one end of the tag body 1 through the first tearing opening 6 provided at the connection between the tearing sheet 5 and the tag body 1.

As shown in fig. 4, the flame-retardant film 11 is a transparent polyester flame-retardant film, and the flame-retardant film 11 is a transparent polyester flame-retardant film, so that the flame-retardant capability of the tag body 1 is improved.

As shown in fig. 4, the waterproof layer 12 is an acrylic waterproof coating waterproof layer, and the waterproof layer 12 applied to the flame-retardant film 11 improves the waterproof performance of the tag body 1.

In this embodiment, when the label body 1 is attached, the parts are firstly installed, the label body 1 is lifted from one end of the tearing sheet 5 to the label body 1, so that one end of the label body is separated from the oiled paper 2, the label body 1 is conveniently lifted, the oiled paper 2 is lifted, then the label body 1 is attached to a part to be attached, when the label body 1 is attached, the edge paper 3 arranged at the edge of the label body 1 can be touched by hands, after the label body 1 is attached, the edge paper 3 can be touched by hands, and after the label body 1 is attached, the edge paper 3 is kept at a gap with four edges of the label body 1, the edge paper 3 can be lifted from the label body 1, and when the label body 1 is attached, the edge paper 3 is arranged to prevent fingers from touching the adhesive-bonding part of the label body 1;

the flame-retardant film 11 is arranged on the outer wall of the tag body 1, and the flame-retardant film 11 is applied to the front face of the tag body 1 through glue, so that the flame retardance of the tag body 1 is improved, and the waterproof performance of the tag body 1 is improved again through the waterproof layer 12 coated on the flame-retardant film 11.

The foregoing is a further elaboration of the present utility model in connection with the detailed description, and it is not intended that the utility model be limited to the specific embodiments shown, but rather that a number of simple deductions or substitutions be made by one of ordinary skill in the art without departing from the spirit of the utility model, should be considered as falling within the scope of the utility model as defined in the appended claims.

Claims

1. The self-adhesive waterproof printing label comprises a label body (1) and oiled paper (2); the method is characterized in that: the label is characterized in that the back of the label body (1) is connected with the oilpaper (2) through self-adhesive, the edge of the label body (1) is detachably connected with the edge paper (3), the front of the label body (1) is provided with a flame-retardant film (11), the outer wall of the flame-retardant film (11) is coated with a waterproof layer (12), one end of the label body (1) is detachably connected with a tearing sheet (5), and one end of the tearing sheet (5) extends out of the oilpaper (2).

2. The self-adhesive waterproof printed label according to claim 1, wherein: a second uncovering opening (7) is arranged between four corners of the label body (1) and four corners of the inner side of the edge paper (3).

3. The self-adhesive waterproof printed label according to claim 1, wherein: the joint of the tearing piece (5) and the label body (1) is provided with a first tearing opening (6).

4. The self-adhesive waterproof printed label according to claim 1, wherein: the flame-retardant film (11) is a transparent polyester flame-retardant film.

5. The self-adhesive waterproof printed label according to claim 1, wherein: the waterproof layer (12) is an acrylic waterproof coating waterproof layer.
