Abstract

The utility model discloses a photographic shooting fixed support frame, which belongs to the technical field of photographic devices and comprises a bearing plate, wherein the lower surface of the bearing plate is fixedly connected with a lifting rod, the side surface of the lifting rod is sleeved with a lantern ring, the side surface of the lantern ring is connected with a supporting screw rod through a hinge piece, one end of the supporting screw rod is hinged with a mounting groove, the inside of the mounting groove is connected with a sliding block in a sliding manner, the lower surface of the sliding block is fixedly connected with a stabilizing mechanism, the side surface of the lifting rod is provided with a sliding groove, and the inside of the sliding groove is provided with a limiting mechanism. The beneficial effects of the utility model are as follows: the camera shooting supporting device is used for supporting different outdoor scenic spots, so that the supporting device which is difficult to support a camera due to the uneven scenic spots is avoided, and a photographer can shoot in a complex field conveniently; the height of the camera can be conveniently adjusted, so that the glasses of a photographer do not leave the camera, and the height of the camera can be accurately adjusted, thereby being convenient for the photographer to use.

Description

Photographic fixed bolster of shooing

Technical Field

The utility model relates to a photographic fixing support frame, and belongs to the technical field of photographic devices.

Background

Photography refers to the process of recording images by using a special device, and generally, a mechanical camera or a digital camera is used for photography, and a photography supporting device is often needed to assist in photography during photography.

The existing photographic support device has a certain defect, when people view outdoor photography, the outdoor photography field is complex, so that the existing photographic support device is difficult to stably support on uneven ground, a camera is easy to shake in the shooting process, the camera is difficult to focus during shooting, and the shot picture is fuzzy.

Disclosure of Invention

The utility model aims to solve the problems and provide the photographic shooting fixed support frame which can stably support a camera on a complex ground, so that the condition that the camera does not shake during use is ensured, and the camera is focused better, so that the shooting quality of the camera is improved.

The utility model realizes the purpose through the following technical scheme that the photographic shooting fixed support frame comprises a bearing plate, wherein the lower surface of the bearing plate is fixedly connected with a lifting rod, the side surface of the lifting rod is sleeved with a sleeve ring, the side surface of the sleeve ring is connected with a supporting screw rod through a hinge piece, one end of the supporting screw rod is hinged with a mounting groove, the inside of the mounting groove is connected with a sliding block in a sliding manner, the lower surface of the sliding block is fixedly connected with a stabilizing mechanism, the side surface of the lifting rod is provided with a sliding groove, and the inside of the sliding groove is provided with a limiting mechanism.

Preferably, the stabilizing mean includes the backup pad, and the upper surface of backup pad and the lower surface fixed connection of slider, the inside fixedly connected with telescopic link of backup pad, and the lower extreme fixedly connected with rubber pad of telescopic link.

Preferably, the limiting mechanism comprises a limiting block, the limiting block is fixedly connected with the inner side wall of the sliding groove, the upper surface of the limiting block is buckled with a buckling plate, and the upper end of the buckling plate is fixedly connected with the lower surface of the lantern ring.

Preferably, the width of the buckling plate and the width of the limiting block are half of the width of the chute.

Preferably, the upper surface fixedly connected with mounting bracket of loading board, and the inside rotation of mounting bracket is connected with the screw rod, the side surface threaded connection of screw rod has the grip block, and the inside wall fixedly connected with protection point pad of grip block, the one end of screw rod passes mounting bracket fixedly connected with handle.

Preferably, the lower end of the lifting rod is fixedly connected with a limiting plate, and the diameter of the limiting plate is larger than that of the lifting rod.

The beneficial effects of the utility model are as follows: according to the utility model, the supporting plate is connected with the buckle of the mounting groove through the sliding block, and the plurality of groups of telescopic rods are fixedly connected in the supporting plate, so that the camera can be stably supported on the complex ground, the condition that the camera does not shake during use is ensured, and therefore, the camera is focused better, and the shooting quality of the camera is improved.

Drawings

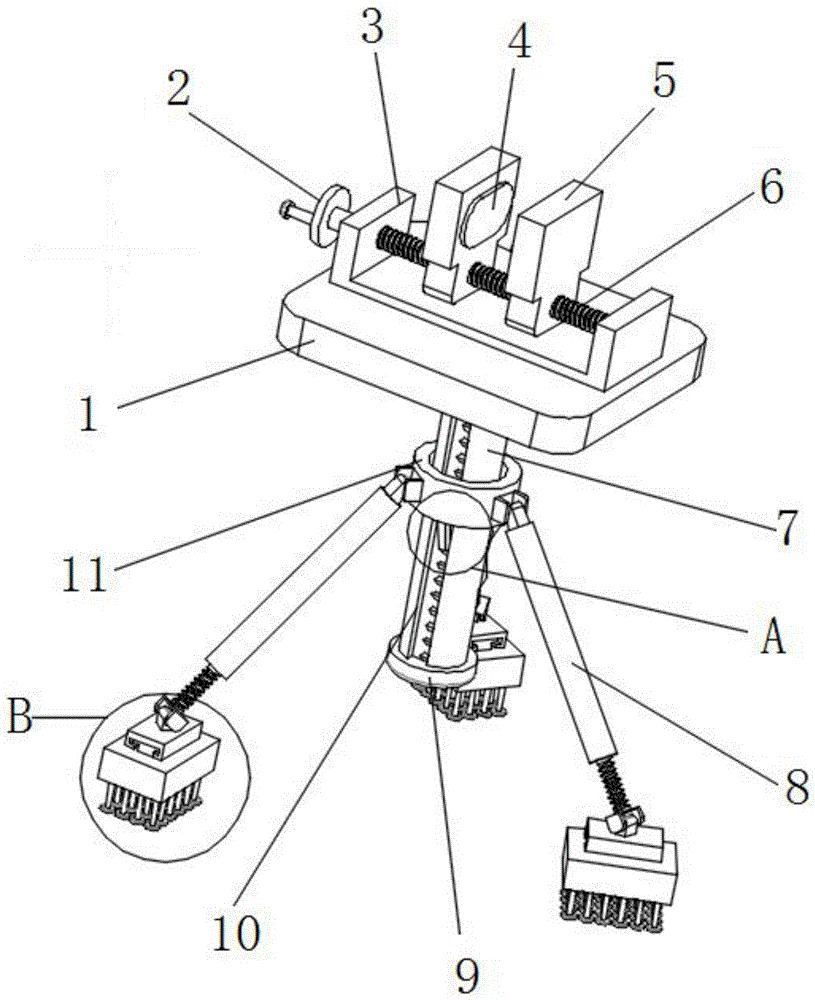

FIG. 1 is a schematic diagram of the structure of the present utility model;

FIG. 2 is an enlarged schematic view of the structure at B in the present utility model;

fig. 3 is an enlarged schematic view of the structure at a in the present utility model.

In the figure: 1 bearing plate, 2 handles, 3 mounting brackets, 4 protection point pads, 5 clamping plates, 6 screw rods, 7 lifting rods, 8 supporting screw rods, 9 limiting plates, 10 sliding grooves, 11 lantern rings, 12 mounting grooves, 13 supporting plates, 14 telescopic rods, 15 rubber pads, 16 sliding blocks, 17 buckling plates and 18 limiting blocks.

Detailed Description

The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.

Referring to fig. 1-3, a photographic shooting fixed support frame comprises a bearing plate 1, the lower surface of the bearing plate 1 is fixedly connected with a lifting rod 7, a lantern ring 11 is sleeved on the side surface of the lifting rod 7, a supporting screw 8 is connected to the side surface of the lantern ring 11 through a hinge, one end of the supporting screw 8 is hinged with a mounting groove 12, a sliding block 16 is slidably connected to the inside of the mounting groove 12, a stabilizing mechanism is fixedly connected to the lower surface of the sliding block 16, the stabilizing mechanism comprises a supporting plate 13, the upper surface of the supporting plate 13 is fixedly connected with the lower surface of the sliding block 16, a telescopic rod 14 is fixedly connected to the inside of the supporting plate 13, the lower end of the telescopic rod 14 is fixedly connected with a rubber pad 15, a sliding groove 10 is formed in the side surface of the lifting rod 7, a limiting mechanism is arranged in the sliding groove 10, the limiting mechanism comprises a limiting block 18, the limiting block 18 is fixedly connected with the inner side wall of the sliding groove 10, a buckling plate 17 is buckled on the upper surface of the limiting block 18, and the upper end of the buckling plate 17 is fixedly connected with the lower surface of the lantern ring 11.

As a technical optimization scheme of the utility model, the widths of the buckling plate 17 and the limiting block 18 are half of the width of the chute 10, when a worker rotates the lifting rod 7, the buckling plate 17 can be moved to one side of the limiting block 18, and the buckling plate 17 is separated from the buckle of the limiting block 18, so that the buckling plate 17 can slide up and down in the chute 10 conveniently, and the height of the bearing plate 1 and the camera can be adjusted conveniently.

As a technical optimization scheme of the utility model, the upper surface of the bearing plate 1 is fixedly connected with the mounting frame 3, the inside of the mounting frame 3 is rotationally connected with the screw rod 6, the side surface of the screw rod 6 is in threaded connection with the clamping plate 5, the inner side wall of the clamping plate 5 is fixedly connected with the protection point pad 4, one end of the screw rod 6 penetrates through the mounting frame 3 and is fixedly connected with the handle 2, and cameras with different shapes and different sizes are conveniently fixed, so that the application range of the supporting device is enlarged.

As a technical optimization scheme of the utility model, the lower end of the lifting rod 7 is fixedly connected with the limiting plate 9, and the diameter of the limiting plate 9 is larger than that of the lifting rod 7, so that the lantern ring 11 can be limited, and the lantern ring 11 is prevented from being separated from the outer side surface of the lifting rod 7.

When the camera shooting device is used, when a photographer uses the supporting device, firstly, the supporting screw rod 8 hinged to the outer side of the lantern ring 11 is unfolded, then the length of the supporting screw rod 8 is adjusted according to the gradient of a shooting place, then the supporting plate 13 is arranged at one end of the supporting screw rod 8 through the sliding block 16 and the mounting groove 12, so that the supporting device is supported through the supporting plate 13, the telescopic rod 14 in the supporting plate 13 can adjust the telescopic state according to the uneven bottom surface, the supporting device can stably support the camera on the uneven bottom surface, then when the height of the camera is required to be adjusted, the photographer only needs to slightly rotate clockwise to enable the buckling plate 17 to rotate to one side of the limiting block 18, so that the buckling plate 17 is separated from the buckle of the limiting block 18, then the photographer does not need to leave the camera, then the handheld bearing plate 1 is pulled upwards or pushed downwards to enable the camera to move to a proper height, and then rotates anticlockwise to enable the buckling plate 17 to buckle on the upper surface of the limiting block 18.

Furthermore, it should be understood that although the present disclosure describes embodiments, not every embodiment is provided with a separate embodiment, and that this description is provided for clarity only, and that the disclosure is not limited to the embodiments described in detail below, and that the embodiments described in the examples may be combined as appropriate to form other embodiments that will be apparent to those skilled in the art.

Claims

1. The utility model provides a fixed support frame is shot in photography, includes loading board (1), its characterized in that: the utility model discloses a lifting device for a car, including loading board (1), lifter (7) is connected with to the lower fixed surface of loading board (1), and the side surface cover of lifter (7) is equipped with lantern ring (11), the side surface of lantern ring (11) is connected with supporting screw (8) through the articulated elements, and the one end of supporting screw (8) articulates there is mounting groove (12), the inside sliding connection of mounting groove (12) has slider (16), and the lower fixed surface of slider (16) is connected with stabilizing mean, spout (10) have been seted up to the side surface of lifter (7), and the inside of spout (10) is equipped with stop gear.

2. The photographic fixing support according to claim 1, wherein: the stabilizing mechanism comprises a supporting plate (13), the upper surface of the supporting plate (13) is fixedly connected with the lower surface of the sliding block (16), a telescopic rod (14) is fixedly connected to the inside of the supporting plate (13), and a rubber pad (15) is fixedly connected to the lower end of the telescopic rod (14).

3. The photographic fixing support according to claim 1, wherein: the limiting mechanism comprises a limiting block (18), the limiting block (18) is fixedly connected with the inner side wall of the sliding groove (10), a buckling plate (17) is buckled on the upper surface of the limiting block (18), and the upper end of the buckling plate (17) is fixedly connected with the lower surface of the lantern ring (11).

4. A photographic fixing support as claimed in claim 3, wherein: the widths of the buckling plate (17) and the limiting block (18) are half of the width of the chute (10).

5. The photographic fixing support according to claim 1, wherein: the utility model discloses a bearing plate, including bearing plate (1), mounting bracket (3), screw rod (6), lateral surface screw thread connection of screw rod (6) has grip block (5), and inside wall fixedly connected with protection point pad (4) of grip block (5), one end of screw rod (6) passes mounting bracket (3) fixedly connected with handle (2).

6. The photographic fixing support according to claim 1, wherein: the lower extreme fixedly connected with limiting plate (9) of lifter (7), and the diameter of limiting plate (9) is greater than the diameter of lifter (7).
