Abstract
According to the intelligent door and window capable of shading, the frame is fixedly connected to the outer surface of the intelligent door and window body, the shading mechanism is arranged in the frame and comprises the supporting rods, the outer surface of each supporting rod is movably connected with the shading curtain in a penetrating mode, the two ends of each shading curtain are respectively fixedly connected with the connecting strips, the two ends of each connecting strip are respectively and fixedly connected with the limiting blocks, the cleaning mechanism is arranged on the rear surface of the intelligent door and window body, the intelligent door and window capable of shading can be cleaned by arranging the cleaning mechanism when the outer surface of the intelligent door and window capable of shading is required to be cleaned, the shading mechanism is arranged, the shading curtain is pulled, the limiting blocks at the two ends of the shading curtain move in the frame, the limiting grooves play a limiting role on the shading curtain, and shaking does not occur after the shading curtain is pulled to the bottom, so that noise is generated due to shaking under the influence of airflow compared with a traditional shading mode, and the intelligent door and window capable of shading is guaranteed for resting households.
Description
Technical Field
The utility model relates to an intelligent door and window capable of shading, and belongs to the technical field of intelligent doors and windows.
Background
The intelligent door and window generally refers to a door and window which is provided with different design requirements and has functions or technologies of heat preservation, heat insulation, sound insulation, water resistance and the like, the intelligent door and window is widely applied to public places, high-grade commodity houses and markets, and in hot seasons, as the intelligent door and window has no sun shading function, the indoor temperature can be high due to irradiation of sunlight, so that the integrated energy-saving door and window of the existing sun shading door and window becomes a development trend.
Various defects exist in the existing products to different degrees, for example, after a sun-shading curtain is put down to the bottom, as the curtain is generally arranged on one side of a window close to the inside of a house and the bottom is not fixed, when a resident opens the window to ventilate, the sun-shading curtain often shakes under the influence of air flow, so that noise is generated when the curtain and the window collide in stages, the rest of the resident is influenced, as in the prior art represented by a contrast document, namely an intelligent door with a sun-shading function (publication number CN 107795235A), the sun-shading curtain has the functions of sensing sunlight through a light source sensor A, a light source sensor B and a light source sensor C, and if the sunlight exists, signals are transmitted to a motor A, a motor B and a motor C; this problem then arises when motor a controls the rotating rod D to lower the shade for shading.
Disclosure of Invention
The utility model aims to solve the problems of the prior art and provide the intelligent door and window capable of shading, wherein limiting blocks at two ends of a sunshade curtain can move in a frame by pulling the sunshade curtain, limiting grooves have the limiting effect on the sunshade curtain, and when the sunshade curtain is pulled to the bottom, the noise generation caused by shaking cannot occur under the influence of air flow, so that the rest of households is guaranteed.
The technical scheme adopted for solving the technical problems is as follows: the utility model provides an intelligent door and window that can sunshade, includes intelligent door and window body, intelligent door and window body's surface fixedly connected with frame, the internally mounted of frame has sunshade mechanism, and sunshade mechanism includes the bracing piece, and the surface activity through-connection of bracing piece has the sunshade curtain, and the both ends of sunshade curtain are fixedly connected with connecting strip respectively, two the both ends of connecting strip are fixedly connected with stopper respectively, and intelligent door and window body's rear surface mounting has clearance mechanism.
Further, the clearance mechanism includes the motor, the first fixed block of output shaft swing joint of motor, the output shaft fixedly connected with threaded rod of motor, the one end of threaded rod is connected with the second fixed block through the bearing rotation, the outside thread bush of threaded rod is equipped with the connecting plate, the inside swing joint of one end of connecting plate has the spliced pole, the both ends of spliced pole are fixedly connected with third fixed block respectively, an inboard fixedly connected with scraper blade of connecting plate, the scraper blade of connecting plate drive fixed connection in connecting plate one side reciprocates, the scraper blade is along the back surface reciprocates to clear up it.
Further, the bottom of motor and the top fixed connection of first fixed block, the front surface of first fixed block and the back fixed surface of intelligent door and window body are connected, the front surface of second fixed block and the back fixed surface of intelligent door and window body are connected, two the front surface of third fixed block and the back fixed surface of intelligent door and window body are connected, start motor, the output shaft of motor drives the threaded rod of fixed connection on the output shaft and rotates.
Further, the supporting rod corresponds to the inner wall of the frame, and two ends of the supporting rod are fixedly connected with two sides of the inner wall of the frame respectively, and the sunshade curtain can be enabled to move in the horizontal direction by arranging the supporting rod.
Further, a plurality of holes corresponding to the supporting rods are formed in the top of the sunshade curtain, the sunshade curtain is corresponding to the inner wall of the frame, the limiting groove has a limiting effect on the sunshade curtain, and shaking cannot occur after the sunshade curtain is pulled to the bottom.
Further, the limiting block is T-shaped, limiting grooves corresponding to the limiting block are formed in the inner walls of the upper side and the lower side of the frame, the limiting grooves are slidably connected in the limiting grooves, and the purpose of limiting the sunshade curtain can be achieved by the limiting block.
The beneficial effects of the utility model are:
1. the sunshade curtain is provided with the sunshade mechanism, the limiting blocks at two ends of the sunshade curtain are pulled to move in the frame, the limiting grooves have the limiting effect on the sunshade curtain, and when the sunshade curtain is pulled to the bottom, shaking cannot occur.
2. This be used for being provided with clearance mechanism, when the surface of intelligent door and window body need clear up, start the motor, under the drive of motor, the scraper blade reciprocates to clear up it along the rear surface of intelligent door and window body.
Drawings

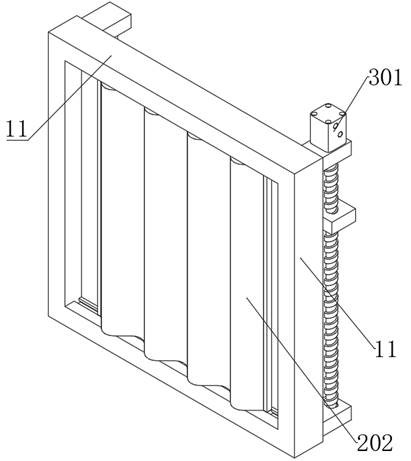

Fig. 1 is a schematic diagram of the whole structure of a sunshade intelligent door and window according to the present utility model.
Fig. 2 is a cross-sectional view of a sunshade intelligent door and window according to the present utility model.
Fig. 3 is a schematic structural view of a sunshade mechanism in a sunshade intelligent door and window.
Fig. 4 is a schematic structural view of a cleaning mechanism in a sunshade intelligent door and window.
In the figure: 1. the intelligent door and window comprises an intelligent door and window body, a frame, a sun-shading mechanism, a supporting rod, a sun-shading curtain, a connecting rod, a limiting block, a cleaning mechanism, a motor, a first fixed block, a threaded rod, a second fixed block, a connecting plate, a connecting column, a third fixed block and a scraper.
Detailed Description
The utility model will be further described with reference to the accompanying drawings and specific examples.
As shown in fig. 1-4, the intelligent door and window capable of shading sun provided by the utility model comprises an intelligent door and window body 1, wherein a frame 11 is fixedly connected to the outer surface of the intelligent door and window body 1, a shading mechanism 2 is installed in the frame 11, the shading mechanism 2 comprises a supporting rod 201, a shading curtain 202 is movably connected to the outer surface of the supporting rod 201 in a penetrating manner, connecting strips 203 are respectively and fixedly connected to two ends of the shading curtain 202, limiting blocks 204 are respectively and fixedly connected to two ends of the two connecting strips 203, and a cleaning mechanism 3 is installed on the rear surface of the intelligent door and window body 1.
Wherein, through setting up clearance mechanism 3, when the surface of intelligent door and window body 1 needs to clear up, can clear up it.
Further, the cleaning mechanism 3 includes a motor 301, an output shaft of the motor 301 is movably connected with a first fixing block 302 in a penetrating manner, an output shaft of the motor 301 is fixedly connected with a threaded rod 303, one end of the threaded rod 303 is rotatably connected with a second fixing block 304 through a bearing, an external thread of the threaded rod 303 is sleeved with a connecting plate 305, one end of the connecting plate 305 is internally movably connected with a connecting post 306 in a penetrating manner, two ends of the connecting post 306 are respectively and fixedly connected with a third fixing block 307, and one inner side of the connecting plate 305 is fixedly connected with a scraping plate 308.
Wherein, the connecting plate 305 drives the scraper 308 fixedly connected to one side of the connecting plate 305 which moves up and down, and the scraper 308 moves up and down against the rear surface of the intelligent door and window body 1 to clean the same.
Further, the bottom of the motor 301 is fixedly connected with the top of the first fixing block 302, the front surface of the first fixing block 302 is fixedly connected with the rear surface of the intelligent door and window body 1, the front surface of the second fixing block 304 is fixedly connected with the rear surface of the intelligent door and window body 1, and the front surfaces of the two third fixing blocks 307 are fixedly connected with the rear surface of the intelligent door and window body 1.
Wherein, the motor 301 is started, and the output shaft of the motor 301 drives the threaded rod 303 fixedly connected to the output shaft to rotate.
Further, the supporting rod 201 corresponds to the inner wall of the frame 11, and two ends of the supporting rod 201 are fixedly connected with two sides of the inner wall of the frame 11 respectively.
Wherein, by providing the support bar 201, the sunshade 202 can be moved in the horizontal direction.
Further, a plurality of holes corresponding to the supporting rods 201 are formed at the top of the sunshade curtain 202, and the sunshade curtain 202 corresponds to the inner wall of the frame 11.
Wherein, the limiting groove plays the effect of spacing to sunshade screen 202, when sunshade screen 202 draws to the bottom after, can not appear rocking the condition.
Further, the limiting block 204 is T-shaped, and the inner walls of the upper side and the lower side of the frame 11 are provided with limiting grooves corresponding to the limiting block 204, and the limiting block 204 is slidably connected in the limiting grooves.
By setting the limiting block 204, the purpose of limiting the sunshade curtain 202 can be achieved.
The application steps for the method are as follows: when sunlight is too strong, when the indoor sunshade needs to be carried out, the connecting strips 203 on two sides of the sunshade curtain 202 are pulled manually, the connecting strips 203 are pulled to the left and right sides respectively, the sunshade curtain 202 can effectively shield external sunlight, so that the influence on the life of a resident caused by direct irradiation of sunlight through doors and windows is prevented, when the connecting strips 203 are pulled to the left and right sides, the limiting blocks 204 on the upper end and the lower end of the connecting strips 203 can move in limiting grooves formed in the inner walls on the upper side and the lower side of the frame 11, the limiting grooves play a limiting role on the sunshade curtain 202, when the sunshade curtain 202 is pulled to the bottom, the shaking condition can not occur, when the outer surface of the intelligent door and window body 1 needs to be cleaned, the motor 301 is started, the output shaft of the motor 301 drives the threaded rod 303 fixedly connected to rotate, the threaded rod 303 rotates to drive the connecting plate 305 to move up and down, the connecting plate 305 slides on the outer surface of the connecting post 306, and the connecting plate 305 drives the scraping plate 308 fixedly connected to move up and down on one side of the connecting plate 305, and the scraping plate 308 moves up and down along the rear surface of the intelligent door and window body 1 to clean the intelligent door and window body 1.
In the description of the present utility model, it should be noted that the directions or positional relationships indicated by the terms "upper", "lower", "inner", "outer", "front", "rear", "both ends", "one end", "the other end", etc. are based on the directions or positional relationships shown in the drawings, are merely for convenience of describing the present utility model and simplifying the description, and do not indicate or imply that the devices or elements referred to must have a specific direction, be configured and operated in the specific direction, and thus should not be construed as limiting the present utility model. Furthermore, the terms "first," "second," and the like, are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the utility model, unless explicitly stated and limited otherwise, the terms "mounted," "configured to," "connected," and the like are to be construed broadly, and may be, for example, "connected," fixed, welded, riveted, bonded, etc., as well as removably connected, threaded, keyed, pinned, etc., or integrally connected; can be mechanically or electrically connected; can be directly connected or indirectly connected through an intermediate medium, and can be communication between two elements. The specific meaning of the above terms in the present utility model will be understood in specific cases by those of ordinary skill in the art.
The foregoing is only a preferred embodiment of the present utility model, but the scope of the present utility model is not limited thereto, and any person skilled in the art, who is within the scope of the present utility model, should make equivalent substitutions or modifications according to the technical scheme of the present utility model and the inventive concept thereof, and should be covered by the scope of the present utility model.
Claims (6)
1. The utility model provides an intelligent door and window that can sunshade, includes intelligent door and window body, its characterized in that: the intelligent door and window comprises an intelligent door and window body, wherein a frame is fixedly connected to the outer surface of the intelligent door and window body, a sunshade mechanism is arranged in the frame and comprises a supporting rod, a sunshade curtain is movably connected to the outer surface of the supporting rod in a penetrating mode, connecting strips are fixedly connected to the two ends of the sunshade curtain respectively, limiting blocks are fixedly connected to the two ends of the connecting strips respectively, and a cleaning mechanism is arranged on the rear surface of the intelligent door and window body.
2. The intelligent door and window capable of shading according to claim 1, wherein: the cleaning mechanism comprises a motor, a first fixed block is movably connected with an output shaft of the motor in a penetrating manner, a threaded rod is fixedly connected with an output shaft of the motor, one end of the threaded rod is rotatably connected with a second fixed block through a bearing, a connecting plate is sleeved on an external thread of the threaded rod, a connecting column is movably connected with one end of the connecting plate in a penetrating manner, two ends of the connecting column are respectively and fixedly connected with a third fixed block, and an inner side of the connecting plate is fixedly connected with a scraping plate.
3. The intelligent door and window capable of shading according to claim 2, wherein: the bottom of motor and the top fixed connection of first fixed block, the front surface of first fixed block and the back fixed surface of intelligent door and window body are connected, the front surface of second fixed block and the back fixed surface of intelligent door and window body are connected, two the front surface of third fixed block and the back fixed surface of intelligent door and window body are connected.
4. The intelligent door and window capable of shading according to claim 1, wherein: the supporting rod corresponds to the inner wall of the frame, and two ends of the supporting rod are fixedly connected with two sides of the inner wall of the frame respectively.
5. The intelligent door and window capable of shading according to claim 1, wherein: the top of the sunshade curtain is provided with a plurality of holes corresponding to the support rods, and the sunshade curtain corresponds to the inner wall of the frame.
6. The intelligent door and window capable of shading according to claim 1, wherein: the limiting block is T-shaped, limiting grooves corresponding to the limiting block are formed in the inner walls of the upper side and the lower side of the frame, and the limiting block is slidably connected in the limiting grooves.
