CN219256930U

CN219256930U - Portable oil painting box

Info

Publication number: CN219256930U
Application number: CN202223090274.3U
Authority: CN
Inventors: 王葆夷; 刘文良; 肖钦; 彭凤明; 宁丹华
Original assignee: Hunan University of Technology
Current assignee: Hunan University of Technology
Priority date: 2022-11-17
Filing date: 2022-11-17
Publication date: 2023-06-27
Anticipated expiration: 2032-11-17

Abstract

The utility model discloses a portable oil painting box, which comprises an oil painting box body, wherein a placement plate is fixed on the top of the oil painting box body through a screw, a hand strap is fixed in the front center of the oil painting box body through a screw, a pigment box and a storage box are arranged in the oil painting box body, the pigment box and the storage box are distributed up and down, a handle A is arranged in the right center of the pigment box, a handle B is arranged in the right center of the storage box, a pull rod is fixed on the bottom of the oil painting box body through a screw, two pull rods are distributed left and right, universal wheels are arranged behind the pull rods, the universal wheels are fixed on the oil painting box body through rotating shafts, a fixing frame is arranged in the center of the interior of the placement plate, grooves A are formed in the left and right sides of the fixing frame, fixing frames are fixed in the center of the interior of the placement plate through screws, wheels are connected to the inner sides of the fixing frames through rotating shafts, and correspond to the grooves A; this portable oil painting case has convenient to carry, conveniently accomodates, adjustable drawing board angle's advantage.

Description

Portable oil painting box

Technical Field

The utility model relates to the technical field of oil painting boxes, in particular to a portable oil painting box.

Background

The oil painting is made of quick-drying vegetable oil (linseed oil, poppy oil, walnut oil, etc.) and pigment through mixing and making on canvas, paper board or wood board. The diluents used for painting are volatile turpentine, dry linseed oil and the like. The pigment attached to the picture has stronger hardness, and can keep luster for a long time after the picture is dried. The painting object is fully represented by virtue of the covering power and the transparency of the pigment, so that the painting object is rich in color and strong in three-dimensional texture. The oil painting is one of the main painting types of the western painting.

The oil painting creator needs to carry the oil painting box to wander around to find the drawing artistic conception, and during the period, the painter needs to meet various environments, and because the carried oil painting box is heavy, the oil painting box is required to have a function of being well adapted to various environments, and the portable function of the existing oil painting box is single and cannot be adapted to various environments.

Disclosure of Invention

The utility model aims to provide a portable oil painting box which has the advantages of convenience in carrying and storage and adjustable drawing board angle and solves the problems in the prior art.

In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a portable oil painting case, includes the oil painting case body, the top of oil painting case body has the board of placing through the fix with screw, the preceding central authorities of oil painting case body have the hand strap through the fix with screw, the inside of oil painting case body is equipped with pigment case and storage tank, pigment case and storage tank distribute from top to bottom, handle A has been seted up to the right central authorities of pigment case, handle B has been seted up to the right central authorities of storage tank, there is the pull rod bottom of oil painting case body through the fix with screw, the distribution has two about the pull rod, the pull rod rear all is equipped with the universal wheel, the universal wheel is fixed on the oil painting case body through the pivot.

Preferably, the inside central authorities of placing the board are equipped with fixed frame, recess A has all been seted up to the left and right sides of fixed frame, the inside central authorities of placing the board both sides central authorities all have the mount through the fix with screw, the inboard of mount all is connected with the wheel through the pivot, the wheel corresponds with recess A, fixed frame slides inside placing the board through recess A and wheel.

Preferably, both sides top all is equipped with fixed block A through the screw fixation around the inside of oil painting case body, fixed block A's below all is equipped with fixed block B, fixed block B all is on the oil painting case body through the screw fixation, spout A has all been seted up at fixed block A's top central authorities, spout B has all been seted up at fixed block B's top central authorities, there is pulley A bottom of pigment case through the screw fixation, pulley A is equipped with four and is the rectangle and distributes, there is pulley B bottom of storage tank through the screw fixation, pulley B is equipped with four and is the rectangle and distributes, pulley A corresponds with spout A, pulley B corresponds with spout B.

Preferably, pigment groove has been seted up at the top of pigment case, pigment groove is spread full pigment case top, the storing groove has been seted up at the top of storage tank, the storing groove distributes from left to right in proper order, all be equipped with the baffle between the storing groove, the baffle is all through the fix with screw on the storage tank.

Preferably, the fixed frame is in a shape like a Chinese character 'hui', the left side and the right side of the side wall of the fixed frame are both provided with grooves B, the inner side of the fixed frame is connected with a fixed rod in a sliding manner through the grooves B, and the center of the top of the fixed rod is connected with a supporting rod through a rotating shaft.

Preferably, the top of fixed frame has the drawing board through hinge connection, bracing piece and drawing board contact support, fixed frame inboard central authorities are equipped with the threaded rod, the threaded rod rear end runs through fixed frame and dead lever, the front end of threaded rod passes through the bearing and rotates with fixed frame and be connected.

Preferably, the surface of the threaded rod is provided with threads, and the center of the inside of the fixed rod is provided with a threaded hole corresponding to the threaded rod.

Preferably, the oil painting box body and the placing plate are made of alloy, the pull rod is a telescopic pull rod, and the hand strap is made of leather.

Compared with the prior art, the utility model has the following beneficial effects:

1. this portable oil painting case is mentioned this device through the hand strap, is favorable to mentioning and removes this device, carries out the combined operation through pull rod and universal wheel, is favorable to the user to pull this device and removes, has guaranteed the portability of this device, fills the painting pigment through the pigment groove on the pigment case, is favorable to placing of pigment, prevents simultaneously that pigment from mixing together, accomodates painting brush and pigment pipe through the storing groove on the storage tank, is favorable to accomodating painting brush and painting brush fast.

2. This portable oil painting case is through bracing piece, threaded rod and dead lever combination use, is favorable to adjusting the angle of drawing board, is favorable to the user to adjust the angle when being fit for oneself's drawing, carries out the combined operation through pulley A, spout A and fixed block A, is favorable to the user to pull out the pigment case through handle A fast, carries out the combined operation through pulley B, spout B and fixed block B, is favorable to the user to pull out the storage tank through handle B fast.

Drawings

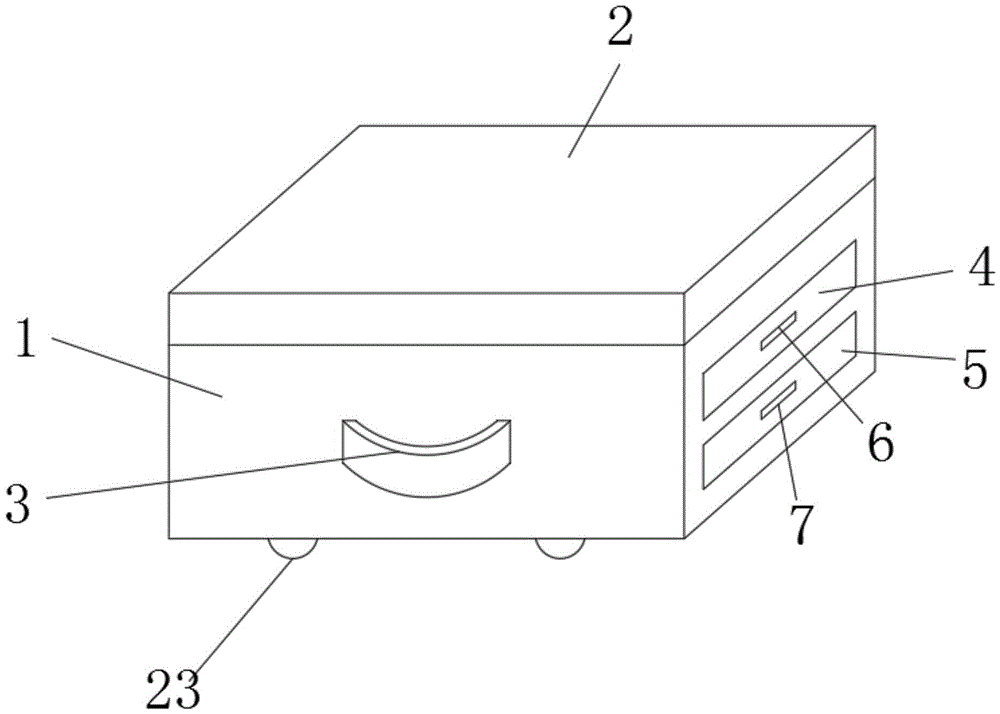

FIG. 1 is a schematic diagram of the overall structure of a portable oil painting box according to the present utility model;

FIG. 2 is a schematic view of a portable oil painting box according to the present utility model;

FIG. 3 is a schematic longitudinal section of the body of the portable oil painting box according to the present utility model;

FIG. 4 is a schematic bottom view of a portable oil painting box according to the present utility model;

FIG. 5 is an overall schematic view of a paint container of a portable oil painting container according to the present utility model;

FIG. 6 is a schematic view of a portable oil painting box according to the present utility model;

FIG. 7 is a schematic view of a cut surface of a placement plate of a portable oil painting box according to the present utility model;

FIG. 8 is a schematic view of the whole fixing frame of a portable oil painting box according to the present utility model;

fig. 9 is a front view of a fixing frame of a portable oil painting box according to the present utility model.

The reference numerals in the drawings indicate: 1. an oil painting box body; 2. placing a plate; 3. a carrying strap; 4. a pigment box; 5. a storage box; 6. a handle A; 7. a handle B; 8. a pulley A; 9. a chute A; 10. a fixed block A; 11. a fixed frame; 12. a groove A; 13. a groove B; 14. drawing board; 15. a support rod; 16. a threaded rod; 17. a fixed rod; 18. a fixing frame; 19. a wheel; 20. a pulley B; 21. a chute B; 22. a fixed block B; 23. a pull rod; 24. a universal wheel; 25. a pigment tank; 26. a storage tank; 27. a partition board.

Detailed Description

The technical solutions of the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model, and it is apparent that the described embodiments are only some embodiments of the present utility model, but not all embodiments, and all other embodiments obtained by those skilled in the art without making creative efforts based on the embodiments of the present utility model are included in the protection scope of the present utility model.

In the description of the present utility model, it should be understood that the terms "upper," "lower," "front," "rear," "left," "right," "top," "bottom," "inner," "outer," and the like indicate or are based on the orientation or positional relationship shown in the drawings, merely to facilitate description of the present utility model and to simplify the description, and do not indicate or imply that the devices or elements referred to must have a specific orientation, be configured and operated in a specific orientation, and thus should not be construed as limiting the present utility model.

Example 1:

referring to fig. 1-9, a portable oil painting box, including oil painting box body 1, there is board 2 placed through the fix with screw at the top of oil painting box body 1, the preceding central authorities of oil painting box body 1 have hand strap 3 through the fix with screw, the inside of oil painting box body 1 is equipped with pigment case 4 and storage tank 5, pigment case 4 and storage tank 5 distribute from top to bottom, handle A6 has been seted up at the right central authorities of pigment case 4, handle B7 has been seted up at the right central authorities of storage tank 5, there is pull rod 23 bottom of oil painting box body 1 through the fix with screw, it has two to distribute about pull rod 23, pull rod 23 rear all is equipped with universal wheel 24, universal wheel 24 is fixed on oil painting box body 1 through the pivot, the inside central authorities of placing board 2 are equipped with fixed frame 11, the recess a12 has all been seted up to the left and right sides of fixed frame 11, the inside central authorities of placing board 2 are all have mount 18 through the fix with screw, the inboard of mount 18 all is connected with wheel 19 through the pivot, wheel 19 corresponds with recess a12, fixed frame 11 carries out slip in place board 2 inside through recess a12 and wheel 19, the inside handle 23, the telescopic device has been made through the universal wheel 23, this portable device is being used to make up through the universal wheel 23, this portable device is easy to carry out, the portable device is made for carrying out the portable device through the telescopic handle device is 23, the portable device is easy to carry out.

Example 2:

referring to fig. 1-9, a portable oil painting box, including oil painting box body 1, both sides top all is equipped with fixed block a10 through the fix with screw around the inside of oil painting box body 1, the below of fixed block a10 all is equipped with fixed block B22, fixed block B22 all is on oil painting box body 1 through the fix with screw, spout A9 has all been seted up at the top central authorities of fixed block a10, spout B21 has all been seted up at the top central authorities of fixed block B22, the bottom of pigment box 4 has pulley A8 through the fix with screw, pulley A8 is equipped with four and is the rectangle distribution, the bottom of storage tank 5 has pulley B20 through the fix with screw, pulley B20 is equipped with four and is the rectangle distribution, pulley A8 corresponds with spout A9, pulley B20 corresponds with spout B21, pigment groove 25 has been seted up at the top of pigment box 4, pigment storage tank 25 is full of pigment box 4 top, storage tank 26 distributes in proper order from left to right side, all be equipped with baffle 27 between the storage tank 26, baffle 27 all is through fixing on storage tank 5 on the pigment box, through the fix with screw 25, the pigment storage tank 5 is favorable to take in the storage tank 5 through the pigment groove 25, the pigment is favorable to take in the storage tank is fast with the storage tank is filled with the pigment simultaneously, the pigment is favorable to take in the pigment is filled with the pigment on the storage tank 5.

Example 3:

referring to fig. 1-9, a portable oil painting box comprises a fixed frame 11, the fixed frame 11 is in a shape like a Chinese character 'hui', grooves B13 are formed in the left side and the right side of the side wall of the fixed frame 11, the inner side of the fixed frame 11 is slidably connected with a fixed rod 17 through the grooves B13, the top center of the fixed rod 17 is connected with a supporting rod 15 through a rotating shaft, the top of the fixed frame 11 is connected with a drawing board 14 through a hinge, the supporting rod 15 is supported in contact with the drawing board 14, a threaded rod 16 is arranged in the inner side center of the fixed frame 11, the rear end of the threaded rod 16 penetrates through the fixed frame 11 and the fixed rod 17, the front end of the threaded rod 16 is rotatably connected with the fixed frame 11 through a bearing, threads are formed in the surface of the threaded rod 16, the threaded hole corresponding to the threaded rod 16 is formed in the inner center of the fixed rod 17, the threaded hole is formed in the combined use through the supporting rod 15, the threaded rod 16 and the fixed rod 17, the angle of the drawing board 14 is adjusted, a user can conveniently adjust the angle when the user is suitable for the user, the user can quickly pull out the pigment box 4 through a pulley A8, a chute A9 and a fixed block a10, and the user can quickly pull out the pigment box 4 through a handle a 20 through a pulley B20, a chute B21 and a fixed block B7.

Working principle: according to the portable oil painting box, when the portable oil painting box is used, a user pulls out the fixed frame 11 through the wheels 19, rotates the threaded rod 16, slides the fixed rod 17 in the groove B13 and drives the supporting rod 15 to move, so that the angle of the drawing board 14 is adjusted, after the drawing board 14 is adjusted, the user slides through the pulley B20, the sliding groove B21 and the fixed block B22, pulls out the storage box 5 through the handle B7, then takes out a required pigment pipe and a required drawing pen from the storage groove 26 to be placed on the top of the placing plate 2, then performs combined work through the pulley A8, the sliding groove A9 and the fixed block A10, pulls out the pigment box 4 through the handle A6, sequentially adds pigment in the pigment pipe into the pigment groove 25, and then enables the user to draw.

While the fundamental and principal features of the utility model and advantages of the utility model have been shown and described, it will be apparent to those skilled in the art that the utility model is not limited to the details of the foregoing exemplary embodiments, but may be embodied in other specific forms without departing from the spirit or essential characteristics thereof; the present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein.

Furthermore, it should be understood that although the present disclosure describes embodiments, not every embodiment is provided with a separate embodiment, and that this description is provided for clarity only, and that the disclosure is not limited to the embodiments described in detail below, and that the embodiments described in the examples may be combined as appropriate to form other embodiments that will be apparent to those skilled in the art.

Claims

1. The utility model provides a portable oil painting case, includes oil painting case body (1), its characterized in that: the utility model discloses a paint box, including oil painting box body (1), handle A (6) has been seted up at the right central authorities of pigment box (4), handle B (7) has been seted up at the right central authorities of storage tank (5), there is pull rod (23) in the bottom of oil painting box body (1) through the screw fixation, the front central authorities of oil painting box body (1) have hand strap (3) through the screw fixation, the inside of oil painting box body (1) is equipped with pigment box (4) and storage tank (5), pigment box (4) and storage tank (5) distribute from top to bottom, handle A (7) have been seted up at the right central authorities of pigment box (4), the bottom of oil painting box body (1) has pull rod (23) through the screw fixation, the distribution has two about pull rod (23), all be equipped with universal wheel (24) at the pull rod (23) rear, universal wheel (24) are fixed on oil painting box body (1) through the pivot.

2. A portable oil painting box according to claim 1 and characterized in that: the inside central authorities of placing board (2) are equipped with fixed frame (11), recess A (12) have all been seted up to the left and right sides of fixed frame (11), the inside central authorities both sides central authorities of placing board (2) all have mount (18) through the screw fixation, the inboard of mount (18) all is connected with wheel (19) through the pivot, wheel (19) correspond with recess A (12), fixed frame (11) are through recess A (12) and wheel (19) inside slip of placing board (2).

3. A portable oil painting box according to claim 1 and characterized in that: the oil painting case body (1) is inside around both sides top all has fixed block A (10) through the screw fixation, the below of fixed block A (10) all is equipped with fixed block B (22), fixed block B (22) all is on oil painting case body (1) through the screw fixation, spout A (9) have all been seted up at the top central authorities of fixed block A (10), spout B (21) have all been seted up at the top central authorities of fixed block B (22), pulley A (8) have been passed through to the bottom of pigment case (4), pulley A (8) are equipped with four and are the rectangle and distribute, pulley B (20) are passed through to the bottom of storage tank (5), pulley B (20) are equipped with four and are the rectangle and distribute, pulley A (8) correspond with spout A (9), pulley B (20) correspond with spout B (21).

4. A portable oil painting box according to claim 3 and characterized in that: pigment groove (25) have been seted up at the top of pigment case (4), pigment groove (25) are spread full pigment case (4) top, storing groove (26) have been seted up at the top of storage tank (5), storing groove (26) are from left to right distributed in proper order, all be equipped with baffle (27) between storing groove (26), baffle (27) all pass through fix with screw on storage tank (5).

5. A portable oil painting box according to claim 2 and characterized in that: the fixing frame (11) is in a shape like a Chinese character 'hui', grooves B (13) are formed in the left side and the right side of the side wall of the fixing frame (11), fixing rods (17) are connected to the inner side of the fixing frame (11) in a sliding mode through the grooves B (13), and supporting rods (15) are connected to the center of the top of each fixing rod (17) through a rotating shaft.

6. The portable oil painting box according to claim 5, wherein: the top of fixed frame (11) is through hinge connection has drawing board (14), bracing piece (15) and drawing board (14) contact support, fixed frame (11) inboard central authorities are equipped with threaded rod (16), fixed frame (11) and dead lever (17) are run through to threaded rod (16) rear end, the front end of threaded rod (16) is through bearing and fixed frame (11) rotation connection.

7. The portable oil painting box according to claim 6, wherein: the surface of the threaded rod (16) is provided with threads, and the center of the inside of the fixed rod (17) is provided with a threaded hole corresponding to the threaded rod (16).

8. The portable oil painting box according to claim 5, wherein: the oil painting box body (1) and the placing plate (2) are made of alloy, the pull rod (23) is a telescopic pull rod, and the hand strap (3) is made of leather.
