Abstract
The utility model relates to the technical field of computer tables and discloses a computer table with a heat dissipation device, which comprises a computer table and a heat radiator, wherein the heat radiator is detachably arranged at the top of the computer table, a mounting groove is formed in the middle of the top surface of the computer table, and a sliding block and a locking piece are fixedly arranged on two sides of the top of the periphery of an inserted link respectively; according to the utility model, the inserted link is inserted into the jack on one side of the radiator through the transmission of the end part and the pressure spring, and the sliding block is used for enabling the locking ball in the locking piece on the top of one side of the periphery of the inserted link to press the locking ball in the locking piece when the inner wall of the sliding groove slides, so that the locking ball is locked with the spherical lock hole on the computer desk under the elasticity of the elastic sheet, thereby positioning the inserted link, realizing the convenience of quickly removing positioning and limiting the radiator by two groups of inserted links on the computer desk, being convenient for quickly removing the limit of the radiator, and being convenient for taking out the radiator from the installation groove on the computer desk and cleaning dust in the installation groove.
Description
Technical Field
The utility model relates to the technical field of computer tables, in particular to a computer table with a heat dissipation device.
Background
The computer desk is a desk for placing computers, is an important office and living article, has various styles and materials and various designs, and is used for effectively radiating the notebook computer by a radiator on the existing computer desk.
When the existing computer desk radiator horizontally places a computer, a large amount of dust is accumulated on the surface mesh of the radiator and the joint of the radiator and the computer desk easily, and most of the radiator and the computer desk are installed through connecting pieces such as bolts, so that the radiator is not convenient to disassemble and disassemble, and the joint of the radiator and the computer desk is inconvenient to clean the dust.
Disclosure of Invention
The utility model aims to provide a computer desk with a heat dissipation device, which solves the problems that a radiator on the computer desk is not convenient to assemble and disassemble with the computer desk, and dust accumulated at the joint of the mesh of the surface of the radiator and a computer is inconvenient to clean.
In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a take heat abstractor's desk, includes desk, radiator, desk top demountable installation has the radiator, the mounting groove has been seted up at desk top middle part, the mounting hole has been seted up to mounting groove inner wall bilateral symmetry, fixed mounting has the pressure spring in the mounting hole inner wall, pressure spring one end internal diameter fixedly connected with inserted bar, the peripheral top both sides of inserted bar are fixed mounting has slider, retaining member respectively.
Preferably, the jacks are symmetrically arranged on two sides of the mounting groove, and the lock holes and the slide grooves are respectively arranged on two sides of the top of the computer desk.
Preferably, the mounting hole at one side and the jack are positioned on the same straight line, and the diameter of the inner wall of the jack is smaller than that of the inner wall of the mounting hole.
Preferably, the lock hole and the chute are positioned on the same straight line, and the sliding block and the locking piece are positioned on the same straight line.
Preferably, the other end of the inserted link extends into the inner wall of the jack, and the sliding block slides into the inner wall of the chute.
Preferably, the locking piece comprises an elastic piece and a locking ball, the inclined elastic piece is fixedly connected to the periphery of the inserting rod, the locking ball is fixedly connected to the top end of the elastic piece, and the locking ball slides on the inner wall of the sliding groove and is inserted into the inner wall of the locking hole.
Compared with the prior art, the utility model has the beneficial effects that:
according to the utility model, the inserted link is inserted into the jack on one side of the radiator through the transmission of the end part and the pressure spring, and the sliding block is used for enabling the locking ball in the locking piece on the top of one side of the periphery of the inserted link to press the locking ball in the locking piece when the inner wall of the sliding groove slides, so that the locking ball is locked with the spherical lock hole on the computer desk under the elasticity of the elastic sheet, thereby positioning the inserted link, realizing the convenience of quickly removing positioning and limiting the radiator by two groups of inserted links on the computer desk, facilitating the quick removal of the limit of the radiator, and solving the problems that the radiator on the computer desk is not convenient to detach and install conveniently and dust is not convenient to clean conveniently due to accumulated dust at the joint of the surface mesh of the radiator and the computer.
Drawings

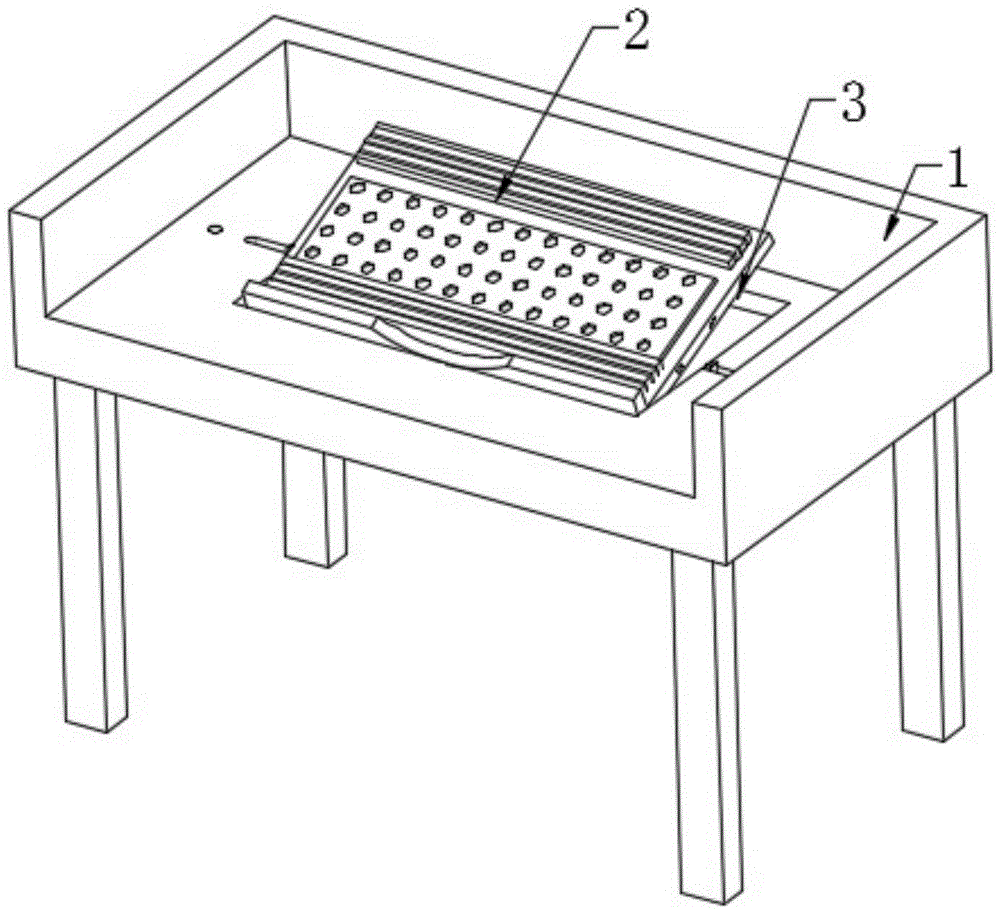

FIG. 1 is a schematic perspective view of the present utility model;
FIG. 2 is a schematic side sectional view of the present utility model;
fig. 3 is a schematic view of a partial enlarged structure at a in fig. 2.
In the figure: 1. a computer desk; 2. a heat sink; 3. a mounting groove; 4. a jack; 5. a mounting hole; 6. a pressure spring; 7. a rod; 8. a slide block; 9. a locking member; 10. a lock hole; 11. and a sliding groove.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and fully with reference to the accompanying drawings, in which some, but not all embodiments of the utility model are shown.
Referring to fig. 1-3, the present utility model provides a technical solution: a computer desk with a heat dissipation device comprises a computer desk 1 and a heat radiator 2, wherein the heat radiator 2 is detachably arranged at the top of the computer desk 1, and a mounting groove 3 is formed in the middle of the top surface of the computer desk 1;
the radiator 2 consists of a rectangular plate and an inclined turning plate, a plurality of groups of cooling fans are arranged on the turning plate, the turning plate is rotationally connected with the rectangular plate through a damping rotating shaft, the jack 4 is positioned in the middle of one side of the periphery of the rectangular plate, and the lock hole 10 and the mounting hole 5 mutually penetrate;
the inserted link 7 is inserted into the jack 4 on one side of the radiator 2 through the transmission of the end part and the pressure spring 6, and the sliding block 8 enables the lock ball in the lock piece 9 on the top of one side of the periphery of the inserted link 7 to squeeze the lock ball in the lock piece 9 when the inner wall of the sliding groove 11 slides, so that the lock ball is locked with the spherical lock hole 10 on the computer desk 1 under the elasticity of the elastic sheet, thereby positioning the inserted link 7, realizing the convenience that two groups of inserted links 7 on the computer desk 1 can rapidly remove positioning and limiting the radiator 2, facilitating rapid removal of the limiting of the radiator 2, and taking out the cleaning radiator 2 from the installation groove 3 on the computer desk 1 and cleaning dust in the installation groove 3.
The jacks 4 are symmetrically formed in two sides of the mounting groove 3, the lock holes 10 and the sliding grooves 11 are respectively formed in two sides of the top of the computer desk 1, and lock balls in the locking piece 9 at the top of one side of the periphery of the inserted rod 7 squeeze the lock balls in the locking piece 9 when the inner wall of the sliding grooves 11 slides, so that the lock balls are locked with the spherical lock holes 10 on the computer desk 1 under the elasticity of the elastic sheets, and the quick and convenient positioning of the heat radiator 2 is achieved by releasing the inserted rod 7.
Wherein, the mounting hole 5 and the jack 4 that are located one side are located same straight line, and jack 4 inner wall diameter is less than mounting hole 5 inner wall diameter, and inserted bar 7 can follow jack 4 shrink to in the mounting hole 5 after compression spring 6 to remove the location to radiator 2 both sides.
The lock hole 10 and the chute 11 are positioned on the same straight line, the sliding block 8 and the locking piece 9 are positioned on the same straight line, the other end of the inserted link 7 extends into the inner wall of the jack 4, the sliding block 8 slides into the inner wall of the chute 11, and the sliding block 8 slides, so that a lock ball in the locking piece 9 at the top of one side of the periphery of the inserted link 7 extrudes the lock ball in the locking piece 9 when the inner wall of the chute 11 slides, the lock ball is locked with the spherical lock hole 10 on the computer desk 1 under the elasticity of the elastic sheet, the inserted link 7 is positioned, and the convenience that the two groups of inserted links 7 on the computer desk 1 can rapidly release the positioning and limiting of the radiator 2 is realized.
Wherein, retaining member 9 includes shell fragment and locking ball, and the shell fragment fixed connection of slope is in the inserted bar 7 periphery, and locking ball fixed connection is in shell fragment top end, and the locking ball slides in spout 11 inner wall grafting in lockhole 10 inner wall, and the locking ball accessible mounting hole 5 inner wall extrusion down in retaining member 9 slides in mounting hole 5, and after locking ball and spherical lockhole 10 coincidence, the locking ball is released under the elasticity of shell fragment, locks with lockhole 10 to realize locating the inserted bar 7 in mounting hole 5.
Working principle: when the radiator 2 on the computer desk 1 is installed and used, the radiator 2 is placed in the installation groove 3, and the locking ball in the spherical lock hole 10 on the computer desk 1 is pressed, so that the locking ball is extruded to be contracted into the spherical lock hole 10, the spring 6 at the end part of the inserting rod 7 releases elasticity, the inserting rod 7 is enabled to rapidly extend into the jack 4 at one side of the radiator 2 from the installation hole 5, thereby positioning the radiator 2, when the radiator 2 is used, a notebook computer can be placed on the radiator 2, the radiator 2 can be overturned through the damping shaft through the supporting plate with the inclined top to adjust a proper angle, and the radiator fan on the turning plate can be used for radiating, when the radiator 2 and the computer desk 1 are disassembled and cleaned with dust, the sliding block 8 is pushed to slide to one side of the lock hole 10 in the sliding groove 11, the locking ball is enabled to be rapidly locked with the spherical lock hole 10 on the computer desk 1 under elastic force, thereby positioning the inserting rod 7, two groups of inserting rods 7 on the computer desk 1 can rapidly release the radiator 2 from the positioning groove 2, the radiator 2 can be conveniently and rapidly released from the installation groove 2, and the radiator 2 can be conveniently and rapidly released from the computer desk 2, and the radiator can be conveniently and rapidly removed from the installation groove 3.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes and modifications may be made therein without departing from the principles of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a take heat abstractor's desk, includes desk (1), radiator (2), its characterized in that: the utility model discloses a computer desk, including desk (1), mounting groove (3), mounting hole (5), pressure spring (6), inserted bar (7) are installed in fixed mounting in mounting hole (5) inner wall, pressure spring (6) one end internal diameter fixedly connected with inserted bar (7), slider (8), retaining member (9) are installed respectively in peripheral top both sides of inserted bar (7) in mounting groove (3) inner wall bilateral symmetry.
2. A computer desk with a heat sink as defined in claim 1, wherein: the two sides of the mounting groove (3) are symmetrically provided with jacks (4), and the two sides of the top of the computer desk (1) are respectively provided with a lock hole (10) and a chute (11).
3. A computer desk with a heat sink as claimed in claim 2, wherein: the mounting hole (5) at one side and the jack (4) are positioned on the same straight line, and the diameter of the inner wall of the jack (4) is smaller than that of the mounting hole (5).
4. A computer desk with heat sink as claimed in claim 3, wherein: the lock hole (10) and the chute (11) are positioned on the same straight line, and the sliding block (8) and the locking piece (9) are positioned on the same straight line.
5. The computer desk with heat dissipation device according to claim 4, wherein: the other end of the inserted link (7) extends into the inner wall of the jack (4), and the sliding block (8) slides into the inner wall of the sliding groove (11).
6. The computer desk with heat dissipation device according to claim 5, wherein: the locking piece (9) comprises an elastic piece and a locking ball, the inclined elastic piece is fixedly connected to the periphery of the inserting rod (7), the locking ball is fixedly connected to the top end of the elastic piece, and the locking ball slides on the inner wall of the sliding groove (11) and is inserted into the inner wall of the locking hole (10).
