The utility model relates to a portable hedge trimming device which comprises a storage bin, wherein a connecting frame is movably connected inside the storage bin, a first fixing bin is fixedly connected to the side of the connecting frame, an adjusting component is arranged inside the first fixing bin, a contraction mechanism is arranged inside the storage bin, and the contraction mechanism comprises a first fixing block fixedly connected with the inner wall of the back of the storage bin. This portable hedge trimming means through setting up the shrink mechanism for under electric putter's effect, can receive first fixed bin in the storage bin, can remove it through the wheel of bottom, thereby make things convenient for the staff to carry, through setting up the bolt, make when pruning the subassembly prune, can fix it, when needing to accomodate in the storage bin, can fold pruning the subassembly through pulling out the bolt, thereby can significantly reduce when carrying, saw blade and other people injury other people after contacting.
Description
Technical Field
The utility model relates to the technical field of pruning devices, in particular to a portable hedge pruning device.
Background
The hedges are planted in a regular planting mode of single row or double rows by closely planting shrubs or small arbor at a close-range plant row spacing, are called hedges, and are planted in a close-combined mode, and can be trimmed into various shapes and combined with each other due to the fact that the selected tree species can be trimmed, so that ornamental effect and artistic value are improved, and in addition, the hedges can play roles of covering bad view points, isolating protection, dust prevention, noise prevention, guiding tourist ornamental routes and the like.
Hedge trimming is carried out through the mode of manual trimming, and general trimming means is inconvenient to carry, leads to the staff when carrying trimming means, needs extravagant a large amount of time, greatly reduced work efficiency, so, proposes a portable hedge trimming means and solves this kind of problem.
Disclosure of Invention
Aiming at the defects of the prior art, the portable hedge trimming device provided by the utility model has the advantages of convenience in carrying and the like, and solves the problems that a large amount of time is wasted and the working efficiency is greatly reduced when a worker carries the trimming device because the trimming device is inconvenient to carry.
In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a portable hedge trimming means, includes the storage bin, the inside swing joint of storage bin has the link, the first fixed storehouse of side fixedly connected with of link, the inside of first fixed storehouse is provided with adjusting part, the inside of storage bin is provided with shrink mechanism, the bottom of first fixed storehouse is provided with the trimming part.
The shrinkage mechanism includes the first fixed block with storage bin back inner wall fixed connection, the top fixedly connected with second U type frame of first fixed block, the inside of second U type frame articulates there is electric putter, the bottom fixedly connected with second fixed block of first fixed bin, the inside of second fixed block articulates with electric putter's outside.
Further, the adjusting part comprises a first fixed plate fixedly connected with the inside of the first fixed bin, a first motor is fixedly connected with the inside of the first fixed bin, a screw is fixedly connected with an output shaft of the first motor, a sliding rod is fixedly connected between the left side of the first fixed plate and the left inner wall of the first fixed bin, and the outer side of the screw is in threaded connection with two sliding blocks in sliding connection with the outer side of the sliding rod.
Further, the trimming assembly comprises a third U-shaped frame fixedly connected with the bottoms of the two sliding blocks, the inside of the two third U-shaped frames is hinged with a first mounting plate, one side of the first mounting plate opposite to the other side of the first mounting plate is fixedly connected with a second mounting plate, the bottoms of the second mounting plates are fixedly connected with a second motor, the output shafts of the second motors are fixedly connected with driving wheels, and the outer sides of the driving wheels are rotationally connected with saw blades.
Further, two the inside of third U type frame is all sliding connection has the bolt, two the inside of first mounting panel has all been seted up with the first through-hole of bolt size looks adaptation.
Further, the right side fixedly connected with instrument storehouse of storage bin, the top fixedly connected with handle of instrument storehouse.
Further, the bottom of accomodating the storehouse and the bottom fixedly connected with of instrument storehouse are four first U type framves, four the inside of first U type frame all articulates there is the wheel.
Further, rectangular through holes matched with the width of the first fixed bin are formed in the right side of the storage bin, and the threads on the outer surface of the screw rod are two sections and are opposite in direction.
Compared with the prior art, the technical scheme of the application has the following beneficial effects:
1. this portable hedge trimming means through setting up the shrink mechanism for under electric putter's effect, can receive first fixed bin in the storage bin, can remove it through the wheel of bottom, thereby make things convenient for the staff to carry, through setting up the bolt, make when pruning the subassembly prune, can fix it, when needing to accomodate in the storage bin, can fold pruning the subassembly through pulling out the bolt, thereby can significantly reduce when carrying, saw blade and other people injury other people after contacting.
2. This portable hedge trimming means for under the effect of first motor and screw rod, can adjust the distance between two saw blades through setting up adjusting part, thereby greatly increased trimming means's rate of utilization.
Drawings

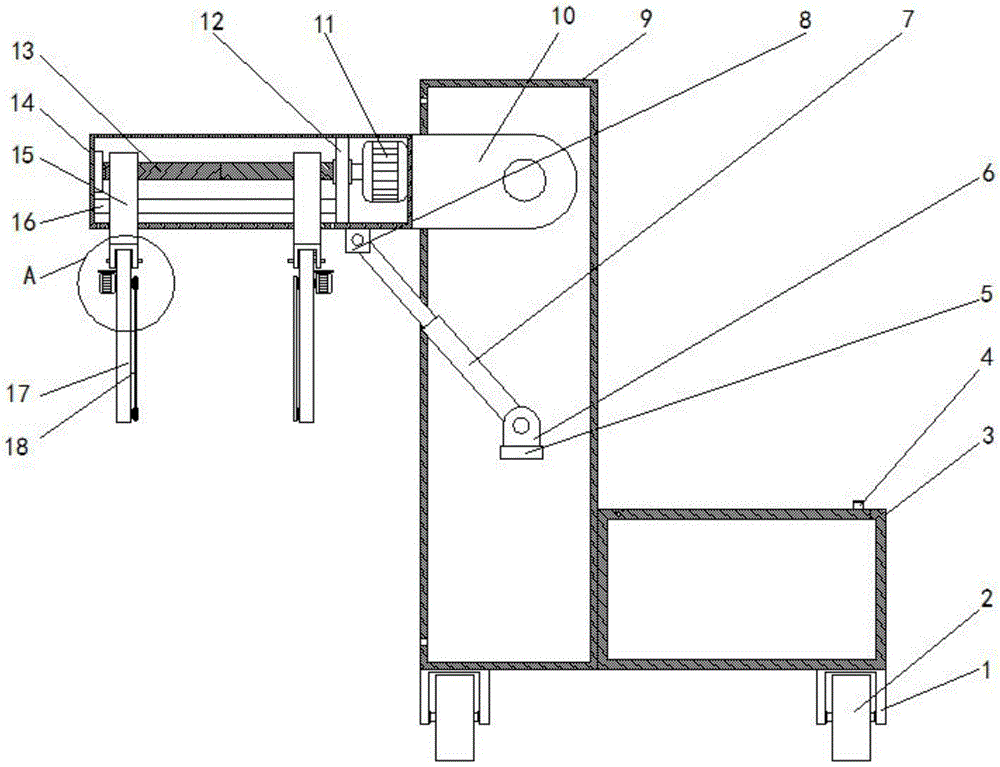

FIG. 1 is a schematic diagram of the structure of the present utility model;
FIG. 2 is an enlarged schematic view of the portion A of FIG. 1 according to the present utility model;
fig. 3 is a front view of the structure of the present utility model.
In the figure: the novel electric tool comprises a first U-shaped frame, 2 wheels, 3 tool bins, 4 handles, a first fixing block 5, a second U-shaped frame 6, an electric push rod 7, a second fixing block 8, a storage bin 9, a connecting frame 10, a first motor 11, a first fixing plate 12, a screw 13, a first fixing bin 14, a sliding block 15, a sliding rod 16, a first mounting plate 17, a saw blade 18, a third U-shaped frame 19, a 20 bolt 21, a second mounting plate 21 and a second motor 22.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Referring to fig. 1, the portable hedge trimming device in this embodiment includes a storage bin 9, a tool bin 3 is fixedly connected to the right side of the storage bin 9, four first U-shaped frames 1 are fixedly connected to the bottom of the storage bin 9 and the bottom of the tool bin 3, wheels 2 are hinged to the interiors of the four first U-shaped frames 1, a handle 4 is fixedly connected to the top of the tool bin 3, a connecting frame 10 is movably connected to the interior of the storage bin 9, a first fixed bin 14 is fixedly connected to the side of the connecting frame 10, a rectangular through hole matched with the width of the first fixed bin 14 is formed in the right side of the storage bin 9, an adjusting component is arranged in the first fixed bin 14, a shrinking mechanism is arranged in the storage bin 9, and a trimming component is arranged at the bottom of the first fixed bin 14.
The shrink mechanism includes the first fixed block 5 with the back inner wall fixed connection of storage compartment 9, the top fixedly connected with second U type frame 6 of first fixed block 5, and the inside of second U type frame 6 articulates there is electric putter 7, and the bottom fixedly connected with second fixed block 8 of first fixed bin 14, the inside of second fixed block 8 articulates with electric putter 7's outside.
It should be noted that, through the shrink mechanism for under the effect of electric putter 7, can be with first fixed storehouse 14 in the storage compartment 9, can remove it through wheel 2 of bottom, thereby make things convenient for the staff to carry.
Specifically, by starting the electric push rod 7, the electric push rod 7 drives the first fixed bin 14 to move, so that the first fixed bin 14 can be driven to be unfolded and closed, and in a closed state, the electric push rod can be more convenient for workers to carry.
Referring to fig. 1-3, the adjusting component includes a first fixing plate 12 fixedly connected with the inside of a first fixing bin 14, a first motor 11 is fixedly connected with the inside of the first fixing bin 14, an output shaft of the first motor 11 is fixedly connected with a screw rod 13, threads on the outer surface of the screw rod 13 are two sections and turn reversely, a sliding rod 16 is fixedly connected between the left side of the first fixing plate 12 and the left inner wall of the first fixing bin 14, and the outer side of the screw rod 13 is in threaded connection with two sliding blocks 15 which are in sliding connection with the outer side of the sliding rod 16.
It should be noted that, by setting the adjusting component, the distance between the two saw blades 18 can be adjusted under the action of the first motor 11 and the screw 13, so that the usage rate of the trimming device is greatly increased.
Specifically, by starting the first motor 11, the first motor 11 drives the screw rod 13 to rotate, and the screw rod 13 drives the two sliding blocks 15 to move under the guide of the sliding rod 16, so that the distance between the trimming components at the bottoms of the two sliding blocks 15 can be adjusted, and the application range of the trimming device is greatly increased.
Referring to fig. 1-2, the trimming assembly comprises a third U-shaped frame 19 fixedly connected with the bottoms of two sliding blocks 15, bolts 20 are slidably connected in the two third U-shaped frames 19, first mounting plates 17 are hinged in the two third U-shaped frames 19, first through holes matched with the bolts 20 in size are formed in the first mounting plates 17, second mounting plates 21 are fixedly connected to one sides of the two first mounting plates 17 opposite to each other, second motors 22 are fixedly connected to the bottoms of the two second mounting plates 21, driving wheels are fixedly connected to output shafts of the two second motors 22, and saw blades 18 are rotatably connected to the outer sides of the driving wheels.
It should be noted that, through setting up bolt 20 for when trimming the subassembly, can fix it, when needs are accomodate in the storage 9, can fold the trimming subassembly through pulling out bolt 20, thereby can significantly reduce when carrying, saw blade 18 and injury other people after contact with other people. Specifically, by starting the two second motors 22, the output shafts of the second motors 22 drive the driving wheels to rotate, the driving wheels drive the outer saw blade 18 to rotate, the two bolts 20 are inserted into the first mounting plate 17, so that the first mounting plate 17 is fixed, and hedges are trimmed by the saw blade 18.
The working principle of the embodiment is as follows:
through starting electric putter 7, drive first fixed bin 14 at electric putter 7 and remove, thereby can drive first fixed bin 14 and expand and close, thereby under closed condition, can carry better convenience staff, rethread starts first motor 11, first motor 11 drives screw rod 13 and rotates, screw rod 13 drives two sliders 15 and moves under the direction of slide bar 16, thereby can adjust the distance between the trimming subassembly of two slider 15 bottoms, thereby greatly increased trimming means's application range, rethread starts two second motors 22, the drive wheel is driven to the drive of second motor 22 output shaft rotates, the drive wheel drives outside saw blade 18 and rotates, through inserting two bolt 20 in first mounting panel 17, thereby fix first mounting panel 17, rethread saw blade 18 prunes the hedgerow, thereby make the hedgerow that prunes more pleasing to the eye.
It is noted that relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Moreover, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising one … …" does not exclude the presence of other like elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. A portable hedge trimming device comprising a storage compartment (9), characterized in that: the inside of the storage bin (9) is movably connected with a connecting frame (10), a first fixed bin (14) is fixedly connected to the side of the connecting frame (10), an adjusting component is arranged in the first fixed bin (14), a contraction mechanism is arranged in the storage bin (9), and a trimming component is arranged at the bottom of the first fixed bin (14);
the shrinkage mechanism includes first fixed block (5) with storage silo (9) back inner wall fixed connection, the top fixedly connected with second U type frame (6) of first fixed block (5), the inside of second U type frame (6) articulates there is electric putter (7), the bottom fixedly connected with second fixed block (8) of first fixed bin (14), the inside of second fixed block (8) articulates with the outside of electric putter (7).
2. A portable hedge trimming device according to claim 1, wherein: the adjusting component comprises a first fixing plate (12) fixedly connected with the inside of a first fixing bin (14), a first motor (11) is fixedly connected to the inside of the first fixing bin (14), a screw rod (13) is fixedly connected to an output shaft of the first motor (11), a sliding rod (16) is fixedly connected between the left side of the first fixing plate (12) and the left side inner wall of the first fixing bin (14), and two sliding blocks (15) are connected with the outer sides of the sliding rods (16) in a threaded mode.
3. A portable hedge trimming device according to claim 1, wherein: the pruning assembly comprises a third U-shaped frame (19) fixedly connected with the bottoms of two sliding blocks (15), a first mounting plate (17) is hinged to the inside of each third U-shaped frame (19), a second mounting plate (21) is fixedly connected to one opposite side of each first mounting plate (17), a second motor (22) is fixedly connected to the bottom of each second mounting plate (21), a driving wheel is fixedly connected to the output shaft of each second motor (22), and a saw blade (18) is rotatably connected to the outer side of each driving wheel.
4. A portable hedge trimming apparatus according to claim 3, wherein: the two inner parts of the third U-shaped frames (19) are both connected with bolts (20) in a sliding mode, and the two inner parts of the first mounting plates (17) are both provided with first through holes matched with the bolts (20) in size.
5. A portable hedge trimming device according to claim 1, wherein: the right side of the storage bin (9) is fixedly connected with a tool bin (3), and the top of the tool bin (3) is fixedly connected with a handle (4).
6. A portable hedge trimming device according to claim 1, wherein: the bottom of the storage bin (9) and the bottom of the tool bin (3) are fixedly connected with four first U-shaped frames (1), and wheels (2) are hinged to the inner parts of the four first U-shaped frames (1).
7. A portable hedge trimming device according to claim 2, wherein: rectangular through holes matched with the width of the first fixed bin (14) are formed in the right side of the storage bin (9), and the threads on the outer surface of the screw rod (13) are two sections and are opposite in direction.
