Abstract

The application belongs to domestic appliance technical field, concretely relates to washing machine includes: the washing machine comprises a shell, a washing drum, a water inlet pipe, a water outlet pipe and a water inlet and outlet dual-purpose pipe; the washing cylinder is rotatably arranged in the shell and comprises a bottom wall and a side wall, a rotating shaft is arranged on the bottom wall in a penetrating manner, and a transverse tube communicated with the washing cylinder is arranged in the rotating shaft; the first end of the water inlet pipe is communicated with the outside of the shell, the second end of the water inlet pipe is communicated with the transverse pipe, and the water inlet valve is arranged on the water inlet pipe; the first end of the drain pipe is communicated with the outside of the shell, the second end of the drain pipe is communicated with the transverse pipe, and the drain pump is arranged on the drain pipe; the water inlet and outlet dual-purpose pipe is arranged in the washing drum, the first end of the water inlet and outlet dual-purpose pipe is communicated with the transverse pipe, the second end of the water inlet and outlet dual-purpose pipe is provided with an opening, and a gap is formed between the second end of the water inlet and outlet dual-purpose pipe and the side wall. The normal drainage of washing machine can be ensured to this application.

Description

Washing machine

Technical Field

The application belongs to the technical field of household appliances, and particularly relates to a washing machine.

Background

The washing machine is a device for washing laundry by converting electric energy into mechanical energy, and provides convenience for people's daily life. The existing washing machine generally comprises an inner cylinder and an outer cylinder, the outer cylinder has the basic function of storing a proper amount of water in water-using procedures such as soaking, washing, rinsing and the like, and the inner cylinder is a container which is in direct contact with clothes and mainly used for finishing the procedures such as washing, rinsing, spin-drying and the like. However, the existing washing machine can remain dirt between the inner cylinder and the outer cylinder after being used for a period of time, and the dirt remained between the inner cylinder and the outer cylinder is not easy to remove; and the existing washing machine only has the inner barrel capable of containing clothes, and has smaller washing capacity.

In order to solve the above problems, there is proposed a washing machine without an outer tub, in which only one tub is provided, a sidewall of the tub is designed to be non-porous, and water and laundry are simultaneously contained in the tub. Because the arrangement mode of the outer cylinder and the inner cylinder is canceled, stains can not exist between the inner cylinder and the outer cylinder; and the washing machine can have a large washing capacity at the same volume.

However, according to the related art, it is difficult to drain water due to the air existing in the drain pipe when the washing machine drains water.

Disclosure of Invention

In order to solve the above-mentioned problems in the related art, that is, in order to solve the problem of difficulty in draining water of the washing machine in the related art, the present application provides a washing machine.

An embodiment of the present application provides a washing machine, including:

a housing;

the washing drum is rotatably arranged in the shell, the washing drum comprises a bottom wall and a side wall, a rotating shaft is arranged on the bottom wall, and a transverse tube communicated with the washing drum is arranged in the rotating shaft;

the first end of the water inlet pipe is communicated with the outside of the shell, the second end of the water inlet pipe is communicated with the transverse pipe, and a water inlet valve is arranged on the water inlet pipe;

the first end of the drain pipe is communicated with the outside of the shell, the second end of the drain pipe is communicated with the transverse pipe, and a drain pump is arranged on the drain pipe;

the washing machine comprises a washing drum, a water inlet and outlet dual-purpose pipe and a water outlet dual-purpose pipe, wherein the water inlet and outlet dual-purpose pipe is arranged in the washing drum, a first end of the water inlet and outlet dual-purpose pipe is communicated with the transverse pipe, an opening is formed at a second end of the water inlet and outlet dual-purpose pipe, and a gap is formed between the second end of the water inlet and outlet dual-purpose pipe and the side wall.

As described above, optionally, the water inlet pipe, the water outlet pipe and the horizontal pipe are connected through a rotary tee, the rotary tee includes a fixed portion and a rotating portion, and the rotating portion is fixedly connected with the rotating shaft; the fixed part is provided with a first interface and a second interface, the first interface is connected with the water inlet pipe, the second interface is connected with the water outlet pipe, the rotating part is provided with a third interface, the third interface is communicated with the first interface and the second interface, and the third interface is connected with the transverse pipe.

As described above, optionally, the drain pipe includes a first drain pipe and a second drain pipe, the drain pump is disposed between the first drain pipe and the second drain pipe, the first drain pipe communicates with the lateral pipe, and the second drain pipe communicates with the outside of the cabinet.

As described above, optionally, the second drain pipe includes a first section, a second section and a third section that are connected to each other, the first section is connected to the drain pump and located in the casing, the second section is an arc section and penetrates through the casing, and the third section is parallel to the first section and located outside the casing, where the height of the first section is greater than the height of the first drain pipe.

As mentioned above, optionally, a plurality of the water inlet and outlet dual-purpose pipes are provided in the washing drum, and the water inlet and outlet dual-purpose pipes are uniformly distributed along the circumference of the bottom wall.

The washing machine as described above, optionally, the washing tub further comprises a tub door disposed opposite the bottom wall, and the tub door is hinged to the washing tub.

In the washing machine as described above, optionally, the cross-sectional area of the washing tub increases gradually from the tub door toward the bottom wall.

The washing machine as described above, optionally, the water inlet valve is a solenoid valve.

The washing machine as described above, optionally, further comprises a bracket, a damping device is arranged between the bracket and the casing, and the washing drum is rotatably arranged in the bracket.

In the washing machine as described above, optionally, a door corresponding to the drum door is provided on the cabinet, and the door may be opened or closed with respect to the cabinet.

As can be appreciated by those skilled in the art, embodiments of the present application provide a washing machine including: the washing machine comprises a shell, a washing drum, a water inlet pipe, a water outlet pipe and a water inlet and outlet dual-purpose pipe; the washing drum is rotatably arranged in the shell, the washing drum comprises a bottom wall and a side wall, a rotating shaft is arranged on the bottom wall, and a transverse tube communicated with the washing drum is arranged in the rotating shaft; the first end of the water inlet pipe is communicated with the outside of the shell, the second end of the water inlet pipe is communicated with the transverse pipe, and the water inlet valve is arranged on the water inlet pipe; the first end of the drain pipe is communicated with the outside of the shell, the second end of the drain pipe is communicated with the transverse pipe, and the drain pump is arranged on the drain pipe; the water inlet and outlet dual-purpose pipe is arranged in the washing drum, the first end of the water inlet and outlet dual-purpose pipe is communicated with the transverse pipe, the second end of the water inlet and outlet dual-purpose pipe is provided with an opening, and a gap is formed between the second end of the water inlet and outlet dual-purpose pipe and the side wall. Through the arrangement, when the washing machine needs to drain, the washing cylinder can be rotated firstly, and then the water inlet valve is opened, so that tap water enters the washing cylinder through the water inlet pipe, the transverse pipe and the water inlet and drainage dual-purpose pipe, and the air in the transverse pipe and the water inlet and drainage dual-purpose pipe is discharged by using the tap water; then, the washing drum is kept to rotate continuously, and the draining pump is opened to drain water.

Drawings

In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, a brief description will be given below of the drawings that are needed in the embodiments or the prior art descriptions, and it is obvious that the drawings in the following description are some embodiments of the present application, and that other drawings can be obtained according to these drawings without inventive effort to a person skilled in the art.

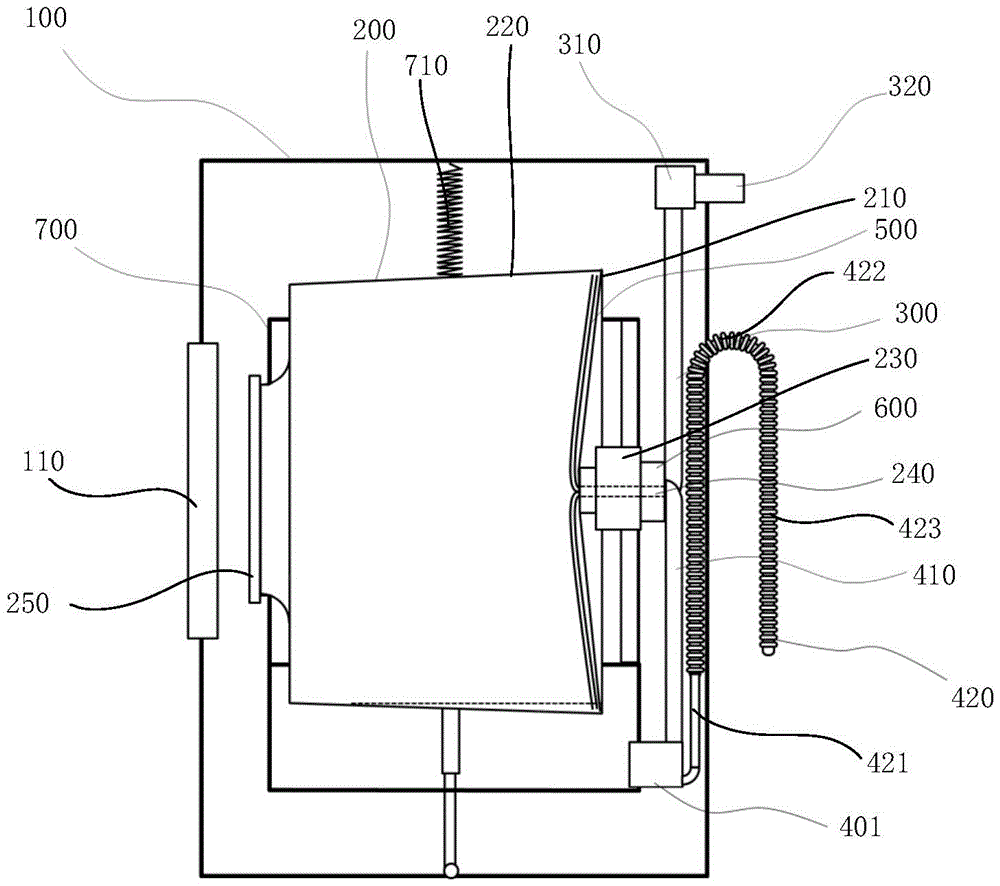

Fig. 1 is a schematic view of a washing machine according to an embodiment of the present application.

Reference numerals:

100-a shell; 110-machine door;

200-washing drum; 210-a bottom wall; 220-sidewalls; 230-rotating shaft; 240-transverse tube; 250-barrel door;

300-water inlet pipe; 310-a water inlet valve; 320-tap water interface;

401-a drainage pump; 410-a first drain pipe; 420-a second drain pipe; 421-first stage; 422-second section; 423-third section;

500-a water inlet and drainage dual-purpose pipe;

600-rotating the tee;

700-bracket; 710-shock absorbing means.

Detailed Description

In the related art, there is proposed a washing machine without an outer tub, in which only one tub is provided, a sidewall of the tub is designed to be non-porous, and water and laundry are simultaneously contained in the tub. Because the arrangement mode of the outer cylinder and the inner cylinder is canceled, stains can not exist between the inner cylinder and the outer cylinder; and the washing machine can have a large washing capacity at the same volume. However, with the above-mentioned related art, when the washing machine is draining, the draining pump cannot pump the water in the washing tub due to the air in the draining pipe, so that it is difficult to drain.

In view of the above, an embodiment of the present application is directed to a washing machine, in which a rotary shaft is provided on a bottom wall of a washing tub, and a horizontal tube communicating with the washing tub is provided in the rotary shaft; the first end of the water inlet pipe is communicated with the outside of the shell, the second end of the water inlet pipe is communicated with the transverse pipe, and the water inlet valve is arranged on the water inlet pipe; the first end of the drain pipe is communicated with the outside of the shell, the second end of the drain pipe is communicated with the transverse pipe, and the drain pump is arranged on the drain pipe; the water inlet and outlet dual-purpose pipe is arranged in the washing drum, the first end of the water inlet and outlet dual-purpose pipe is communicated with the transverse pipe, the second end of the water inlet and outlet dual-purpose pipe is provided with an opening, and a gap is formed between the second end of the water inlet and outlet dual-purpose pipe and the side wall. When the washing machine needs to drain, the washing drum can be rotated firstly, and then the water inlet valve is opened, so that tap water enters the washing drum through the water inlet pipe, the transverse pipe and the water inlet and drainage dual-purpose pipe, and the air in the transverse pipe and the water inlet and drainage dual-purpose pipe is discharged by using the tap water; then, the washing drum is kept to rotate continuously, and the draining pump is opened to drain water.

For the purposes of making the objects, technical solutions and advantages of the embodiments of the present application more clear, the technical solutions of the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is apparent that the described embodiments are some embodiments of the present application, but not all embodiments. All other embodiments, which can be made by one of ordinary skill in the art based on the embodiments herein without making any inventive effort, are intended to be within the scope of the present application.

Fig. 1 is a schematic view of a washing machine according to an embodiment of the present application.

Referring to fig. 1, the present embodiment provides a washing machine, comprising:

the casing 100, the casing 100 may be prismatic or cylindrical, and the specific shape may be set as required. The casing 100 may be made of metal, for example, stainless steel, so as to improve the strength of the whole machine. A cavity is formed in the cabinet 100 to facilitate the installation of other components. The surface of the cabinet 100 is provided with a door 110 communicating with the cavity, the door 110 can be opened or closed with respect to the cabinet 100, and the door 110 can be mounted on the cabinet 100 in a hinge connection manner, thereby facilitating the user to put in or take out laundry.

The washing drum 200, the washing drum 200 is rotatably arranged in the casing 100, the washing drum 200 comprises a bottom wall 210 and a side wall 220, a rotating shaft 230 is arranged on the bottom wall 210, and a transverse tube 240 communicated with the washing drum 200 is arranged in the rotating shaft 230. In this embodiment, the tub 200 may have a substantially circular truncated cone shape, and a washing space is formed inside the tub 200. The sidewall 220 of the tub 200 is designed to have no holes, and wash water and laundry to be washed can be simultaneously placed in the tub 200; that is, the washing tub 200 in the present embodiment can simultaneously function as the inner tub and the outer tub in the related art, so that there is no stain between the inner tub and the outer tub of the conventional washing machine; and the washing machine of the present embodiment can have a large washing capacity under the same volume of the cabinet 100.

The rotating shaft 230 is disposed at the outer side of the washing tub 200 and is fixedly connected with the bottom wall 210 of the washing tub 200, and a driving device may be further disposed in the casing 100, where the driving device may include, for example, a driving motor, a belt transmission member, and a belt pulley, and two ends of the belt transmission member are respectively connected with an output shaft of the driving motor and the belt pulley, and the rotating shaft 230 is fixedly connected with the belt pulley, so that the rotating shaft 230 can rotate together when the belt pulley rotates, and further the washing tub 200 fixedly connected with the rotating shaft 230 is driven to rotate. The rotation shaft 230 is internally penetrated with a transverse pipe 240, and the transverse pipe 240 is communicated with the inside of the washing tub 200, thereby facilitating the running water to enter the washing tub 200 or facilitating the discharge of the washing water in the washing tub 200.

The drum 200 is further provided with a drum door 250 corresponding to the machine door 110, the drum door 250 is communicated with the inside of the drum 200, the drum door 250 may be mounted on the drum 200 in a hinged connection manner, and the drum door 250 is sealed with the drum 200 during washing, thereby preventing wash water from being sprayed.

Alternatively, the cross-sectional area of the drum 200 of the present embodiment gradually increases from the drum door 250 toward the bottom wall 210. That is, the diameter of the washing tub 200 of the present embodiment is larger at the side near the bottom wall 210 than at the side near the tub door 250; the side wall 220 may also be provided with a plurality of water guide grooves so as to guide the washing water to one side of the bottom wall 210 when the tub 200 rotates.

The water inlet pipe 300, the first end of the water inlet pipe 300 is communicated with the outside of the shell 100, the second end of the water inlet pipe 300 is communicated with the horizontal pipe 240, and the water inlet valve 310 is arranged on the water inlet pipe 300; alternatively, the water inlet valve 310 may be a solenoid valve so as to facilitate the control of the opening and closing thereof. The water inlet pipe 300 forms a tap water interface 320 at one end of the outside of the cabinet 100, and can communicate with external tap water to introduce tap water into the washing tub 200.

The first end of the drain pipe is communicated with the outside of the casing 100, the second end of the drain pipe is communicated with the transverse pipe 240, the drain pipe is provided with a drain pump 401, and the drain pump 401 can be used for pumping out water in the washing drum 200 in an accelerating way when working.

The water inlet and outlet dual-purpose pipe 500, the water inlet and outlet dual-purpose pipe 500 is arranged in the washing drum 200, the first end of the water inlet and outlet dual-purpose pipe 500 is communicated with the transverse pipe 240, the second end of the water inlet and outlet dual-purpose pipe 500 is provided with an opening, and a gap is formed between the second end of the water inlet and outlet dual-purpose pipe 500 and the side wall 220.

In this embodiment, when water is fed, tap water sequentially passes through the water inlet pipe 300, the transverse pipe 240 and the water inlet and outlet dual-purpose pipe 500 to enter the inside of the washing drum 200, thereby realizing water feeding of the washing machine.

In the washing machine, since the water stored in the water inlet and outlet dual-purpose pipe 500 and the horizontal pipe 240 gradually leaks into the washing tub 200 due to the vibration thereof during the washing process, if the water is directly discharged, the water discharge pump 401 cannot discharge the washing water because much air exists in the water inlet and outlet dual-purpose pipe 500 and the horizontal pipe 240.

In this embodiment, when draining, the washing tub 200 may be rotated first, so that the washing tub 200 reaches a certain rotation speed (for example, 60 rpm or more), so that the washing water is gradually accumulated on the surface of the side wall 220 near the bottom wall 210, and then the water inlet valve 310 is opened, so that the tap water enters the washing tub through the water inlet pipe 300, the horizontal pipe 240 and the water inlet and drain dual-purpose pipe 500, so that the air in the horizontal pipe 240 and the water inlet and drain dual-purpose pipe 500 is drained by the tap water, so that the washing water in the washing tub 200 applies a pressure to the opening of the water inlet and drain dual-purpose pipe 500; then, the rotation of the washing tub is continuously maintained, the water inlet valve 310 is closed to stop water inlet, and the water discharge pump 401 is opened to discharge water.

In one possible embodiment, the water inlet pipe 300, the water outlet pipe and the cross pipe 240 of the present embodiment are connected through a rotary tee 600, and the rotary tee 600 includes a fixed portion and a rotating portion, and the rotating portion is fixedly connected to the rotating shaft 230 and can rotate together with the rotating shaft 230. The fixed part is provided with a first interface and a second interface, the first interface is connected with the water inlet pipe 300, the second interface is connected with the water outlet pipe, the rotating part is provided with a third interface, the third interface is communicated with the first interface and the second interface, and the third interface is connected with the transverse pipe 240. With the above arrangement, when the washing machine is in water, tap water can flow into the first port through the water inlet pipe 300, then flow into the third port and then into the horizontal pipe 240, and finally flow into the washing tub 200 through the water inlet and outlet dual-purpose pipe 500 connected with the horizontal pipe 240. When the washing machine is drained, the washing water can flow into the transverse pipe 240 through the water inlet and outlet dual-purpose pipe 500, then enter the second port through the third port, and finally be discharged out of the washing machine through the drain pipe connected with the second port.

In one possible implementation, the drain pipes of the present embodiment include a first drain pipe 410 and a second drain pipe 420, the drain pump 401 is disposed between the first drain pipe 410 and the second drain pipe 420, the first drain pipe 410 communicates with the cross pipe 240, and the second drain pipe 420 communicates with the outside of the cabinet 100.

Further, the second drain pipe 420 includes a first section 421, a second section 422 and a third section 423 connected to each other, the first section 421 is connected to the drain pump 401 and located in the casing 100, the second section 422 is an arc section and penetrates through the casing 100, the third section 423 is parallel to the first section 421 and located outside the casing 100, and in combination with the drawings, the first section 421, the second section 422 and the third section 423 together form a substantially U-shaped structure. Wherein, the height of the first section 421 is greater than that of the first drain pipe 410, so that the washing machine can be effectively prevented from leaking water.

In one possible embodiment, the washing tub 200 of this embodiment is provided therein with a plurality of water inlet and outlet dual-purpose pipes 500, and the plurality of water inlet and outlet dual-purpose pipes 500 are uniformly distributed along the circumference of the bottom wall 210. For example, three water inlet and outlet dual-purpose pipes 500 may be provided in the tub 200, and the three water inlet and outlet dual-purpose pipes 500 are disposed at intervals of 120 ° to correspond to a tripod outside the tub 200. Of course, it is apparent to those skilled in the art that four, five or six water inlet and outlet dual-purpose pipes 500 may be provided in the washing tub 200, and may be specifically determined according to actual needs. The present embodiment can effectively increase the drainage speed of the washing machine by providing a plurality of water inlet and drainage dual-purpose pipes 500.

In one possible implementation, the present embodiment further includes a bracket 700, and the tub 200 is rotatably disposed within the bracket 700. A shock absorbing device 710 is provided between the bracket 700 and the cabinet 100, and the tub 200 is rotatably provided in the bracket 700. Since the design without the outer cylinder is adopted, the shock absorbing device 710 is installed between the bracket 700 and the cabinet 100, so that the shock generated during the rotation of the washing tub 200 can be buffered, the collision between the washing tub 200 and the cabinet 100 during the dehydration can be prevented, and the smooth progress of the dehydration process can be ensured.

In the description of the embodiments of the present application, the terms "first," "second," and the like are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defining "a first" or "a second" may explicitly or implicitly include at least one such feature. In the description of the present application, the meaning of "plurality" is at least two, such as two, three, etc., unless explicitly defined otherwise.

In the embodiments of the present application, unless explicitly specified and limited otherwise, the terms "mounted," "connected," "secured," and the like are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally formed; either directly or indirectly, through intermediaries, or both, may be in communication with each other or in interaction with each other, unless expressly defined otherwise. The specific meaning of the terms in this application will be understood by those of ordinary skill in the art as the case may be.

In the description of the embodiments of the present application, it should be understood that the terms "inner," "outer," "upper," "bottom," "front," "rear," and the like indicate orientations or positional relationships, if any, based on those shown in the drawings, merely to facilitate description of the present application and simplify the description, and do not indicate or imply that the devices or elements referred to must have a specific orientation, be configured and operated in a specific orientation, and therefore should not be construed as limiting the present application.

Finally, it should be noted that: the above embodiments are only for illustrating the technical solution of the present application, and not for limiting the same; although the present application has been described in detail with reference to the foregoing embodiments, it should be understood by those of ordinary skill in the art that: the technical scheme described in the foregoing embodiments can be modified or some or all of the technical features thereof can be replaced by equivalents; such modifications and substitutions do not depart from the spirit of the corresponding technical solutions from the scope of the technical solutions of the embodiments of the present application.

Claims (10)

1. A washing machine, comprising:

a housing;

the washing drum is rotatably arranged in the shell, the washing drum comprises a bottom wall and a side wall, a rotating shaft is arranged on the bottom wall, and a transverse tube communicated with the washing drum is arranged in the rotating shaft;

the first end of the water inlet pipe is communicated with the outside of the shell, the second end of the water inlet pipe is communicated with the transverse pipe, and a water inlet valve is arranged on the water inlet pipe;

the first end of the drain pipe is communicated with the outside of the shell, the second end of the drain pipe is communicated with the transverse pipe, and a drain pump is arranged on the drain pipe;

the washing machine comprises a washing drum, a water inlet and outlet dual-purpose pipe and a water outlet dual-purpose pipe, wherein the water inlet and outlet dual-purpose pipe is arranged in the washing drum, a first end of the water inlet and outlet dual-purpose pipe is communicated with the transverse pipe, an opening is formed at a second end of the water inlet and outlet dual-purpose pipe, and a gap is formed between the second end of the water inlet and outlet dual-purpose pipe and the side wall.

2. The washing machine as claimed in claim 1, wherein the water inlet pipe, the water outlet pipe and the horizontal pipe are connected through a rotary tee, the rotary tee comprises a fixed part and a rotating part, and the rotating part is fixedly connected with the rotating shaft; the fixed part is provided with a first interface and a second interface, the first interface is connected with the water inlet pipe, the second interface is connected with the water outlet pipe, the rotating part is provided with a third interface, the third interface is communicated with the first interface and the second interface, and the third interface is connected with the transverse pipe.

3. The washing machine as claimed in claim 2, wherein the drain pipe includes a first drain pipe and a second drain pipe, the drain pump is disposed between the first drain pipe and the second drain pipe, the first drain pipe communicates with the lateral pipe, and the second drain pipe communicates with the outside of the cabinet.

4. The washing machine as claimed in claim 3, wherein the second drain pipe includes a first section, a second section and a third section connected to each other, the first section being connected to the drain pump and located in the cabinet, the second section being a circular arc section and penetrating the cabinet, the third section being parallel to the first section and located outside the cabinet, wherein a height of the first section is greater than a height of the first drain pipe.

5. The washing machine as claimed in claim 1, wherein a plurality of the water inlet and outlet dual-purpose pipes are provided in the washing tub, and the water inlet and outlet dual-purpose pipes are uniformly distributed along the circumference of the bottom wall.

6. The washing machine as claimed in claim 1, wherein the tub further comprises a tub door disposed opposite the bottom wall, the tub door being hingedly connected to the tub.

7. The washing machine as claimed in claim 6, wherein the cross-sectional area of the tub increases gradually from the tub door toward the bottom wall.

8. The washing machine as claimed in claim 1, wherein the water inlet valve is a solenoid valve.

9. The washing machine as claimed in claim 6, further comprising a bracket, wherein a damping device is provided between the bracket and the cabinet, and the washing tub is rotatably provided in the bracket.

10. The washing machine as claimed in claim 9, wherein a door corresponding to the drum door is provided on the cabinet, the door being openable or closable with respect to the cabinet.
