Abstract
The cupping jar treatment vehicle comprises a frame chassis, wherein a supporting rib plate is fixedly connected to the upper portion of the rear side of the frame chassis, a transmission shaft is rotatably connected to the upper side of the supporting rib plate, a turntable is fixedly connected to the rear side of the transmission shaft, a lifting mechanism is arranged on the front side of the transmission shaft, and a hollow supporting frame is arranged on the upper side of the lifting mechanism. The utility model effectively solves the problems that when cupping treatment is carried out, medical staff can prepare objects by using a common medical vehicle, and the existing medical vehicle does not have a place for specially placing the cupping and related medical supplies, so that the cupping and the medical supplies are placed in disorder during operation, and an operator can not conveniently take the cupping and the medical supplies in the operation process, thereby being unfavorable for operation and influencing the working efficiency.
Description
Technical Field
The utility model relates to the field of medical appliances, in particular to a cupping jar therapeutic vehicle.
Background
Cupping glass is one of the traditional Chinese medicine characteristic therapies, a plurality of cupping glass is needed for each treatment of patients in cupping glass treatment every day, each person, and especially in departments of traditional Chinese medicine characteristics, when the number of patients is more, the cupping glass is often insufficient, and the cupping glass is not disinfected and is used repeatedly, so that internal cross infection is easily caused; when cupping treatment is carried out, medical staff can prepare objects by using a common medical vehicle, and the existing medical vehicle is not provided with a place for specially placing the cupping and related medical supplies, so that the cupping and the medical supplies are placed in disorder during operation, and an operator can not conveniently take the cupping and the medical supplies in the operation process, thereby being not beneficial to operation and influencing the working efficiency; so a fire pot treatment vehicle is urgently needed.
Disclosure of Invention
Aiming at the defects of the prior art, the utility model provides the cupping jar treatment vehicle, which effectively solves the problems that when cupping jar treatment is carried out, medical staff can prepare objects by using a common medical vehicle, the conventional medical vehicle does not have a place for specially placing the cupping jar and related medical supplies, so that the cupping jar and the medical supplies are placed in disorder during operation, the operator takes the cupping jar and the medical supplies inconvenient during operation, the operation is not facilitated, and the working efficiency is affected.
The technical scheme adopted by the utility model for solving the problems is as follows:
the utility model provides a cupping jar treatment car, includes the frame chassis, frame chassis rear side upper portion fixedly connected with supports the floor, it rotates to be connected with the transmission shaft to support the floor upside, transmission shaft rear side fixedly connected with carousel, the transmission shaft front side is provided with elevating system, the elevating system upside is provided with hollow support frame, support frame bottom upside fixedly connected with hollow first box of placing, the first box outside of placing is provided with expansion mechanism, expansion mechanism upside is provided with the second and places the box, the second is placed box upside left part and is articulated to have the apron, apron upside fixedly connected with handle, apron right side fixedly connected with push rod.
Preferably, the unfolding mechanism comprises a first connecting rod hinged to the front and rear parts of the left part of the first placing box, the upper side of the first connecting rod is hinged to the second placing box, the right side of the first connecting rod is provided with a second connecting rod, the lower side of the second connecting rod is hinged to the first placing box, the upper side of the second connecting rod is hinged to the second placing box, and a limiting block is fixedly connected to the left side of the front side of the first placing box.
Preferably, the lifting mechanism comprises a short rod connected with the front side of the transmission shaft through a bevel gear set, a screw is connected with the lower side of the short rod through the bevel gear set, the screw is rotationally connected with the chassis of the vehicle frame, a sliding block is connected with the middle side of the screw in a threaded manner, a sliding plate is fixedly connected with the middle part of the lower side of the chassis of the vehicle frame, the sliding block is slidably connected with the sliding plate, a third connecting rod is hinged to the left and right parts of the front side of the chassis of the vehicle frame, a fourth connecting rod is hinged to the middle side of the third connecting rod, the lower side of the fourth connecting rod is slidably connected with the chassis of the vehicle frame, a long plate with a long groove is fixedly connected with the left and right parts of the rear side of the supporting frame, the third connecting rod is slidably connected with the long plate, and a fixing block is hinged to the upper side of the fourth connecting rod.
Preferably, a push-pull rod is fixedly connected to the upper part of the rear side of the chassis of the vehicle frame.
Preferably, the middle side of the first placement box is fixedly connected with a partition plate.
The utility model has novel structure, ingenious conception and simple and convenient operation, and has the following advantages compared with the prior art:
1. the rotation of transmission shaft passes through elevating system's transmission, will the support frame is adjusted to the position of suitable height, and medical staff moves the push rod through the side of moving to the left, and the removal of push rod is through the transmission of expansion mechanism, and the box is placed to the second and is moved suitable position, and medical staff of being convenient for takes first place the box and the second place the article in the box.
2. According to the needs of medical staff, rotate the carousel, the carousel drives the transmission shaft and rotates, and the rotation of transmission shaft passes through elevating system's transmission, will the support frame is adjusted to the position of suitable height.
3. The limiting block is used for moving the second placement box to a proper position.
Drawings

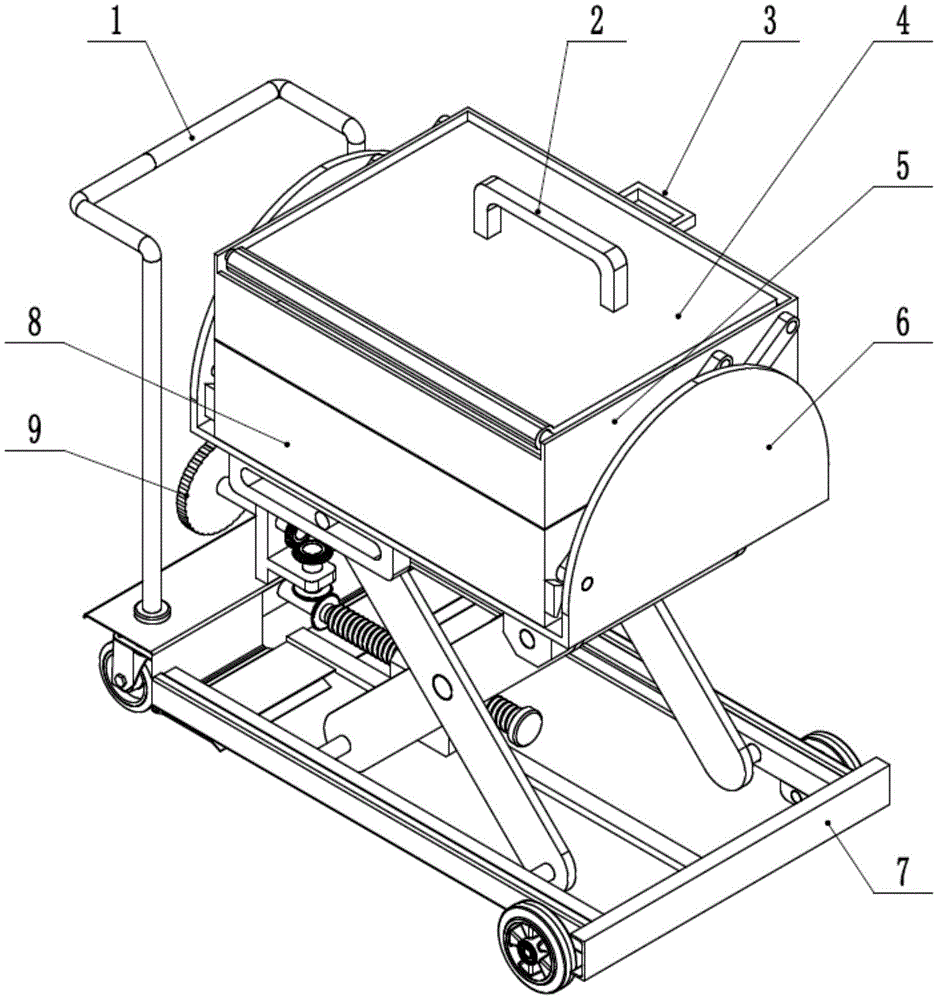

Fig. 1 is a schematic diagram of an axial structure of a cupping jar therapeutic vehicle of the present utility model.
Fig. 2 is a left side view of the cupping jar therapeutic vehicle of the present utility model.
Fig. 3 is a schematic view of a second placement box of the cupping jar therapeutic vehicle of the present utility model.
Fig. 4 is a schematic view of a first placement box of the cupping jar therapeutic vehicle of the present utility model.
Fig. 5 is a schematic diagram of a push-pull rod structure of the cupping jar therapeutic vehicle of the present utility model.
Detailed Description
The following are specific embodiments of the present utility model, and the technical solutions of the present utility model are further described with reference to the accompanying drawings, but the present utility model is not limited to these embodiments.
As shown in fig. 1-5, the utility model provides a cupping jar treatment vehicle, which comprises a frame chassis 7, wherein a supporting rib plate 17 is fixedly connected to the upper part of the rear side of the frame chassis 7, a transmission shaft 18 is rotatably connected to the upper side of the supporting rib plate 17, a turntable 9 is fixedly connected to the rear side of the transmission shaft 18, a lifting mechanism is arranged on the front side of the transmission shaft 18, a hollow support frame 6 is arranged on the upper side of the lifting mechanism, a hollow first placement box 8 is fixedly connected to the upper side of the bottom of the support frame 6, an unfolding mechanism is arranged on the outer side of the first placement box 8, a second placement box 5 is arranged on the upper side of the unfolding mechanism, a cover plate 4 is hinged to the left part of the upper side of the second placement box 5, a handle 2 is fixedly connected to the upper side of the cover plate 4, and a push rod 3 is fixedly connected to the right side of the cover plate 4.
According to medical staff's needs, rotate carousel 9, carousel 9 drive transmission shaft 18 and rotate, the rotation of transmission shaft 18 passes through elevating system's transmission, will support frame 6 adjusts to the position of suitable height, medical staff is through the removal push rod 3 to the left, and the removal of push rod 3 is through the transmission of expansion mechanism, places box 5 with the second and removes suitable position, and medical staff is convenient for take first place box 8 and the second and place the article in the box 5.
The unfolding mechanism comprises a first connecting rod 21 hinged to the front and rear parts of the left part of the first placing box 8, the upper side of the first connecting rod 21 is hinged to the second placing box 5, the right side of the first connecting rod 21 is provided with a second connecting rod 20, the lower side of the second connecting rod 20 is hinged to the first placing box 8, the upper side of the second connecting rod 20 is hinged to the second placing box 5, and the left side of the front side part of the first placing box 8 is fixedly connected with a limiting block 22.
The second placement box 5 is moved to the left side through the push rod 3, and the second placement box 5 is moved to a proper position by the action of the first connecting rod 21 and the second connecting rod 20, so that medical staff can conveniently take the articles in the first placement box 8 and the second placement box 5; the function of the stopper 22 is to move the second placement box 5 to a proper position.
The lifting mechanism comprises a short rod connected with the front side of a transmission shaft 18 through a bevel gear set, the lower side of the short rod is connected with a screw rod 16 through the bevel gear set, the screw rod 16 is rotationally connected with a frame chassis 7, a sliding block 15 is connected with the middle side of the screw rod 16 in a threaded mode, a sliding plate 14 is fixedly connected with the middle part of the lower side of the frame chassis 7, the sliding block 15 is in sliding connection with the sliding plate 14, a third connecting rod 11 is hinged to the left side and the right side of the front side of the frame chassis 7, a fourth connecting rod 12 is hinged to the middle side of the third connecting rod 11, the lower side of the fourth connecting rod 12 is in sliding connection with the frame chassis 7, the left side and the right side of the sliding block 15 are fixedly connected with a long plate 10 with a long groove 19 through a short shaft, the third connecting rod 11 is in sliding connection with the long plate 10, a fixing block 13 is hinged to the upper side of the fourth connecting rod 12, and the fixing block 13 is fixedly connected with the frame chassis 6.
Through rotating carousel 9, carousel 9 drives transmission shaft 18 and rotates, and transmission shaft 18 passes through bevel gear group and drives the quarter butt and rotate, and the quarter butt passes through bevel gear group and drives screw rod 16 and rotate, and screw rod 16 drives slider 15 along slide 14 carries out the free removal of front and back side to drive fourth connecting rod 12 and remove, because the articulated of fourth connecting rod 12 and third connecting rod 11, thereby will support frame 6 removes the position of suitable height.
The upper part of the rear side of the frame chassis 7 is fixedly connected with a push-pull rod 1.
The push-pull handle 1 moves the device into position.
A partition plate 23 is fixedly connected to the middle side of the first placement box 8.
The partition 23 divides the first placing box 8 into two separate units.
When the utility model is used, firstly, the turntable 9 is rotated according to the needs of medical staff, the turntable 9 drives the transmission shaft 18 to rotate, the rotation of the transmission shaft 18 adjusts the support frame 6 to a proper height position through the transmission of the lifting mechanism, the medical staff moves the push rod 3 to the left side, and the movement of the push rod 3 moves the second placement box 5 to a proper position through the transmission of the unfolding mechanism, so that the medical staff can conveniently take the articles in the first placement box 8 and the second placement box 5.
The specific embodiments described herein are offered by way of example only to illustrate the spirit of the utility model. Those skilled in the art may make various modifications or additions to the described embodiments or substitutions, without departing from the spirit of the utility model or exceeding the scope of the utility model as defined in the accompanying claims.
Although the terms push-pull rod 1, handle 2, push rod 3, cover plate 4, second placement box 5, support frame 6, frame chassis 7, first placement box 8, turntable 9, long plate 10, third link 11, fourth link 12, fixed block 13, slide plate 14, slide block 15, screw 16, support rib 17, transmission shaft 18, long groove 19, second link 20, first link 21, stopper 22, partition 23 are more used herein, the possibility of using other terms is not excluded. These terms are used merely for convenience in describing and explaining the nature of the utility model; they are to be interpreted as any additional limitations that are within the spirit of the present utility model.
Claims (5)
1. Cupping jar treatment car, its characterized in that: including frame chassis (7), frame chassis (7) rear side upper portion fixedly connected with supports rib plate (17), support rib plate (17) upside rotation is connected with transmission shaft (18), transmission shaft (18) rear side fixedly connected with carousel (9), transmission shaft (18) front side is provided with elevating system, the elevating system upside is provided with hollow support frame (6), support frame (6) bottom upside fixedly connected with hollow first box (8) of placing, the first box (8) outside of placing is provided with expansion mechanism, expansion mechanism upside is provided with the second and places box (5), the second is placed box (5) upside left part and is articulated to have apron (4), apron (4) upside fixedly connected with handle (2), apron (4) right side fixedly connected with push rod (3).
2. The cupping jar therapy cart of claim 1, wherein: the unfolding mechanism comprises a first connecting rod (21) hinged to the front and rear parts of the left part of the first placing box (8), the upper side of the first connecting rod (21) is hinged to the second placing box (5), the right side of the first connecting rod (21) is provided with a second connecting rod (20), the lower side of the second connecting rod (20) is hinged to the first placing box (8), the upper side of the second connecting rod (20) is hinged to the second placing box (5), and a limiting block (22) is fixedly connected to the left side of the front side of the first placing box (8).
3. The cupping jar therapy cart of claim 1, wherein: the lifting mechanism comprises a short rod connected with the front side of a transmission shaft (18) through a bevel gear set, a screw rod (16) is connected with the lower side of the short rod through the bevel gear set, the screw rod (16) is rotationally connected with a frame chassis (7), a sliding block (15) is connected with the middle side of the screw rod (16) in a threaded manner, a sliding plate (14) is fixedly connected with the middle part of the lower side of the frame chassis (7), the sliding block (15) is in sliding connection with the sliding plate (14), a third connecting rod (11) is hinged to the left and right parts of the front side of the frame chassis (7), a fourth connecting rod (12) is hinged to the middle side of the third connecting rod (11), the lower side of the fourth connecting rod (12) is in sliding connection with the frame chassis (7), long plates (10) with long grooves (19) are fixedly connected with the left and right sides of the rear side of the supporting frame (6), and the short shafts (13) are fixedly connected with the supporting frame (6).
4. The cupping jar therapy cart of claim 1, wherein: the upper part of the rear side of the frame chassis (7) is fixedly connected with a push-pull rod (1).
5. The cupping jar therapy cart of claim 1, wherein: the middle side of the first placing box (8) is fixedly connected with a partition plate (23).
