CN219164652U - Electronic camera systems and electronic cameras - Google Patents

Abstract

The utility model belongs to the technical field of cameras, specifically an electronic camera system and an electronic camera, including an electronic camera body; The electric push rod connected to the base, the outer surface of the output end of the electric push rod is connected with a nut, the lower surface of the nut is fixedly connected with a pressing rod, and the pressing rod is provided with a Press the base so that the lower surface of the base is in contact with the connection surface smoothly, then start the controller to drive the electric push rod, and then make the output end of the electric push rod drive the nut, the pressing rod and the suction cup to move away from the electronic camera The body moves linearly until the suction cup is firmly connected to the connection surface to complete the stable installation. The above installation method does not need to use bolts or screws, which is convenient to effectively ensure the integrity of the connection surface and avoid damage to it.

Description

Electronic camera systems and electronic cameras

technical field

The utility model belongs to the technical field of cameras, in particular to an electronic camera system and an electronic camera.

Background technique

Cameras, waterproof digital cameras, and there are many types of cameras. At present, cameras are more and more widely used in people's daily life, almost all over the city. The basic principle of their work is the same: convert optical image signals into electrical signals, for storage or transmission.

A Chinese patent of Chinese patent application CN203788360U discloses an electronic focusing camera. The main points of its technical solution are: by adding gears to the original mechanical focusing knob and passing through a synchronous motor, the angle required for electronically controlling the rotation of the focusing knob can be realized. Further, the purpose of focusing is achieved; and through the remote communication module, the purpose of remote focusing can be realized, which greatly improves the maintenance efficiency of camera focusing and reduces maintenance costs.

In view of the above and existing related technologies, the inventor believes that there are often the following defects: in the process of firmly installing the electronic camera and the mounting surface, it is generally necessary to use bolts or screws to penetrate into the interior of the connecting surface, which can easily damage the integrity of the connecting surface Make it break; Therefore, an electronic camera system and an electronic camera are proposed to address the above problems.

Utility model content

In order to make up for the deficiencies of the prior art, at least one technical problem raised in the background art is solved.

The technical scheme adopted by the utility model to solve its technical problems is: the electronic camera described in the utility model includes the electronic camera body; the bottom of the electronic camera body is connected with a base, and the base is provided with a storage cavity, and the storage cavity An electric push rod connected to the base is arranged inside, a nut is connected to the outer surface of the output end of the electric push rod, and a pressing rod is fixedly connected to the lower surface of the nut. Rods are fitted with an avoidance groove, the bottom of the pressing rod is threadedly connected to a suction cup, and the electronic camera body is connected to a controller; the suction cup is tightly connected to the connecting surface to complete a stable installation, and the above installation method does not need to use bolts or Screws are convenient for effectively ensuring the integrity of the connection surface to avoid damage.

Preferably, the pressing rod is T-shaped, and the base is provided with communication grooves that are arranged symmetrically and communicate with the storage cavity. Each communication groove is provided with a communication rod inside, and the two communication grooves The connecting rods are respectively connected with both ends of the pressing rod, and each connecting rod is respectively connected with a spring, and each of the springs is in contact with the top of the connecting groove, and each of the connecting rods is far away from the One end of the pressing rod is respectively fixedly connected with a handle; it is convenient to separate the suction cup from the connecting surface when the electric push rod cannot be started due to power failure.

Preferably, one end of each communication rod close to the pressing rod is fixedly connected with a rectangular limiting block, and the pressing rod is provided with a limiting slot matching the two limiting blocks ; Respectively engage the two limit blocks with the corresponding limit slots, each of the communication rods can be connected with the pressing rod, which is convenient for assembly and use.

Preferably, each of the springs is respectively provided with a sleeve that interferes with the base, and each of the sleeves is respectively provided with a sleeve hole, and each of the sleeve holes is respectively clamped with a sleeve rod , the two sleeve rods are respectively fastened and connected with the two communication rods; it is convenient to play a guiding role and avoid torsional deflection of the spring.

Preferably, each of the communicating grooves is provided with an elastic ball which is hollow inside, and each of the elastic balls is fixedly connected to a side surface away from the pressing rod with a trachea penetrating and communicating with the inside thereof, and each The air pipes are respectively connected with a blocking assembly; it is convenient for hygienic maintenance and management. During the process of the elastic ball being gradually squeezed, the gas inside the elastic ball is discharged through the air pipe, which is convenient for blowing out the dust inside the communication tank.

Preferably, each blocking component includes a limiting column tightly connected to one of the trachea, an outer ring sleeved outside the limiting column, and an elastic rope connected to the outer ring, And the baffle connected to the end of the elastic rope away from the outer ring, the baffle is sealed and clamped with the trachea; in the static state, the baffle blocks and seals the trachea, and the elastic ball is gradually squeezed , the gas inside the elastic ball is discharged through the air pipe, and the dust inside the Unicom tank is blown out. During the gas discharge process, the baffle is blown to gradually separate it from the air pipe, and the separated baffle is limited by the stretched elastic rope. placed to avoid loss of the baffle after separation.

Preferably, each of the limiting posts and each of the baffles is T-shaped, and the outer diameter of the upper surface of the limiting post is larger than the outer diameter of the lower surface, and the baffle is far away from the trachea. The outer diameter of one end is larger than the outer diameter of the end close to the air pipe; it is convenient to prevent the outer ring connected with the limit post from falling off, and it is convenient for the baffle to shield and seal the air pipe.

The electronic camera system described in the present invention is suitable for the above-mentioned electronic camera, and includes a control module, an installation module, an image and audio processing module and a storage module arranged on the electronic camera body;

The control module uses a controller as a carrier, and the controller is used to control the automatic operation of the installation module;

The installation module includes a drive unit and a suction cup, and the drive unit can drive the suction cup and the connection surface to be adsorbed and fixed;

The image and audio processing module includes a camera and a central processing unit, the camera is used for image shooting, and the central processing unit is used for image and audio processing;

The storage module uses a memory as a carrier, and the storage module is used for image and audio storage.

The beneficial effects of the utility model are as follows:

1. In the electronic camera system and electronic camera described in the present utility model, by pressing the base, the lower surface of the base is smoothly connected with the connection surface, and then the controller is started to drive the electric push rod, so that the output end of the electric push rod Drive the nut, the pressing rod and the suction cup to move away from the electronic camera body in a straight line until the suction cup is firmly connected to the connection surface to complete the stable installation. The above installation method does not need to use bolts or screws. Integrity prevents it from breaking.

2. The electronic camera system and the electronic camera described in the utility model are convenient for sealing operation by setting an elastic ball inside which is hollow, and prevent external dust from entering the storage cavity through the communication groove, which is convenient for hygienic maintenance and management, and the elastic ball gradually During the process of being squeezed, the gas inside the elastic ball is discharged through the air pipe, which is convenient for blowing out the dust inside the communication tank.

Description of drawings

Below in conjunction with accompanying drawing, the utility model is further described.

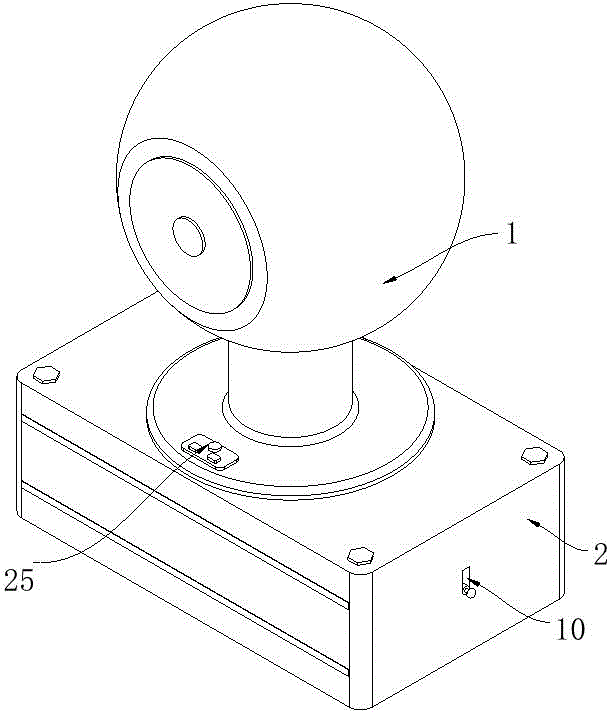

Fig. 1 is the three-dimensional structure schematic diagram in the utility model;

Fig. 2 is a schematic diagram of a cross-sectional three-dimensional structure of the base in the utility model;

Fig. 3 is the enlarged schematic diagram of the structure at A place in Fig. 2 of the present utility model;

Fig. 4 is the enlarged schematic diagram of the structure at B place in Fig. 2 of the present utility model;

Fig. 5 is the enlarged schematic view of the structure at C in Fig. 4 of the present utility model;

Fig. 6 is a schematic diagram of a cross-sectional three-dimensional structure of a storage cavity in the present invention;

Fig. 7 is a schematic diagram of the electronic camera system in the utility model;

Fig. 8 is a schematic perspective view of the second embodiment of the utility model.

In the figure: 1. Electronic camera body; 2. Base; 3. Storage cavity; 4. Electric push rod; 6. Nut; 7. Press rod; 8. Avoidance slot; 9. Suction cup; 10. Unicom slot; Unicom rod; 12, handle; 13, spring; 14, sleeve; 15, sleeve hole; 16, sleeve rod; 17, trachea; 18, limit column; 19, outer ring; 20, elastic rope; 21, baffle 22. Limiting groove; 23. Limiting block; 24. Elastic ball; 25. Controller; 26. Silicone pad; 27. Anti-slip pattern.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments.

As shown in Figures 1 to 7, the electronic camera described in the embodiment of the present invention includes an electronic camera body 1; the bottom of the electronic camera body 1 is connected with a base 2, and the base 2 is provided with a storage cavity 3, and the The inside of the storage chamber 3 is provided with an electric push rod 4 connected to the base 2, the outer surface of the output end of the electric push rod 4 is connected with a nut 6, and the lower surface of the nut 6 is fixedly connected with a pressing rod 7. Press rod 7 is provided with the avoidance groove 8 that is compatible with described electric push rod 4, and described push rod 7 bottoms are threadedly connected with sucker 9, and described electronic camera body 1 is connected with controller 25; During work, at first put The bottom of the electronic camera body 1 is fixedly connected to the base 2, and the operator presses the base 2 so that the lower surface of the base 2 fits smoothly with the connection surface (such as glass surface, ceramic tile surface), and then starts the controller 25 to drive the electric push rod 4. Then make the output end of the electric push rod 4 drive the nut 6, the pressing rod 7 and the suction cup 9 to perform a linear displacement away from the electronic camera body 1 until the suction cup 9 is tightly connected to the connecting surface to complete the stable installation. Through the above installation method There is no need to use bolts or screws, and it is convenient to effectively ensure the integrity of the connecting surface to avoid damage while performing stable installation. By threading the pressing rod 7 and the suction cup 9, it is convenient to replace and install the suction cup 9 when it is damaged.

The pressing rod 7 is T-shaped, and the base 2 is provided with communication grooves 10 that are arranged symmetrically and communicate with the storage cavity 3. Each communication groove 10 is provided with a communication rod 11 inside, two Each of the communication rods 11 is respectively connected to the two ends of the pressing rod 7, and each of the communication rods 11 is respectively connected to a spring 13, and each of the springs 13 is in contact with the top of the communication groove 10, One end of each of the communication rods 11 away from the pressing rod 7 is respectively fixedly connected with a handle 12; during operation, when the electric push rod 4 cannot be started due to a power failure, each spring 13 is connected to the connected communication rod. 11 to push and press, and then press the pressing rod 7 so that the suction cup 9 is still tightly connected with the connection surface to avoid loosening and falling off. When the electric push rod 4 cannot be started due to power failure and the suction cup 9 still needs to be separated from the connection surface At this time, the operator pulls the two handles 12 upwards synchronously with both hands, and then drives the connecting rod 11 connected to it to move upwards synchronously, and the stretching height of the spring 13 gradually decreases, and then drives the pressing rod 7 and the suction cup 9 connected thereto to move upward in a straight line, It is convenient to separate the suction cup 9 from the connection surface when the electric push rod 4 cannot be started due to power failure.

One end of each of the communication rods 11 close to the pressing rod 7 is respectively fixedly connected with a rectangular limiting block 23, and the pressing rod 7 is provided with a limiting block that is compatible with the two limiting blocks 23. Position slots 22; during work, respectively engage the two limit blocks 23 with the corresponding limit slots 22 to connect each of the communication rods 11 with the pressing rod 7, which is convenient for assembly and use.

Each of the springs 13 is respectively provided with a sleeve 14 that is in contact with the base 2, and each of the sleeves 14 is respectively provided with a sleeve hole 15, and each of the sleeve holes 15 is respectively clamped with a One sleeve rod 16, the two sleeve rods 16 are respectively fastened and connected with the two said communication rods 11; during operation, each sleeve rod 16 is displaced inside the sleeve hole 15 to which it is clamped during the stretching process of the spring 13 , so as to play a guiding role and avoid torsional deflection of the spring 13.

Each of the communication grooves 10 is respectively provided with an elastic ball 24 which is hollow inside, and a side of each of the elastic balls 24 away from the pressing rod 7 is fixedly connected with an air pipe 17 penetrating and communicating with the inside thereof, Each of the air pipes 17 is respectively connected with a sealing assembly; during operation, the elastic ball 24 provided inside is hollow to facilitate the sealing operation, preventing external dust from entering the interior of the storage chamber 3 through the communication groove 10, which is convenient for hygienic maintenance Management, when the elastic ball 24 is gradually squeezed, the gas inside the elastic ball 24 is discharged through the air pipe 17, so as to blow out the dust inside the communication tank 10.

Each blocking assembly includes a limiting column 18 tightly connected to one of the air tubes 17, an outer ring 19 sleeved outside the limiting column 18, and an elastic tube connected to the outer ring 19. Rope 20, and the baffle plate 21 connected with the end of the elastic rope 20 away from the outer ring 19, the baffle plate 21 is sealed and clamped with the air pipe 17; 17 for shielding and sealing, the elastic ball 24 is gradually squeezed, the gas inside the elastic ball 24 is discharged through the air pipe 17, and the dust inside the communication tank 10 is blown out, and the baffle plate 21 will be blown during the gas discharge process to make it Separated from the trachea 17 step by step, the separated baffle 21 is limited by the stretched elastic rope 20 to avoid the loss of the separated baffle 21, and the elastic rope 20 is conveniently limited by setting the outer ring 19 and the limiting column 18 place.

Each of the limiting columns 18 and each of the baffles 21 are T-shaped, and the outer diameter of the upper surface of the limiting column 18 is larger than the outer diameter of the lower surface, and the baffles 21 are far away from the air pipe. The outer diameter of one end of 17 is larger than the outer diameter of the end close to the air pipe 17; during operation, it is convenient to prevent the outer ring 19 connected with the limit post 18 from falling off, and it is convenient for the baffle plate 21 to block and seal the air pipe 17.

The electronic camera system described in the present utility model is suitable for the above-mentioned electronic camera, and includes a control module, an installation module, an image and audio processing module and a storage module arranged on the electronic camera body 1;

The control module is carried by a controller 25, and the controller 25 is used to control the automatic operation of the installation module;

The installation module includes a drive unit and a suction cup 9, and the drive unit can drive the suction cup 9 to absorb and fix the connecting surface;

The image and audio processing module includes a camera and a central processing unit, the camera is used for image shooting, and the central processing unit is used for image and audio processing;

The storage module uses a memory as a carrier, and the storage module is used for image and audio storage.

Example

Please refer to Figure 8, comparative example one, as another embodiment of the present utility model,

The lower surface of the base 2 is fixedly connected with a silica gel pad 26, and the lower surface of the silica gel pad 26 is provided with a group of anti-slip patterns 27; when not installed, it is convenient to increase the friction by setting the silica gel pad 26 with the anti-slip pattern 27 force, so as to prevent the base 2 from sliding.

The working principle is that firstly, the bottom of the electronic camera body 1 is fixedly connected with the base 2, and then the base 2 is pressed to make the lower surface of the base 2 contact with the connecting surface smoothly, and then the controller 25 is started to drive the electric push rod 4, and then the electric push rod 4 is driven. The output end of the push rod 4 drives the nut 6, the pressing rod 7 and the suction cup 9 to move away from the electronic camera body 1 in a straight line until the suction cup 9 is firmly connected to the connecting surface to complete the stable installation. Through the above installation method, no bolts or screws are needed. While the installation is stable, the integrity of the connection surface can be effectively guaranteed to avoid damage. When the electric push rod 4 cannot be started due to power failure and the suction cup 9 still needs to be separated from the connection surface, the operator pulls the two handles upwards synchronously with both hands 12, and then drive the connecting rod 11 connected to it to move upward synchronously and the stretching height of the spring 13 gradually decreases, and then drive the pressing rod 7 and the suction cup 9 connected to it to move upward in a straight line, so that the electric push rod 4 cannot be started due to power failure When the sucker 9 is separated from the connecting surface, the elastic ball 24 which is provided with a hollow inside is convenient for sealing operation, and prevents external dust from entering the storage chamber 3 through the communication groove 10, which is convenient for hygienic maintenance and management, and the elastic ball 24 is gradually squeezed. During the pressing process, the gas inside the elastic ball 24 is discharged through the gas pipe 17, so as to facilitate blowing out the dust inside the communication tank 10.

The above-mentioned front, back, left, right, up, and down are all based on Figure 1 in the accompanying drawings of the specification, and according to the viewing angle of the person as the standard, the side of the device facing the observer is defined as the front, and the left side of the observer is defined as the left. So on and so forth.

In describing the present invention, it should be understood that the terms "central", "longitudinal", "transverse", "front", "rear", "left", "right", "vertical", "horizontal" , "top", "bottom", "inner", "outer" and other indicated orientations or positional relationships are based on the orientations or positional relationships shown in the drawings, and are only for the convenience of describing the utility model and simplifying the description, rather than indicating or It should not be construed as limiting the protection scope of the present invention by implying that the device or element referred to must have a specific orientation, be constructed and operate in a specific orientation.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principles of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (8)

1. An electronic camera comprising an electronic camera body (1); the method is characterized in that: the electronic camera body (1) bottom is connected with base (2), deposit chamber (3) have been seted up to base (2), deposit the inside electric putter (4) that are provided with of chamber (3) with base (2) are connected, the output surface connection of electric putter (4) has nut (6), fixedly connected with presses pole (7) under nut (6), press pole (7) set up with empty groove (8) of keeping away of electric putter (4) looks adaptation, press pole (7) bottom threaded connection has sucking disc (9), electronic camera body (1) are connected with controller (25).

2. The electronic camera of claim 1, wherein: the utility model discloses a push rod (7) is T type setting, symmetry setting has been seted up to base (2) and all with deposit chamber (3) run through communicating spread groove (10), every inside a communicating rod (11) that is provided with respectively of communicating spread groove (10), two communicating rod (11) respectively with push rod (7) both ends are connected with, every communicating rod (11) are connected with a spring (13) respectively, every spring (13) all with communicating spread groove (10) top is contradicted and is met, every communicating rod (11) keep away from one end of push rod (7) is fixedly connected with handle (12) respectively.

3. The electronic camera of claim 2, wherein: one end of each communication rod (11) close to each pressing rod (7) is fixedly connected with a limiting block (23) which is rectangular, and each pressing rod (7) is provided with limiting grooves (22) which are matched with the two limiting blocks (23).

4. An electronic camera according to claim 3 and wherein: each spring (13) is internally provided with a sleeve (14) which is in abutting connection with the base (2), each sleeve (14) is provided with a sleeve hole (15) respectively, each sleeve hole (15) is internally provided with a sleeve rod (16) in a clamping manner respectively, and the two sleeve rods (16) are fixedly connected with the two communicating rods (11) respectively.

5. The electronic camera of claim 4, wherein: an elastic ball (24) which is arranged in a hollow mode is arranged in each communication groove (10), one side face, away from the pressing rod (7), of each elastic ball (24) is fixedly connected with an air pipe (17) which penetrates through the inside of the elastic ball, and each air pipe (17) is connected with a plugging assembly.

6. The electronic camera of claim 5, wherein: each plugging assembly comprises a limiting column (18) which is fixedly connected with one air pipe (17), an outer ring (19) which is sleeved outside the limiting column (18), an elastic rope (20) which is connected with the outer ring (19), and a baffle (21) which is connected with one end, far away from the outer ring (19), of the elastic rope (20), wherein the baffle (21) is in sealing clamping connection with the air pipe (17).

7. The electronic camera of claim 6, wherein: every spacing post (18) and every baffle (21) are T type setting, just spacing post (18) upper surface external diameter size is greater than lower surface external diameter size, the external diameter size of baffle (21) keep away from the one end of trachea (17) is greater than and is close to the external diameter size of one end of trachea (17).

8. An electronic camera system adapted for use with the electronic camera of any one of claims 1-7, characterized in that: the electronic camera comprises a control module, an installation module, an image and audio processing module and a storage module which are arranged on the electronic camera body (1);

the control module takes a controller (25) as a carrier, and the controller (25) is used for controlling the automatic operation of the installation module;

the mounting module comprises a driving unit and a sucker (9), wherein the driving unit can drive the sucker (9) to be fixedly adsorbed on the connecting surface;

the image and audio processing module comprises a camera and a central processing unit, wherein the camera is used for shooting images, and the central processing unit is used for processing the images and the audio;

the storage module takes a memory as a carrier, and is used for storing images and audios.
