The utility model discloses an easy-to-assemble propaganda device, which belongs to the technical field of propaganda devices and comprises a first propaganda frame, wherein a second propaganda frame is arranged at the rear side of the first propaganda frame, transparent plates are inserted in the first propaganda frame and the second propaganda frame.

Description

Easy dismouting formula propaganda device
Technical Field
The utility model relates to the technical field of propaganda devices, in particular to an easily-detachable propaganda device.
Background
In the prior education mode, a plurality of institutions such as a study staff and an interest staff are needed, articles such as propaganda posters are generally needed when daily recruitment and propaganda and other information such as student score in the institutions are posted, the articles such as the posters are not allowed to be posted on the articles such as walls and the like in a plurality of places according to the prior regulations, urban volume is greatly influenced, the articles are extremely unconditional, and a propaganda device is needed to place the posters.
The prior propaganda device is used in actual process, the outer frame of the propaganda device is limited and fixed through bolts, and because the fastening force of a single bolt is limited, a plurality of bolts are needed to sequentially screw and fix different positions of the outer frame of the propaganda device, the time consumption is long when the poster is disassembled and replaced by the propaganda outer frame, the working efficiency is low, and therefore, the technology for improving the structure of the propaganda device is urgently needed to perfect the equipment.
Disclosure of Invention
1. Technical problem to be solved
The utility model aims to solve the problems in the prior art and provide an easy-to-assemble propaganda device, which can move a first propaganda frame to one side of a second propaganda frame when the easy-to-assemble propaganda device is used, and meanwhile, a first connecting bar drives a positioning block to move into a positioning groove, so that the first connecting bar and the second connecting bar are aligned, then a clamping sleeve is pulled, the clamping sleeve is directly sleeved outside the first connecting bar and the second connecting bar, the first propaganda frame and the second propaganda frame can be limited and fixed, the first propaganda frame and the second propaganda frame are convenient to assemble, the time is short, the overall working efficiency is improved, and meanwhile, the first propaganda frame and the second propaganda frame can be detached easily so as to replace an internal poster.
2. Technical proposal
In order to solve the problems, the utility model adopts the following technical scheme.
The utility model provides an easy reassembling type propaganda device, includes first propaganda frame, the rear side of first propaganda frame is equipped with the second propaganda frame, transparent plate has all been pegged graft to the inside of first propaganda frame and second propaganda frame, the bottom of first propaganda frame is equipped with the base, lift the support to first propaganda frame and second propaganda frame is whole through adjusting supporting mechanism in the base, the top welding of base has the bracket, install fixedly through location joint mechanism between first propaganda frame and the second propaganda frame.
Further, the top of base is equipped with two symmetrical support frames, the one end that the support frame is close to first propaganda frame is connected with the installation piece, one side that first propaganda frame and second propaganda frame correspond the installation piece is all set up flutedly, the bottom fixedly connected with slider of support frame, the one end that the base is close to the slider is seted up flutedly, the inside rotation of spout is connected with the threaded rod, the threaded rod runs through in two sliders, the threaded rod constitutes the outside that rotates with the base to be connected and extend to the base.
Further, the sections of the mounting block and the groove are rectangular, and the inner dimensions of the two grooves are matched with the outer dimensions of the mounting block.
Further, the upper and lower both ends of first propaganda frame all are connected with first connecting strip, the one end that the second propaganda frame corresponds first connecting strip all is connected with the second connecting strip, the one end that the second connecting strip is close to first connecting strip is connected with the locating piece, the constant head tank has been seted up to the one end that the first connecting strip corresponds the locating piece, the outer end sliding connection of second propaganda frame has the cutting ferrule, the cutting ferrule is located the outside of first connecting strip and second connecting strip, the spring groove has been seted up to the one end that the cutting ferrule is close to first connecting strip, the inner wall department fixedly connected with spring of spring groove, the other end fixedly connected with fixed block of spring, the fixed slot has been seted up to the one end that the first connecting strip corresponds the fixed block.
Further, the cross section of first connecting strip and second connecting strip is L shape, the draw-in groove of T shape has been seted up to one side that the cutting ferrule is close to first connecting strip and second connecting strip, and the draw-in groove is equipped with the polishing layer with the mutual contact department of first connecting strip, second connecting strip.
3. Advantageous effects
Compared with the prior art, the utility model has the following beneficial effects:
(1) According to the utility model, the first propaganda frame is moved to one side of the second propaganda frame, and meanwhile, the first connecting strip drives the positioning block to move into the positioning groove, so that the first connecting strip and the second connecting strip are aligned, then the clamping sleeve is pulled, the clamping sleeve is directly sleeved outside the first connecting strip and the second connecting strip, the first propaganda frame and the second propaganda frame can be limited and fixed, the first propaganda frame and the second propaganda frame are convenient to assemble, the time consumption is short, the overall working efficiency is improved, and meanwhile, the first propaganda frame and the second propaganda frame can be detached easily to replace an internal poster.
(2) According to the utility model, the assembled first propaganda frame and second propaganda frame are placed on the bracket, the threaded rod is rotated, the threaded rod drives the sliding block to slide in the sliding groove through the threaded structure formed by the threaded rod and the sliding block, the sliding block drives the mounting block to move through the support frame, and the mounting block is aligned with the grooves at the moment, so that the mounting block moves into the two grooves, the first propaganda frame and the second propaganda frame are supported and mounted conveniently, the first propaganda frame and the second propaganda frame are erected on the support frame, the later sub-packaging and the disassembly are facilitated, and the occupied space during transportation is reduced.
Drawings

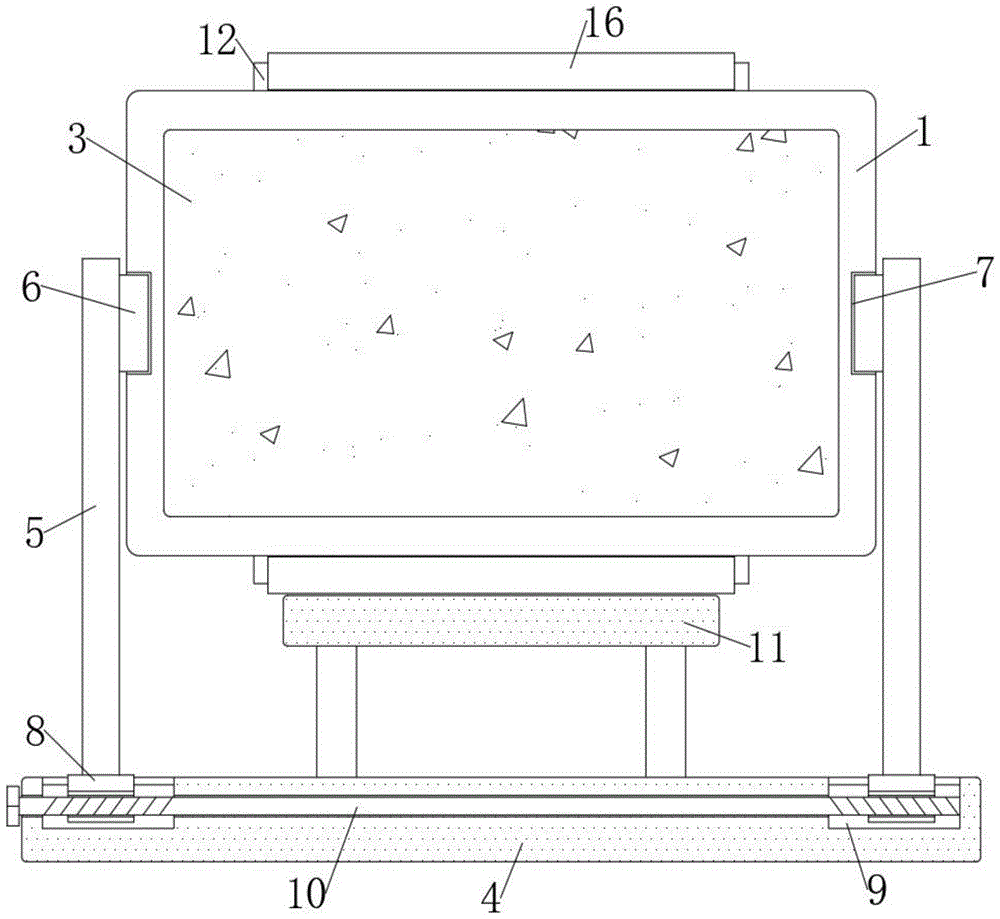

FIG. 1 is a schematic diagram of the structure of the present utility model;
FIG. 2 is a schematic side view of a first promotional frame and a second promotional frame according to the present utility model;
fig. 3 is a schematic view of a partial enlarged structure at a in fig. 2 according to the present utility model.
The reference numerals in the figures illustrate:
1. a first promotional frame; 2. a second promotional frame; 3. a transparent plate; 4. a base; 5. a support frame; 6. a mounting block; 7. a groove; 8. a slide block; 9. a chute; 10. a threaded rod; 11. a bracket; 12. a first connecting bar; 13. a second connecting bar; 14. a positioning block; 15. a positioning groove; 16. a cutting sleeve; 17. a spring groove; 18. a spring; 19. a fixed block; 20. a fixing groove.
Detailed Description
The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model; it is apparent that the described embodiments are only some embodiments of the present utility model, not all embodiments, and that all other embodiments obtained by persons of ordinary skill in the art without making creative efforts based on the embodiments in the present utility model are within the protection scope of the present utility model.
Examples:
please refer to fig. 1-3, an easy dismouting formula propaganda device, including first propaganda frame 1, the rear side of first propaganda frame 1 is equipped with second propaganda frame 2, and transparent plate 3 has all been pegged graft to the inside of first propaganda frame 1 and second propaganda frame 2, and the bottom of first propaganda frame 1 is equipped with base 4, supports first propaganda frame 1 and second propaganda frame 2 whole through adjusting supporting mechanism in the base 4, and the top welding of base 4 has bracket 11, installs fixedly through location joint mechanism between first propaganda frame 1 and the second propaganda frame 2.
Move one side to second propaganda frame 2 with first propaganda frame 1, simultaneously first connecting strip 12 drive locating piece 14 remove in the constant head tank 15 for first connecting strip 12 aligns with second connecting strip 13, later pulling cutting ferrule 16, establish cutting ferrule 16 direct cover in the outside of first connecting strip 12 and second connecting strip 13, can carry out spacing fixed to first propaganda frame 1 and second propaganda frame 2, conveniently assemble first propaganda frame 1 and second propaganda frame 2, and the time spent is shorter, has improved holistic work efficiency, can be comparatively light with first propaganda frame 1 and second propaganda frame 2 unpack frame 2 in order to change inside poster simultaneously.
Referring to fig. 1-2, two symmetrical supporting frames 5 are arranged at the top of the base 4, one end, close to the first propaganda frame 1, of each supporting frame 5 is connected with a mounting block 6, one side, corresponding to the mounting blocks 6, of each of the first propaganda frame 1 and the second propaganda frame 2 is provided with a groove 7, the bottom end of each supporting frame 5 is fixedly connected with a sliding block 8, one end, close to the sliding block 8, of each base 4 is provided with a sliding groove 9, threaded rods 10 are rotatably connected to the inner parts of the sliding grooves 9, the threaded rods 10 penetrate through the two sliding blocks 8, and the threaded rods 10 are rotatably connected with the base 4 and extend to the outer parts of the base 4.
Place the first propaganda frame 1 and the second propaganda frame 2 that will assemble on bracket 11, afterwards rotate threaded rod 10, threaded rod 10 drives slider 8 through the helicitic texture that constitutes with slider 8 and slides in spout 9, slider 8 drives installation piece 6 through support frame 5 and removes, installation piece 6 aligns with recess 7 this moment for installation piece 6 removes two recesses 7 in, is convenient for support the installation to first propaganda frame 1 and second propaganda frame 2, makes it erect on support frame 5, makes things convenient for later stage partial shipment dismantlement.
The cross section of installation piece 6 and recess 7 is the rectangle, and the inside size of two recesses 7 and the outside size looks adaptation of installation piece 6 through the cross section with installation piece 6 and recess 7 all be the rectangle, can make installation piece 6 enter into the inside of two recesses 7 when, avoid first propaganda frame 1 and second propaganda frame 2 to rotate at the outside of installation piece 6 and influence the use.
Referring to fig. 1 and 3, the upper and lower ends of the first propaganda frame 1 are connected with first connecting strips 12, one end of the second propaganda frame 2 corresponding to the first connecting strips 12 is connected with second connecting strips 13, one end of the second connecting strips 13, which is close to the first connecting strips 12, is connected with a positioning block 14, one end of the first connecting strips 12 corresponding to the positioning block 14 is provided with a positioning groove 15, the outer end of the second propaganda frame 2 is slidably connected with a clamping sleeve 16, the clamping sleeve 16 is positioned outside the first connecting strips 12 and the second connecting strips 13, one end of the clamping sleeve 16, which is close to the first connecting strips 12, is provided with a spring groove 17, the inner wall of the spring groove 17 is fixedly connected with a spring 18, the other end of the spring 18 is fixedly connected with a fixing block 19, and one end of the first connecting strips 12 corresponding to the fixing block 19 is provided with a fixing groove 20.
Move one side to second propaganda frame 2 with first propaganda frame 1, first connecting strip 12 drives locating piece 14 simultaneously and removes in constant head tank 15 for first connecting strip 12 aligns with second connecting strip 13, later pulls cutting ferrule 16, establishes cutting ferrule 16 direct cover in the outside of first connecting strip 12 and second connecting strip 13, can carry out spacing fixed to first propaganda frame 1 and second propaganda frame 2, conveniently assembles first propaganda frame 1 and second propaganda frame 2.
The cross section of first connecting strip 12 and second connecting strip 13 is L shape, and the draw-in groove of T shape has been seted up to one side that cutting ferrule 16 is close to first connecting strip 12 and second connecting strip 13, and the draw-in groove is equipped with the polishing layer with first connecting strip 12, the mutual contact department of second connecting strip 13, through the draw-in groove with cutting ferrule 16 inside and first connecting strip 12, the mutual contact department of second connecting strip 13 is equipped with the polishing layer, has reduced the frictional force between first connecting strip 12, second connecting strip 13 and the cutting ferrule 16 for cutting ferrule 16 is comparatively smooth in the outside removal of first connecting strip 12 and second connecting strip 13.
In the utility model, when a related technician uses the device, the first propaganda frame 1 is moved to one side of the second propaganda frame 2, meanwhile, the first connecting strip 12 drives the positioning block 14 to move into the positioning groove 15, so that the first connecting strip 12 and the second connecting strip 13 are aligned, then the cutting sleeve 16 is pulled, the first propaganda frame 1 and the second propaganda frame 2 are conveniently assembled through the limit clamping mechanism, the time is short, the whole working efficiency is improved, and meanwhile, the first propaganda frame 1 and the second propaganda frame 2 can be easily disassembled so as to replace an internal poster;
then can place first propaganda frame 1 and the second propaganda frame 2 that assemble on bracket 11, afterwards rotate threaded rod 10, be convenient for support the installation to first propaganda frame 1 and second propaganda frame 2 through adjusting supporting mechanism, make it erect on support frame 5, make things convenient for the later stage partial shipment to dismantle, occupation space when having reduced the transportation.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims (5)

1. The utility model provides an easy dismouting formula propaganda device, includes first propaganda frame (1), its characterized in that: the rear side of first propaganda frame (1) is equipped with second propaganda frame (2), transparent plate (3) have all been pegged graft to the inside of first propaganda frame (1) and second propaganda frame (2), the bottom of first propaganda frame (1) is equipped with base (4), support is lifted through adjusting supporting mechanism to the whole of first propaganda frame (1) and second propaganda frame (2) in base (4), the top welding of base (4) has bracket (11), install fixedly through location joint mechanism between first propaganda frame (1) and the second propaganda frame (2).
2. The easy-to-assemble propaganda device according to claim 1 in which: the utility model provides an adjustable support mechanism includes support frame (5), installation piece (6), recess (7), slider (8), spout (9) and threaded rod (10), the top of base (4) is equipped with two symmetrical support frames (5), the one end that support frame (5) is close to first propaganda frame (1) is connected with installation piece (6), one side that first propaganda frame (1) and second propaganda frame (2) correspond installation piece (6) is all seted up flutedly (7), the bottom fixedly connected with slider (8) of support frame (5), spout (9) are seted up to the one end that base (4) is close to slider (8), the inside rotation of spout (9) is connected with threaded rod (10), threaded rod (10) run through in two sliders (8), threaded rod (10) and base (4) constitute the outside of rotating connection and extending to base (4).
3. The easy-to-assemble propaganda device according to claim 2 in which: the sections of the mounting blocks (6) and the grooves (7) are rectangular, and the inner dimensions of the two grooves (7) are matched with the outer dimensions of the mounting blocks (6).
4. The easy-to-assemble propaganda device according to claim 1 in which: the utility model provides a location joint mechanism includes first connecting strip (12), second connecting strip (13), locating piece (14), constant head tank (15), cutting ferrule (16), spring groove (17), spring (18), fixed block (19) and fixed slot (20), the upper and lower both ends of first propaganda frame (1) all are connected with first connecting strip (12), the one end that second propaganda frame (2) corresponds first connecting strip (12) all is connected with second connecting strip (13), the one end that second connecting strip (13) is close to first connecting strip (12) is connected with locating piece (14), constant head tank (15) have been seted up to one end that first connecting strip (12) corresponds locating piece (14), the outside of second propaganda frame (2) sliding connection has cutting ferrule (16), cutting ferrule (16) are located the outside of first connecting strip (12) and second connecting strip (13), spring groove (17) are all connected with to the one end that second connecting strip (12) corresponds, the inner wall fixedly connected with spring (18) of spring groove (17) is close to one end, other end (19) are seted up fixed connection piece (19).
5. The easy-to-assemble propaganda device according to claim 4 in which: the cross section of first connecting strip (12) and second connecting strip (13) is L shape, the draw-in groove of T shape has been seted up to one side that cutting ferrule (16) are close to first connecting strip (12) and second connecting strip (13), and the mutual contact department of draw-in groove and first connecting strip (12), second connecting strip (13) is equipped with the polishing layer.
