Abstract
The utility model is suitable for the technical field of reinforced concrete product quality detection, and particularly relates to a reinforced concrete drain pipe inspection and monitoring device. According to the utility model, the heights of the electric telescopic rod and the limiting block can be conveniently and accurately adjusted by arranging the second supporting piece, the square hole, the positioning piece, the sliding seat, the rolling bearing, the threaded piece, the threaded hole, the first supporting piece and the twisting handle, so that the first arc-shaped groove formed on the side surface of the limiting block can correspond to the arc surface of the outer side surface of the reinforced concrete drain pipe on the storage seat, the limiting block can be fully attached to the reinforced concrete drain pipe, and further the reinforced concrete drain pipes with different outer diameters are firmly and stably limited on the storage seat, thereby improving the practicability of the reinforced concrete drain pipe quality detection device.
Description
Technical Field
The utility model relates to the technical field of reinforced concrete product quality detection, in particular to a reinforced concrete drain pipe inspection and monitoring device.
Background
Reinforced concrete is one of the most main building materials at present, and a drain pipe mainly bears the drainage tasks of rainwater, sewage, farmland drainage, irrigation and the like; the drain pipe is divided into a plastic drain pipe, a concrete pipe and a reinforced concrete pipe. In real life, after the reinforced concrete drain pipe is produced, the reinforced concrete drain pipe needs to be inspected, and at the moment, the reinforced concrete drain pipe needs to be inspected by a corresponding inspection device. The existing common reinforced concrete drain pipe quality detection mode is extrusion detection, namely, the reinforced concrete drain pipe is detected by using a mode that a hydraulic telescopic rod drives a test block to apply pressure to the reinforced concrete drain pipe.
When the reinforced concrete drain pipe inspection monitoring device in the current market is used, the detected reinforced concrete drain pipe is a cylindrical structural object generally, so that the arc-shaped clamp is generally used for limiting the reinforced concrete drain pipe, but the arc-shaped clamp is generally inconvenient for stably limiting the reinforced concrete drain pipes with different outer diameters.
Disclosure of Invention
The embodiment of the utility model aims to provide a reinforced concrete drain pipe inspection and monitoring device, which aims to solve the following problems: when the reinforced concrete drain pipe inspection monitoring device in the current market is used, the detected reinforced concrete drain pipe is a cylindrical structural object generally, so that the arc-shaped clamp is generally used for limiting the reinforced concrete drain pipe, but the arc-shaped clamp is generally inconvenient for stably limiting the reinforced concrete drain pipes with different outer diameters.
In order to achieve the above purpose, the present utility model provides the following technical solutions:
the utility model provides a reinforced concrete drain pipe inspection monitoring devices, includes the workstation, and the surface connection of workstation has the support frame, and the surface sliding connection of workstation has the thing seat of putting, and hydraulic telescoping rod is installed in the outside of support frame, and hydraulic telescoping rod's one end is provided with the test piece, reinforced concrete drain pipe inspection monitoring devices still includes:
the two second supporting pieces are respectively connected to two sides of the surface of the storage seat, one side of each second supporting piece is connected with a sliding seat in a sliding manner, the other side of each second supporting piece is provided with a positioning assembly, an electric telescopic rod is mounted on the surface of each sliding seat, one end of each electric telescopic rod is connected with a limiting block, and a first arc-shaped groove is formed in the surface of each limiting block;
the second arc-shaped groove is formed in the middle of the surface of the storage seat; and
and the translation assembly is arranged at the outer sides of the workbench and the object placing seat and used for driving the object placing seat to slide on the surface of the workbench.
Further, the second sliding block is installed on the side face of the sliding seat, the sliding groove is formed in the side face of the second supporting piece, and the sliding seat is connected to the surface of the second supporting piece in a sliding mode through the matching of the second sliding block and the sliding groove.
Further, the positioning assembly includes:
square holes are formed in the surface of the second supporting piece;
the first support piece is connected to the side face of the second support piece, a threaded hole is formed in the surface of the first support piece, and a threaded piece is connected to the inside of the threaded hole in a meshed mode; and
the rolling bearing is arranged at one end of the threaded piece, the outer side of the rolling bearing is connected with a position adjusting piece, the position adjusting piece penetrates through the square hole, and one side of the position adjusting piece is connected with the outer side of the sliding seat.
Further, a twist grip is mounted to the end of the screw remote from the rolling bearing.
Further, the surface of workstation is provided with the slide rail, puts the outside of thing seat and installs first slider, and puts the cooperation sliding connection at the surface of workstation of thing seat through first slider and slide rail.
Further, the translation assembly includes:
the first transmission piece is arranged at the outer side of the object placing seat;
the driving piece is arranged on the outer side of the workbench, one end of the driving piece is provided with a second transmission piece, and the outer side of the second transmission piece is connected with the outer side of the first transmission piece in a meshed mode.
Further, an anti-skid rubber cushion layer is arranged in the first arc-shaped groove.
According to the reinforced concrete drain pipe inspection and monitoring device, the second supporting piece, the square hole, the positioning piece, the sliding seat, the rolling bearing, the threaded piece, the threaded hole, the first supporting piece and the twisting handle are arranged, so that the heights of the electric telescopic rod and the limiting block can be conveniently and accurately adjusted, the first arc-shaped groove formed in the side face of the limiting block can correspond to the arc face of the outer side face of the reinforced concrete drain pipe on the object placing seat, the limiting block can be fully attached to the reinforced concrete drain pipe, and the reinforced concrete drain pipes with different outer diameters can be firmly and stably limited on the object placing seat, and therefore the practicability of the reinforced concrete drain pipe quality detection device is improved.
Drawings

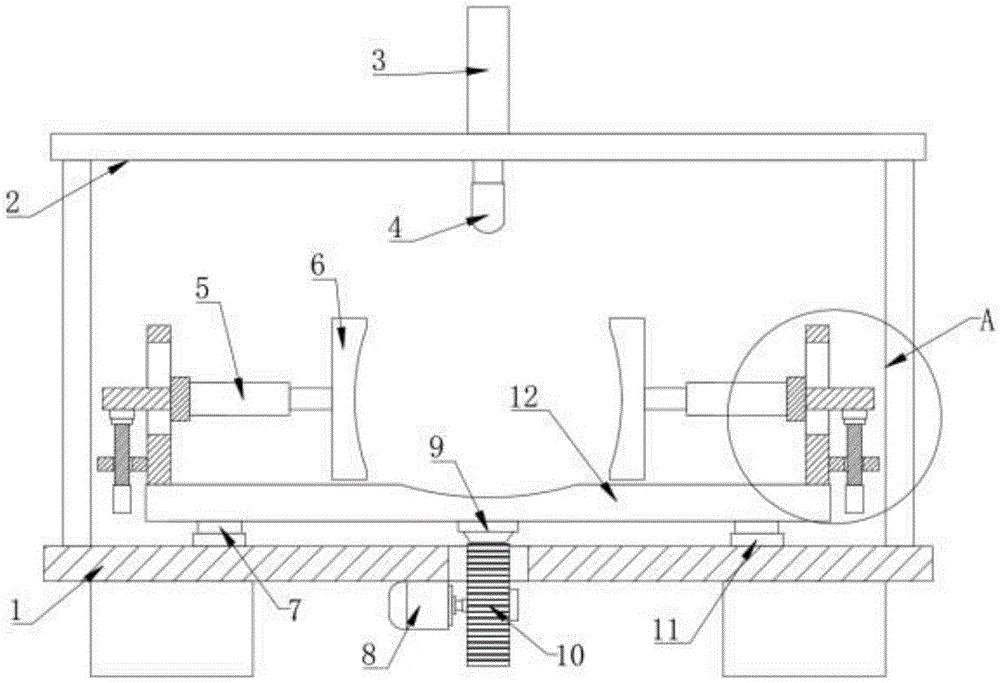

Fig. 1 is a schematic structural view of a reinforced concrete drain pipe inspection and monitoring device.
Fig. 2 is an enlarged view of a point a in a reinforced concrete drain inspection and monitoring apparatus.
Fig. 3 is a schematic view of a partial structure of a positioning member, a rolling bearing, a screw member and a twist grip in a reinforced concrete drain inspection and monitoring device.
In the figure: 1. a work table; 2. a support frame; 3. a hydraulic telescopic rod; 4. a test block; 5. an electric telescopic rod; 6. a limiting block; 7. a first slider; 8. a driving member; 9. a first transmission member; 10. a second transmission member; 11. a slide rail; 12. a storage seat; 13. a rolling bearing; 14. a screw; 15. a threaded hole; 16. a first support; 17. twisting the handle; 18. a second support; 19. a sliding seat; 20. square holes; 21. and a positioning piece.
Detailed Description
The present utility model will be described in further detail with reference to the drawings and examples, in order to make the objects, technical solutions and advantages of the present utility model more apparent. It should be understood that the specific embodiments described herein are for purposes of illustration only and are not intended to limit the scope of the utility model.
Specific implementations of the utility model are described in detail below in connection with specific embodiments.
As shown in fig. 1-3, the reinforced concrete drain pipe inspection and monitoring device provided by the embodiment of the utility model comprises a workbench 1, wherein the surface of the workbench 1 is connected with a support frame 2, the surface of the workbench 1 is slidably connected with a storage seat 12, a hydraulic telescopic rod 3 is installed on the outer side of the support frame 2, one end of the hydraulic telescopic rod 3 is provided with a test block 4, and the reinforced concrete drain pipe inspection and monitoring device further comprises:
the two second supporting pieces 18 are respectively connected to two sides of the surface of the object placing seat 12, one side of each second supporting piece 18 is connected with a sliding seat 19 in a sliding manner, the other side of each second supporting piece 18 is provided with a positioning assembly, the surface of each sliding seat 19 is provided with an electric telescopic rod 5, one end of each electric telescopic rod 5 is connected with a limiting block 6, the surface of each limiting block 6 is provided with a first arc-shaped groove, and an anti-skid rubber cushion layer is arranged in each first arc-shaped groove;
the second arc-shaped groove is formed in the middle of the surface of the object placing seat 12; and
the translation assembly is arranged on the outer sides of the workbench 1 and the object placing seat 12 and is used for driving the object placing seat 12 to slide on the surface of the workbench 1.
In one embodiment of the utility model, when the quality detection test is needed for the reinforced concrete drain pipe, the reinforced concrete drain pipe is firstly placed in the second arc-shaped groove, then the two electric telescopic rods 5 are opened, so that the two electric telescopic rods 5 drive the limiting blocks 6 to abut against two sides of the reinforced concrete drain pipe on the object placing seat 12, thereby stably limiting the reinforced concrete drain pipe on the object placing seat 12, then the hydraulic telescopic rods 3 are opened, the hydraulic telescopic rods 3 drive the test block 4 to move towards the reinforced concrete drain pipe on the object placing seat 12, and the quality detection is carried out on the reinforced concrete drain pipe;
the second supporting piece 18 can be a supporting plate, and the heights of the electric telescopic rod 5 and the limiting block 6 can be conveniently and accurately adjusted through the positioning component, so that the first arc-shaped groove formed in the side surface of the limiting block 6 can be corresponding to the cambered surface of the outer side surface of the reinforced concrete drain pipe on the storage seat 12, the limiting block 6 can be fully attached to the reinforced concrete drain pipe, and further the reinforced concrete drain pipes with different outer diameters are firmly and stably limited on the storage seat 12, and the practicability of the reinforced concrete drain pipe quality detection device is improved;
the translation assembly can drive the object placing seat 12 to translate on the surface of the workbench 1 in a mode of motor driving and matching with screw transmission, so that the hydraulic telescopic rod 3 and the test block 4 can detect different positions of the reinforced concrete drain pipe.
As shown in fig. 1-3, in one embodiment of the present utility model, the positioning assembly includes:
the first support piece 16 is connected to the side face of the second support piece 18, a threaded hole 15 is formed in the surface of the first support piece 16, a threaded piece 14 is connected in a meshed mode in the threaded hole 15, and a twisting handle 17 is arranged at one end, away from the rolling bearing 13, of the threaded piece 14; and
the rolling bearing 13 is installed at one end of the screw 14, and the outside of the rolling bearing 13 is connected with a position adjusting member 21, the position adjusting member 21 penetrates through the inside of the square hole 20, and one side of the position adjusting member 21 is connected with the outside of the sliding seat 19.
In this embodiment, the side surface of the sliding seat 19 is provided with a second sliding block, the side surface of the second supporting member 18 is provided with a sliding groove, and the sliding seat 19 is slidably connected to the surface of the second supporting member 18 through the cooperation of the second sliding block and the sliding groove.
In this embodiment, the first supporting member 16 may be a supporting block, the screw member 14 may be a threaded rod, and the positioning member 21 may be a connecting column;
when the height of the electric telescopic rod 5 needs to be adjusted, the twisting handle 17 can be rotated by hand, the twisting handle 17 rotates on the surface of the positioning piece 21 through the rolling bearing 13, the threaded piece 14 moves in the vertical direction in the threaded hole 15, the threaded piece 14 drives the positioning piece 21 to move up and down in the square hole 20, and the positioning piece 21 drives the sliding seat 19 to slide on the side face of the second supporting piece 18, so that the electric telescopic rod 5 is driven to adjust the proper height.
As shown in fig. 1, in one embodiment of the present utility model, the translation assembly includes:
the first transmission part 9 is arranged at the outer side of the object placing seat 12;
the driving piece 8 is arranged on the outer side of the workbench 1, one end of the driving piece 8 is provided with a second transmission piece 10, and the outer side of the second transmission piece 10 is in meshed connection with the outer side of the first transmission piece 9.
The surface of the workbench 1 is provided with a sliding rail 11, a first sliding block 7 is arranged on the outer side of the object placing seat 12, and the object placing seat 12 is connected to the surface of the workbench 1 in a sliding manner through the matching of the first sliding block 7 and the sliding rail 11.
In this embodiment, the driving member 8 may be a forward and reverse rotation driving motor, the second driving member 10 may be a driving gear, the first driving member 9 may be a driving rack, and the outer side of the first driving member 9 is engaged with the outer side of the second driving member 10;
when the object placing seat 12 and the reinforced concrete drain pipe on the object placing seat 12 need to be driven to translate, so that the hydraulic telescopic rod 3 and the test block 4 can detect different areas of the reinforced concrete drain pipe, the driving piece 8 can be opened, the driving piece 8 drives the second driving piece 10 to rotate, the second driving piece 10 drives the first driving piece 9 which is meshed and connected with the second driving piece 10 to translate, and the first driving piece 9 drives the object placing seat 12 to translate through the first sliding block 7 and the sliding rail 11 so as to move the different areas of the reinforced concrete drain pipe on the object placing seat 12 to the lower part of the test block 4.
The foregoing description of the preferred embodiments of the utility model is not intended to be limiting, but rather is intended to cover all modifications, equivalents, and alternatives falling within the spirit and principles of the utility model.
Claims (7)
1. The utility model provides a reinforced concrete drain pipe inspection monitoring devices, includes the workstation, and the surface connection of workstation has the support frame, and the surface sliding connection of workstation has the thing seat of putting, and hydraulic telescoping rod is installed in the outside of support frame, and hydraulic telescoping rod's one end is provided with the test piece, its characterized in that, reinforced concrete drain pipe inspection monitoring devices still includes:
the two second supporting pieces are respectively connected to two sides of the surface of the storage seat, one side of each second supporting piece is connected with a sliding seat in a sliding manner, the other side of each second supporting piece is provided with a positioning assembly, an electric telescopic rod is mounted on the surface of each sliding seat, one end of each electric telescopic rod is connected with a limiting block, and a first arc-shaped groove is formed in the surface of each limiting block;
the second arc-shaped groove is formed in the middle of the surface of the storage seat; and
and the translation assembly is arranged at the outer sides of the workbench and the object placing seat and used for driving the object placing seat to slide on the surface of the workbench.
2. The reinforced concrete drain pipe inspection and monitoring device according to claim 1, wherein the second sliding block is installed on the side surface of the sliding seat, the sliding groove is formed in the side surface of the second supporting piece, and the sliding seat is connected to the surface of the second supporting piece in a sliding manner through the matching of the second sliding block and the sliding groove.
3. A reinforced concrete drain pipe inspection and monitoring device according to claim 2, wherein the positioning assembly comprises:
square holes are formed in the surface of the second supporting piece;
the first support piece is connected to the side face of the second support piece, a threaded hole is formed in the surface of the first support piece, and a threaded piece is connected to the inside of the threaded hole in a meshed mode; and
the rolling bearing is arranged at one end of the threaded piece, the outer side of the rolling bearing is connected with a position adjusting piece, the position adjusting piece penetrates through the square hole, and one side of the position adjusting piece is connected with the outer side of the sliding seat.
4. A reinforced concrete drain inspection and monitoring device according to claim 3, wherein the threaded member is provided with a twist grip at an end remote from the rolling bearing.
5. The reinforced concrete drain pipe inspection and monitoring device according to claim 1, wherein a sliding rail is arranged on the surface of the workbench, a first sliding block is arranged on the outer side of the object placing seat, and the object placing seat is connected to the surface of the workbench in a sliding manner through the matching of the first sliding block and the sliding rail.
6. The reinforced concrete drain inspection and monitoring device of claim 5, wherein the translation assembly comprises:
the first transmission piece is arranged at the outer side of the object placing seat;
the driving piece is arranged on the outer side of the workbench, one end of the driving piece is provided with a second transmission piece, and the outer side of the second transmission piece is connected with the outer side of the first transmission piece in a meshed mode.
7. The reinforced concrete drain inspection and monitoring device of claim 6, wherein the first arcuate recess has an anti-slip rubber cushion mounted therein.
