CN219122717U - A portable data storage disk - Google Patents

Abstract

The utility model relates to the technical field of data storage disks, in particular to a portable data storage disk. The storage device includes a through groove, and the inner wall surfaces on both sides of the through groove are provided with slide grooves. There is a T-shaped sliding connection between the two slide grooves. The sliding plate has grooves on both sides of the placement frame, and a displacement frame is slidingly connected between the two grooves. One side surface of the displacement frame is threaded with bolts, and one side surface of the placement frame is provided with two threaded holes. Two springs are fixedly installed between the end surface of the moving plate away from the connecting rod and the top inner wall surface of the displacement frame, and a U-shaped tie rod is fixedly installed on the surface of the moving plate far away from the connecting rod, and the U-shaped tie rod and the displacement frame are slidingly connected. A slot is provided on the top surface of the storage case. The utility model solves the problem that when the existing portable data storage device is detached from the computer, its port will be exposed to the air, and the dust in the external air may enter into the port.

Description

A portable data storage disk

technical field

The utility model relates to the technical field of data storage disks, in particular to a portable data storage disk.

Background technique

The data storage disk is recorded in a certain format on the internal or external storage medium of the computer to save data and prevent data loss. Nowadays, most commonly used data storage is portable data storage. Common portable data storage includes U disk and mobile hard disk.

The existing publication number is CN216527230U, a portable data storage device. This patent adopts the method of pulling out the belt from the winding box, so that the two belts are combined to form a circle, so that the belt and the hanging ear can be set on the operator's body as a whole. On the wrist, it greatly reduces the possibility of losing the U disk.

The inventor found in daily work that when the portable data storage device is separated from the computer, its port will be exposed to the air, and the dust in the outside air may enter the port, which will lead to poor contact next time when it is connected to the computer over time. If the phenomenon occurs, it will further reduce the normal service life of the device.

Utility model content

The purpose of this utility model is to solve the technical problems in the background above, and propose a portable data storage disk.

In order to achieve the above purpose, the utility model adopts the following technical solution: a portable data storage disk, including a storage case, a fixing belt is fixedly installed on one side surface of the storage case, and a storage The disk body, the top surface of the storage case is fixed with a placement frame, the interior of the placement frame is provided with a sealing plate, the top surface of the storage case is provided with a storage device, the storage device includes a through groove, and the through passage The slot is set on the top surface of the storage case, and the inner wall surfaces on both sides of the through slot are provided with chute, and a T-shaped slide plate is slidably connected between the two chute slots, and the bottom surface of the T-shaped slide plate is connected to the storage disk. The top surface of the body is fixedly attached. Grooves are provided on both sides of the placement frame, and a displacement frame is slidably connected between the two grooves. One side surface of the displacement frame is threaded with bolts, and one side surface of the placement frame is opened. There are two threaded holes, the setting of the chute has the effect of allowing the T-shaped slide to move, the setting of the T-shaped slide has the effect of driving the storage disk body to move inside the storage case, and the setting of the bolts and threaded holes restricts The effect that the displacement frame moves inside the groove.

Preferably, vertical grooves are provided on the inner wall surfaces of both sides of the displacement frame, and a moving plate is slidably connected between the two vertical grooves, and four connecting rods are fixedly installed on the bottom surface of the moving plate, and the four connecting rods Every two connecting rods are a group, and the end of each group of connecting rods away from the moving plate is fixedly equipped with a pressing plate, and the setting of the pressing plate has the effect of compressing and fixing the sealing plate inside the placement frame.

Preferably, two springs are fixedly installed between the end surface of the moving plate away from the connecting rod and the top inner wall surface of the displacement frame, and a U-shaped pull rod is fixedly installed on the end surface of the moving plate away from the connecting rod, and the U-shaped There is a sliding connection between the pull rod and the displacement frame, and a slot is opened on the top surface of the storage case, and the slot and the inner space of the storage case are connected to each other, and the sealing plate and the slot are arranged to seal the storage case , the setting of the U-shaped tie rod has played the effect of driving the moving plate to move inside the vertical groove, and the setting of the spring has played the effect of limiting the position of the moving plate inside the vertical groove.

Preferably, the top surface of the T-shaped slide is provided with a limit device, the limit device includes a U-shaped bracket, the U-shaped bracket is fixedly connected to the top surface of the T-shaped slide, and the inner walls at both ends of the U-shaped bracket A threaded rod is rotatably connected between them, and a runner is fixedly installed at one end of the threaded rod. The setting of the U-shaped bracket plays the effect of supporting the threaded rod, and the setting of the runner plays the effect of driving the threaded rod to rotate.

Preferably, the surface of the threaded rod is threadedly connected with a movable plate, the inner wall surface of the U-shaped bracket is provided with a bar-shaped groove, and the movable plate is slidably connected with the threaded rod and the bar-shaped groove, and the setting of the threaded rod plays a role in driving The effect that the active board moves inside the bar slot.

Preferably, a limit rod is fixedly installed on the surface of the movable plate, and a plurality of limit holes are evenly opened on the top surface of the storage case, and the setting of the limit rod and the limit holes can limit the movement of the T-shaped slide plate in the chute. The effect of internal position.

Compared with the prior art, the utility model has the advantages and positive effects that:

1. In the utility model, by setting the storage device, when it is necessary to protect the used storage disk body, firstly slide the T-shaped slide plate, so that the T-shaped slide plate moves inside the chute, and the T-shaped slide plate is in the middle of the chute. The internal movement drives the storage disk body to move, and then the storage disk body enters the interior of the storage case. When the storage disk body enters the interior of the storage case, pull the U-shaped pull rod upward, and the U-shaped pull rod moves upward to drive the mobile plate in the vertical direction. The inside of the groove moves upwards, and the moving plate moves upwards inside the vertical groove, which will also squeeze the spring, so that the spring is compressed by force. At the same time, the moving plate moves upwards inside the vertical groove and drives the connecting rod to move upward. The pressure plate moves upwards. When the position of the pressure plate moved upwards is higher than the height of the placement frame, the bolt is loosened at this time, and the bolt is screwed out from the inside of the threaded hole. The separation between the bolt and the threaded hole makes the gap between the displacement frame and the groove lost Limit, at this time, slide the displacement frame, so that the displacement frame slides out from the inside of the groove. At this time, the sealing plate loses the extrusion of the pressure plate and the blocking of the displacement frame, and the sealing plate can be taken out from the inside of the placement frame, and then put The removed sealing plate is inserted into the inside of the storage case through the slot to seal the storage case. Through the cooperation of the above structure, the sealing plate can seal the port of the storage disk body, and the dust from the outside will not enter the inside of the port. Damage to the storage disk body ensures the normal service life of the storage disk body.

2. In the utility model, by setting the limit device, when the storage disk body is located outside the storage case for use, the runner can be rotated to drive the threaded rod to rotate, and the rotation of the threaded rod will drive the movable plate in the strip groove. The inside of the moving plate moves downward, and the movable plate moves downward inside the strip groove to drive the limit rod to move downward. The limit rod moves down to insert itself into the corresponding limit hole, and the limit rod and the limit hole are inserted Then, the position of the T-shaped slide plate inside the chute is limited, and the position of the T-shaped slide plate inside the chute is limited, thereby restricting the position of the storage disk body. Through the cooperation of the above structures, the The position can be fixed, so as to prevent the computer from retracting into the inside of the storage case when it is plugged into the computer, which further improves the practicability of the device.

Description of drawings

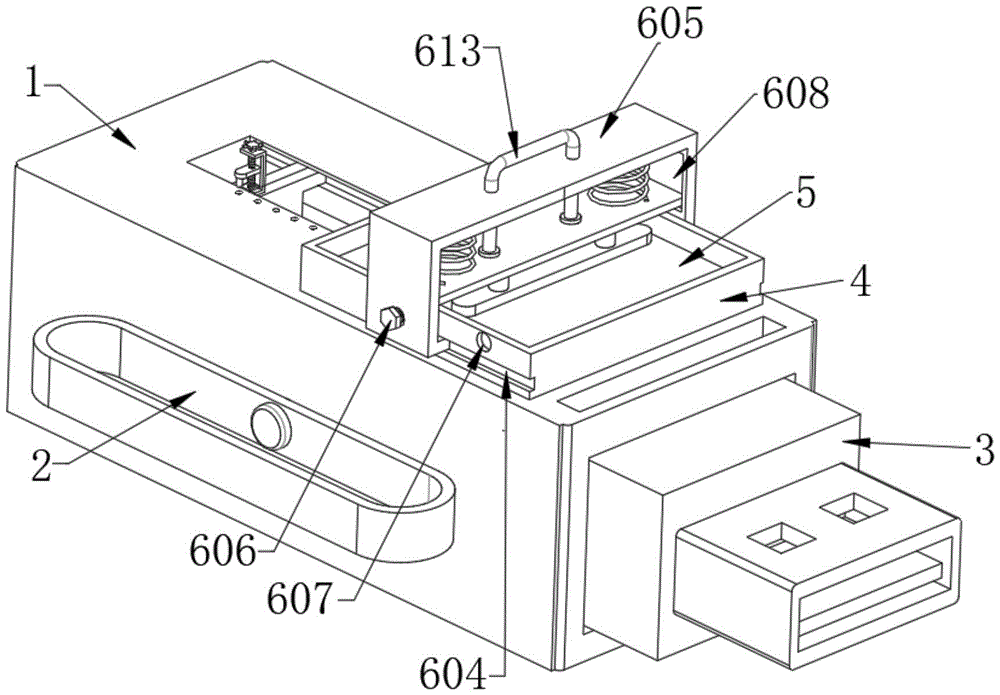

Fig. 1 is a three-dimensional structural schematic diagram of a portable data storage disk proposed by the present invention;

Fig. 2 is a left view structure schematic diagram of a portable data storage disk proposed by the utility model;

Fig. 3 is a right view structure diagram of a portable data storage disk proposed by the present invention;

Fig. 4 is a schematic structural view of A in Fig. 3 of a portable data storage disk proposed by the present invention;

illustration:

1. Storage case; 2. Fixing belt; 3. Storage disk body; 4. Placement frame; 5. Sealing plate; 6. Storage device; 601. Through groove; Slot; 605, displacement frame; 606, bolt; 607, threaded hole; 608, vertical slot; 609, moving plate; 610, connecting rod; 611, pressing plate; 612, spring; 613, U-shaped pull bar; 614, slot; 7, limit device; 71, U-shaped bracket; 72, threaded rod; 73, runner; 74, movable plate; 75, strip groove; 76, limit rod; 77, limit hole.

Detailed ways

In order to understand more clearly the above purpose, features and advantages of the utility model, the utility model will be further described below in conjunction with the accompanying drawings and embodiments. It should be noted that, in the case of no conflict, the embodiments of the present application and the features in the embodiments can be combined with each other.

In the following description, a lot of specific details have been set forth in order to fully understand the utility model, but the utility model can also be implemented in other ways that are different from those described here. Therefore, the utility model is not limited to the specific details of the following disclosure EXAMPLE LIMITATIONS.

Please refer to Figures 1-4, the utility model provides a technical solution: a portable data storage disk, including a storage case 1, a fixing belt 2 is fixedly installed on one side surface of the storage case 1, and the inside of the storage case 1 is slidingly connected There is a storage disk body 3 , a placement frame 4 is fixedly installed on the top surface of the storage case 1 , and a sealing plate 5 is arranged inside the placement frame 4 .

Let's talk about the specific settings and functions of the storage device 6 and the limiting device 7 in detail below.

In this embodiment: the top surface of the storage case 1 is provided with a storage device 6, the storage device 6 includes a through groove 601, the through groove 601 is set on the top surface of the storage case 1, and the inner wall surfaces on both sides of the through groove 601 are provided with chute 602 , a T-shaped sliding plate 603 is slidably connected between the two sliding grooves 602 , and the bottom surface of the T-shaped sliding plate 603 is fixedly connected with the top surface of the storage disk body 3 . Both sides of the placement frame 4 are provided with grooves 604, and a displacement frame 605 is slidably connected between the two grooves 604. One side surface of the displacement frame 605 is threaded with bolts 606, and one side surface of the placement frame 4 is provided with Two threaded holes 607 .

In this embodiment: the setting of the chute 602 has the effect of allowing the T-shaped slide plate 603 to move, the setting of the T-shaped slide plate 603 has the effect of driving the storage disk body 3 to move inside the storage case 1, and the bolt 606 and the screw thread The setting of the hole 607 has the effect of restricting the movement of the displacement frame 605 inside the groove 604 .

Specifically, vertical slots 608 are provided on both sides of the displacement frame 605. A moving plate 609 is slidably connected between the two vertical slots 608. The bottom surface of the moving plate 609 is fixedly equipped with four connecting rods 610. Two rods 610 form a group, and the end of each group of connecting rods 610 away from the moving plate 609 is fixedly mounted with a pressure plate 611 .

In this embodiment: the setting of the pressing plate 611 has the effect of pressing and fixing the sealing plate 5 inside the placement frame 4 .

Specifically, two springs 612 are fixedly installed between the surface of one end of the moving plate 609 away from the connecting rod 610 and the top inner wall surface of the displacement frame 605, and a U-shaped pull bar 613 is fixedly installed on the surface of the moving plate 609 away from the end of the connecting rod 610. The pull rod 613 is slidingly connected to the displacement frame 605 , and a slot 614 is provided on the top surface of the storage case 1 , and the slot 614 communicates with the inner space of the storage case 1 . The setting of the sealing plate 5 and the slot 614 has the effect of sealing the storage case 1, the setting of the U-shaped tie rod 613 has the effect of driving the moving plate 609 to move inside the vertical groove 608, and the setting of the spring 612 has played a role in restricting the movement. The effect of the position of the plate 609 inside the vertical slot 608.

In this embodiment: the top surface of the T-shaped slide plate 603 is provided with a limiting device 7, the limiting device 7 includes a U-shaped bracket 71, the U-shaped bracket 71 and the top surface of the T-shaped slide plate 603 are fixedly connected, and the two sides of the U-shaped bracket 71 A threaded rod 72 is rotatably connected between the end inner walls, and a runner 73 is fixedly installed on one port of the threaded rod 72 . When the storage disk body 3 is used outside the storage case 1, the runner 73 can be turned to drive the threaded rod 72 to rotate, and the threaded rod 72 can rotate to drive the movable plate 74 to move downwards inside the strip groove 75. , the movable plate 74 moves downward in the inside of the strip groove 75 to drive the stop bar 76 to move downward, and the stop bar 76 moves down to insert itself into the corresponding stop hole 77, and the stop bar 76 and the stop hole 77 is plugged in so as to limit the position of the T-shaped slide plate 603 inside the chute 602, and the position of the T-shaped slide plate 603 inside the chute 602 is limited and thus the position of the storage disk body 3 is limited. Through the cooperation of the above structures, the The position of the storage disk in use can be fixed, thereby preventing it from retracting into the interior of the storage case 1 when it is plugged into the computer, which further improves the practicability of the device.

Specifically, the movable plate 74 is threadedly connected to the surface of the threaded rod 72 , and the inner wall surface of the U-shaped bracket 71 is provided with a bar-shaped groove 75 , and the movable plate 74 is slidably connected with the threaded rod 72 and the bar-shaped groove 75 .

In this embodiment: the setting of the threaded rod 72 has the effect of driving the movable plate 74 to move inside the bar-shaped groove 75 .

Specifically, a limiting rod 76 is fixedly installed on the surface of the movable plate 74 , and a plurality of limiting holes 77 are uniformly opened on the top surface of the storage case 1 .

In this embodiment: the setting of the limiting rod 76 and the limiting hole 77 has the effect of limiting the position of the T-shaped sliding plate 603 inside the slide groove 602 .

Working principle: by setting the storage device 6, when it is necessary to protect the used storage disk body 3, firstly slide the T-shaped slide plate 603, so that the T-shaped slide plate 603 moves inside the chute 602, and the T-shaped slide plate 603 is on the slide The internal movement of the groove 602 drives the storage disk body 3 to move, and then the storage disk body 3 enters the interior of the storage case 1. When the storage disk body 3 enters the interior of the storage case 1, the U-shaped pull rod 613 is pulled upward at this time, and the U-shaped pull rod 613 is pulled upward. The upward movement of the pull rod 613 drives the movable plate 609 to move upward in the vertical groove 608, and the upward movement of the movable plate 609 in the vertical groove 608 also squeezes the spring 612, so that the spring 612 is compressed by force, and the movable plate 609 moves upward in the vertical groove 608. The upward movement of the inside of the groove 608 also drives the connecting rod 610 to move upward, and the upward movement of the connecting rod 610 drives the pressing plate 611 to move upward. Bolt 606 is unscrewed from the inside of threaded hole 607, and bolt 606 and threaded hole 607 are separated and lost between the displacement frame 605 and the groove 604, and at this moment, the sliding displacement frame 605 makes the displacement frame 605 from the groove 604. The inside slides out, and at this time the sealing plate 5 loses the extrusion of the pressing plate 611 and the blocking of the displacement frame 605, the sealing plate 5 can be taken out from the inside of the placement frame 4, and then the taken out sealing plate 5 is inserted into the storage through the slot 614 The inside of the case 1 seals the storage case 1, and through the cooperation of the above structure, the sealing plate 5 can seal the port of the storage disk body 3, and the dust from the outside will not enter the inside of the port, thereby causing damage to the storage disk body 3. damage, the normal service life of the storage disk body 3 is guaranteed. When the storage disk body 3 is used outside the storage case 1, the runner 73 can be turned to drive the threaded rod 72 to rotate, and the threaded rod 72 can rotate to drive the movable plate 74 to move downwards inside the strip groove 75. , the movable plate 74 moves downward in the inside of the strip groove 75 to drive the stop bar 76 to move downward, and the stop bar 76 moves down to insert itself into the corresponding stop hole 77, and the stop bar 76 and the stop hole 77 is plugged in so as to limit the position of the T-shaped slide plate 603 inside the chute 602, and the position of the T-shaped slide plate 603 inside the chute 602 is limited and thus the position of the storage disk body 3 is limited. Through the cooperation of the above structures, the The position of the storage disk in use can be fixed, thereby preventing it from retracting into the interior of the storage case 1 when it is plugged into the computer, which further improves the practicability of the device.

The above is only a preferred embodiment of the utility model, and is not intended to limit the utility model in other forms. Any skilled person who is familiar with this profession may use the technical content disclosed above to change or remodel it into an equivalent change. The equivalent embodiments are applied to other fields, but any simple modifications, equivalent changes and modifications made to the above embodiments according to the technical essence of the present invention without departing from the content of the technical solution of the present utility model still belong to the technical solution of the present utility model In the description of the utility model, it should be noted that, unless otherwise specified and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection, It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediary, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention through specific situations.

Claims (6)

1. The utility model provides a portable data storage dish, includes storage shell (1), one side fixed surface of storage shell (1) installs fixed band (2), the inside sliding connection of storage shell (1) has storage disk body (3), the top fixed surface of storage shell (1) installs places frame (4), the inside of placing frame (4) is equipped with closing plate (5), its characterized in that: the storage device comprises a storage shell (1), wherein the top surface of the storage shell (1) is provided with a storage device (6), the storage device (6) comprises a through groove (601), the through groove (601) is formed in the top surface of the storage shell (1), sliding grooves (602) are formed in the inner wall surfaces of two sides of the through groove (601), a T-shaped sliding plate (603) is connected between the two sliding grooves (602) in a sliding mode, and the bottom surface of the T-shaped sliding plate (603) is fixedly connected with the top surface of a storage disc body (3); the two side surfaces of the placement frame (4) are provided with grooves (604), two grooves (604) are connected with a displacement frame (605) in a sliding manner, one side surface of the displacement frame (605) is connected with bolts (606) in a threaded manner, and one side surface of the placement frame (4) is provided with two threaded holes (607).

2. A portable data storage disk as claimed in claim 1, wherein: vertical grooves (608) are formed in the inner wall surfaces of two sides of the displacement frame (605), a movable plate (609) is connected between the vertical grooves (608) in a sliding mode, four connecting rods (610) are fixedly arranged on the bottom surface of the movable plate (609), every two connecting rods (610) are in a group, and a pressing plate (611) is fixedly arranged at one end, far away from the movable plate (609), of each group of connecting rods (610).

3. A portable data storage disk according to claim 2, wherein: two springs (612) are fixedly installed between one end surface of a connecting rod (610) and the top inner wall surface of a displacement frame (605) are far away from to a movable plate (609), a U-shaped pull rod (613) is fixedly installed on one end surface of the connecting rod (610) is far away from to the movable plate (609), sliding connection is achieved between the U-shaped pull rod (613) and the displacement frame (605), a slot (614) is formed in the top surface of the storage shell (1), and the slot (614) and the inner space of the storage shell (1) are mutually communicated.

4. A portable data storage disk as claimed in claim 1, wherein: the top surface of T type slide (603) is equipped with stop device (7), stop device (7) are including U type support (71), the top surface fixed connection of U type support (71) and T type slide (603), rotate between the both ends inner wall of U type support (71) and be connected with threaded rod (72), one end port fixed mounting of threaded rod (72) has runner (73).

5. A portable data storage disk as claimed in claim 4, wherein: the surface threaded connection of threaded rod (72) has fly leaf (74), bar groove (75) have been seted up on the inner wall surface of U type support (71), fly leaf (74) are with the help of threaded rod (72) and bar groove (75) sliding connection.

6. A portable data storage disk as claimed in claim 5, wherein: the surface of the movable plate (74) is fixedly provided with a limiting rod (76), and a plurality of limiting holes (77) are uniformly formed in the top surface of the storage shell (1).
