Abstract
The utility model relates to the technical field of filling equipment, in particular to a filling device for dry powder mortar, which comprises a pressing handle, wherein the outer surface of the pressing handle is fixedly connected with a connecting rod, the bottom of the connecting rod is fixedly connected with a fixed frame, the bottom of the fixed frame is movably connected with a rotary table, the bottom of the rotary table is fixedly connected with a long rod, the bottom of the long rod is fixedly connected with a short rod, two ends of the connecting rod are slidably connected with side frames, the side surfaces of the side frames are fixedly connected with a blanking pipe, the improved filling device for dry powder mortar can accelerate the dropping speed of dry powder mortar through the rotation of a helical blade, meanwhile, the residual of an inner wall can be cleaned, the consumption is reduced, the structure of a middle rotating box can prevent the environmental pollution caused by dropping to the greatest extent, meanwhile, the packaging bag and the filling process can not be interrupted through the material separating structure, and the filling efficiency and the working efficiency can be jointly improved.
Description
Technical Field
The utility model relates to the technical field of filling equipment, in particular to a filling device for dry powder mortar.
Background
The dry powder mortar is a granular or powdery material which is formed by physically mixing the dry and screened aggregate, inorganic cementing material, additive and the like according to a certain proportion, and is transported to a construction site in a bag or bulk mode, and the materials can be directly used after being mixed by adding water, and various types of dry powder mortar filling machines can be used in the filling process of the dry powder mortar.
In addition, most of the dry powder mortar filling machines fill materials into the packaging bags through conveying pipes, however, when the materials are filled into the packaging bags, the bottoms of the packaging bags are generally directly placed on a bearing table of equipment, and after the materials are filled, the whole product is heavy, so that the material is laborious to discharge; meanwhile, most of the existing filling equipment pushes dry powder mortar to flow downwards by means of natural gravity, so that the filling efficiency is affected, residues exist on the inner wall of the equipment easily, and waste is caused.
The inventors found that the following problems exist in the prior art in the process of implementing the present utility model: 1. in the filling process, the packaging bag is not easy to fix, and when the next packaging bag is replaced, an outflow gap exists, so that loss and waste are caused, the persistence is poor, and the feeding is laborious after the filling is finished; 2. the structure for accelerating the flow rate of the dry powder mortar is not provided, the inner wall cannot be cleaned in time to reduce the loss, and meanwhile, the dry powder mortar is easy to splash due to the height difference during filling, so that the environment pollution is caused.
Disclosure of Invention
The utility model aims to provide a filling device for dry powder mortar, which solves the problems of low filling efficiency, high loss, inconvenient taking and fixing of packaging bags and poor continuity in the prior art. In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a filling device for dry powder mortar, includes presses the handle, the surface fixedly connected with connecting rod according to the handle, the bottom fixedly connected with fixed frame of connecting rod, the bottom swing joint of fixed frame has the carousel, the bottom fixedly connected with stock of carousel, the bottom fixedly connected with quarter butt of stock, the both ends sliding connection of connecting rod has the sideframe, the side fixedly connected with unloading pipe of sideframe, the side fixedly connected with feed inlet of unloading pipe, the bottom parallel arrangement of feed inlet has the main tank, the one end swing joint of unloading pipe has the division board, the side fixedly connected with handle of division board, the bottom parallel arrangement of handle has the loop bar, the one side parallel arrangement of leaning on of loop bar has the discharge rod, the one end fixedly connected with transfer box of discharge rod, the inside fixedly connected with fixed plate of main box, the one end fixedly connected with butt plate of butt plate, the side swing joint of butt plate has the tray, the inside sliding connection of tray has the push pedal, the side fixedly connected with tensile handle of push pedal, the side fixedly connected with handle, the bottom parallel arrangement of tension bracket has the bottom parallel arrangement of the base.
Further preferably, a sliding rail structure is designed between the connecting rod and the side frame.
Further preferably, a strong tension rope structure is designed between the fixed frame and the turntable.
Further preferably, the transfer box is designed into a plurality of symmetrical structures, a connecting plate is designed in the middle of the adjacent transfer box, and a sliding rail structure is designed between the connecting plate and the partition plate.
Further preferably, a rod with a spring structure on the surface is designed between the fixing plate and the resisting plate.
Further preferably, the tray is designed to be a hollow structure, the size of the tray is consistent with that of the push plate, and the stretching rod connected with the side surface of the push plate is designed to be a connecting shaft and a spring structure.
Compared with the prior art, the utility model has the beneficial effects that:
according to the utility model, the falling speed of the dry powder mortar can be accelerated through the rotation of the rotary blade, meanwhile, the residue on the inner wall can be cleaned, the consumption is reduced, and the structure of the middle rotary box can prevent the environmental pollution caused by falling to the greatest extent.
According to the utility model, the fixing rod is used for conveniently fixing the packaging bag and extracting after filling, the structure is labor-saving, the filling process can not be interrupted through the material separating structure, and the filling efficiency and the working efficiency are improved together.
Drawings

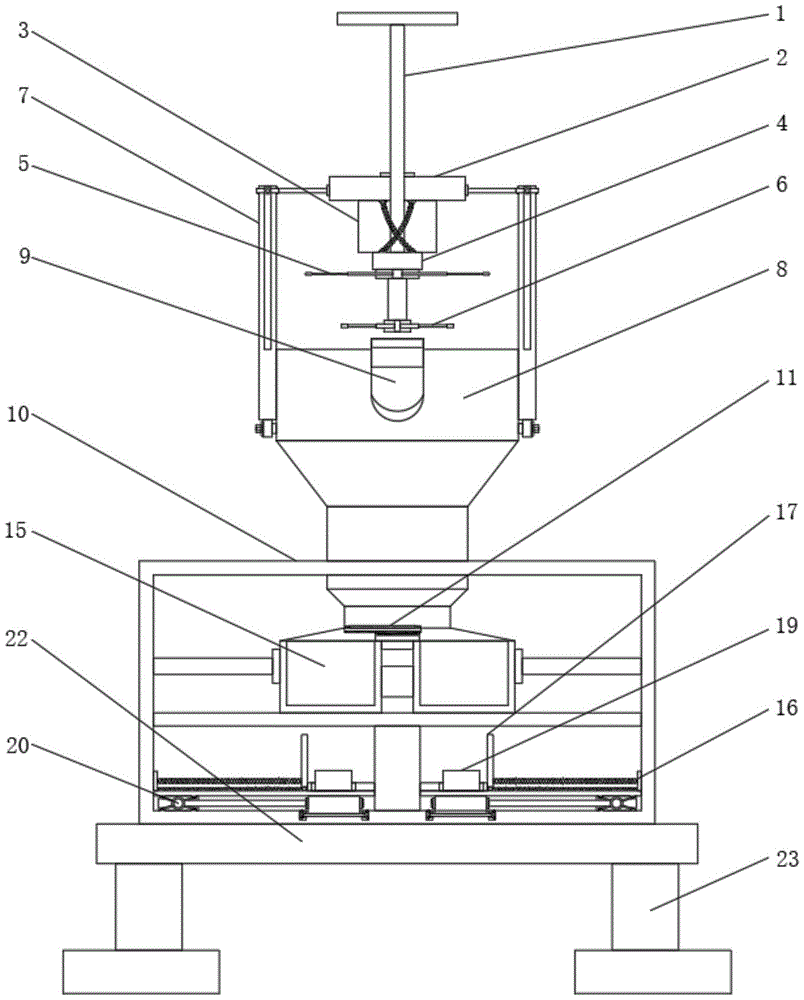

FIG. 1 is a schematic diagram of the front internal structure of the present utility model;
FIG. 2 is a schematic elevational view of the present utility model;
FIG. 3 is a schematic side view of the internal structure of the present utility model;
fig. 4 is a schematic side view of the present utility model.
In the figure: 1. pressing the handle; 2. a connecting rod; 3. a fixed frame; 4. a turntable; 5. a long rod; 6. a short bar; 7. a side frame; 8. discharging pipes; 9. a feed inlet; 10. a main box; 11. a dividing plate; 12. a grip; 13. a loop bar; 14. a discharging rod; 15. a transfer box; 16. a fixing plate; 17. a retaining plate; 18. a tray; 19. a push plate; 20. a stretching rod; 21. a pull handle; 22. a base; 23. and (3) a bracket.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which are obtained by a worker of ordinary skill in the art without creative efforts, are within the protection scope of the present utility model based on the embodiments of the present utility model.
Referring to fig. 1 to 4, the present utility model provides a technical solution: the utility model provides a filling device for dry powder mortar, including pressing 1, press the surface fixedly connected with connecting rod 2 of 1, the fixed frame 3 of bottom fixedly connected with of connecting rod 2, the bottom swing joint of fixed frame 3 has carousel 4, the bottom fixedly connected with stock 5 of carousel 4, the bottom fixedly connected with quarter butt 6 of stock 5, the both ends sliding connection of connecting rod 2 has sideframe 7, the side fixedly connected with unloading pipe 8 of sideframe 7, the side fixedly connected with feed inlet 9 of unloading pipe 8, the bottom parallel arrangement of feed inlet 9 has main tank 10, the one end swing joint of unloading pipe 8 has division board 11, the side fixedly connected with handle 12 of division board 11, the bottom parallel arrangement of handle 12 has loop bar 13, the one side parallel arrangement of the loop bar 13 has ejection of compact pole 14 in, the one end fixedly connected with transfer case 15 of ejection of compact pole 14, the inside fixedly connected with fixed plate 16 of main tank 10, the one end swing joint of fixed plate 16 has the butt plate 17, the side swing joint of butt plate 17 has tray 18, the inside sliding connection of tray 18 has push pedal 19, the side fixedly connected with push pedal 20 of push pedal 19, the side fixedly connected with handle 21, the bottom parallel arrangement of support 21 has the bottom of the fixed connection of pull rod 21, the bottom of the support 21 is fixed with the bottom of the pull rod 21.
In this embodiment, as shown in fig. 1, a sliding rail structure is designed between the connecting rod 2 and the side frame 7, and it should be noted that, the sliding rail structure can play a limiting role, so as to prevent the pressing handle 1 from shaking when being pressed down, and reduce the pressing resistance when the long rod 5 and the short rod 6 accelerate the falling and cleaning of the dry powder mortar.
In this embodiment, as shown in fig. 1, a strong tension rope structure is designed between the fixed frame 3 and the turntable 4, and it should be noted that, when the handle 1 is pressed down by the strong tension rope structure, the turntable 4 is driven to rotate, and meanwhile, a return tension force is provided to cause a rotary force, so as to accelerate dry powder mortar to fall.
In this embodiment, as shown in fig. 1, the transfer box 15 is designed into a plurality of symmetrical structures, a connecting plate is designed in the middle of the adjacent transfer box 15, and a sliding rail structure is designed between the connecting plate and the dividing plate 11, and it should be noted that, through the symmetrical and connecting plate structures, the connecting distance is ensured to be constant, and as the packaging bag on one side is filled, the handgrip 12 is pressed so that the dividing plate 11 is quickly switched to the other side along the sliding rail, so that the filling process can not be middle-stage, and the continuity is ensured.
In this embodiment, as shown in fig. 1, a rod with a surface spring structure is designed between the fixing plate 16 and the retaining plate 17, and it should be noted that, after the retaining plate 17 fixes the packaging bag, the packaging bag can be fixed along with the filling of the dry powder mortar, and continuous extrusion force is provided to fix the packaging bag.
In this embodiment, as shown in fig. 1, the tray 18 is designed into a hollow structure, the size is consistent with that of the push plate 19, and the stretching rod 20 connected to the side surface of the push plate 19 is designed with a connecting shaft and a spring structure, which needs to be noted, through the hollow structure of the tray 18, the push plate 19 is convenient to move back and forth, meanwhile, the push plate 19 is connected with the stretching rod 20, the pull handle 21 is convenient to pull out the packaging bag, time and labor are saved, and meanwhile, the connecting shaft and the spring structure can help the pull handle 21 and the push plate 19 to reset.
The application method and the advantages of the utility model are as follows: when the filling device for the dry powder mortar is used, the working process is as follows:
as shown in fig. 1, fig. 2, fig. 3 and fig. 4, firstly, a bracket 23 and a base 22 are arranged, the packaging bag is put on a loop bar 13, the packaging bag in the loop bar 13 is fixed by a cap, the bag mouth is aligned to a discharging bar 14, dry powder mortar is poured into a blanking tube 8 from a feeding hole 9, a pressing handle 1 is pressed down, a connecting rod 2 slides down along a side frame 7, a turntable 4 is separated from the bottom of a fixed frame 3, a long bar 5 and a short bar 6 are driven to rotate in the blanking tube 8, the dropping speed is accelerated, residual is cleared, dry powder mortar flows into a split plate 11 from a main box 10 and enters a transfer box 15, a withstanding plate 17 moves along a rod between the dividing plate 11 and the fixed plate 16 along with the gradual bulge of the packaging bag, a certain amount of filling is pressed, a pulling handle 21 is pulled to drive a stretching rod 20 to move forward, a push plate 19 pushes forward along the hollow position of a tray 18, after people take conveniently, the pulling handle 21 resets under the acting force of the stretching rod 20, and the pressing handle 12 moves the split plate 11 to enable the leak to face to the transfer box 15 at the other side.
The foregoing has shown and described the basic principles, principal features and advantages of the utility model. It will be understood by those skilled in the art that the present utility model is not limited to the above-described embodiments, and that the above-described embodiments and descriptions are only preferred embodiments of the present utility model, and are not intended to limit the utility model, and that various changes and modifications may be made therein without departing from the spirit and scope of the utility model as claimed. The scope of the utility model is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides a filling device for dry powder mortar, includes according to handle (1), its characterized in that: the utility model discloses a movable pallet (17) of a pallet, which comprises a fixed frame (3) fixedly connected with the surface of pressing (1), the bottom fixedly connected with fixed frame (3) of connecting rod (2), the bottom swing joint of fixed frame (3) has carousel (4), the bottom fixedly connected with stock (5) of carousel (4), the bottom fixedly connected with stock (6) of stock (5), the both ends sliding connection of connecting rod (2) has sideframe (7), the side fixedly connected with unloading pipe (8) of sideframe (7), the side fixedly connected with feed inlet (9) of unloading pipe (8), the bottom parallel arrangement of feed inlet (9) has master box (10), the one end swing joint of unloading pipe (8) has division board (11), the side fixedly connected with handle (12) of division board (11), the bottom parallel arrangement of handle (12) has loop bar (13), the one side parallel arrangement has ejection of compact pole (14) near inside, the one end fixedly connected with master box (15) of ejection of compact pole (14), the one end fixedly connected with master box (16) of the interior fixedly connected with pallet (17), the inside sliding connection of tray (18) has push pedal (19), the side fixedly connected with stretching rod (20) of push pedal (19), the one end fixedly connected with of stretching rod (20) draws handle (21), the bottom parallel arrangement of drawing handle (21) has base (22), the bottom fixedly connected with support (23) of base (22).
2. The filling device for dry powder mortar according to claim 1, wherein: the sliding rail structure is designed between the connecting rod (2) and the side frame (7).
3. The filling device for dry powder mortar according to claim 1, wherein: a strong tension rope structure is designed between the fixed frame (3) and the turntable (4).
4. The filling device for dry powder mortar according to claim 1, wherein: the transfer boxes (15) are designed to be of a plurality of symmetrical structures, connecting plates are designed in the middle of the adjacent transfer boxes (15), and sliding rail structures are designed between the connecting plates and the partition plates (11).
5. The filling device for dry powder mortar according to claim 1, wherein: the rod with the surface provided with the spring structure is designed between the fixing plate (16) and the resisting plate (17).
6. The filling device for dry powder mortar according to claim 1, wherein: the tray (18) is designed into a hollow structure, the size of the tray is consistent with that of the push plate (19), and a stretching rod (20) connected with the side surface of the push plate (19) is designed into a connecting shaft and spring structure.
