CN219113347U

CN219113347U - Anti-tilting installation equipment

Info

Publication number: CN219113347U
Application number: CN202223423859.2U
Authority: CN
Inventors: 赵鸣; 赵雅敬
Original assignee: Shandong Jinxin Energy Technology Co ltd
Current assignee: Shandong Jinxin Energy Technology Co ltd
Priority date: 2022-12-21
Filing date: 2022-12-21
Publication date: 2023-06-02
Anticipated expiration: 2032-12-21

Abstract

The utility model discloses anti-tilting mounting equipment which comprises a mounting block, wherein a mounting base is fixedly mounted at the bottom of the mounting block, a limit column is arranged on the back surface of the mounting block, a thread groove is formed in the limit column, thread sleeves are fixedly mounted at the top and the bottom of the front surface of the mounting block, two through grooves are formed in the mounting block, a movable rod is arranged in the through grooves, a limit block is fixedly mounted on the front surface of the movable rod, and two fixing grooves are formed in the limit block. According to the utility model, the installation block is arranged to install the threaded sleeve and the installation base, the installation base is arranged to fix the installation block, the threaded sleeve is arranged to fix two sides of the equipment, the through groove is arranged to accommodate the moving rod, the fixing groove is arranged to accommodate the equipment, and the accommodating groove is arranged to limit the positioning column.

Description

Anti-tilting installation equipment

Technical Field

The utility model relates to the technical field of engineering equipment, in particular to anti-tilting mounting equipment.

Background

Engineering equipment refers to electromechanical equipment, metallic structural equipment, instrumentation and other similar equipment and devices that form or are intended to form part of a permanent engineering, including: equipment in the basic construction project and equipment in the enterprise technical transformation.

When the engineering equipment is installed, the engineering equipment needs to be perpendicular to a horizontal plane, the installation position is usually leveled firstly, and then the engineering equipment is installed on the installation surface, but in the installation process, the equipment is easy to incline, and in most cases, the engineering equipment is manually righted, and the support of the engineering equipment does not have an anti-incline function, so that the trouble is increased for users.

Disclosure of Invention

(one) solving the technical problems

Aiming at the defects of the prior art, the utility model aims to provide the anti-tilting mounting equipment which has the advantage of good anti-tilting effect, and solves the problems that the equipment is easy to tilt in the mounting process, and is manually righted under most conditions, and the bracket does not have the anti-tilting function, so that the trouble is added to users.

(II) technical scheme

The technical scheme includes that the anti-tilting mounting device comprises a mounting block, a mounting base is fixedly mounted at the bottom of the mounting block, a limit column is arranged on the back of the mounting block, a thread groove is formed in the limit column, thread sleeves are fixedly mounted at the top and the bottom of the front face of the mounting block, two through grooves are formed in the mounting block, a movable rod is arranged in the through grooves, a limiting block is fixedly mounted on the front face of the movable rod, two fixing grooves are formed in the limiting block, containing grooves are formed in the limiting block and are formed in two sides of the fixing grooves, positioning columns are arranged in the containing grooves, and second sliding grooves are formed in the limiting block and are formed in two sides of the containing grooves.

As a preferable scheme, the inside of the thread groove is rotationally connected with a threaded rod, and the front surface of the threaded rod is fixedly connected with the back surface of the mounting block.

Preferably, a second spring is fixedly arranged in the accommodating groove, and one side, relatively close to the second spring, of the second spring is fixedly connected with one side, relatively far away from the positioning column.

As a preferable scheme, the second sliding groove is internally and slidably connected with a second sliding block, and one side, relatively close to the second sliding block, of the second sliding block is fixedly connected with two sides of the positioning column.

As a preferable scheme, the back of the movable rod is fixedly provided with a first spring, and the back of the first spring is fixedly connected with the inner cavity of the through groove.

As the preferable scheme, the inside of installation piece just is located the both sides of logical groove and has all been seted up first spout, the inside sliding connection of first spout has first slider.

As a preferable scheme, one side of the first sliding block, which is relatively close to the first sliding block, is fixedly connected with two sides of the movable rod, and two mounting holes are formed in the mounting base.

(III) beneficial effects

Compared with the prior art, the utility model provides the anti-tilting mounting equipment, which has the following beneficial effects.

1. This installation equipment of preventing slope installs thread bush and installation base through setting up the installation piece, fix the installation piece through setting up the installation base, be convenient for fix the both sides of equipment through setting up the thread bush, hold the movable rod through setting up logical groove, be convenient for hold equipment through setting up the fixed slot, it is spacing to the reference column through setting up the holding tank, it is spacing to carry out the second slider through setting up the second spout, prevent that the second slider from rocking at the in-process of removal, the in-process of installation has been solved, the equipment is inclined easily, all be the manual work under the most circumstances and right, its support does not have the inclination-preventing function, thereby the trouble problem has been increased for the user.

2. This installation equipment of preventing slope is convenient for carry out spacingly to spacing post through setting up the thread groove, carries out spacingly to the center department of installation piece through setting up spacing post, resets the reference column through setting up the second spring, carries out spacingly to the reference column through setting up the second slider, prevents that the reference column from taking place to rock at the in-process that removes, carries out spacingly to the back of movable rod through setting up first spring, carries out spacingly to first slider through setting up first spout, prevents that first slider from taking place to rock at the in-process that removes, carries out spacingly to the movable rod through setting up first slider, prevents that the movable rod from taking place to rock at the in-process that removes.

Drawings

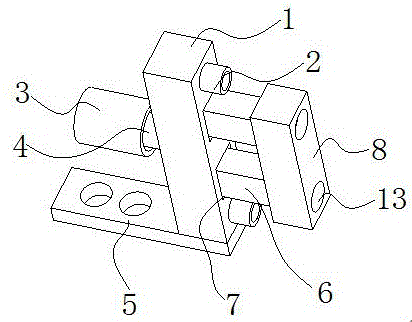

FIG. 1 is a schematic diagram of the structure of the present utility model;

FIG. 2 is a schematic side cross-sectional view of a mounting block according to the present utility model;

FIG. 3 is a schematic side sectional view of a stopper according to the present utility model;

fig. 4 is a schematic cross-sectional view of a spacing post according to the present utility model.

In the figure: 1. a mounting block; 2. a thread sleeve; 3. a limit column; 4. a threaded rod; 5. a mounting base; 6. a moving rod; 7. a through groove; 8. a limiting block; 9. a first chute; 10. a first slider; 11. a receiving groove; 12. a second spring; 13. a fixing groove; 14. a second slider; 15. a second chute; 16. positioning columns; 17. a thread groove; 18. a first spring.

Detailed Description

Embodiments of the present utility model are described in further detail below with reference to the accompanying drawings and examples. The following examples are illustrative of the utility model but are not intended to limit the scope of the utility model.

In the description of the present utility model, unless otherwise indicated, the meaning of "a plurality" is two or more; the terms "upper," "lower," "left," "right," "inner," "outer," "front," "rear," "head," "tail," and the like are used as an orientation or positional relationship based on that shown in the drawings, merely to facilitate description of the utility model and to simplify the description, and do not indicate or imply that the devices or elements referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the utility model. Furthermore, the terms "first," "second," "third," and the like are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present utility model, it should be noted that, unless explicitly specified and limited otherwise, the terms "connected," "connected," and "connected" are to be construed broadly, and may be either fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; can be directly connected or indirectly connected through an intermediate medium. The specific meaning of the above terms in the present utility model will be understood in specific cases by those of ordinary skill in the art.

Referring to fig. 1-4, the present utility model: the utility model provides a mounting equipment of preventing slope, including installation piece 1, the bottom fixed mounting of installation piece 1 has installation base 5, the back of installation piece 1 is provided with spacing post 3, thread groove 17 has been seted up to the inside of spacing post 3, the positive top of installation piece 1 and the equal fixed mounting of bottom have thread bush 2, two logical groove 7 have been seted up to the inside of installation piece 1, the inside of leading to groove 7 is provided with movable rod 6, the positive fixed mounting of movable rod 6 has stopper 8, two fixed slots 13 have been seted up to the inside of stopper 8, holding tank 11 has all been seted up to the inside of stopper 8 and the both sides that are located fixed slot 13, the inside of holding tank 11 is provided with reference column 16, second spout 15 has all been seted up to the inside of stopper 8 and the both sides that are located holding tank 11.

Through above-mentioned technical scheme, install thread bush 2 and installation base 5 through setting up installation piece 1, fix installation piece 1 through setting up installation base 5, be convenient for fix the both sides of equipment through setting up thread bush 2, hold movable rod 6 through setting up logical groove 7, be convenient for hold equipment through setting up fixed slot 13, it is spacing to reference column 16 through setting up holding tank 11, it is spacing to second slider 14 through setting up second spout 15, prevent that second slider 14 from taking place to rock at the in-process of removal.

The threaded rod 4 is rotatably connected in the threaded groove 17, and the front surface of the threaded rod 4 is fixedly connected with the back surface of the mounting block 1.

Through above-mentioned technical scheme, be convenient for carry out spacingly to spacing post 3 through setting up thread groove 17, spacing is carried out spacingly to the center department of installation piece 1 through setting up spacing post 3.

The second spring 12 is fixedly arranged in the accommodating groove 11, and one side, relatively close to the second spring 12, of the second spring is fixedly connected with one side, relatively far away from the positioning column 16.

By the above technical solution, the positioning column 16 is reset by providing the second spring 12.

The second sliding chute 15 is internally and slidably connected with a second sliding block 14, and one side, relatively close to the second sliding block 14, of the second sliding block is fixedly connected with two sides of the positioning column 16.

Through above-mentioned technical scheme, through setting up second slider 14 and spacing reference column 16, prevent that reference column 16 from taking place to rock at the in-process that removes.

The back of the movable rod 6 is fixedly provided with a first spring 18, and the back of the first spring 18 is fixedly connected with the inner cavity of the through groove 7.

Through the above technical scheme, the back of the movable rod 6 is limited by arranging the first spring 18.

The inside of installation piece 1 just lies in the both sides of leading to groove 7 and has all seted up first spout 9, and the inside sliding connection of first spout 9 has first slider 10.

Through above-mentioned technical scheme, through setting up first spout 9 and spacing first slider 10, prevent that first slider 10 from taking place to rock at the in-process that removes.

One side of the first sliding block 10, which is relatively close to the first sliding block, is fixedly connected with two sides of the movable rod 6, and two mounting holes are formed in the mounting base 5.

Through above-mentioned technical scheme, through setting up first slider 10 and spacing movable rod 6, prevent that movable rod 6 from taking place to rock at the in-process that removes.

The working principle of the utility model is that; during installation, the installation block 1 is installed by fixing the installation base 5 and the wall surface through the bolts, the limit column 3 is rotated, the limit column 3 moves to the back, the limit column 3 is supported by the wall body, the stability of the installation block 1 is improved, installed equipment enters the inner cavity of the limit block 8 through the fixing groove 13, the locating column 16 is used for fixing the installed equipment once under the action of the second spring 12, after the fixing, the installed equipment moves to the back, the installed equipment is secondarily fixed through the bolts and the threaded sleeve 2, and the deviation of the installed equipment is prevented.

Finally, it should be noted that the above embodiments are only for illustrating the technical solution of the present utility model, and not for limiting the scope of the present utility model, and although the present utility model has been described in detail with reference to the preferred embodiments, it should be understood by those skilled in the art that modifications or equivalent substitutions can be made to the technical solution of the present utility model without departing from the spirit and scope of the technical solution of the present utility model.

Claims

1. An anti-tilt mounting device comprising a mounting block (1), characterized in that: the utility model discloses a mounting block, including installation block (1), screw thread groove (17) are set up in the inside of installation block (1), screw thread sleeve (2) are all fixed mounting in the bottom of the bottom fixed mounting of installation block (1), two logical groove (7) have been seted up in the inside of installation block (1), the inside of logical groove (7) is provided with movable rod (6), the positive fixed mounting of movable rod (6) has stopper (8), two fixed slots (13) have been seted up in the inside of stopper (8), holding tank (11) have all been seted up in the inside of stopper (8) and the both sides that are located fixed slot (13), holding tank (11) are inside to be provided with reference column (16), second spout (15) have all been seted up in the inside of stopper (8) and the both sides that are located holding tank (11).

2. An anti-tilt mounting apparatus according to claim 1, wherein: the inside rotation of screw groove (17) is connected with threaded rod (4), the front of threaded rod (4) is fixed connection with the back of installation piece (1).

3. An anti-tilt mounting apparatus according to claim 1, wherein: the inside of holding tank (11) fixed mounting has second spring (12), the side that second spring (12) are close to relatively is fixed connection with the side that reference column (16) are kept away from relatively.

4. An anti-tilt mounting apparatus according to claim 1, wherein: the inside sliding connection of second spout (15) has second slider (14), the one side that second slider (14) is close to relatively is connected with the both sides fixed of reference column (16).

5. An anti-tilt mounting apparatus according to claim 1, wherein: the back of the movable rod (6) is fixedly provided with a first spring (18), and the back of the first spring (18) is fixedly connected with the inner cavity of the through groove (7).

6. An anti-tilt mounting apparatus according to claim 1, wherein: the mounting block (1) is internally provided with first sliding grooves (9) on two sides of the through groove (7), and the first sliding grooves (9) are internally connected with first sliding blocks (10) in a sliding manner.

7. An anti-tilt mounting apparatus according to claim 6, wherein: one side of the first sliding block (10) which is relatively close to the first sliding block is fixedly connected with two sides of the movable rod (6), and two mounting holes are formed in the mounting base (5).
