Abstract
The utility model discloses an afforestation trimming device, which comprises a bottom plate, wherein the top of the bottom plate is fixedly connected with a box body, the bottom of an inner cavity of the box body is fixedly connected with a first motor, the output end of the first motor is fixedly connected with a screw rod, the surface of the screw rod is in threaded connection with a threaded sleeve, two sides of the top of the threaded sleeve are fixedly connected with struts, one end of each strut, which is far away from the threaded sleeve, penetrates through the top of the box body and is fixedly connected with a shell, and the left side of the top of the shell is fixedly connected with a bracket. According to the utility model, through the matched use of the bottom plate, the box body, the first motor, the screw rod, the threaded sleeve, the support column, the shell, the support, the transverse plate, the second motor, the blade, the fixed block, the slide bar, the slide sleeve, the third motor, the rotary table, the pin shaft, the lifting plate and the support rod, the problem that the angle of the landscaping pruning device in the prior art cannot be adjusted according to the needs in actual use, and inconvenience is caused to actual use is solved.
Description
Technical Field
The utility model relates to the technical field of landscaping equipment, in particular to a landscaping trimming device.
Background
Afforestation is a beautiful natural environment and a recreation field created by applying engineering technology and artistic means in a certain region, planting trees and flowers and plants by modifying terrains, building buildings, arranging garden paths and the like, and in order to ensure the unified height of plants, the plants are usually needed to be trimmed regularly.
If the Chinese utility model provides a pruning device for landscaping, the bulletin number is: CN216314150U, through setting up of bottom plate, operation panel, protection frame, lifting screw, elevator motor, driving gear, driven gear, limiting plate, the adjustment that can the convenience is to the pruning height of plant, conveniently handles the horticulture requirement of different high demands, the convenience that hoisting device used; the plants higher than the set plants are effectively trimmed in a pushing and translating mode through the arrangement of the circular blades, the cutting motor, the connecting plate, the connecting rod, the sliding block, the air cylinder, the telescopic rod, the sliding groove, the lead screw and the translation motor, so that the trimming efficiency is improved.
Disclosure of Invention
The utility model aims to provide an landscaping pruning device which has the advantage of being capable of adjusting angles, and solves the problem that the angle of the landscaping pruning device in the prior art cannot be adjusted according to the needs when the landscaping pruning device is actually used, so that inconvenience is caused to the actual use.
In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a afforestation trimming means, includes the bottom plate, the top fixedly connected with box of bottom plate, the first motor of bottom fixedly connected with of box inner chamber, the output fixedly connected with screw rod of first motor, the surperficial threaded connection of screw rod has the thread bush, the equal fixedly connected with pillar in both sides at thread bush top, the one end that the thread bush was kept away from to the pillar runs through the top and fixedly connected with casing of box, the left side fixedly connected with support at casing top, the inner chamber swing joint of support has the diaphragm, the right side fixedly connected with second motor of diaphragm bottom, the output fixedly connected with blade of second motor, the left side fixedly connected with fixed block of diaphragm bottom, fixedly connected with slide bar between two fixed blocks, the surface cover of slide bar is equipped with the sliding sleeve, the back fixedly connected with third motor of casing inner chamber, the output fixedly connected with carousel of third motor, the right side fixedly connected with round pin axle of carousel, the surperficial sliding connection of round pin axle has the lifter plate, the top fixedly connected with bracing piece of lifter plate to the bottom of the positive side of casing and the movable connection of top bracing piece.
Preferably, both sides of the thread bush are fixedly connected with limiting blocks, and the inner wall of the box body is provided with limiting grooves matched with the limiting blocks.
Preferably, the two sides of the bottom plate bottom are fixedly connected with moving wheels, and the two sides of the box top are provided with first openings.
Preferably, guide posts are fixedly connected between the two sides of the top and the bottom of the inner cavity of the shell, and the surfaces of the two guide posts are in sliding connection with the inner wall of the lifting plate.
Preferably, the front surface of the lifting plate is provided with a through groove, and the top of the shell is provided with a second opening.
Preferably, one end of the screw, which is far away from the first motor, is movably connected with the top of the inner cavity of the box body through a bearing, and the left side of the box body is fixedly connected with a pushing handle.
Compared with the prior art, the utility model has the following beneficial effects:
1. according to the utility model, through the matched use of the bottom plate, the box body, the first motor, the screw rod, the threaded sleeve, the support column, the shell, the support, the transverse plate, the second motor, the blade, the fixed block, the slide bar, the slide sleeve, the third motor, the rotary table, the pin shaft, the lifting plate and the support rod, the problem that the angle of the landscaping pruning device in the prior art cannot be adjusted according to the needs in actual use, and inconvenience is caused to actual use is solved.
2. According to the utility model, the limiting block and the limiting groove are arranged, the moving wheel is arranged, the device can be conveniently moved, the threaded sleeve can be limited, so that the stability of the threaded sleeve during movement is improved, the lifting plate can be limited by arranging the guide post, the stability of the lifting plate during movement is improved, the through groove is arranged, the pin shaft can be conveniently driven to move by the lifting plate, and the device can be conveniently pushed by a user by arranging the pushing handle.
Drawings

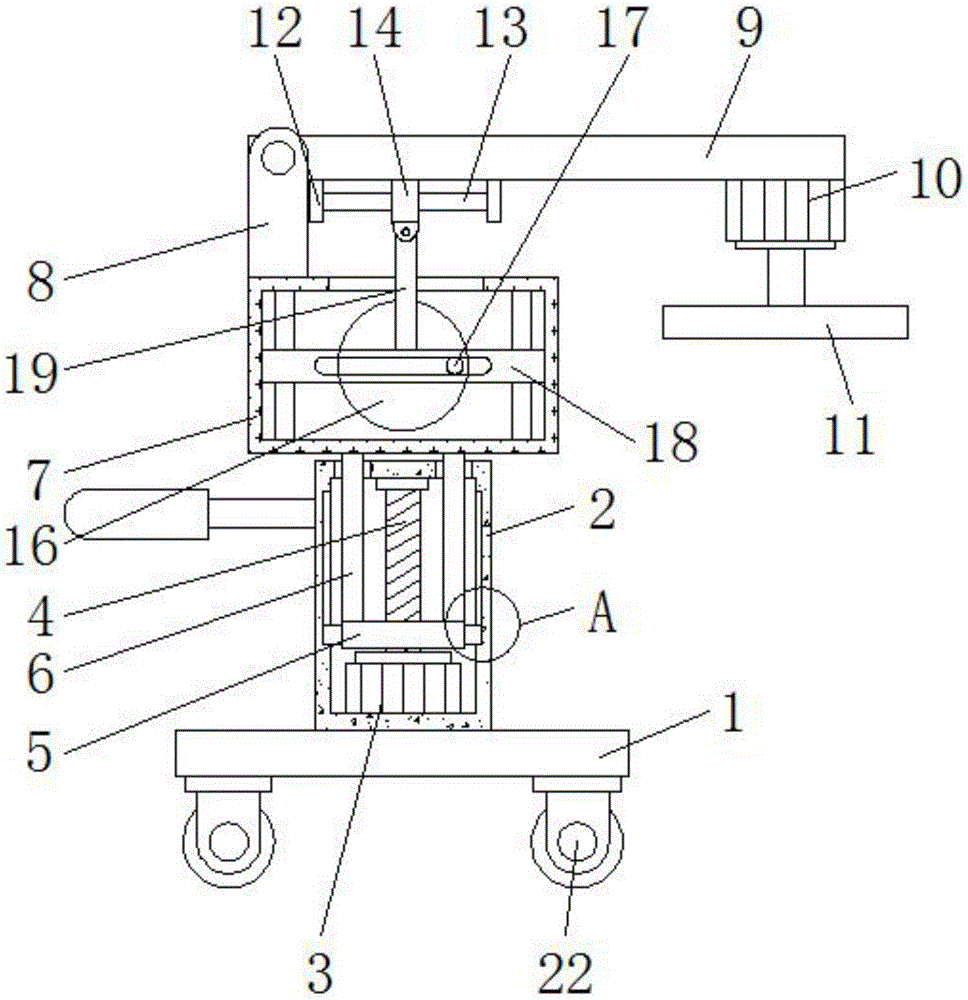

FIG. 1 is a schematic diagram of the structure of the present utility model;
FIG. 2 is a perspective view of a third motor and turntable of the present utility model;
fig. 3 is an enlarged view of a of fig. 1 according to the present utility model.
In the figure: 1. a bottom plate; 2. a case; 3. a first motor; 4. a screw; 5. a thread sleeve; 6. a support post; 7. a housing; 8. a bracket; 9. a cross plate; 10. a second motor; 11. a blade; 12. a fixed block; 13. a slide bar; 14. a sliding sleeve; 15. a third motor; 16. a turntable; 17. a pin shaft; 18. a lifting plate; 19. a support rod; 20. a limiting block; 21. a limit groove; 22. and (5) moving the wheel.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Referring to fig. 1-3, an landscaping pruning device comprises a bottom plate 1, a box body 2 is fixedly connected to the top of the bottom plate 1, a first motor 3 is fixedly connected to the bottom of an inner cavity of the box body 2, a screw 4 is fixedly connected to the output end of the first motor 3, a threaded sleeve 5 is connected to the surface of the screw 4 in a threaded manner, support posts 6 are fixedly connected to the two sides of the top of the threaded sleeve 5, one end of each support post 6 far away from the threaded sleeve 5 penetrates through the top of the box body 2 and is fixedly connected with a shell 7, a bracket 8 is fixedly connected to the left side of the top of the shell 7, a transverse plate 9 is movably connected to the inner cavity of the bracket 8, a second motor 10 is fixedly connected to the right side of the bottom of the transverse plate 9, a blade 11 is fixedly connected to the output end of the second motor 10, a fixed block 12 is fixedly connected to the left side of the bottom of the transverse plate 9, a sliding rod 13 is fixedly connected between the two fixed blocks 12, a sliding sleeve 14 is sleeved on the surface of the sliding rod 13, the back of the inner cavity of the shell 7 is fixedly connected with a third motor 15, the output end of the third motor 15 is fixedly connected with a rotary table 16, the right side of the front face of the rotary table 16 is fixedly connected with a pin shaft 17, the surface of the pin shaft 17 is slidably connected with a lifting plate 18, the top of the lifting plate 18 is fixedly connected with a supporting rod 19, one end of the supporting rod 19 far away from the lifting plate 18 penetrates through the top of the shell 7 and is movably connected with the bottom of the sliding sleeve 14, two sides of the threaded sleeve 5 are fixedly connected with limiting blocks 20, the inner wall of the box 2 is provided with limiting grooves 21 matched with the limiting blocks 20, two sides of the bottom plate 1 are fixedly connected with movable wheels 22, two sides of the top of the box 2 are provided with first openings, guide posts are fixedly connected between the two sides of the top and the bottom of the inner cavity of the shell 7, the surfaces of the two guide posts are slidably connected with the inner wall of the lifting plate 18, the front face of the lifting plate 18 is provided with through grooves, the second opening has been seted up at the top of casing 7, the one end that first motor 3 was kept away from to screw rod 4 passes through the top swing joint of bearing and box 2 inner chamber, the left side fixedly connected with of box 2 pushes away the handle, through setting up stopper 20 and spacing groove 21, through setting up removal wheel 22, can conveniently remove the device, can spacing thread bush 5, stability when improving thread bush 5 and remove, through setting up the guide pillar, can spacing lifter plate 18, stability when improving lifter plate 18 and remove, through setting up logical groove, can make things convenient for round pin axle 17 to drive lifter plate 18 and remove, through setting up the pushing away the handle, can facilitate the user to promote the device, through bottom plate 1, box 2, first motor 3, the screw rod 4, thread bush 5, pillar 6, casing 7, support 8, diaphragm 9, second motor 10, blade 11, fixed block 12, slide bar 13, sliding sleeve 14, third motor 15, carousel 16, round pin axle 17, lifter plate 18 and bracing piece 19's cooperation is used, the problem that prior art afforestation device can not be adjusted its angle according to the needs when in fact is used in fact is solved, it is difficult to use.
When the novel trimming device is used, the first motor 3 is started, the first motor 3 drives the screw 4 to rotate, the screw 4 drives the thread bush 5 to move upwards, the thread bush 5 drives the shell 7 to move through the support posts 6, the shell 7 drives the transverse plate 9 to move through the cooperation of the support frame 8, the transverse plate 9 drives the second motor 10 and the blade 11 to move so as to adjust the trimming height according to requirements, the third motor 15 is started, the third motor 15 drives the turntable 16 to rotate, the turntable 16 drives the pin shaft 17 to rotate, the pin shaft 17 drives the lifting plate 18 to move upwards or downwards, the lifting plate 18 drives the support rod 19 to move, and the support rod 19 drives the right side of the transverse plate 9 to turn through the cooperation of the fixed block 12, the slide rod 13 and the slide sleeve 14 so as to adjust the trimming angle according to requirements.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. Afforestation trimming means, including bottom plate (1), its characterized in that: the utility model discloses a rotary table, including bottom plate (1), bottom fixedly connected with box (2), the bottom fixedly connected with first motor (3) of box (2) inner chamber, the output fixedly connected with screw rod (4) of first motor (3), the surface screw thread connection of screw rod (4) has screw sleeve (5), the both sides at screw sleeve (5) top are all fixedly connected with pillar (6), the one end that screw sleeve (5) was kept away from to pillar (6) runs through to the top of box (2) and fixedly connected with casing (7), the left side fixedly connected with support (8) at casing (7) top, the inner chamber swing joint of support (8) diaphragm (9), the right side fixedly connected with second motor (10) of diaphragm (9) bottom, the output fixedly connected with blade (11) of second motor (10), the left side fixedly connected with fixed block (12) of diaphragm (9) bottom, fixedly connected with slide bar (13) between two fixed block (12), the surface of slide bar (13) is equipped with support (8), the front (16) of rotary table (16) fixedly connected with positive (16), the surface sliding connection of round pin axle (17) has lifter plate (18), the top fixedly connected with bracing piece (19) of lifter plate (18), the one end that lifter plate (18) was kept away from to bracing piece (19) runs through to the top of casing (7) and with the bottom swing joint of sliding sleeve (14).
2. An afforestation pruning device as claimed in claim 1, wherein: limiting blocks (20) are fixedly connected to two sides of the threaded sleeve (5), and limiting grooves (21) matched with the limiting blocks (20) are formed in the inner wall of the box body (2).
3. An afforestation pruning device as claimed in claim 1, wherein: the two sides of the bottom plate (1) are fixedly connected with moving wheels (22), and the two sides of the top of the box body (2) are provided with first openings.
4. An afforestation pruning device as claimed in claim 1, wherein: guide posts are fixedly connected between the two sides of the top and the bottom of the inner cavity of the shell (7), and the surfaces of the two guide posts are in sliding connection with the inner wall of the lifting plate (18).
5. An afforestation pruning device as claimed in claim 1, wherein: the front of the lifting plate (18) is provided with a through groove, and the top of the shell (7) is provided with a second opening.
6. An afforestation pruning device as claimed in claim 1, wherein: one end of the screw rod (4) far away from the first motor (3) is movably connected with the top of the inner cavity of the box body (2) through a bearing, and the left side of the box body (2) is fixedly connected with a pushing handle.
