CN219002215U

CN219002215U - Waste water treatment equipment

Info

Publication number: CN219002215U
Application number: CN202223573550.1U
Authority: CN
Inventors: 练明明
Original assignee: Sanming Zhicheng Machinery Equipment Co ltd
Current assignee: Sanming Zhicheng Machinery Equipment Co ltd
Priority date: 2022-12-29
Filing date: 2022-12-29
Publication date: 2023-05-12
Anticipated expiration: 2032-12-29

Abstract

The utility model discloses wastewater treatment equipment, which comprises a treatment box, wherein a filter cartridge communicated with the treatment box is fixedly arranged at the top end of the treatment box, a water inlet pipe is arranged on the left side of the top end of the filter cartridge in a penetrating manner, a discharge pipe is arranged at the lower end of the outer wall of one side of the treatment box, a filter plate is fixedly arranged in the filter cartridge, a motor I is fixedly connected in the middle of the top end of the filter cartridge, a scraper blade is fixedly connected at one end of an output shaft of the motor I through a connecting rod, the bottom end of the scraper blade is attached to the top end of the filter plate, a notch is arranged on the right side of the top end of the filter plate in a penetrating manner, a channel is fixedly arranged in the notch, a collecting box is fixedly arranged outside the filter cartridge, and one end of the channel is communicated with the collecting box. According to the utility model, the motor drives the scraping plate to rotate, so that impurities on the filter plate can be pushed into the notch to enter the collecting box from the channel, thus the automatic cleaning of the filter plate is realized, the filter plate is prevented from being blocked, and the filtering efficiency is improved.

Description

Waste water treatment equipment

Technical Field

The utility model relates to the technical field of wastewater treatment, in particular to wastewater treatment equipment.

Background

With the continuous expansion of urban scale in China and gradual acceleration of national industrialization process, the waste water generated during metallurgical production and processing pollutes soil, water source and the like of the environment, and the waste water needs to be treated and discharged, and metallurgical waste water treatment equipment is a device for treating the waste water and is mainly divided into an adsorption type and a filtration type, so that the pollution of the waste water to the environment can be effectively reduced, and the metallurgical waste water treatment equipment has very important significance for environmental protection.

In the prior art, like the patent of CN202020105913.0, disclose a metallurgical effluent treatment plant, through setting up filter screen and sponge layer, reached the purpose of filtering the granule in the waste water and stopping, and then guaranteed the safety of follow-up treatment facility, through setting up bamboo charcoal layer and ultraviolet lamp, reached the purpose of carrying out dual disinfection to the waste water, and then strengthened the treatment effect to metallurgical waste water. This prior art has one such disadvantage: in the device, impurities in the wastewater are filtered and blocked by the filter screen, but the impurities on the filter screen cannot be automatically cleaned, so that the filter screen is easily blocked by the impurities during filtration, and the filtration efficiency is further affected; for this purpose, a wastewater treatment plant is proposed for solving the above-mentioned technical problems.

Disclosure of Invention

The present utility model is directed to a wastewater treatment apparatus for solving the problems set forth in the background art.

In order to achieve the above purpose, the present utility model adopts the following technical scheme:

the utility model provides a waste water treatment equipment, includes the treatment case, the fixed cartridge filter that is provided with rather than the intercommunication in top of treatment case, the top left side of cartridge filter is run through and is provided with the inlet tube, the one side outer wall lower extreme of treatment case is provided with the discharge pipe, the inside of cartridge filter is fixedly provided with the filter, the top middle part rigid coupling of cartridge filter has motor one, the output shaft one end of motor one has the scraper blade through the connecting rod rigid coupling, the bottom of scraper blade is laminated mutually with the top of filter, the top right side of filter runs through and is provided with the breach, the inside of breach is fixedly provided with passageway, the outside of cartridge filter is fixedly provided with collecting box, the one end and the collecting box of passageway are linked together.

As a further improvement scheme of the technical scheme: one side of the collecting box is provided with a box door, and one side of the box door is provided with an observation window.

As a further improvement scheme of the technical scheme: the other side outer wall of collecting box is provided with the infiltration hole that equidistance distributes and communicates with cartridge filter.

As a further improvement scheme of the technical scheme: the inside of processing box is provided with level sensor, the outer wall in one side of processing box is provided with the display screen, level sensor and display screen electric connection.

As a further improvement scheme of the technical scheme: the upper end of the outer wall of the other side of the treatment box is fixedly connected with a feeding barrel communicated with the treatment box, and the upper end of the outer part of the feeding barrel is fixedly connected with a feeding hopper communicated with the feeding barrel.

As a further improvement scheme of the technical scheme: the inner wall of one side of the feeding cylinder is rotatably provided with a spiral conveying shaft, and one end of the spiral conveying shaft penetrates out of the feeding cylinder and is fixedly connected with a knob.

As a further improvement scheme of the technical scheme: the middle part of the outer wall of the bottom of the treatment box is fixedly connected with a second motor, one end of an output shaft of the second motor is fixedly connected with a stirring rod, and a stirring rod is fixedly arranged outside the stirring rod.

Compared with the prior art, the utility model has the beneficial effects that:

1. this a waste water treatment equipment for one kind through being provided with motor one, and motor one drives the scraper blade and rotates, and then can push the breach department with impurity on the filter, and then in getting into the collecting box from the passageway, realizes the automatic clearance to the filter like this, prevents that the filter from blockking up, improves filtration efficiency.

2. This a waste water treatment equipment for through being provided with motor two, motor two drives puddler and rotates, can carry out intensive mixing to waste water and the medicament of reaction like this, and then improves treatment effeciency.

The foregoing description is only an overview of the present utility model, and is intended to provide a better understanding of the present utility model, as it is embodied in the following description, with reference to the preferred embodiments of the present utility model and the accompanying drawings. Specific embodiments of the present utility model are given in detail by the following examples and the accompanying drawings.

Drawings

The accompanying drawings, which are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this application, illustrate embodiments of the utility model and together with the description serve to explain the utility model and do not constitute a limitation on the utility model. In the drawings:

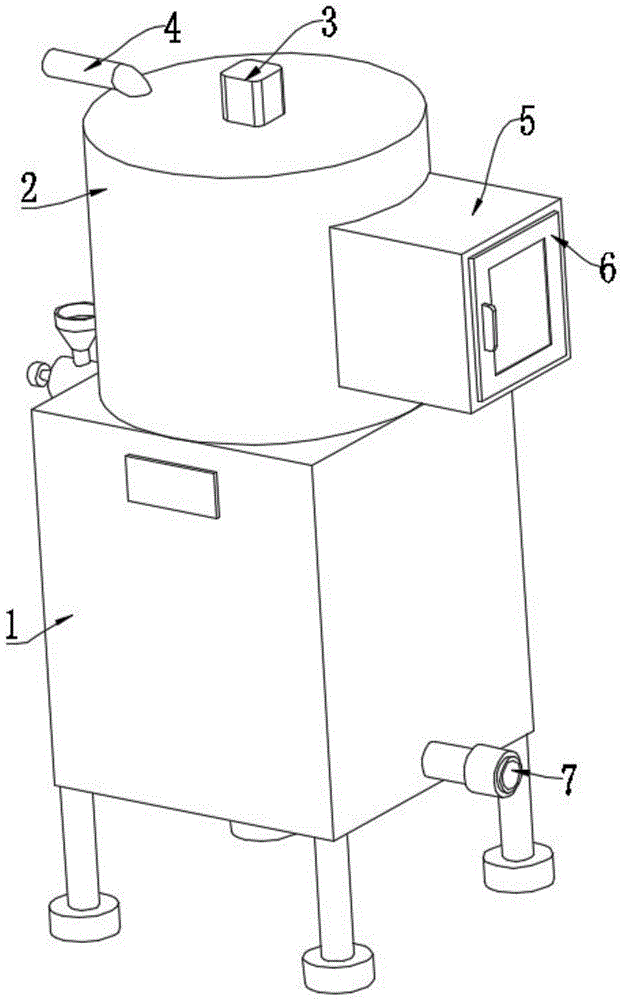

FIG. 1 is a schematic diagram of the overall structure of a wastewater treatment apparatus according to the present utility model;

FIG. 2 is a schematic diagram showing the internal structure of a filter cartridge of a wastewater treatment apparatus according to the present utility model;

FIG. 3 is a schematic cross-sectional view of a filter cartridge of a wastewater treatment apparatus according to the present utility model;

fig. 4 is a schematic sectional view of a treatment tank of a wastewater treatment apparatus according to the present utility model.

In the drawings, the list of components represented by the various numbers is as follows:

1. a treatment box; 2. a filter cartridge; 3. a first motor; 4. a water inlet pipe; 5. a collection box; 6. a door; 7. a discharge pipe; 8. a filter plate; 9. a notch; 10. a scraper; 11. a channel; 12. water seepage holes; 13. a second motor; 14. stirring rod; 15. a liquid level sensor; 16. a screw conveying shaft; 17. and (5) a charging hopper.

Detailed Description

The principles and features of the present utility model are described below with reference to the drawings, the examples are illustrated for the purpose of illustrating the utility model and are not to be construed as limiting the scope of the utility model. The utility model is more particularly described by way of example in the following paragraphs with reference to the drawings. The advantages and features of the present utility model will become more apparent from the following description. It should be noted that the drawings are in a very simplified form and are all to a non-precise scale, merely for convenience and clarity in aiding in the description of embodiments of the utility model.

It will be understood that when an element is referred to as being "fixed to" another element, it can be directly on the other element or intervening elements may also be present. When a component is considered to be "connected" to another component, it can be directly connected to the other component or intervening components may also be present. When an element is referred to as being "disposed on" another element, it can be directly on the other element or intervening elements may also be present. The terms "vertical," "horizontal," "left," "right," and the like are used herein for illustrative purposes only.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this utility model belongs. The terminology used herein in the description of the utility model is for the purpose of describing particular embodiments only and is not intended to be limiting of the utility model. The term "and/or" as used herein includes any and all combinations of one or more of the associated listed items.

Referring to fig. 1 to 4, in an embodiment of the present utility model, a wastewater treatment apparatus includes a treatment tank 1, a filter cartridge 2 connected with the treatment tank 1 is fixedly disposed at a top end of the treatment tank 1 through bolts, a water inlet pipe 4 is disposed at a left side of a top end of the filter cartridge 2, a discharge pipe 7 is disposed at a lower end of an outer wall of one side of the treatment tank 1, a valve is provided in the discharge pipe, a filter plate 8 is fixedly disposed in an inner portion of the filter cartridge 2 through bolts, a motor 3 is fixedly disposed in a middle portion of a top end of the filter cartridge 2 through bolts, a scraper 10 is fixedly disposed at an output shaft end of the motor 3 through a connecting rod, a bottom end of the scraper 10 is attached to a top end of the filter plate 8, a length of the scraper 10 is preferably equal to a radius of the filter plate 8, a notch 9 is disposed at a right side of the top end of the filter plate 8 through bolts, a channel 11 is disposed in an inner portion of the notch 9 through bolts, a collecting box 5 is disposed at an outer portion of the filter cartridge 2 through bolts, and one end of the channel 11 is connected to the collecting box 5.

The filter cartridge 2 is introduced into the waste water through the water inlet pipe 4, and then the waste water falls into the left side of the top end of the filter plate 8, the filter plate 8 filters impurities and particles in the waste water, the motor 3 is started simultaneously with the waste water, the motor 3 drives the scraping plate 10 to rotate, and then the impurities on the filter plate 8 can be pushed into the notch 9, and then enter the collecting box 5 from the channel 11, so that the automatic cleaning of the filter plate 8 is realized, the filter plate 8 is prevented from being blocked, and the filtering efficiency is improved.

As shown in fig. 1 and 2, an opening is formed in one side of the collecting box 5, a box door 6 is arranged at the opening through a hinge or a hinge, cleaning is convenient in the collecting box 5, an observation window is formed in one side of the box door 6, and real-time observation of collecting conditions in the collecting box 5 is convenient.

As shown in fig. 3, water seepage holes 12 which are equidistantly distributed and are communicated with the filter cartridge 2 are formed in the outer wall of the other side of the collecting box 5, and the water seepage holes 12 and the filter holes of the filter plate 8 are the same in size, so that waste water adhered to the surface of impurities can be discharged out of the collecting box 5 and further flow into the filter cartridge 2.

As shown in fig. 1 and 4, a liquid level sensor 15 is disposed in the treatment tank 1, a display screen is disposed on an outer wall of one side of the treatment tank 1, and the liquid level sensor 15 is electrically connected with the display screen, so that the liquid level condition in the treatment tank 1 can be observed and known in real time.

As shown in fig. 4, the upper end of the outer wall of the other side of the treatment box 1 is fixedly connected with a feeding barrel communicated with the feeding barrel through a bolt, the upper end of the outer part of the feeding barrel is fixedly connected with a feeding hopper 17 communicated with the feeding barrel, a treatment medicament for wastewater is added from the feeding hopper 17, and then the feeding barrel can fall into the treatment box 1, a spiral conveying shaft 16 is rotatably arranged on the inner wall of one side of the feeding barrel through a bearing, one end of the spiral conveying shaft 16 penetrates out of the feeding barrel and is fixedly connected with a knob, and thus the medicament can be better conveyed into the treatment box 1 through rotating the spiral conveying shaft 16 through the knob.

As shown in fig. 4, a second motor 13 is fixedly connected to the middle of the outer wall of the bottom of the treatment box 1 through a bolt, a stirring rod is fixedly connected to one end of an output shaft of the second motor 13, a stirring rod 14 is fixedly arranged on the outer portion of the stirring rod, the second motor 13 drives the stirring rod and the stirring rod 14 to rotate, and therefore wastewater and reacted medicaments can be fully stirred and mixed, and treatment efficiency is improved.

The working principle of the utility model is as follows:

the electrical components that appear in this application all external intercommunication power and control switch when using, at first let in cartridge filter 2 with waste water through inlet tube 4, and then fall into the top left side department of filter 8, filter impurity and granule department in the waste water, start motor one 3 rather than simultaneously, motor one 3 drives scraper blade 10 rotation, and then can push into breach 9 departments with impurity on the filter 8, and then get into collecting box 5 from passageway 11, a small amount of waste water in the collecting box 5 can flow into cartridge filter 2 again from infiltration hole 12, waste water after the filtration will fall into in the processing box 1, add the treatment medicament of waste water from loading hopper 17, rotate screw conveyer shaft 16 through the knob, can make the better transport of medicament to processing box 1 in, motor two 13 drive puddler and puddler 14 rotate, like this can carry out intensive mixing to waste water and the medicament of reaction, and then improve treatment efficiency, waste water after the processing is discharged from discharge pipe 7 can.

Although the present utility model has been described with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described, or equivalents may be substituted for elements thereof, and any modifications, equivalents, improvements and changes may be made without departing from the spirit and principles of the present utility model.

Claims

1. The utility model provides a waste water treatment equipment, includes treatment box (1), its characterized in that, the fixed cartridge filter (2) that are provided with rather than the intercommunication in top of treatment box (1), the top left side of cartridge filter (2) is run through and is provided with inlet tube (4), the one side outer wall lower extreme of treatment box (1) is provided with discharge pipe (7), the inside of cartridge filter (2) is fixed and is provided with filter (8), the top middle part rigid coupling of cartridge filter (2) has motor one (3), the output shaft one end of motor one (3) has scraper blade (10) through the connecting rod rigid coupling, the bottom of scraper blade (10) is laminated with the top of filter (8), the top right side of filter (8) is run through and is provided with breach (9), the inside of breach (9) is fixed and is provided with passageway (11), the outside of cartridge filter (2) is fixed and is provided with collecting box (5), the one end and the collecting box (5) of passageway (11) are linked together.

2. A wastewater treatment plant according to claim 1, characterized in that a tank door (6) is provided on one side of the collecting tank (5), and that an observation window is provided on one side of the tank door (6).

3. A wastewater treatment plant according to claim 2, characterized in that the outer wall of the other side of the collection tank (5) is provided with water seepage holes (12) equidistantly distributed and communicating with the filter cartridge (2).

4. The wastewater treatment device according to claim 1, characterized in that a liquid level sensor (15) is arranged in the treatment tank (1), a display screen is arranged on the outer wall of one side of the treatment tank (1), and the liquid level sensor (15) is electrically connected with the display screen.

5. The wastewater treatment device according to claim 4, wherein a feeding barrel communicated with the upper end of the outer wall of the other side of the treatment box (1) is fixedly connected with the upper end of the outer wall of the other side of the treatment box, and a feeding hopper (17) communicated with the feeding barrel is fixedly connected with the upper end of the outer side of the feeding barrel.

6. The wastewater treatment device according to claim 5, wherein a spiral conveying shaft (16) is rotatably arranged on one side inner wall of the feeding cylinder, and one end of the spiral conveying shaft (16) penetrates out of the feeding cylinder and is fixedly connected with a knob.

7. The wastewater treatment device according to claim 6, wherein a second motor (13) is fixedly connected to the middle of the outer wall of the bottom of the treatment tank (1), a stirring rod is fixedly connected to one end of an output shaft of the second motor (13), and a stirring rod (14) is fixedly arranged outside the stirring rod.
