Abstract

The utility model provides a plate cutting device, which relates to the technical field of plate processing equipment. The plate cutting equipment includes a tool assembly and a mounting frame. The tool assembly includes a knife frame and at least two sets of tool assemblies with a plurality of blades installed on the tool frame. Each tool assembly can cut the plate into corresponding Different sizes; there is a conveying mechanism on the installation frame, the conveying mechanism is used to convey the plate to be cut and cut, the knife holder is installed on the installation frame, and the installation frame is equipped with a driving tool assembly for cutting operations the first driver. Since the plate cutting equipment is provided with at least two groups of cutter assemblies, each cutter assembly can cut the plate into corresponding different sizes, and the cutter assembly is provided with multiple blades, thereby ensuring the cutting efficiency.

Description

Sheet cutting equipment

technical field

The utility model relates to the technical field of plate processing equipment, in particular to a plate cutting equipment.

Background technique

At present, in the production process of cutting plate materials into strip materials, common plate cutting equipment includes single-tool cutting equipment and multi-tool cutting equipment. Although single-tool cutting equipment is easy to adjust the cutting size, due to Its single-knife structure makes the cutting efficiency very low; the cutting efficiency of multi-knife cutting equipment is high, but due to the particularity of the cutting tools, it is very inconvenient to adjust the cutting size.

Utility model content

In view of the above-mentioned problems in the prior art, the present application proposes a plate cutting equipment, which can solve the problem that the adjustment of the cutting size and the cutting efficiency of the plate cutting equipment cannot be balanced.

The utility model provides a plate cutting device, which comprises:

A cutter assembly, the cutter assembly includes a cutter holder and at least two sets of cutter assemblies provided with a plurality of blades mounted on the cutter holder, each cutter assembly can cut the plate into corresponding different sizes ;as well as

The installation frame is provided with a conveying mechanism, and the conveying mechanism is used to convey the plates to be cut and cut. The knife rest is installed on the installation frame, and the installation frame There is a first driving member for driving the cutter assembly to carry out the cutting operation.

As a further improvement of the above technical solution:

In the above plate cutting equipment, further, the knife holder is provided with a rotating shaft, and each of the knife assemblies is evenly distributed on the outer periphery of the rotating shaft.

In the above board cutting equipment, further, support plates are provided on both sides of the installation frame along the conveying direction of the conveying mechanism, and the two ends of the rotating shaft are rotatably mounted on the two On the support plate, a second drive member for driving the rotating shaft to rotate so that different cutter assemblies can cut the plate is installed on the installation frame.

In the above plate cutting equipment, further, the support plate is further provided with a limit assembly, and the limit assembly can limit the rotation of the knife holder.

In the above plate cutting equipment, further, the limit assembly includes a telescopic element, and the knife holder is provided with a limit cylinder capable of cooperating with the telescopic end of the telescopic element.

In the above plate cutting equipment, further, a clutch assembly is provided on the support plate, the clutch assembly includes a telescopic transmission shaft and one end capable of controlling the telescopic transmission shaft is mated with the drive shaft of the cutter assembly or The control handle is disconnected, and the other end of the telescopic transmission shaft is connected with the first driving member, and the first driving member can drive the telescopic transmission shaft to rotate.

In the above plate cutting equipment, further, the installation frame is provided with a vertical guide rail and a tool conveying assembly located at the lower end of the vertical guide rail, and the support plate can move vertically along the vertical guide rail, And the tool assembly can be moved onto the tool conveying assembly.

In the above board cutting equipment, further, the conveying mechanism includes a first conveying roller assembly and a second conveying roller assembly respectively located on both sides of the cutter assembly, and the installation frame is provided with a drive The first conveying roller assembly and the second conveying roller assembly carry out the third driving member for conveying operation.

In the above plate cutting equipment, further, the first conveying roller assembly and the second conveying roller assembly both include conveying rollers and baffles respectively located on both sides of the conveying roller along the conveying direction, so A limiting plate is also installed on the baffle through an adjusting screw, and the distance between the two limiting plates is regulated through the adjusting screw.

In the above plate cutting equipment, further, a dust cover is detachably installed on the installation frame.

The above-mentioned technical features can be combined in various suitable ways or replaced by equivalent technical features, as long as the purpose of the utility model can be achieved.

Compared with the prior art, the plate cutting equipment provided by the utility model has at least the following beneficial effects: when the plate cutting equipment is required to carry out the cutting operation of the plate, according to the needs of the cutting size, adjust the The matching cutter assembly is at the cutting station, and the conveying mechanism transports the sheet to be cut to the cutter assembly of the cutting station, and the cutter assembly cuts the sheet to be cut into strips, and then the conveying mechanism will send the sheet to be cut into strips. The strip-shaped plates are transported to the outside of the plate cutting equipment. Since the plate cutting equipment is provided with at least two groups of cutter assemblies, each cutter assembly can cut the plate into corresponding different sizes, and the cutter assembly is provided with multiple blades, thereby ensuring the cutting efficiency.

In order to make the above-mentioned purpose, features and advantages of the present invention more obvious and understandable, the preferred embodiments are specifically cited below, together with the accompanying drawings, to be described in detail as follows.

Description of drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the accompanying drawings used in the embodiments will be briefly introduced below. It should be understood that the following drawings only show some embodiments of the present invention. Therefore, it should not be regarded as a limitation on the scope. For those skilled in the art, other related drawings can also be obtained according to these drawings without creative work.

Hereinafter, the present utility model will be described in more detail based on the embodiments and with reference to the accompanying drawings. in:

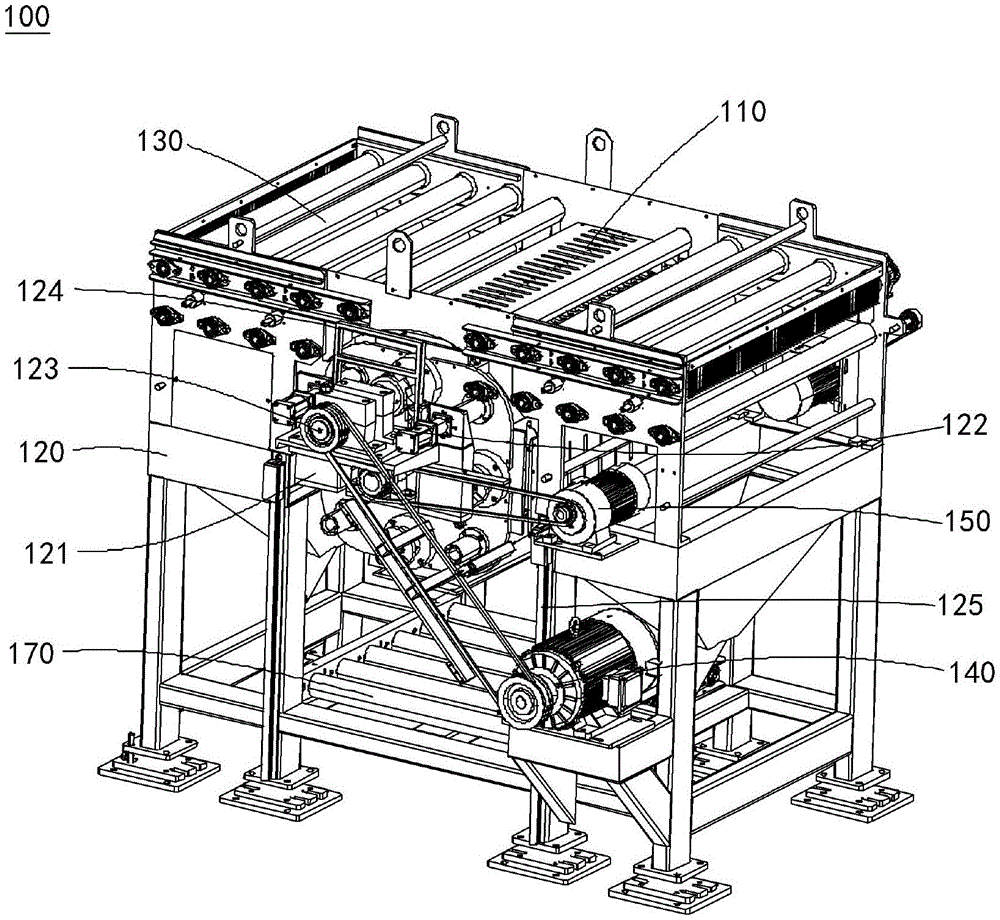

Fig. 1 has shown the structural schematic diagram 1 of the plate cutting equipment provided by the embodiment of the present invention;

Figure 2 shows a schematic structural view of the cutter assembly of the plate cutting equipment provided by the embodiment of the present invention;

Fig. 3 shows the structural schematic diagram II of the plate cutting equipment provided by the embodiment of the present invention;

Fig. 4 shows the third structural diagram of the board cutting equipment provided by the embodiment of the present invention.

In the figures, the same parts are given the same reference numerals. The drawings are not to scale.

Reference signs:

100-sheet cutting equipment, 110-knife assembly, 111-knife holder, 112-knife assembly, 113-rotation shaft, 114-limit cylinder, 115-drive shaft, 120-installation frame, 121-support plate, 122-Telescopic part, 123-Telescopic transmission shaft, 124-Control handle, 125-Vertical guide rail, 130-Conveying mechanism, 131-First conveying roller assembly, 132-Second conveying roller assembly, 133-Conveying roller , 134-baffle plate, 135-limiting plate, 136-adjusting screw, 140-first driving member, 150-second driving member, 160-third driving member, 170-knife conveying assembly, 180-dust cover .

Detailed ways

Embodiments of the present invention are described in detail below, examples of which are shown in the drawings, wherein the same or similar reference numerals represent the same or similar elements or elements having the same or similar functions throughout. The embodiments described below with reference to the accompanying drawings are exemplary and are only used to explain the present utility model, but should not be construed as limiting the present utility model.

In describing the present invention, it should be understood that the terms "center", "longitudinal", "transverse", "length", "width", "thickness", "upper", "lower", "front", "Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inner", "Outer", "Clockwise", "Counterclockwise", "Axial ", "radial", "circumferential" and other indicated orientations or positional relationships are based on the orientations or positional relationships shown in the drawings, and are only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying No device or element must have a specific orientation, be constructed and operate in a specific orientation, and thus should not be construed as limiting the invention.

In addition, the terms "first" and "second" are used for descriptive purposes only, and cannot be interpreted as indicating or implying relative importance or implicitly specifying the quantity of indicated technical features. Thus, a feature defined as "first" and "second" may explicitly or implicitly include one or more of these features. In the description of the present utility model, "plurality" means two or more, unless otherwise specifically defined.

In this utility model, unless otherwise clearly specified and limited, the terms "installation", "connection", "connection", "fixation" and other terms should be understood in a broad sense, for example, it can be a fixed connection or a detachable connection. Connection, or integration; it can be mechanical connection or electrical connection; it can be direct connection or indirect connection through an intermediary, and it can be the internal communication of two components or the interaction relationship between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

In the present invention, unless otherwise clearly specified and limited, the first feature may be in direct contact with the first feature or the first feature and the second feature through an intermediary indirect contact. Moreover, "above", "above" and "above" the first feature on the second feature may mean that the first feature is directly above or obliquely above the second feature, or simply means that the first feature is higher in level than the second feature. "Below", "beneath" and "beneath" the first feature may mean that the first feature is directly below or obliquely below the second feature, or simply means that the first feature is less horizontally than the second feature.

The utility model will be further described below in conjunction with accompanying drawing.

The embodiment of the utility model provides a plate cutting equipment 100, which can solve the problem that the adjustment of the cutting size and the cutting efficiency of the plate cutting equipment 100 cannot be balanced.

Please refer to FIG. 1 and FIG. 2 , the plate cutting equipment 100 provided by the embodiment of the present utility model, the plate cutting equipment 100 includes a cutter assembly 110 and a mounting frame 120 .

Specifically, the cutter assembly 110 includes a cutter rest 111 and at least two groups of cutter assemblies 112 provided with a plurality of blades installed on the cutter rest 111, and each cutter assembly 112 can cut the plate into corresponding different sizes; 120 is provided with conveying mechanism 130, and conveying mechanism 130 is used for conveying the sheet material to be slit and slitted, and knife rest 111 is installed on the installation frame 120, is provided with on the installation frame 120 and is used for driving tool assembly 112 to carry out slitting. The first driving member 140 for the operation.

When the plate cutting equipment 100 provided by the embodiment of the present invention is required to cut the plate, according to the needs of the cutting size, the matching cutter assembly 112 is adjusted to be in the cutting station, and the conveying mechanism 130 will be cut. The plate is transported to the cutter assembly 112 of the cutting station, and the cutter assembly 112 cuts the plate to be cut into strips, and then the conveying mechanism 130 transports the cut strip plate to the outside of the plate cutting equipment 100 . The plate cutting equipment 100 provided by the embodiment of the utility model is provided with at least two groups of cutter assemblies 112, each cutter assembly 112 can cut the sheet into corresponding different sizes, and the cutter assembly 112 is provided with a plurality of blades, thereby ensuring Slitting efficiency.

The plate cutting equipment 100 provided by the embodiment of the present invention, further, please refer to FIG. 2 in detail, a rotating shaft 113 is provided on the tool holder 111 , and each tool assembly 112 is evenly distributed on the outer periphery of the rotating shaft 113 . The knife rest 111 is installed at a suitable position on the installation frame 120 , and by rotating the rotating shaft 113 , different knife assemblies 112 can be used to cut the plate.

In this embodiment, four cutter assemblies 112 are evenly distributed on the outer periphery of the rotating shaft 113 , and two adjacent cutter assemblies 112 form an included angle of 90 degrees. Of course, it can be understood that other numbers of cutter assemblies 112 are evenly distributed on the outer circumference of the rotating shaft 113 , which is not limited here.

The plate cutting equipment 100 provided by the embodiment of the present utility model, further, please refer to Fig. 1 and Fig. 2 in detail, support plates 121 are provided on both sides of the installation frame 120 along the conveying direction of the conveying mechanism 130, and the rotating shaft 113 The two ends are rotatably mounted on the two support plates 121 corresponding to each other, and the second driving member 150 for driving the rotating shaft 113 to rotate so that different cutter assemblies 112 can cut the plate is installed on the mounting frame 120 . When a different cutter assembly 112 needs to be replaced, the second driving member 150 drives the rotating shaft 113 to rotate so that the different cutter assembly 112 can cut the plate.

In the plate cutting equipment 100 provided by the embodiment of the present invention, further, the support plate 121 is further provided with a limit assembly, which can limit the rotation of the knife holder 111 . When the cutter assembly 112 required for adjustment is in the cutting station, the limit assembly can limit the rotation of the knife rest 111, so as to prevent the cutter assembly 112 from rotating relative to the knife rest 111 when the cutter assembly 112 performs a cutting operation. Thus, the operation of the plate cutting equipment 100 provided by the embodiment of the present utility model is affected.

In this embodiment, the limiting assembly includes a telescoping member 122 , and the tool holder 111 is provided with a limiting cylinder 114 capable of cooperating with the telescopic end of the telescoping member 122 . After adjusting the required cutter assembly 112 in the cutting station, the telescopic end of the telescopic part 122 is controlled to extend, and the telescopic end of the telescopic part 122 stretches into the matching limit cylinder 114, and the telescopic end of the telescopic part 122 is in contact with the limit tube. The position cylinder 114 cooperates to limit the rotation of the tool holder 111 .

The plate cutting equipment 100 provided by the embodiment of the present utility model, further, please refer to Fig. 1 in detail, a clutch assembly is also provided on the support plate 121, the clutch assembly includes a telescopic transmission shaft 123 and one end capable of controlling the telescopic transmission shaft 123 and the tool The driving shaft 115 of the assembly 112 is matched with the control handle 124 for connection or disconnection, and the other end of the telescopic transmission shaft 123 is connected with the first driving member 140 , and the first driving member 140 can drive the telescopic transmission shaft 123 to rotate.

After adjusting the required cutter assembly 112 in the cutting station, the telescopic end of the telescopic part 122 is controlled to extend, and the telescopic end of the telescopic part 122 stretches into the matching limit cylinder 114, and the telescopic end of the telescopic part 122 is in contact with the limit tube. The position cylinder 114 cooperates to limit the rotation of the knife rest 111, and then, one end of the telescopic transmission shaft 123 is controlled by the control handle 124 to cooperate with the drive shaft 115 of the tool assembly 112, and the first driving member 140 is driven by the telescopic transmission shaft 123. The drive shaft 115 of the cutter assembly 112 rotates so that the cutter assembly 112 performs the cutting operation; Then the telescopic end of the telescopic member 122 is controlled to shrink, and the telescopic end of the telescopic member 122 breaks away from the matching limit cylinder 114. Finally, the second driving member 150 drives the rotating shaft 113 to rotate so that different cutter assemblies 112 can cut the plate.

In the plate cutting equipment 100 provided by the embodiment of the present invention, further, the installation frame 120 is provided with a vertical guide rail 125 and a tool delivery assembly 170 located at the lower end of the vertical guide rail 125, and the support plate 121 can move along the vertical guide rail 125. move vertically, and can move the tool assembly 110 onto the tool conveying assembly 170 . When different cutter assemblies 110 need to be replaced, the control support plate 121 moves vertically along the vertical guide rail 125 to move the cutter assembly 110 onto the cutter delivery assembly 170, and then the cutter delivery assembly 170 moves the cutter assembly 110 to the outside of the plate cutting equipment 100 provided by the embodiment of the present invention.

The plate cutting equipment 100 provided by the embodiment of the present utility model, specifically, please refer to FIG. 3 , the conveying mechanism 130 includes a first conveying roller assembly 131 and a second conveying roller assembly 132 respectively located on both sides of the cutter assembly 110 , and the installation frame 120 is provided with a third driving member 160 for driving the first conveying roller assembly 131 and the second conveying roller assembly 132 to carry out the conveying operation. The first conveying roller assembly 131 is capable of conveying the board to the cutter assembly 110 for cutting, and the second conveying roller assembly 132 conveys the cut board to the outside of the board cutting device 100 .

In this embodiment, the first conveying roller assembly 131 and the second conveying roller assembly 132 both include a conveying roller 133 and baffles 134 located on both sides of the conveying roller 133 along the conveying direction, and the baffles 134 also pass Limiting plates 135 are installed on the adjusting screw rod 136 , and the distance between the two limiting plates 135 is adjusted through the adjusting screw rod 136 . Adjust the screw rod 136 to adjust the distance between the two limiting plates 135 to adapt to plates of different widths. Please refer to Fig. 4 in detail, a dust cover 180 is detachably installed on the installation frame 120, and a dust cover 180 is detachably installed on the installation frame 120 because the cutter assembly 112 will generate more dust when cutting the plate. , The dust cover 180 can prevent the generated dust from polluting the air.

In the description of this specification, descriptions referring to the terms "one embodiment", "some embodiments", "example", "specific examples", or "some examples" mean that specific features described in connection with the embodiment or example , structures, materials or features are included in at least one embodiment or example of the present invention. In this specification, the schematic representations of the above terms are not necessarily directed to the same embodiment or example. Furthermore, the described specific features, structures, materials or characteristics may be combined in any suitable manner in any one or more embodiments or examples. In addition, those skilled in the art can combine and combine different embodiments or examples and features of different embodiments or examples described in this specification without conflicting with each other.

Although the invention is described herein with reference to specific embodiments, it should be understood that these embodiments are merely illustrative of the principles and applications of the invention. It is therefore to be understood that numerous modifications may be made to the exemplary embodiments and that other arrangements may be devised without departing from the spirit and scope of the invention as defined by the appended claims. It shall be understood that different dependent claims and features described herein may be combined in a different way than that described in the original claims. It will also be appreciated that features described in connection with individual embodiments can be used in other described embodiments.

Claims (10)

1. A kind of plate cutting equipment, is characterized in that, described plate cutting equipment comprises: A cutter assembly, the cutter assembly includes a cutter holder and at least two sets of cutter assemblies provided with a plurality of blades mounted on the cutter holder, each cutter assembly can cut the plate into corresponding different sizes ;as well as The installation frame is provided with a conveying mechanism, and the conveying mechanism is used to convey the plates to be cut and cut. The knife rest is installed on the installation frame, and the installation frame There is a first driving member for driving the cutter assembly to carry out the cutting operation. 2 . The plate cutting equipment according to claim 1 , wherein a rotating shaft is provided on the knife holder, and each of the knife assemblies is evenly distributed on the outer periphery of the rotating shaft. 3 . 3. The plate cutting equipment according to claim 2, characterized in that support plates are provided on both sides of the installation frame along the conveying direction of the conveying mechanism, and the two ends of the rotating shaft correspond to each other It is rotatably mounted on the two supporting plates, and the mounting frame is also mounted with a second driving member for driving the rotating shaft to rotate so that different cutter assemblies can cut the plate. 4 . The plate cutting equipment according to claim 3 , wherein a limit assembly is further provided on the support plate, and the limit assembly can limit the rotation of the knife holder. 5 . 5 . The plate cutting equipment according to claim 4 , wherein the limiting assembly includes a telescopic element, and the knife holder is provided with a limiting cylinder capable of cooperating with the telescopic end of the telescopic element. 6 . 6. The plate cutting equipment according to claim 3, characterized in that, a clutch assembly is also provided on the support plate, and the clutch assembly includes a telescopic transmission shaft and can control one end of the telescopic transmission shaft to connect with the The driving shaft of the cutter assembly is matched with the control handle for connection or disconnection, and the other end of the telescopic transmission shaft is connected with the first driving member, and the first driving member can drive the telescopic transmission shaft to rotate. 7. The plate cutting equipment according to claim 3, wherein the installation frame is provided with a vertical guide rail and a tool conveying assembly located at the lower end of the vertical guide rail, and the support plate can move along the The vertical guide rail moves vertically and can move the tool assembly onto the tool conveying assembly. 8. The plate cutting equipment according to claim 1, characterized in that, the conveying mechanism comprises a first conveying roller assembly and a second conveying roller assembly respectively located on both sides of the cutter assembly, and the The installation frame is provided with a third driving member for driving the first conveying roller assembly and the second conveying roller assembly to carry out conveying operations. 9. The plate cutting equipment according to claim 8, characterized in that, both the first conveying roller assembly and the second conveying roller assembly comprise conveying rollers and are respectively located along the conveyor belt of the conveying rollers. The baffle plates on both sides of the direction, the limit plate is also installed on the baffle through the adjustment screw rod, and the distance between the two limit plates is adjusted through the adjustment screw rod. 10. The plate cutting equipment according to claim 1, characterized in that a dust cover is detachably installed on the installation frame.
