The utility model relates to a detector for detecting network wire use, which comprises a supporting plate, wherein a supporting frame is fixedly arranged at the bottom of the supporting plate, and a cable detector is arranged on the supporting frame. This a detector for network line uses detection, through setting up quick change structure, when need press the fastening to the cable of different diameters regularly, press two handles to the inside of opposite direction, drive the inserted bar through the connecting block and leave the slot, pull out the line ball board downwards, upwards pull out the line seat of putting, advance the lug card at line ball board top of demand size in the recess, loosen two handles, first spring utilizes elastic potential energy rebound to drive connecting block reverse movement, and then drive the inserted bar reverse movement and enter into the inside of slot through the through-hole, carry out the chucking spacing to the lug, in the fixture block card of putting line seat bottom with demand size advances the draw-in groove, accomplish the change, thereby reach the cable to different diameters size and compress tightly fixed purpose.
Description
Technical Field
The utility model relates to the technical field of network cables, in particular to a detector for detecting network cable use.
Background
The network cable, also called a network connection line, is a medium for transmitting information from one network device (such as a computer) to another network device, is a basic component of a network, and is usually detected before leaving a factory, so as to ensure that the cable can be normally connected with a circuit after being electrified.
Through retrieving, chinese patent No. CN202220616764.3 is a connection detection device for network cables, and the connection performance of the network cables can be detected without manually holding the cables, so that labor resources are greatly saved, and a plurality of cables can be simultaneously detected in batches, but the device cannot compress and fix cables with different diameters, so that the practicability of the device is reduced, and therefore, a detector for detecting the use of network cables is provided to solve the problems.
Disclosure of Invention
(one) solving the technical problems
Aiming at the defects of the prior art, the utility model provides a detector for detecting the use of network wires, which has the advantages of being capable of compressing and fixing cables with different diameters and the like, and solves the problem that devices in a comparison document can not compress and fix cables with different diameters.
(II) technical scheme
In order to achieve the above purpose, the present utility model provides the following technical solutions: the detector for detecting the network wire comprises a supporting plate, wherein a supporting frame is fixedly arranged at the bottom of the supporting plate, a cable detector is arranged on the supporting frame, a mounting frame is fixedly arranged at the top of the supporting plate, two cylinders are fixedly arranged at the top of the mounting frame, fixing seats are fixedly arranged at the bottoms of piston rods of the two cylinders, a wire pressing plate is movably arranged at the bottom of the fixing seat, a wire placing seat is arranged at the top of the supporting plate, and a quick-change structure is arranged between the wire pressing plate and the fixing seats;
the quick-change structure includes cavity, recess, lug, balladeur train, sliding sleeve, first spring, connecting block, inserted bar and slot, the cavity has been seted up to the inside of fixing base, the recess that quantity is two is seted up to the bottom of fixing base, the top fixed mounting of line ball board has the lug that quantity is two, the interior roof fixed mounting of cavity has the balladeur train that quantity is two, the surface sliding connection of balladeur train has the sliding sleeve, the surface cover of balladeur train is equipped with first spring, the bottom fixed mounting of sliding sleeve has the connecting block, two the equal fixedly connected with inserted bar in one side that the connecting block is on the back of the body, two the slot has all been seted up to one side that the lug is adjacent.
Further, the bottoms of the piston rods of the two cylinders penetrate through the mounting frame and extend to the inside of the mounting frame, and the two cylinders are symmetrically arranged left and right.
Further, the telescopic columns are fixedly installed on the inner walls of the left side and the right side of the support frame, the second springs are sleeved on the outer surfaces of the telescopic columns, the clamping plates are fixedly installed at the adjacent ends of the telescopic columns, and the anti-slip pads are adhered to the outer surfaces of the adjacent sides of the clamping plates.
Further, a through hole is formed between the groove and the cavity, the inserted link extends to the inside of the slot through the through hole and is clamped with the slot, the inner wall of the groove is attached to the outer surface of the bump, and the groove is clamped with the bump.
Further, the sliding sleeve and the first springs are both positioned on the outer surface of the transverse part of the sliding frame, and one side of the two first springs, which are opposite, is fixedly connected with the two sliding sleeves respectively.
Further, the front fixed mounting of connecting block has the handle, the slide hole that is two in quantity has been seted up to the front side of fixing base, the slide hole is linked together with the cavity, and the front end of handle extends to the outside of fixing base through the slide hole.
Further, the draw-in groove has been seted up at the top of backup pad, the bottom fixed mounting of putting the line seat has the fixture block, fixture block and draw-in groove looks joint, the line hole has been seted up to the surface of backup pad.
(III) beneficial effects
Compared with the prior art, the technical scheme of the application has the following beneficial effects:
this a detector for network line use detects, through setting up quick change structure, when need press the fastening to the cable of different diameters regularly, press two handles to opposite direction, make it under the cooperation of slide hole, drive two connecting blocks and remove in opposite directions, drive the inserted bar syntropy and remove when the connecting block removes, make the inserted bar leave the inside of slot through the through-hole, make the spacing disappearance of lug, and then can pull out the line ball board downwards, upwards pull out the line seat, in the lug card at line ball board top of demand size advances the recess, loosen two handles, compressed first spring utilizes elastic potential energy rebound to drive the connecting block and moves in the backward direction, and then drive the inserted bar and enter into the inside of slot through the through-hole, it is spacing to carry out the chucking to the lug, put the fixture block card of line seat bottom of demand size into the draw-in groove, accomplish the change, thereby reach the cable to different diameters size compresses tightly fixed purpose.
Drawings

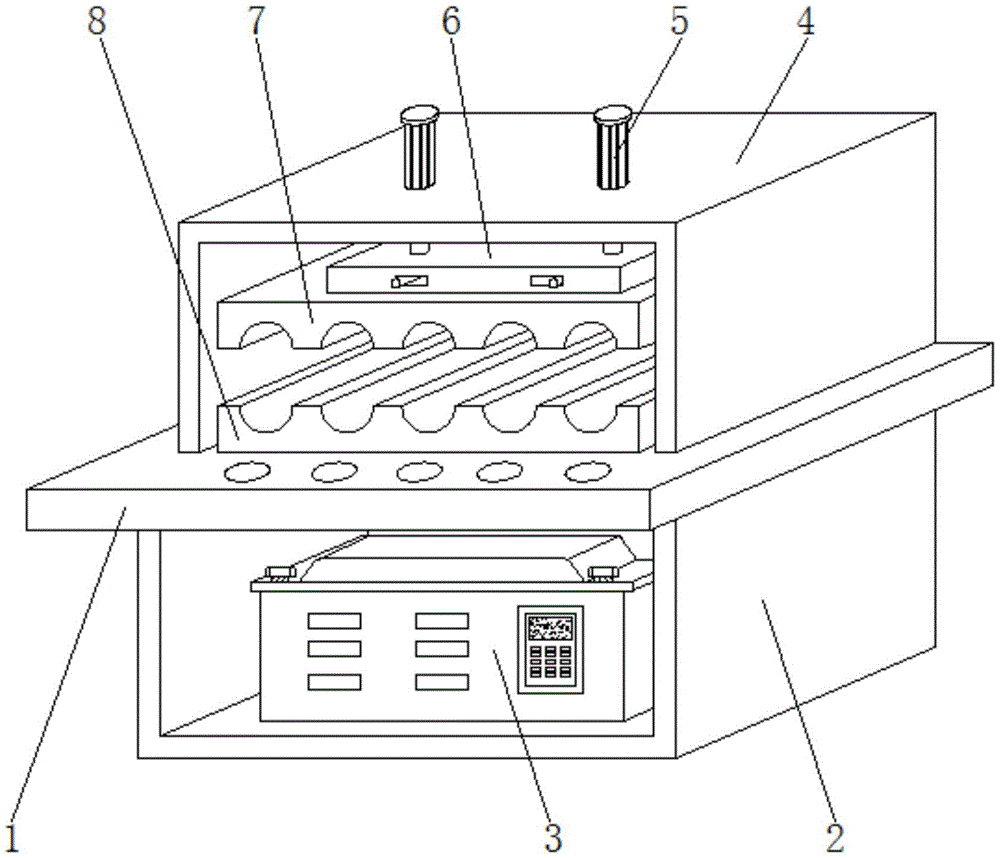

FIG. 1 is a schematic view of a three-dimensional structure of the present utility model;
FIG. 2 is a front cross-sectional view of the present utility model;
FIG. 3 is a schematic diagram of a latch and a slot according to the present utility model;
fig. 4 is an enlarged view of a part of the structure of fig. 2 according to the present utility model.
In the figure: 1 backup pad, 2 support frames, 3 cable detector, 4 mounting brackets, 5 cylinders, 6 fixing bases, 7 line ball boards, 8 line setting bases, 9 quick change structure, 901 cavity, 902 recess, 903 lug, 904 carriage, 905 sliding sleeve, 906 first spring, 907 connecting block, 908 inserted link, 909 slot.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Referring to fig. 1-4, the detector for detecting network cable usage in this embodiment includes a support plate 1, a support frame 2 is fixedly installed at the bottom of the support plate 1, a cable detector 3 is disposed on the support frame 2, when one end of a network cable passes through the support plate 1 and is electrically connected to a port of the cable detector 3 through a cable hole, the network cable can be detected so as to grasp the connection performance of the network cable, a mounting frame 4 is fixedly installed at the top of the support plate 1, two cylinders 5 are fixedly installed at the top of the mounting frame 4, fixing seats 6 are fixedly installed at the bottoms of piston rods of the two cylinders 5, a cable pressing plate 7 is movably installed at the bottom of the fixing seat 6, a cable placing seat 8 is disposed at the top of the support plate 1, and a quick-change structure 9 is disposed between the cable pressing plate 7 and the fixing seats 6.
In fig. 2 and fig. 4, the bottom of the fixing seat 6 is provided with two grooves 902, the top of the line pressing plate 7 is fixedly provided with two convex blocks 903, the grooves 902 and the convex blocks 903 are clamped to preliminarily fix the line pressing plate 7, a sliding sleeve 905 is slidably connected to the outer surface of the sliding rack 904, a first spring 906 is sleeved on the sliding sleeve 905, and further elastic potential energy of the first spring 906 can be utilized to drive a connecting block 907 to move left and right through the sliding sleeve 905, and the connecting block 907 drives an inserting rod 908 to enter or leave the slot 909.
In fig. 2, the inner walls of the left and right sides of the supporting frame 2 are fixedly provided with telescopic columns, the outer surfaces of the telescopic columns are sleeved with second springs, the adjacent ends of the two telescopic columns are fixedly provided with clamping plates, and the outer surfaces of the adjacent sides of the two clamping plates are adhered with anti-slip pads so as to improve the stability of the cable detector 3, so that slipping and displacement of the cable detector 3 in the detection process are avoided, and the stability of the cable detector 3 is further improved.
In fig. 1 and 2, the front of connecting block 907 is fixedly provided with the handle, and the slide hole that is two in quantity is seted up to the front side of fixing base 6, and the slide hole is linked together with cavity 901, and the front end of handle extends to the outside of fixing base 6 through the slide hole, and then the arm of force of extension for the user can more laborsaving removal connecting block 907.
In fig. 1 and 3, the wire hole has been seted up to the surface of backup pad 1, the wire casing has been seted up to the bottom of wire pressing plate 7, wire casing has been seted up at the top of wire setting seat 8, wire casing is the same with the quantity of wire casing, and wire casing and corresponding wire casing center are located same straight line, can drive wire pressing plate 7 downward movement through driving cylinder 5, when wire pressing plate 7 and network cable contact, can fix it in wire casing and wire casing respectively, thereby can effectively improve the stability of network cable, in order to prevent that it from taking place to rock and influence the accuracy of testing result in the testing process.
In practice, the method is carried out according to the following steps:
1) Firstly, externally connecting an electric element in the device with a control switch and a power supply through wires, and then simultaneously placing a plurality of network cables to be detected in a wire placing groove on the surface of a wire placing seat 8;
2) Then the air cylinder 5 drives the wire pressing plate 7 to move downwards until each wire pressing groove on the bottom surface of the wire pressing plate 7 is respectively attached to the top of the corresponding cable, and the cable can be firmly fixed in the wire pressing groove and the wire placing groove through the wire pressing plate 7;
3) And finally, when the cables are detected, one end of each cable is externally connected with a power supply, and then the other end of each cable passes through the cable hole and is electrically connected to the corresponding interface of the cable detector 3, and at the moment, each network cable can be detected through the cable detector 3 so as to master the connection performance of the cable.
To sum up, this a detector for network line detects, through setting up quick change structure 9, when need press the fastening to the cable of different diameters, press two handles to opposite direction, make it under the cooperation of slide hole, drive two connecting blocks 907 and remove in opposite directions, the connecting block 907 moves and drive inserted bar 908 and remove in the same direction, make inserted bar 908 leave the inside of slot 909 through the through-hole, make the spacing disappearance of lug 903, and then can pull out line ball 7 downwards, upwards pull out line seat 8, block into recess 902 with the lug 903 at the line ball 7 top of demand size, loosen two handles, compressed first spring 906 utilizes elastic potential energy rebound drive connecting block at this moment, and then drive inserted bar 908 reverse movement enters into the inside of slot 909 through the through-hole, it is spacing to block, block into the draw-in groove with the fixture block of the bottom of line seat 8 of demand size, accomplish the change, thereby the purpose of compressing tightly to the cable of different diameters size is not being able to compress tightly to the cable of difference in the comparison file is solved.
It is noted that relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Moreover, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising one … …" does not exclude the presence of other like elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. A detector for network line uses and detects, including backup pad (1), its characterized in that: the cable detection device is characterized in that a support frame (2) is fixedly arranged at the bottom of the support plate (1), a cable detector (3) is arranged on the support frame (2), a mounting frame (4) is fixedly arranged at the top of the support plate (1), two cylinders (5) are fixedly arranged at the top of the mounting frame (4), fixing seats (6) are fixedly arranged at the bottoms of piston rods of the two cylinders (5), a wire pressing plate (7) is movably arranged at the bottom of the fixing seats (6), a wire placing seat (8) is arranged at the top of the support plate (1), and a quick-change structure (9) is arranged between the wire pressing plate (7) and the fixing seats (6);
quick change structure (9) include cavity (901), recess (902), lug (903), balladeur train (904), sliding sleeve (905), first spring (906), connecting block (907), inserted bar (908) and slot (909), cavity (901) have been seted up to the inside of fixing base (6), recess (902) that quantity is two are seted up to the bottom of fixing base (6), the top fixed mounting of line ball board (7) has lug (903) that quantity is two, the interior roof fixed mounting of cavity (901) has balladeur train (904) that quantity is two, the surface sliding connection of balladeur train (904) has sliding sleeve (905), the surface cover of balladeur train (904) is equipped with first spring (906), the bottom fixed mounting of sliding sleeve (905) has connecting block (907), two equal fixedly connected with inserted bar (908) of one side that connecting block (907) is opposite, two slot (909) have all been seted up to one side that the lug (903) is adjacent.
2. The detector for network wire usage detection of claim 1, wherein: the bottoms of the piston rods of the two air cylinders (5) penetrate through the mounting frame (4) and extend to the inside of the mounting frame (4), and the two air cylinders (5) are symmetrically arranged left and right.
3. The detector for network wire usage detection of claim 1, wherein: the telescopic support is characterized in that telescopic columns are fixedly mounted on the inner walls of the left side and the right side of the support frame (2), a second spring is sleeved on the outer surface of each telescopic column, clamping plates are fixedly mounted at the adjacent ends of the telescopic columns, and anti-slip pads are adhered to the outer surfaces of the adjacent sides of the clamping plates.
4. The detector for network wire usage detection of claim 1, wherein: a through hole is formed between the groove (902) and the cavity (901), the inserted link (908) extends to the inside of the slot (909) through the through hole and is clamped with the slot (909), the inner wall of the groove (902) is attached to the outer surface of the protruding block (903), and the groove (902) is clamped with the protruding block (903).
5. The detector for network wire usage detection of claim 1, wherein: the sliding sleeves (905) and the first springs (906) are both positioned on the outer surface of the transverse part of the sliding frame (904), and one sides of the two first springs (906) which are opposite are respectively fixedly connected with the two sliding sleeves (905).
6. The detector for network wire usage detection of claim 1, wherein: the front of connecting block (907) fixed mounting has the handle, the slide hole that is two in quantity has been seted up to the front side of fixing base (6), the slide hole is linked together with cavity (901), and the front end of handle extends to the outside of fixing base (6) through the slide hole.
7. The detector for network wire usage detection of claim 1, wherein: clamping grooves are formed in the top of the supporting plate (1), clamping blocks are fixedly arranged at the bottom of the wire placing seat (8) and are clamped with the clamping grooves, and wire holes are formed in the outer surface of the supporting plate (1).
