CN218964873U - Polishing and processing machine for motor shaft rotating shaft - Google Patents
Polishing and processing machine for motor shaft rotating shaft Download PDFInfo
- Publication number
- CN218964873U CN218964873U CN202223487906.XU CN202223487906U CN218964873U CN 218964873 U CN218964873 U CN 218964873U CN 202223487906 U CN202223487906 U CN 202223487906U CN 218964873 U CN218964873 U CN 218964873U
- Authority
- CN
- China
- Prior art keywords
- motor shaft
- motor
- hydraulic rod
- polishing
- rotating
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P70/00—Climate change mitigation technologies in the production process for final industrial or consumer products
- Y02P70/10—Greenhouse gas [GHG] capture, material saving, heat recovery or other energy efficient measures, e.g. motor control, characterised by manufacturing processes, e.g. for rolling metal or metal working
Landscapes
- Constituent Portions Of Griding Lathes, Driving, Sensing And Control (AREA)
Abstract
The utility model discloses a motor shaft rotating shaft polishing processing machine which comprises a polishing containing box, an automatic adjusting polishing assembly and a motor shaft rotating shaft clamping assembly, wherein the automatic adjusting polishing assembly comprises a fixed base, a driving motor, a rotary transmission threaded rod, a threaded rod supporting plate, a connecting base sliding groove, a connecting base sliding block, a movable connecting base, a lifting hydraulic rod, a motor shaft rotating shaft polishing wheel and a transparent protective frame, and the motor shaft rotating shaft clamping assembly comprises a motor fixing frame, a rotating motor, a rotary transmission shaft, a rotary connecting frame, a hydraulic rod supporting plate, a hydraulic rod supporting seat, a telescopic hydraulic rod and a motor shaft rotating shaft clamping plate. The motor shaft polishing machine can achieve the purpose that the motor shaft polishing machine can automatically and stably clamp and fix the rotating shaft according to the processing requirement through the motor shaft clamping assembly, and the motor shaft polishing working efficiency is improved.
Description
Technical Field
The utility model belongs to the technical field of motor shaft rotating shafts, and particularly relates to a polishing and processing machine for a motor shaft rotating shaft.
Background
The motor shaft is an important part in the motor, as the tie of electromechanical energy conversion between motor and the equipment, support the relative position of rotation spare part, transmission moment and confirm rotation spare part to the stator, in the current motor shaft production process, the motor shaft surface is uneven, need polish the processing to the motor shaft surface, and current motor shaft processing machine of polishing is inconvenient according to the fixed pivot of automatic stable centre gripping of processing demand, and inconvenient in motor shaft polishing in-process carries out automatic adjustment polishing position moreover, consequently, a be used for motor shaft processing machine of polishing of emergency needs is in order to solve above-mentioned problem.
Disclosure of Invention
In order to overcome the defects in the prior art, the utility model provides a polishing and processing machine for a motor shaft rotating shaft.
In order to realize the functions, the technical scheme adopted by the utility model is as follows: the utility model provides a be used for motor shaft pivot processing machine of polishing, is including polishing flourishing the box that connects, it is equipped with automatic adjustment to polish the subassembly to polish flourishing the box connection, automatic adjustment is polished the subassembly and is included unable adjustment base, driving motor, rotatory transmission threaded rod, threaded rod supporting disk, connecting seat spout, connecting seat slider, removal connecting seat, lift hydraulic stem, motor shaft pivot and polish grinding wheel and transparent protection frame, it is equipped with unable adjustment base to polish flourishing the box to connect, connect and be equipped with driving motor above a unable adjustment base lateral wall, the last rotation of driving motor is connected and is equipped with rotatory transmission threaded rod, rotate above the rotatory transmission threaded rod and be equipped with threaded rod supporting disk, be equipped with the connecting seat spout above the unable adjustment base, sliding connection is equipped with the connecting seat slider above the connecting seat slider, be equipped with the removal connecting seat above the removal connecting seat, be equipped with the lift hydraulic stem above the lift hydraulic stem connection and be equipped with the motor shaft pivot and polish, it is equipped with transparent protection frame to polish flourishing the box.
For realizing the purpose of conveniently automatic stable centre gripping fixed rotating shaft according to the processing demand smoothly, connect above the unable adjustment base and be equipped with motor shaft pivot clamping assembly, motor shaft pivot clamping assembly includes motor mount, rotating electrical machines, rotary drive axle, swivelling joint frame, hydraulic rod extension board, hydraulic rod support, flexible hydraulic rod and motor shaft pivot grip block, connect above the unable adjustment base and be equipped with the motor mount, connect above the motor mount and be equipped with the rotating electrical machines, rotate above the rotating electrical machines and connect and be equipped with rotary drive axle, connect above the rotary drive axle and be equipped with the swivelling joint frame, connect above the swivelling joint frame and be equipped with the hydraulic rod extension board, connect above the hydraulic rod extension board and be equipped with flexible hydraulic rod, connect above the hydraulic rod support and be equipped with motor shaft pivot grip block.
In order to smoothly realize the purpose of convenient connection support, the driving motor with be connected between the threaded rod supporting disk and be equipped with rotatory transmission threaded rod, the connecting seat slider with be connected between the lift hydraulic stem and be equipped with the removal connecting seat, the hydraulic stem support with connect between the motor shaft pivot grip block and be equipped with flexible hydraulic stem.
Further, a transparent protective cover is connected to the upper surface of the transparent protective frame.
Further, the upper surface of the rotary transmission threaded rod is provided with a movable connecting seat in a penetrating connection mode.
Wherein, the flexible hydraulic stem is equipped with to the through connection above the hydraulic stem extension board.
Further, unable adjustment base is the U-shaped setting, the removal connecting seat is the T shape setting, motor shaft pivot grinding wheel is the arc setting, swivelling joint frame is the U-shaped setting, the hydraulic rod support is the arc setting.
Preferably, the hydraulic rod support plate and the hydraulic rod support are both provided with two groups, and the telescopic hydraulic rod and the motor shaft rotating shaft clamping plate are both provided with two groups.
The beneficial effects obtained by the utility model by adopting the structure are as follows: the motor shaft polishing and processing machine can achieve the purpose of automatically adjusting polishing positions in the motor shaft polishing process through the automatic adjusting and polishing assembly, and can achieve the purpose that the motor shaft polishing and processing machine is convenient to automatically and stably clamp and fix the rotating shaft according to processing requirements, so that the working efficiency of motor shaft polishing and processing is improved.
Drawings

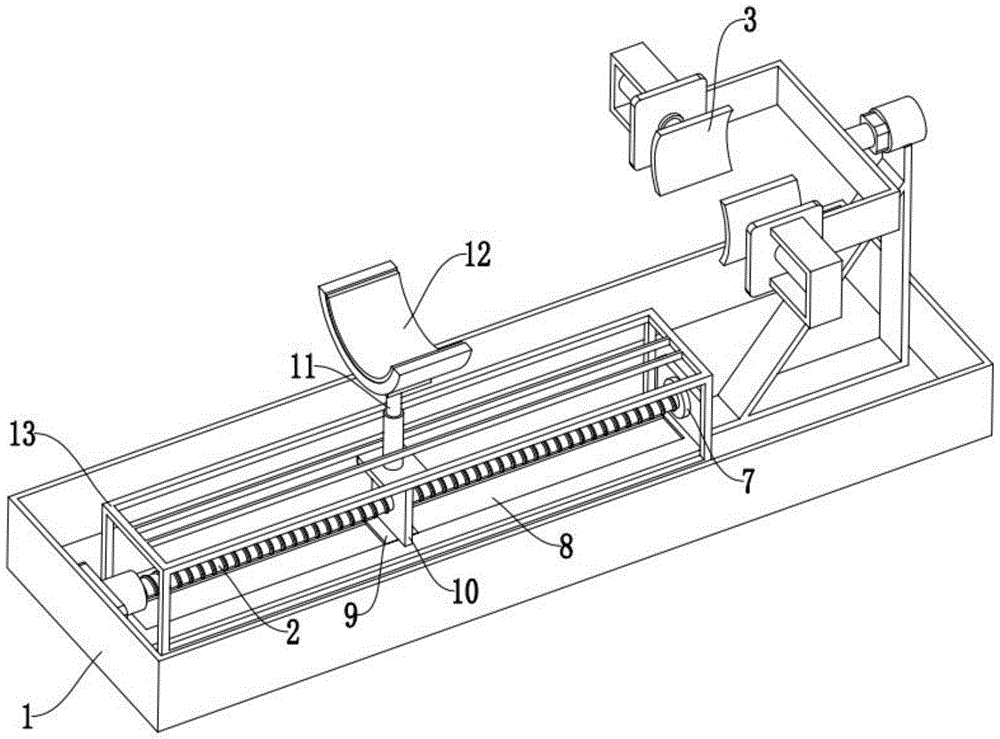

Fig. 1 is a schematic structural view of a polishing machine for a motor shaft and a rotating shaft according to the present embodiment;
fig. 2 is a schematic view of another angle structure of the polishing machine for the shaft of the motor according to the present embodiment.
Wherein, 1, a polishing containing box, 2, an automatic adjusting polishing assembly, 3, a motor shaft and rotating shaft clamping assembly, 4, a fixed base, 5, a driving motor, 6, a rotary transmission threaded rod, 7, a threaded rod supporting disc, 8, a connecting seat sliding chute, 9, a connecting seat sliding block, 10, a movable connecting seat, 11, a lifting hydraulic rod, 12, a motor shaft rotating shaft polishing wheel, 13, a transparent protective frame, 14, a motor fixing frame, 15, a rotating motor, 16, a rotating transmission shaft, 17, a rotating connection frame, 18, a hydraulic rod support plate, 19, a hydraulic rod support, 20, a telescopic hydraulic rod, 21 and a motor shaft rotating shaft clamping plate.
The accompanying drawings are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this specification, illustrate the utility model and together with the embodiments of the utility model, serve to explain the utility model.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and fully with reference to the accompanying drawings, in which it is evident that the embodiments described are only some, but not all embodiments of the utility model; all other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
As shown in fig. 1-2, in order to realize the above functions, the technical scheme adopted by the utility model is as follows: the utility model provides a be used for motor shaft pivot processing machine of polishing, including polishing flourishing the box 1 that connects, it is equipped with automatic adjustment polishing subassembly 2 to polish flourishing the box 1 internal connection, automatic adjustment polishing subassembly 2 includes unable adjustment base 4, driving motor 5, rotatory transmission threaded rod 6, threaded rod supporting disk 7, connecting seat spout 8, connecting seat slider 9, remove connecting seat 10, lift hydraulic stem 11, motor shaft pivot polishing wheel 12 and transparent protection frame 13, it is equipped with unable adjustment base 4 to polish flourishing the box 1 internal connection, connect above a lateral wall of unable adjustment base 4 and be equipped with driving motor 5, rotate above driving motor 5 and connect and be equipped with rotatory transmission threaded rod 6, rotate above rotatory transmission threaded rod 6 and connect and be equipped with threaded rod supporting disk 7, connect between driving motor 5 and the threaded rod supporting disk 7 and be equipped with rotatory transmission threaded rod 6, be equipped with connecting seat spout 8 above unable adjustment base 4, sliding connection is equipped with connecting seat slider 9 above connecting seat slider 9, be equipped with removal connecting seat 10 above removal connecting seat 10, be equipped with lift hydraulic stem 11 above the removal connecting seat 10, connect between connecting seat slider 9 and the lift hydraulic stem 11 and be equipped with internal connection be equipped with the transparent protection frame 13 of polishing the box 1.
As shown in fig. 1-2, the motor shaft rotating shaft clamping assembly 3 is connected and arranged on the fixed base 4, the motor shaft rotating shaft clamping assembly 3 comprises a motor fixing frame 14, a rotating motor 15, a rotating transmission shaft 16, a rotating connection frame 17, a hydraulic rod support plate 18, a hydraulic rod support 19, a telescopic hydraulic rod 20 and a motor shaft rotating shaft clamping plate 21, the motor fixing frame 14 is connected and arranged on the fixed base 4, the rotating motor 15 is connected and arranged on the motor fixing frame 14, the rotating transmission shaft 16 is connected and arranged on the rotating transmission shaft 16, the rotating connection frame 17 is connected and arranged on the rotating connection frame 17, the hydraulic rod support plate 18 is connected and arranged on the hydraulic rod support plate 18, the telescopic hydraulic rod 20 is connected and arranged on the hydraulic rod support plate 19, and the telescopic hydraulic rod 20 is connected and arranged between the hydraulic rod support plate 19 and the motor shaft rotating shaft clamping plate 21.
As shown in fig. 1-2, a transparent protective cover is connected to the transparent protective frame 13.
As shown in fig. 1-2, a movable connecting seat 10 is arranged on the rotary transmission threaded rod 6 in a penetrating connection manner.
As shown in fig. 1-2, a telescopic hydraulic rod 20 is connected and arranged on the hydraulic rod support plate 18 in a penetrating manner.
As shown in fig. 1-2, the fixed base 4 is in a U-shape, the movable connecting base 10 is in a T-shape, the grinding wheel 12 of the motor shaft rotating shaft is in an arc shape, the rotary connecting frame 17 is in a U-shape, and the hydraulic rod support 19 is in an arc shape.
As shown in fig. 1-2, two groups of hydraulic rod support plates 18 and hydraulic rod supports 19 are provided, and two groups of telescopic hydraulic rods 20 and motor shaft rotating shaft clamping plates 21 are provided.
When the motor shaft grinding machine is specifically used, a user places a motor shaft to be machined between two groups of motor shaft rotating shaft clamping plates 21, then opens two groups of telescopic hydraulic rods 20 to enable the motor shaft rotating shaft clamping plates to stretch, then opens the lifting hydraulic rods 11 to enable the lifting hydraulic rods to stretch and drive the motor shaft rotating shaft grinding wheel 12 to move to adjust the grinding position, closes the lifting hydraulic rods 11 after adjustment, then opens the rotating motor 15, then rotates the rotating transmission shaft 16 to drive the rotating connection frame 17 to rotate along with the adjustment, so that the motor shaft rotating shaft rotates to grind on the motor shaft rotating shaft grinding wheel 12, opens the driving motor 5, rotates along with the rotating transmission threaded rod 6 to drive the connecting seat sliding block 9 and the movable connection seat 10 to move along the connecting seat sliding groove 8, and simultaneously automatically moves the motor shaft rotating shaft grinding wheel 12 to adjust the grinding position.
It is noted that relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Moreover, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
The utility model and its embodiments have been described above with no limitation, and the actual construction is not limited to the embodiments of the utility model as shown in the drawings. In summary, if one of ordinary skill in the art is informed by this disclosure, a structural manner and an embodiment similar to the technical solution should not be creatively devised without departing from the gist of the present utility model.
Claims (8)
1. The utility model provides a be used for motor shaft pivot to polish processing machine which characterized in that: including polishing flourishing box that connects, it is equipped with automatic adjustment polishing subassembly to polish flourishing box internal connection, automatic adjustment polishing subassembly includes unable adjustment base, driving motor, rotation transmission threaded rod, threaded rod supporting disk, connecting seat spout, connecting seat slider, removal connecting seat, lift hydraulic stem, motor shaft pivot polishing wheel and transparent protection frame, it is equipped with unable adjustment base to polish flourishing box internal connection, be equipped with driving motor above the unable adjustment base lateral wall, the last rotation of driving motor is connected and is equipped with rotation transmission threaded rod, the last rotation of rotation transmission threaded rod is connected and is equipped with the threaded rod supporting disk, be equipped with the connecting seat spout above the unable adjustment base, sliding connection is equipped with the connecting seat slider above the connecting seat slider, the last connection of removal connecting seat is equipped with the lift hydraulic stem, the last connection of lift hydraulic stem is equipped with the motor shaft pivot and polishes, the last connection of polishing flourishing box is equipped with transparent protection frame.
2. A machine for grinding motor shaft shafts as defined in claim 1, wherein: the motor shaft rotating shaft clamping assembly is connected and arranged on the fixed base, the motor shaft rotating shaft clamping assembly comprises a motor fixing frame, a rotating motor, a rotating transmission shaft, a rotating connection frame, a hydraulic rod support plate, a hydraulic rod support, a telescopic hydraulic rod and a motor shaft rotating shaft clamping plate, the motor fixing frame is connected and arranged on the fixed base, the rotating motor is connected and arranged on the motor fixing frame, the rotating transmission shaft is connected and arranged on the rotating motor, the rotating connection frame is connected and arranged on the rotating transmission shaft, the hydraulic rod support plate is connected and arranged on the rotating connection frame, the telescopic hydraulic rod is connected and arranged on the hydraulic rod support plate, and the motor shaft rotating shaft clamping plate is connected and arranged on the telescopic hydraulic rod.
3. A machine for grinding motor shaft shafts as defined in claim 2, wherein: the driving motor is connected with a rotary transmission threaded rod between the threaded rod supporting plates, a movable connecting seat is connected between the connecting seat sliding block and the lifting hydraulic rod, and a telescopic hydraulic rod is connected between the hydraulic rod support and the motor shaft rotating shaft clamping plate.
4. A machine for grinding a motor shaft spindle according to claim 3, wherein: and a transparent protective cover is connected with the upper surface of the transparent protective frame.
5. A machine for grinding a motor shaft spindle as defined in claim 4, wherein: the upper surface of the rotary transmission threaded rod is provided with a movable connecting seat in a penetrating connection manner.
6. A machine for grinding a motor shaft spindle as defined in claim 5, wherein: the upper surface of the hydraulic rod support plate is connected with a telescopic hydraulic rod in a penetrating way.
7. The machine for grinding motor shaft shafts according to claim 6, wherein: the fixed base is U-shaped, the movable connecting seat is T-shaped, the grinding wheel of the motor shaft rotating shaft is arc-shaped, the rotary connecting frame is U-shaped, and the hydraulic rod support is arc-shaped.
8. A machine for grinding a motor shaft spindle as defined in claim 7, wherein: the hydraulic rod support plate and the hydraulic rod support are both provided with two groups, and the telescopic hydraulic rod and the motor shaft rotating shaft clamping plate are both provided with two groups.
