Abstract

The utility model provides a sputum-aspiration tracheotomy tube, which comprises an outer tube, a tube core and an inner tube, wherein the tube core or the inner tube is arranged in the outer tube; the outer side corner end of the tube core is fixedly provided with a notch plug which is spliced with the notch. This can inhale phlegm formula tracheotomy sleeve pipe makes medical personnel more convenient, standardized in clinical operation work absorb patient's oral cavity, throat portion sink to the secretion on the gasbag, reduce the incidence of pulmonary infection, later stage stifled pipe (when the stifled pipe is that patient is recovered soon, in order to let patient resume normal breathing, stop up the sleeve pipe, let patient's adaptation resume breathe out from the throat) also can increase main tributary trachea gas flow, reduce the air flue resistance, increase the possibility of stifled pipe, the inside and outside sleeve pipe of disconnect-type is favorable to the device disinfection.

Description

Sputum-aspiration tracheotomy cannula
Technical Field
The utility model relates to the technical field of clinical medical equipment, in particular to a sputum-aspiration tracheostomy tube.
Background
Tracheotomy is a common operation of cutting the cervical trachea, putting a metal tracheal cannula or a silica gel cannula with an air sac into the tracheotomy to relieve dyspnea and respiratory dysfunction caused by laryngeal origin or lower respiratory tract secretion retention. After tracheotomy, the patient needs to be connected with a breathing machine through an autogenous cutting catheter to carry out mechanical ventilation, and when ventilation treatment is stopped, an air bag of the autogenous cutting catheter positioned in the trachea is deflated and temporarily kept in the trachea, and at the moment, the patient inhales air or oxygen through an autogenous cutting catheter opening. However, at present, when the patient's condition is improved and the tracheal catheter needs to be pulled out, two general clinical modes are adopted: firstly, directly pulling out and plugging and fixing the autogenous cutting wound by using a butterfly adhesive tape, and if the patient has repeated illness state and needs to carry out mechanical ventilation again, causing secondary tracheotomy and increasing the pain of the patient; secondly, before tube drawing, the tube is firstly plugged, namely, the opening of the tracheostomy tube is plugged by using a piston, and a patient finishes inspiration and expiration through the mouth and the nose, so that the risk of secondary incision is avoided, but the plugged trachea forms artificial airway stenosis because the tracheostomy tube is placed in the trachea, and thus, the patient can breathe very difficultly because of smaller gap, and discomfort of the patient is caused.
In summary, the prior art has the following disadvantages: when the sputum is sucked upwards, the sputum suction tube at the side of the sleeve is easy to be blocked (the secretion amount of the mouth and throat of a patient sinking onto the air bag is large, sticky or the granular and blocky foreign matters are sucked by mistake) due to the immobility and inextensibility of the sputum suction tube at the side of the sleeve, which easily leads to insufficient sputum suction and difficult sputum suction. Because of the irreplaceability of the sputum suction tube at the side of the sleeve, bacteria and viruses are easy to stay, bronchitis is caused, and the lung infection persists. The success rate of the gas pipe blocking cannot be improved. When the sleeve is blocked, the air flow can only enter and exit the main bronchus from the periphery of the sleeve.
Disclosure of Invention
The utility model aims to overcome the defects of the prior art and provide a sputum-aspiration tracheostomy tube which solves the problems in the prior art. The sputum-aspiration tracheotomy tube can reduce the incidence rate of early lung infection of a tracheotomy patient and improve the success rate of tube blockage during the recovery period.
The sputum-aspiration tracheotomy tube comprises an outer tube, a tube core and an inner tube, wherein the tube core or the inner tube is arranged inside the outer tube;
the outer sleeve is characterized in that an air bag component is arranged at the outer part of the head end of the outer sleeve, a notch is formed in the outer corner end of the outer sleeve, a guide thorn head and a cover head are respectively connected with the head end and the tail end of the tube core, a notch plug is fixed at the outer corner end of the tube core, and the notch plug is spliced with the notch.
Preferably, the convex structure of the opening plug is matched with the concave structure of the opening.
Preferably, the air bag assembly comprises an air bag, an air bag tubule and an air bag interface, wherein the air bag is fixedly arranged with the outer sleeve, the air bag tubule is connected with the air inlet end of the air bag, and the air bag interface is connected with the tail end of the air bag tubule.
Preferably, the opening blocking head is made of silicon rubber.
Preferably, the guide spike is composed of silicone rubber.
Preferably, the cover head is inserted into the head end of the outer sleeve.
Preferably, the notch is an elliptic notch.
When the operation is performed on the patient, the tube core is matched with the outer sleeve, the operation is performed on the patient, the tube core is taken out after the operation is performed, and the outer sleeve is left on the patient. The air bag is inflated by the air bag connector and the air bag tubule, so that no gas flows out of a channel between the outer sleeve and the throat of a patient, the inner sleeve is inserted, and the patient breathes through the inner sleeve (at the moment, the inner sleeve and the outer sleeve are both inserted into the lung of the patient, and breathe directly through the inner sleeve during breathing).
When sputum is required to be sucked, a special additional sputum aspirator tubule is adopted to suck the sputum of the lung of the patient through the inner sleeve. If the sputum of the patient is positioned in the upper respiratory tract between the throat and the outer sleeve, the inner sleeve is taken out, the sputum aspirator tubule is inserted through the oval opening on the outer sleeve, and the sputum between the throat and the outer sleeve of the patient is sucked.
When the inner sleeve is required to be disinfected, the inner sleeve can be conveniently taken out for disinfection and then inserted into the outer sleeve for use. Avoid the integral type problem in the prior art that the long-term contact with sputum or the lung of a patient cannot be disinfected.
When the patient is recovering, the patient needs to be assisted to recover to breathe through the throat, and the orifice of the outer sleeve needs to be blocked. At this time, the inner sleeve is taken out first, the gas in the air bag on the outer sleeve is discharged, and then the mouth of the outer sleeve is blocked. In the prior art, the training of recovering throat respiration can only be carried out through the gap between the outer sleeve and the throat, and patients can breathe very difficultly due to the smaller gap. The outer sleeve is provided with the notch (the incision), so that the exhaled air of the lung can enter from the inside of the outer sleeve and enter the throat from the notch, thereby opening the air passage between the outer sleeve and the throat, and being beneficial to assisting the rehabilitation training of the patient in the rehabilitation stage.
The beneficial effects are that: this can inhale phlegm formula tracheotomy sleeve pipe makes medical personnel more convenient, standardized in clinical operation work absorb patient's oral cavity, throat portion sink to the secretion on the gasbag, reduces the incidence of pulmonary infection, and later stage stifled pipe (when the stifled pipe is that patient is recovered soon, in order to let patient resume normal breathing, blocks up the sleeve pipe, lets patient adapt to and resumes and breathe out from the throat) also can increase main tributary tracheal gas flow, reduces the air flue resistance, increases the possibility that stifled pipe was successful. The separated inner and outer sleeves are beneficial to disinfection of devices.
Drawings

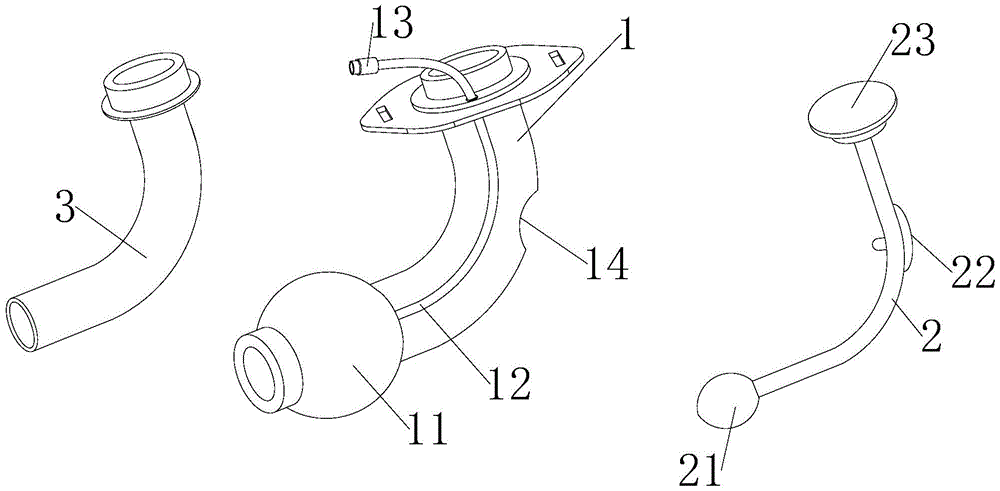

FIG. 1 is a schematic diagram of the overall structure of the present utility model;
FIG. 2 is a schematic view of the utility model integrally mounted within a trachea;
FIG. 3 is a schematic cross-sectional view of the present utility model with an inner sleeve mounted within an outer sleeve.
In the figure: 1-outer sleeve, 11-air bag, 12-air bag tubule, 13-air bag interface, 14-opening, 2-tube core, 21-guiding thorn head, 22-opening plug, 23-cap head and 3-inner sleeve.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Referring to fig. 1-3, a sputum aspirator tracheotomy tube includes an outer tube 1, a tube core 2 (generally made of silica gel) and an inner tube 3 (generally made of silica gel), wherein the tube core 2 or the inner tube 3 is installed inside the outer tube 1, the tube core 2 is matched with the outer tube 1 when a patient is operated, and the tube core 2 is positioned inside the outer tube 1, the patient is operated, the tube core 2 is taken out after the operation is completed, the outer tube 1 is left on the patient, after the tube core 2 is taken out, the inner tube 3 can be installed inside the outer tube 1, the patient breathes through the inner tube 3, and at the moment, the inner tube 3 and the outer tube 1 are inserted into the lung of the patient, and breathes through the inner tube 3 directly during breathing.
The air bag module is arranged outside the head end of the outer sleeve 1 and comprises an air bag 11, an air bag tubule 12 and an air bag interface 13, the air bag 11 is fixedly arranged with the outer sleeve 1, the air bag tubule 12 is connected to the air inlet end of the air bag 11, the air bag interface 13 is connected to the tail end of the air bag tubule 12, an air pumping device is externally connected through the air bag interface 13, and then air is pumped, so that air can be input into the air bag 11 along the air bag interface 13 and the air bag tubule 12, and the air bag 11 bulges at the moment;
in summary, when the operation is performed on the patient, the tube core 2 is matched with the outer sleeve 1, the operation is performed on the patient, the tube core 2 is taken out after the operation is performed, the outer sleeve 1 is left on the patient, the air bag 11 is inflated by the air bag interface 13 and the air bag tubule 12, no gas outflow channel exists between the outer sleeve 1 and the throat of the patient, then the inner sleeve 3 is inserted, the patient breathes through the inner sleeve 3, at the moment, the inner sleeve 3 and the outer sleeve 1 are both inserted into the lung of the patient, and the patient breathes through the inner sleeve 3 directly during breathing.
The outer corner end of the outer sleeve 1 is provided with a notch 14, the notch 14 is preferably an elliptic notch, the notch can be designed along the direction of the outer sleeve 1, and also can be designed in the transverse direction of the outer sleeve 1, and when the outer sleeve 1 is inserted into use, the distance between the position of the notch 14 and the skin of the surface layer of a human body is 1.5-4.5 cm. The end-to-end ends of the tube core 2 are respectively connected with a guide piercing head 21 and a cover head 23, the guide piercing head 21 is composed of silicon rubber, the cover head 23 is inserted into the end of the outer tube 1, a notch plug 22 is fixed at the outer corner end of the tube core 2, the notch plug 22 is inserted into the notch 14, the convex structure of the notch plug 22 is matched with the concave structure of the notch 14, the notch plug 22 is composed of silicon rubber, the tube core 2 is sleeved in the outer tube 1 at ordinary times to provide certain hardness for the outer tube 1, after the tube core 2 is inserted into the outer tube, the tube core 2 is taken out, and as the notch 14 is added on the outer tube 1, the notch plug 22 made of the silicon rubber is used for blocking the notch 14, the shape of the notch plug 22 is matched with that of the notch 14, and cannot be too large so as to be easily separated when the tube core 2 is taken out, and cannot play a role in blocking, the notch 14 of the outer tube 1 scratches the throat, the notch 14 is used for the purposes of the outer tube 1, and the inner part of the notch 14 is required to be not to be positioned in the inner part of the notch 14;
in summary, when sputum aspiration is needed, a special additional sputum aspirator tubule is adopted to draw sputum from the lungs of the patient through the inner cannula 3, if part of the sputum of the patient is positioned in the upper respiratory tract between the throat and the outer cannula 1, the inner cannula 3 is taken out, the sputum aspirator tubule is inserted through the opening 14 of the outer cannula 1, and the sputum between the throat of the patient and the outer cannula 1 is aspirated.
When the sterilization is needed, the inner sleeve 3 can be conveniently taken out for sterilization and then inserted into the outer sleeve 1 for use, so that the problem that the integral type in the prior art cannot be sterilized after long-term contact with sputum or the lung of a patient is avoided.
When the patient is recovered, when the patient needs to be assisted to breathe through the throat, the mouth of the outer sleeve 1 is required to be blocked, at this moment, the inner sleeve 3 is taken out firstly, the air bag 11 on the outer sleeve 1 is discharged, the mouth of the outer sleeve 1 is blocked, the prior art is generally used for training the recovery of throat respiration through the gap between the outer sleeve 1 and the throat, because the gap is smaller, the patient can breathe very difficultly, the outer sleeve 1 is provided with the opening 14, the exhaled air of the lung can enter from the inside of the outer sleeve 1 and enter the throat from the opening 14, thereby opening the air channel between the outer sleeve 1 and the throat, the recovery training of the recovery stage of the patient is facilitated, the sputum-absorbable tracheal incision sleeve is formed, the medical staff can absorb secretion on the mouth and the throat of the patient more conveniently and normally in the clinical operation work, the occurrence rate of pulmonary infection is reduced, the later stage of blocking the air bag is used for recovering normal respiration of the patient, the blocking sleeve is used for the patient to recover, the patient is suitable for recovering the respiratory gas flow from the throat, the main support can be increased, the resistance of the main support can be increased, and the device can be used for disinfecting the device can be increased.
Finally, it should be noted that: the foregoing description is only a preferred embodiment of the present utility model, and the present utility model is not limited thereto, but it is to be understood that modifications and equivalents of some of the technical features described in the foregoing embodiments may be made by those skilled in the art, although the present utility model has been described in detail with reference to the foregoing embodiments. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model should be included in the protection scope of the present utility model.

Claims (7)

1. The utility model provides a but sputum suction formula tracheotomy sleeve pipe, includes outer tube (1), tube core (2) and interior sleeve pipe (3), tube core (2) or interior sleeve pipe (3) are installed inside outer tube (1), its characterized in that:
the outer sleeve is characterized in that an air bag component is arranged at the outer part of the head end of the outer sleeve (1), a notch (14) is formed in the outer corner end of the outer sleeve (1), a guide thorn head (21) and a cover head (23) are respectively connected to the head end and the tail end of the tube core (2), a notch plug (22) is fixed to the outer corner end of the tube core (2), and the notch plug (22) is spliced with the notch (14).
2. A sputum-absorbable tracheostomy tube as recited in claim 1, wherein: the convex structure of the opening plug (22) is matched with the concave structure of the opening (14).
3. A sputum-absorbable tracheostomy tube as recited in claim 1, wherein: the air bag assembly comprises an air bag (11), an air bag tubule (12) and an air bag interface (13), wherein the air bag (11) is fixedly installed with the outer sleeve (1), the air bag tubule (12) is connected to the air inlet end of the air bag (11), and the air bag interface (13) is connected to the tail end of the air bag tubule (12).
4. A sputum-absorbable tracheostomy tube as recited in claim 1, wherein: the gap plugs (22) are made of silicon rubber.
5. A sputum-absorbable tracheostomy tube as recited in claim 1, wherein: the guide piercing head (21) is composed of silicone rubber.
6. A sputum-absorbable tracheostomy tube as recited in claim 1, wherein: the cover head (23) is inserted with the head end of the outer sleeve (1).
7. A sputum-absorbable tracheostomy tube as recited in claim 1, wherein: the notch (14) is an elliptic notch.
