CN218954685U

CN218954685U - LED spotlight convenient to installation

Info

Publication number: CN218954685U
Application number: CN202223345430.6U
Authority: CN
Inventors: 周庆伟; 周保银; 许桂子
Original assignee: Anhui Lanfan Advertising Co ltd
Current assignee: Anhui Lanfan Advertising Co ltd
Priority date: 2022-12-13
Filing date: 2022-12-13
Publication date: 2023-05-02
Anticipated expiration: 2032-12-13

Abstract

The utility model discloses an LED spot lamp convenient to install, which belongs to the technical field of LED spot lamps and comprises a lamp housing, wherein a transverse plate is arranged in the lamp housing, rotating shafts are fixedly connected to the surfaces of two sides of the transverse plate, a second gear is fixedly connected to the side surfaces of the rotating shafts, a driving mechanism is arranged below the second gear, an inner lampshade and a lamp panel are fixedly connected to the upper surface of the transverse plate, the lamp panel is positioned on the inner side of the inner lampshade, lamp beads are fixedly connected to the upper surface of the lamp panel, a glass plate is fixedly arranged at the upper end of the lamp housing, and a mounting plate is arranged below the lamp housing. Can need not adjust the whole of LED shot-light when the angle that needs to adjust the LED shot-light in the use to avoid the staff to climb to on the LED lamp pole and adjust the LED shot-light, saved trouble and avoid the waste of time, secondly also reduced staff's potential safety hazard at the in-process of operation, ensured staff's safety.

Description

LED spotlight convenient to installation

Technical Field

The utility model relates to an LED spotlight convenient to install, and belongs to the technical field of LED spotlight.

Background

The LED spotlight is a spotlight using a light emitting diode as a light source. The traditional spotlight adopts the halogen lamp more, luminous efficiency is lower, the comparative power consumption, by the ambient temperature that shines rise, life is short, the LED light source is all far superior to traditional lighting fixture on luminous principle, energy-conservation, environmental protection's aspect, current LED spotlight still has certain problem and defect in the in-process of using, current LED spotlight's interior lamp shade is generally fixed, need the staff climb to the lighting fixture of LED spotlight and then adjust the angle of LED spotlight when need carry out angle modulation to the LED spotlight, consequently more troublesome and more waste time, secondly at the in-process staff of adjusting can only one hand to ensure oneself's safety hazard, thereby the potential safety hazard of staff has been increased.

Disclosure of Invention

The utility model aims to solve the problems and provide the LED spotlight convenient to install, and the integral adjustment of the LED spotlight is not needed when the angle of the LED spotlight needs to be adjusted in the use process, so that workers are prevented from climbing onto an LED lamp post to adjust the LED spotlight, trouble is avoided, time waste is avoided, potential safety hazards of the workers are reduced in the operation process, and the safety of the workers is guaranteed.

The LED spot lamp convenient to install comprises a lamp shell, wherein a transverse plate is arranged in the lamp shell, rotating shafts are fixedly connected to the surfaces of two sides of the transverse plate, a second gear is fixedly connected to the side surfaces of the rotating shafts, an inner lampshade and a lamp panel are fixedly connected to the upper surface of the transverse plate below the second gear, the lamp panel is located on the inner side of the inner lampshade, lamp beads are fixedly connected to the upper surface of the lamp panel, a glass plate is fixedly arranged at the upper end of the lamp shell, and a mounting plate is arranged below the lamp shell.

Preferably, the driving mechanism comprises a servo motor, one end of the servo motor is fixedly connected with a first gear, the first gear is meshed with a second gear, the lower surface of the servo motor is fixedly connected with a supporting plate, and the supporting plate is fixedly connected with the inner side wall of the lamp housing.

Preferably, the both sides surface of lamp body is all fixedly connected with hangers, and the mounting panel passes through the hangers and rotates with the both sides of lamp body to be connected, the lower surface of mounting panel is equipped with locking mechanism, the through-hole has been seted up to the central point of mounting panel.

Preferably, the locking mechanism comprises a fixed plate, the inside of the fixed plate is symmetrically and slidingly connected with a sliding rod, the outer side surface of the sliding rod is fixedly connected with a clamping block, and one end of the sliding rod is fixedly connected with a clamping plate.

Preferably, the starter is fixedly arranged on the lower surface of the lamp housing, corrugated plates are arranged around the starter, and the corrugated plates are fixedly connected with the lower surface of the lamp housing.

The beneficial effects of the utility model are as follows: according to the LED spotlight, the second gear fixedly connected with the side surface of the rotating transverse plate and the side surface of the rotating shaft in the lamp housing is matched with the servo motor and the first gear in the driving mechanism, so that the angle of the inner lamp cover, the angle of the lamp beads and the angle of the lamp plate in the LED spotlight can be adjusted, the whole LED spotlight is not required to be adjusted when the angle of the LED spotlight is required to be adjusted in the use process, workers are prevented from climbing onto the LED lamp post to adjust the LED spotlight, trouble is avoided, time waste is avoided, potential safety hazards of the workers are reduced in the operation process, and the safety of the workers is guaranteed.

Drawings

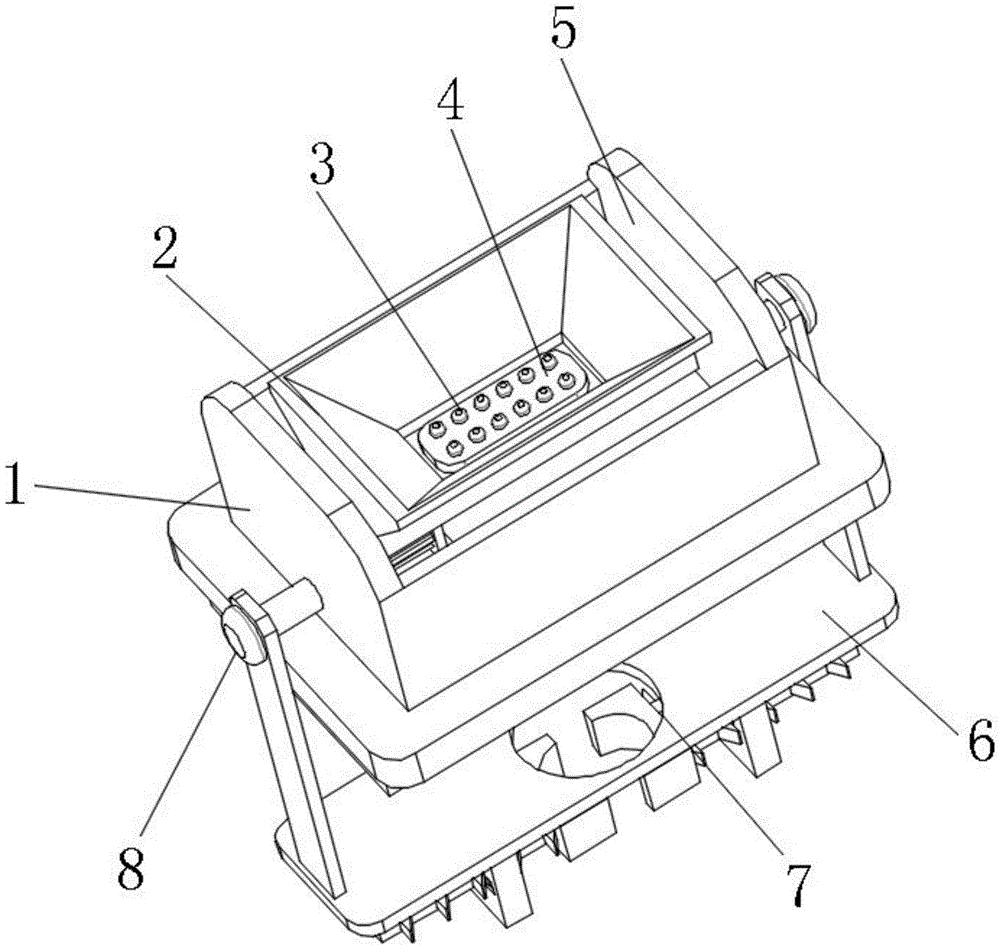

FIG. 1 is a schematic diagram of the structure of the present utility model;

FIG. 2 is a schematic view of the inner structure of the lamp housing according to the present utility model;

fig. 3 is a schematic view of the internal structure of the lamp housing according to the present utility model.

In the figure: the lamp comprises a lamp shell 1, an inner lamp shade 2, a lamp bead 3, a lamp panel 4, a glass panel 5, a mounting plate 6, a through hole 7, a hanging lug 8, a first gear 9, a second gear 10, a servo motor 11, a transverse plate 12, a rotating shaft 13, a supporting plate 14, a corrugated plate 15, a starter 16, a sliding rod 17, a clamping block 18, a clamping plate 19 and a fixing plate 20.

Detailed Description

The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.

Referring to fig. 1-3, an LED spotlight convenient to install includes a lamp housing 1, a transverse plate 12 is provided in the lamp housing 1, two side surfaces of the transverse plate 12 are fixedly connected with a rotating shaft 13, a second gear 10 is fixedly connected with a side surface of the rotating shaft 13, a driving mechanism is arranged below the second gear 10, an inner lampshade 2 and a lamp panel 4 are fixedly connected with an upper surface of the transverse plate 12, the lamp panel 4 is located inside the inner lampshade 2, a lamp bead 3 is fixedly connected with an upper surface of the lamp panel 4, a glass plate 5 is fixedly arranged at an upper end of the lamp housing 1, a mounting plate 6 is provided below the lamp housing 1, a starter 16 is fixedly mounted at a lower surface of the lamp housing 1, a corrugated plate 15 is arranged around the starter 16, the corrugated plate 15 is fixedly connected with a lower surface of the lamp housing 1, the LED spotlight can dissipate heat, and the LED spotlight burns out due to overhigh temperature.

As a technical optimization scheme of the utility model, the driving mechanism comprises a servo motor 11, one end of the servo motor 11 is fixedly connected with a first gear 9, the first gear 9 is in meshed connection with a second gear 10, the lower surface of the servo motor 11 is fixedly connected with a supporting plate 14, the supporting plate 14 is fixedly connected with the inner side wall of the lamp housing 1, and the inner lamp housing 2, the lamp beads 3 and the lamp panels 4 in the lamp housing 1 are convenient to adjust angles.

As a technical optimization scheme of the utility model, the two side surfaces of the lamp housing 1 are fixedly connected with the hanging lugs 8, the mounting plate 6 is rotatably connected with the two sides of the lamp housing 1 through the hanging lugs 8, the lower surface of the mounting plate 6 is provided with the locking mechanism, the center position of the mounting plate 6 is provided with the through hole 7, the mounting stability of the LED spotlight can be improved, the locking mechanism comprises the fixing plate 20, the inside of the fixing plate 20 is symmetrically and slidingly connected with the sliding rod 17, the outer side surface of the sliding rod 17 is fixedly connected with the clamping block 18, and one end of the sliding rod 17 is fixedly connected with the clamping plate 19, and the LED spotlight is conveniently and rapidly mounted on the lamp post by a worker through the mutual cooperation of the sliding rod 17, the clamping block 18, the fixing plate 20 and the clamping plate 19, so that the mounting difficulty of the LED spotlight is reduced, and the mounting risk of the worker is reduced.

When the LED spotlight is used, firstly, a worker hangs the LED spotlight on a body through the mounting plate 6 and climbs to the upper end of the mounting rod, then the worker extrudes the sliding rod 17 in the fixing plate 20, then pulls out the sliding rod 17 outwards, then passes through the through hole 7 on the lamp post, then pushes the sliding rod 17 towards the lamp post, so that the clamping plate 19 at one end of the sliding rod 17 clamps the lamp post, then the worker rotates the lamp housing 1 to a place where the LED spotlight is approximately irradiated, the mounting is convenient, when the irradiation angle of the LED spotlight needs to be regulated, the worker starts the servo motor 11 in the lamp housing 1, so that the servo motor 11 drives the first gear 9 to rotate, and the first gear 9 drives the transverse plate 12 to rotate through the second gear 10, so that the angles of the inner lamp housing 2, the lamp beads 3 and the lamp plate 4 on the upper surface of the transverse plate 12 can be regulated, the worker is prevented from climbing the lamp post to repeatedly regulate the irradiation angle of the LED spotlight, and the occurrence of safety accidents is reduced.

Furthermore, it should be understood that although the present disclosure describes embodiments, not every embodiment is provided with a separate embodiment, and that this description is provided for clarity only, and that the disclosure is not limited to the embodiments described in detail below, and that the embodiments described in the examples may be combined as appropriate to form other embodiments that will be apparent to those skilled in the art.

Claims

1. The utility model provides a LED shot-light convenient to installation, includes lamp body (1), its characterized in that: the inside of lamp body (1) is equipped with diaphragm (12), and the equal fixedly connected with pivot (13) of both sides surface of diaphragm (12), the side fixed surface of pivot (13) is connected with second gear (10), and establish with actuating mechanism in the below of second gear (10), the upper surface fixedly connected with inner lamp shade (2) and lamp plate (4) of diaphragm (12), and lamp plate (4) are located the inboard of inner lamp shade (2), the upper surface fixedly connected with lamp pearl (3) of lamp plate (4), the upper end fixed mounting of lamp body (1) has glass board (5), the below of lamp body (1) is equipped with mounting panel (6).

2. The LED spot light for easy installation according to claim 1, wherein: the driving mechanism comprises a servo motor (11), one end of the servo motor (11) is fixedly connected with a first gear (9), the first gear (9) is meshed with a second gear (10), the lower surface of the servo motor (11) is fixedly connected with a supporting plate (14), and the supporting plate (14) is fixedly connected with the inner side wall of the lamp housing (1).

3. The LED spot light for easy installation according to claim 1, wherein: the lamp is characterized in that hanging lugs (8) are fixedly connected to the surfaces of the two sides of the lamp housing (1), the mounting plate (6) is rotatably connected with the two sides of the lamp housing (1) through the hanging lugs (8), a locking mechanism is arranged on the lower surface of the mounting plate (6), and a through hole (7) is formed in the center of the mounting plate (6).

4. A conveniently mounted LED spotlight according to claim 3, characterized in that: the locking mechanism comprises a fixed plate (20), a sliding rod (17) is symmetrically and slidingly connected inside the fixed plate (20), a clamping block (18) is fixedly connected to the outer side surface of the sliding rod (17), and a clamping plate (19) is fixedly connected to one end of the sliding rod (17).

5. The LED spot light for easy installation according to claim 1, wherein: the lower surface of the lamp housing (1) is fixedly provided with a starter (16), corrugated plates (15) are arranged around the starter (16), and the corrugated plates (15) are fixedly connected with the lower surface of the lamp housing (1).
