CN218952566U - Integrated installation system of furred ceiling - Google Patents

Abstract

The utility model provides an integrated installation system of furred ceiling, including hanger mechanism, integrated equipment area and mineral wool board, install light fossil fragments in the hanger mechanism, light fossil fragments's outside has cup jointed coupling assembling, coupling assembling's bottom is provided with fossil fragments subassembly, integrated equipment area and mineral wool board are all installed on fossil fragments subassembly, mineral wool board surface is provided with the surface plate, integrated equipment area includes integrated box and joint frame two, joint frame two is fixed on integrated box, integrated box internal joint has the tripe board, be provided with the tripe bars on the tripe board, the embedding is installed integrated lamp on the tripe board, hanger mechanism includes main pendant and jib, main pendant surface is opened there is a plurality of fixed orificess one, jib one end is pegged graft in the inside of one of them fixed orifices one. The integrated lamp, the air outlet and the wiring can be installed by adopting the integrated equipment belt, the installation efficiency is improved, other supporting facilities can be installed rapidly, and the installation convenience is improved.

Description

Integrated installation system of furred ceiling

Technical Field

The utility model belongs to the technical field of decoration engineering, and particularly relates to a suspended ceiling integrated installation system.

Background

The integrated equipment belt is simple and convenient to install, flexible in use position, suitable for integrated assembly type suspended ceilings in offices, reporting halls, public spaces, corridors, communication hinges, hospitals, banks and the like, has the characteristics of energy conservation, low carbon, health, environmental protection and durability, and integrates assembly type and attractive integrated equipment belt decorative materials of system terminals. The large-span high-space wooden acoustic board is matched with wooden grating lines for construction, is limited by space dimensions, window openings and the like, is irregular in grating line design length, has higher requirements on wooden grating line typesetting and positioning construction, and is high in control difficulty of the cross treatment dimensions of four different vertical faces. The large-span high-space construction has the problems of difficult material lifting, low installation speed, difficult quality control and the like.

Chinese patent No. CN203373894U provides an integrated ceiling structure with an adjustable decorative strip position. The utility model relates to an integrated suspended ceiling decoration strip, which comprises a decoration strip, a main shaft and a connecting piece, wherein the space between the decoration strip and the main shaft is fixed, the position of the decoration strip cannot be adjusted after the installation, the upper edge of the decoration strip is provided with a groove strip matched with the main shaft, the main shaft is embedded in the groove strip and is fixed through a clamping structure, the main shaft is movably installed on a preset station through the connecting piece, the decoration strip is distributed in a sparse and dense mode through adjusting the connection position between the decoration strip and the main shaft, and the height is adjustable through adjusting the connection position between the connecting piece and the main shaft. The fixed connection structure between the original integrated ceiling connecting piece, the keel and the decoration panel is improved to be a movable connection structure among the connecting piece, the main shaft and the decoration strips, so that the installation height and the arrangement density of the decoration strips can be adjusted according to actual needs, the adaptability of the decoration strip installation scheme under different conditions is enhanced, and necessary space and height of the decoration strips are provided for electric appliances installed on the decoration strips.

The mounting height and the arrangement density of the decorative strips can be adjusted according to actual needs, so that the adaptability of the decorative strip mounting scheme under different conditions is enhanced, but the mounting efficiency is relatively low, other supporting facilities are inconvenient to mount rapidly, and the mounting is inconvenient.

Disclosure of Invention

The utility model aims to provide a suspended ceiling integrated installation system, which aims to solve the technical problems that the installation efficiency of the traditional integrated suspended ceiling structure is relatively low, other supporting facilities are inconvenient to install rapidly, and the installation is inconvenient.

In order to achieve the above purpose, the present utility model adopts the following technical scheme.

The utility model provides an integrated installation system of furred ceiling, includes gallows mechanism, integrated equipment area and mineral wool board, install light fossil fragments in the gallows mechanism, coupling assembling has been cup jointed to the outside of light fossil fragments, coupling assembling's bottom is provided with fossil fragments subassembly, integrated equipment area and mineral wool board all install on fossil fragments subassembly, mineral wool board surface is provided with the surface plate, integrated equipment area includes integrated box and joint frame two, joint frame two is fixed on integrated box, the joint has the tripe board in the integrated box, be provided with the tripe bars on the tripe board, the integrated lamp is installed in the embedding on the tripe board.

Preferably, the hanger mechanism comprises a main hanger and a hanger rod, wherein a plurality of first fixing holes are formed in the surface of the main hanger, and one end of the hanger rod is inserted into one of the first fixing holes.

Preferably, the first fixing holes at two opposite positions are internally inserted with main screws, and the outer threads of the main screws are connected with first nuts.

Preferably, a gasket is sleeved outside the suspender, and a second nut is connected with the outside thread of the suspender.

Preferably, the top of jib is installed the mounting bracket, the top of mounting bracket is opened there is the nail hole.

Preferably, the connecting assembly comprises a sleeve and a first clamping frame, the first clamping frame is fixed at the bottom of the sleeve, and the sleeve is sleeved outside the light keel.

Preferably, the fossil fragments subassembly includes dragon skeleton and link, the link is fixed at the top of dragon skeleton, the link joint is in joint frame one, the both sides of dragon skeleton all are provided with the draw-in groove, mineral wool board joint is in the draw-in groove.

Compared with the prior art, the utility model has the following characteristics and beneficial effects.

1. The integrated ceiling installation system is formed by assembling the integrated box and the shutter plates in the integrated equipment belt, the integrated box is fixedly clamped on the keel frame through the clamping frame II, the integrated lamp, the air outlet and the wiring hiding function can be installed by adopting the integrated equipment belt, meanwhile, the installation efficiency is improved, other matched facilities can be installed conveniently and quickly, and the installation convenience is improved.

2. According to the integrated suspended ceiling installation system, the connecting component, the light keels and the keel component are arranged, the light keels are clamped on the main hanging piece, the sleeve in the connecting component is sleeved on the light keels, the connecting frame on the keel component is clamped on the clamping frame I, and convenience and efficiency of integrated suspended ceiling installation are improved.

3. According to the integrated suspended ceiling installation system, through the hanging bracket mechanism, the installation frame in the hanging bracket mechanism is fixed to the wall top through the nails, the hanging rod is fixed to the installation frame through the cooperation of the nuts and the hanging rod, meanwhile, the main hanging piece is installed on the hanging rod, the convenience of suspended ceiling installation is improved, and meanwhile, the hanging rod is convenient for adjusting the height of the main hanging piece up and down.

4. According to the ceiling integrated installation system, the mineral wool board and the surface board are arranged, so that the mineral wool board is convenient to install quickly, meanwhile, the mineral wool board has the heat insulation and flame retardance functions, the safety in use is improved, and the surface board can improve the attractiveness of the mineral wool board in use.

Drawings

The utility model is described in further detail below with reference to the accompanying drawings.

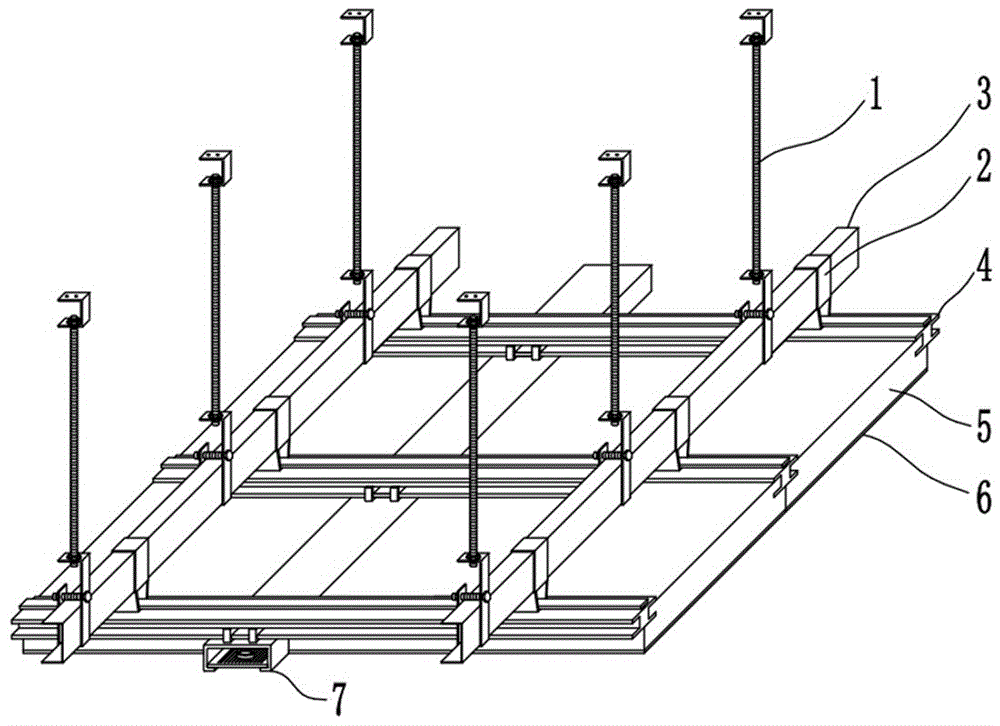

FIG. 1 is a schematic diagram of the overall structure of the present utility model.

Fig. 2 is a schematic structural view of a hanger mechanism according to the present utility model.

Fig. 3 is a schematic view of a partial structure of the present utility model.

Fig. 4 is a schematic structural view of a connecting assembly according to the present utility model.

FIG. 5 is a schematic diagram of an integrated device strap configuration of the present utility model.

Reference numerals: 1-hanger mechanism, 2-connection assembly, 3-light fossil fragments, 4-fossil fragments subassembly, 5-mineral wool board, 6-surface board, 7-integrated equipment area, 8-main pendant, 9-fixed orifices first, 10-main screw, 11-nut first, 12-jib, 13-nut second, 14-gasket, 15-mounting bracket, 16-nail hole, 17-fossil fragments, 18-link, 19-draw-in groove, 20-sleeve pipe, 21-joint frame first, 22-joint frame second, 23-integrated box, 24-tripe board, 25-tripe bars, 26-integrated lamp.

Detailed Description

As shown in fig. 1-5, the integrated suspended ceiling installation system comprises a hanging bracket mechanism 1, an integrated equipment belt 7 and a mineral wool board 5, wherein the mineral wool board 5 is adopted, so that the rapid installation is convenient, meanwhile, the mineral wool board has a heat insulation and flame retardance function, the safety in use is improved, a light keel 3 is arranged in the hanging bracket mechanism 1, a connecting component 2 is sleeved outside the light keel 3, the connecting component 2 comprises a sleeve 20 and a clamping frame I21, the clamping frame I21 is fixed at the bottom of the sleeve 20, and the sleeve 20 is sleeved outside the light keel 3;

the bottom of the connecting component 2 is provided with the keel component 4, the keel component 4 comprises a keel frame 17 and a connecting frame 18, the connecting frame 18 is fixed at the top of the keel frame 17, the connecting frame 18 is clamped in a clamping frame I21, the convenience and the efficiency of integrated installation and installation of a suspended ceiling are improved, clamping grooves 19 are formed in two sides of the keel frame 17, mineral wool boards 5 are clamped in the clamping grooves 19, integrated equipment belts 7 and mineral wool boards 5 are installed on the keel component 4, a surface plate 6 is arranged on the surface of the mineral wool boards 5, and the attractiveness of the mineral wool boards 5 can be improved when the mineral wool boards 5 are used by adopting the surface plate 6; the integrated equipment belt 7 comprises an integrated box 23 and a second clamping frame 22, the second clamping frame 22 is fixed on the integrated box 23, the integrated box 23 is fixed on the keel frame 17 through the second clamping frame 22 in a clamping manner, a louver board 24 is arranged in the integrated box 23 in a clamping manner, a louver board 25 is arranged on the louver board 24, an integrated lamp 26 is embedded and installed on the louver board 24, the integrated lamp 26, an air outlet and wiring hiding function can be installed by adopting the integrated equipment belt 7, meanwhile, the installation efficiency is improved, other supporting facilities are convenient to install quickly, and the installation convenience is improved.

In this embodiment, the hanger mechanism 1 includes a main hanger 8 and a hanger rod 12, a plurality of first fixing holes 9 are opened on the surface of the main hanger 8, one end of the hanger rod 12 is inserted into one of the first fixing holes 9, two opposite position fixing holes 9 are inserted with a main screw 10, the external screw thread of the main screw 10 is connected with a first nut 11, the outside of the hanger rod 12 is sleeved with a gasket 14, the external screw thread of the hanger rod 12 is connected with a second nut 13, a mounting frame 15 is mounted on the top end of the hanger rod 12, the hanger rod 12 is fixed on the mounting frame 15 through the cooperation of the nuts and the hanger rod 12, the mounting frame 15 is fixed on a wall top through nails, and a nail hole 16 is opened at the top of the mounting frame 15.

The working principle of the utility model is as follows: the installing frame 15 is fixed on the wall top through nails, the hanging rod 12 is fixed on the installing frame 15 through the cooperation of the screw cap and the hanging rod 12, the main hanging piece 8 is installed on the hanging rod 12, the convenience of suspended ceiling installation is improved, the hanging rod 12 is convenient for adjust the height of the main hanging piece 8 up and down, the light keel 3 is clamped on the main hanging piece 8, the sleeve pipe 20 in the connecting component 2 is sleeved on the light keel 3, the connecting frame 18 on the keel component 4 is clamped on the first connecting frame 21, the convenience and the efficiency of suspended ceiling integrated installation are improved, the integrated box 23 is clamped on the keel frame 17 through the second connecting frame 22, the integrated lamp 26, the air outlet and the hidden function of wiring can be installed by adopting the integrated equipment belt 7, the installation efficiency is improved, other supporting facilities are convenient to install quickly, the convenience of installation is improved, and then the mineral wool board 5 is clamped in the clamping groove 19, the mineral wool board 5 is convenient to install quickly, and meanwhile the mineral wool board has the heat insulation and flame retardation functions.

Claims (7)

1. The utility model provides an integrated installation system of furred ceiling, includes gallows mechanism (1), integrated equipment area (7) and mineral wool board (5), its characterized in that: install light fossil fragments (3) in gallows mechanism (1), the outside of light fossil fragments (3) has cup jointed coupling assembling (2), the bottom of coupling assembling (2) is provided with fossil fragments subassembly (4), integrated equipment area (7) and mineral wool board (5) are all installed on fossil fragments subassembly (4), mineral wool board (5) surface is provided with surface plate (6), integrated equipment area (7) are including integrated box (23) and joint frame two (22), joint frame two (22) are fixed on integrated box (23), joint has tripe board (24) in integrated box (23), be provided with tripe bars (25) on tripe board (24), integrated lamp (26) are installed in the embedding on tripe board (24).

2. The ceiling integrated mounting system of claim 1, wherein: the hanging frame mechanism (1) comprises a main hanging part (8) and a hanging rod (12), a plurality of first fixing holes (9) are formed in the surface of the main hanging part (8), and one end of the hanging rod (12) is inserted into one of the first fixing holes (9).

3. The ceiling integrated mounting system of claim 2, wherein: wherein, a main screw (10) is inserted into the first fixing hole (9) at two opposite positions, and a first nut (11) is connected with the external screw thread of the main screw (10).

4. The ceiling integrated mounting system of claim 2, wherein: the outer part of the suspender (12) is sleeved with a gasket (14), and a second nut (13) is connected with the outer thread of the suspender (12).

5. The ceiling integrated mounting system of claim 2, wherein: the top of jib (12) is installed mounting bracket (15), the top of mounting bracket (15) is opened has nail hole (16).

6. The ceiling integrated mounting system of claim 1, wherein: the connecting assembly (2) comprises a sleeve (20) and a first clamping frame (21), the first clamping frame (21) is fixed at the bottom of the sleeve (20), and the sleeve (20) is sleeved outside the light keel (3).

7. The ceiling integrated mounting system of claim 6, wherein: the fossil fragments subassembly (4) include keel frame (17) and link (18), link (18) are fixed at the top of keel frame (17), link (18) joint is in joint frame one (21), the both sides of keel frame (17) all are provided with draw-in groove (19), mineral wool board (5) joint is in draw-in groove (19).
