Abstract
The utility model discloses a conveying device for producing a steel structure plate, which comprises a conveying frame with an opening at the top, movable wheels are fixedly arranged at four corners of the lower wall of the conveying frame, a supporting plate for placing a steel structure plate body is arranged in the conveying frame, a first mounting hole is formed in the supporting plate, a lifting mechanism for driving the movable wheels to move up and down is arranged on the conveying frame, two limit plates which are symmetrically distributed are arranged at the top of the supporting plate, bolt fixing plates are fixedly arranged at the bottoms of the two ends of the limit plates, and second mounting holes are formed in the bolt fixing plates and fixedly connected with the first mounting holes through bolts.
Description
Technical Field
The utility model relates to the technical field of steel structure plate production, in particular to a conveying device for steel structure plate production, which is capable of avoiding inclination.
Background
The steel structure plate is one of main building structure types and mainly comprises steel materials, wherein the steel structure mainly comprises steel beams, steel columns, steel trusses and other components made of steel sections, steel plates and the like, the post-treatment is carried out by adopting a rust removal and prevention process, the steel structure plate is finally manufactured, and a conveying device is required to be used for conveying the steel structure plate in the production process.
The existing conveying device is characterized in that when the existing conveying device is used, a worker is used for directly placing the steel structure plate on the conveying device, the steel structure plate is large in size and heavy in weight, the existing conveying device is poor in adjustability and is generally fixed in height, the steel structure plate is inconvenient to take and place, in addition, a limiting and fixing structure is absent when the steel structure plate is placed, the problem of inclination easily occurs in the conveying process, the steel structure plate falls down in the conveying process to be damaged easily, the later processing and production are affected, and therefore the conveying device for producing the steel structure plate, which is used for avoiding inclination, is needed to solve the problem.
Disclosure of Invention
Aiming at the defects of the prior art, the utility model provides a conveying device for producing a steel structure plate, which is capable of avoiding inclination, and solves the existing problems.
In order to achieve the above purpose, the utility model is realized by the following technical scheme: the utility model provides a avoid conveyer for steel construction board production of slope, includes open-top's carriage, the lower wall four corners fixed mounting of carriage has the running wheel, the inside of carriage is provided with the bearing plate that is used for placing the steel construction board body, first mounting hole has been seted up on the bearing plate, be provided with the elevating system that drives the running wheel reciprocate on the carriage, the top of bearing plate is provided with two limiting plates of symmetric distribution, the both ends bottom fixed mounting of limiting plate has the bolt fastening board, the second mounting hole has been seted up on the bolt fastening board, through bolt fastening connection between second mounting hole and the first mounting hole, one side of limiting plate is provided with the bolster, fixed mounting has the controller that is used for controlling the device electric power part and is used for providing the battery of electric energy to the device electric power part on the carriage.
Preferably, the number of the first mounting holes is a plurality of, and the first mounting holes are distributed on the bearing plate at equal intervals.
Preferably, the lifting mechanism comprises two screw rods symmetrically distributed on the inner side of the conveying frame, one end of each screw rod is rotationally connected with the conveying frame through a bearing, the other end of each screw rod is fixedly connected with a driven belt pulley, one side of each driven belt pulley is connected with a driving belt pulley through belt transmission, the driving belt pulleys are fixedly installed at the output end of the motor, threaded sleeves are connected onto the screw rods in a threaded mode, and two ends of the supporting plate are fixedly connected with the threaded sleeves respectively.
Preferably, a sliding plate is fixedly connected to one side of the threaded sleeve, and the sliding plate is in contact with the inner wall of the conveying frame and is in sliding connection with the conveying frame.
Preferably, the buffer piece comprises a bolt mounting plate fixedly mounted on the limiting plate, movable blocks are symmetrically and fixedly mounted on the bolt mounting plate, damping rods are arranged between the movable blocks, damping rings sleeved on the movable blocks are fixedly connected to two ends of each damping rod, a spring is fixedly connected to one side of each damping rod, and a pressing plate is fixedly connected to one end of each spring.
Preferably, the movable block and the damping ring are made of high damping rubber.
Advantageous effects
The utility model provides a conveying device for producing steel structure plates, which is capable of avoiding inclination. Compared with the prior art, the method has the following beneficial effects:
1. this avoid conveyor for steel construction board production of slope sets up the bearing board through the inboard at the carriage and is used for placing steel construction board body, simultaneously two symmetric distributions of fixed mounting are in the limiting plate of steel construction board body both sides on the bearing board, can carry out spacing fixedly to steel construction board body from steel construction board body both sides through the limiting plate, and then make steel construction board body place behind the bearing board on the bearing board through spacing fixed can not take place the position slope, and then the security when improving transport, first mounting hole has been seted up on the bearing board simultaneously, the bottom mounting bolt fixed plate of limiting plate, the bolt fixed plate passes through second mounting hole and first mounting hole bolted connection, and then can adjust the position of limiting plate through the mounted position that changes second mounting hole and first mounting hole, and then can be applicable to the transportation use of the steel construction board body of different width, application scope is wide.
2. This avoid conveyor for steel construction board production of slope can be adjusted the bearing board lift through setting up elevating system, and then through the lift regulation, be convenient for get of steel construction board body put, in addition, still be provided with the bolster through one side at the limiting plate, the bolster includes the bolt mounting panel, the movable block, the damping pole, the damping ring, spring and clamp plate, steel construction board body is spacing fixed back between, the clamp plate receives spring elastic extrusion in steel construction board body one side, simultaneously damping pole both ends damping ring cover is established on the movable block with movable block sliding connection, and then through spring elastic expansion power consumption and damping friction energy consumption between damping ring and the movable block can absorb the energy that the steel construction board body rocked and produce, improve shock resistance, and then improve the stability when the transportation of steel construction board body after spacing fixed between the limiting plate.
Drawings

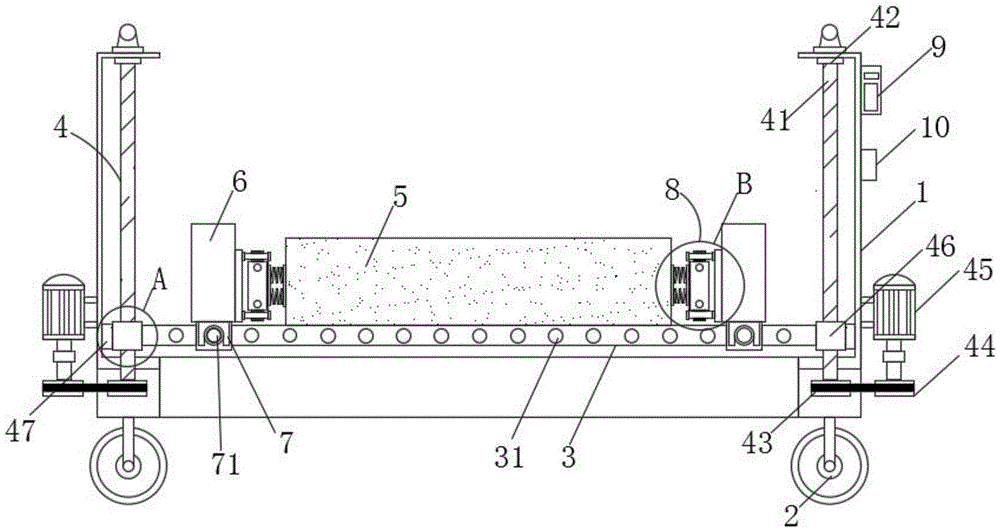

FIG. 1 is a schematic diagram of the overall structure of the present utility model;
FIG. 2 is an enlarged schematic view of the structure of FIG. 1A according to the present utility model;
fig. 3 is an enlarged schematic view of the structure of fig. 1 at B according to the present utility model.
In the figure: 1. a carriage; 2. a movable wheel; 3. a bearing plate; 31. a first mounting hole; 4. a lifting mechanism; 41. a screw rod; 42. a bearing; 43. a driven pulley; 44. a driving pulley; 45. a motor; 46. a threaded sleeve; 47. a slide plate; 5. a steel structural plate body; 6. a limiting plate; 7. a bolt fixing plate; 71. a second mounting hole; 8. a buffer member; 81. a bolt mounting plate; 82. a movable block; 83. a damping rod; 84. a damping ring; 85. a spring; 86. a pressing plate; 9. a controller; 10. and a storage battery.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Referring to fig. 1-3, the present utility model provides two technical schemes:
embodiment one:
the utility model provides a avoid conveyor for steel construction board production of slope, including open-top's carriage 1, the lower wall four corners fixed mounting of carriage 1 has running wheel 2, the inside of carriage 1 is provided with the spandrel board 3 that is used for placing steel construction board body 5, first mounting hole 31 has been seted up on the spandrel board 3, be provided with the elevating system 4 that drives running wheel 2 reciprocate on the carriage 1, the top of spandrel board 3 is provided with two limiting plates 6 of symmetric distribution, the both ends bottom fixed mounting of limiting plate 6 has bolt-up plate 7, second mounting hole 71 has been seted up on the bolt-up plate 7, pass through bolt fixed connection between second mounting hole 71 and the first mounting hole 31, one side of limiting plate 6 is provided with buffer 8, fixed mounting has the battery 10 that is used for controlling the controller 9 of device power part and is used for providing the electric energy to device power part on the carriage 1.
Embodiment two:
the utility model provides a avoid conveyer for steel construction board production of slope, including open-top's carriage 1, the lower wall four corners fixed mounting running wheel 2 of carriage 1, the inside of carriage 1 is provided with the spandrel board 3 that is used for placing steel construction board body 5, first mounting hole 31 has been seted up on spandrel board 3, be provided with the elevating system 4 that drives running wheel 2 and reciprocate on carriage 1, elevating system 4 includes two lead screws 41 of symmetric distribution in carriage 1 inboard, lead screw 41 one end is connected with carriage 1 rotation through bearing 42, the other end fixedly connected with driven pulley 43, one side of driven pulley 43 is connected with driving pulley 44 through belt drive, driving pulley 44 fixed mounting is at the output of motor 45, threaded sleeve 46 is connected with on the lead screw 41, spandrel board 3 both ends are respectively with threaded sleeve 46 fixed connection, start motor 45 drive driving pulley 44 rotates, utilize driving pulley 44 and driven pulley 43 belt drive connection to drive driven pulley 43 rotate and then drive lead screw 41, utilize threaded sleeve 46 and drive screw 41 threaded connection to reciprocate, and then drive spandrel board 3 to reciprocate; a sliding plate 47 is fixedly connected to one side of the threaded sleeve 46, and the sliding plate 47 is contacted with the inner wall of the conveying frame 1 and is in sliding connection with the conveying frame 1, so that the stability of the threaded sleeve 46 during up-and-down movement is improved; the top of the bearing plate 3 is provided with two limit plates 6 which are symmetrically distributed, the bottoms of the two ends of the limit plates 6 are fixedly provided with bolt fixing plates 7, the bolt fixing plates 7 are provided with second mounting holes 71, the second mounting holes 71 are fixedly connected with the first mounting holes 31 through bolts, the number of the first mounting holes 31 is multiple, the first mounting holes 31 are distributed on the bearing plate 3 at equal intervals, and the positions of the limit plates 6 can be adjusted by changing the positions of the second mounting holes 71 and the first mounting holes 31 in a bolt mounting manner, so that the bearing plate is suitable for limiting and fixing of steel structure plate bodies 5 with different widths; one side of the limiting plate 6 is provided with a buffer part 8, the buffer part 8 comprises a bolt mounting plate 81 fixedly mounted on the limiting plate 6 through bolts, movable blocks 82 are symmetrically and fixedly mounted on the bolt mounting plate 81, damping rods 83 are arranged between the movable blocks 82, two ends of each damping rod 83 are fixedly connected with damping rings 84 sleeved on the corresponding movable blocks 82, one side of each damping rod 83 is fixedly connected with a spring 85, one end of each spring 85 is fixedly connected with a pressing plate 86, each movable block 82 and each damping ring 84 are made of high damping rubber, after the steel structure plate body 5 is subjected to limiting fixation, the pressing plates 86 are elastically extruded on one side of the steel structure plate body 5 through the corresponding springs 85, meanwhile, the damping rings 84 at two ends of each damping rod 83 are sleeved on the corresponding movable blocks 82 and are connected with the corresponding movable blocks 82 in a sliding mode, and then energy generated by shaking of the steel structure plate body 5 can be absorbed through elastic expansion energy consumption of the springs 85 and damping friction energy consumption between the corresponding damping rings 84 and the corresponding movable blocks 82 in the transportation process, and stability of the steel structure plate body 5 after limiting fixation is subjected to limiting fixation is improved; a controller 9 for controlling the device power components and a battery 10 for supplying electric power to the device power components are fixedly mounted on the carriage 1.
When the conveying device for producing the steel structure plate, which avoids inclination, is used, the supporting plate 3 can be lifted and regulated by arranging the lifting mechanism 4, then the supporting plate 3 is lowered, the steel structure plate body 5 is conveniently placed, two limit plates 6 symmetrically distributed on two sides of the steel structure plate body 5 are fixedly arranged on the supporting plate 3 during placement, the steel structure plate body 5 can be limited and fixed from two sides of the steel structure plate body 5 by the limit plates 6, the steel structure plate body 5 is placed on the supporting plate 3, the position inclination can not occur by limiting and fixing, the safety during conveying is further improved, meanwhile, the supporting plate 3 is provided with the first mounting hole 31, the bottom of the limit plate 6 is provided with the bolt fixing plate 7, the bolt fixing plate 7 is connected with the first mounting hole 31 through the second mounting hole 71 in a bolt manner, furthermore, the position of the limiting plate 6 can be adjusted by changing the mounting positions of the second mounting holes 71 and the first mounting holes 31, so that the damping plate is suitable for the transportation of the steel structure plate bodies 5 with different widths, in addition, the damping plate is further provided with a buffer piece 8 on one side of the limiting plate 6, the buffer piece 8 comprises a bolt mounting plate 81, a movable block 82, a damping rod 83, a damping ring 84, a spring 85 and a pressing plate 86, after the steel structure plate body 5 is limited and fixed between, the pressing plate 86 is elastically extruded on one side of the steel structure plate body 5 by the spring 85, meanwhile, the damping rings 84 at two ends of the damping rod 83 are sleeved on the movable block 82 and are in sliding connection with the movable block 82, and further, in the transportation process, the energy generated by shaking of the steel structure plate body 5 can be absorbed by the elastic expansion and contraction of the spring 85 and the damping friction energy consumption between the damping ring 84 and the movable block 82, so as to improve the shock resistance, and further improves the stability of the steel structure plate body 5 during transportation after the limiting and fixing between the limiting plates 6.
And all that is not described in detail in this specification is well known to those skilled in the art.
It is noted that relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Moreover, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. Conveying device for producing steel structure plates capable of avoiding inclination, comprising a conveying frame (1) with an opening at the top, and being characterized in that: the utility model provides a conveyer frame, including conveyer frame (1) and steel sheet body, lower wall four corners fixed mounting of conveyer frame (1) has running wheel (2), the inside of conveyer frame (1) is provided with carrier plate (3) that are used for placing steel sheet body (5), first mounting hole (31) have been seted up on carrier plate (3), be provided with elevating system (4) that drive running wheel (2) reciprocated on conveyer frame (1), the top of carrier plate (3) is provided with two limiting plates (6) of symmetric distribution, the both ends bottom fixed mounting of limiting plate (6) has bolt fixed plate (7), second mounting hole (71) have been seted up on bolt fixed plate (7), through bolt fixed connection between second mounting hole (71) and first mounting hole (31), one side of limiting plate (6) is provided with bolster (8), fixed mounting has on conveyer frame (1) be used for carrying out controller (9) that control to device power part and be used for providing battery (10) of electric energy to device power part.
2. A conveyor for producing steel construction plates avoiding tilting according to claim 1, characterized in that: the number of the first mounting holes (31) is multiple, and the first mounting holes (31) are distributed on the bearing plate (3) at equal intervals.
3. A conveyor for producing steel construction plates avoiding tilting according to claim 1, characterized in that: elevating system (4) are including two lead screws (41) of symmetric distribution in carriage (1), lead screw (41) one end is passed through bearing (42) and is connected with carriage (1) rotation, and other end fixedly connected with driven pulley (43), one side of driven pulley (43) is connected with driving pulley (44) through belt transmission, driving pulley (44) fixed mounting is at the output of motor (45), threaded connection has threaded sleeve (46) on lead screw (41), carrier plate (3) both ends respectively with threaded sleeve (46) fixed connection.
4. A conveyor for producing steel construction plates avoiding tilting according to claim 3, characterized in that: one side of the threaded sleeve (46) is fixedly connected with a sliding plate (47), and the sliding plate (47) is in contact with the inner wall of the conveying frame (1) and is in sliding connection with the conveying frame (1).
5. A conveyor for producing steel construction plates avoiding tilting according to claim 1, characterized in that: the damping piece (8) comprises a bolt mounting plate (81) fixedly mounted on a limiting plate (6), movable blocks (82) are symmetrically and fixedly mounted on the bolt mounting plate (81), damping rods (83) are arranged between the movable blocks (82), damping rings (84) sleeved on the movable blocks (82) are fixedly connected to two ends of each damping rod (83), springs (85) are fixedly connected to one side of each damping rod (83), and pressing plates (86) are fixedly connected to one ends of the springs (85).
6. The tilting-avoiding conveying device for steel structure plate production according to claim 5, wherein: the movable block (82) and the damping ring (84) are made of high damping rubber materials.
