Nursing cold compress device

technical field

The utility model relates to the technical field of nursing, in particular to a nursing cold compress device.

Background technique

Cold compresses can be used after sprains or falls. Cold compresses can shrink capillaries, reduce local congestion, reduce the sensitivity of nerve endings and relieve pain, reduce temperature and fever, reduce local blood flow, and prevent inflammation and suppuration. It can dissipate the heat conduction in the body, increase heat dissipation, and lower body temperature. Cold compresses are also suitable for post-tonsillectomy, epistaxis, early local soft tissue injury, high fever patients and heat stroke patients, toothache and traumatic brain injury patients.

In the prior art, most of the cold compress devices use ice packs or cold wet towels to apply on the forehead, the back of the neck or the skin of the lesion. Because the tools used for cold compress are too simple, only a single part of the patient can be cold compress. The efficiency is low, and the device cannot be adjusted according to the body shape of the patient, which reduces the cold compress effect, and most of the existing cold compress devices need to be operated by hand, which is troublesome, time-consuming and laborious to use.

Utility model content

The purpose of this utility model is to provide a nursing cold compress device to solve the problems raised in the above-mentioned background technology.

The technical scheme of the utility model is: a nursing cold compress device, including a cold compress device body, a cold water tank is provided in the inner cavity of the cold compress device body, a water inlet and a water outlet are provided on the side wall of the cold water tank, and the cold compress device body There is a head cold compress mechanism inside, and the head cold compress mechanism includes a first turntable, and the first turntable bolt is fixed on the side wall of the cold compress device body, and the output end of the first turntable is fixedly connected with a first screw, so The outer wall of the first screw is threaded with a first threaded block, and the end of the first threaded block away from the first turntable is fixedly connected with a first set of rods, and the first set of rods is sleeved on the outside of the first screw. The other end of the sleeve rod is fixedly connected with a connecting block, and a cold compress headgear is arranged under the connecting block, a first electric push rod is fixedly connected between the connecting block and the cold compressing headgear, and a second electric push rod is fixedly connected to the opposite inner wall of the cold compressing headgear. A push rod, the other end of the second electric push rod is fixedly connected with a curved plate, and a cavity is provided in the curved plate and the cold compress headgear, and the cavity of the curved plate and the cold compress headgear is connected by a first hose , two water pumps are fixedly connected to the top of the cold compress device body, a second hose is connected between one of the water pumps and the upper cavity of the cold compress headgear, a conduit is connected between the water pump and the cold water tank, and the other A third hose is connected between the water pump and the bottom of the cavity of the cold compress hood;

A waist cold compress mechanism is provided on the side wall of the cold compress device body directly below the head cold compress mechanism, and a lifting mechanism and a foot pedal mechanism are arranged in the cold compress device body below the waist cold compress mechanism.

Preferably, the waist cold compress mechanism includes a first arc-shaped belt and a second arc-shaped belt, one end of the first arc-shaped belt and the second arc-shaped belt are both rotatably connected to the side wall of the cold compress device body, and the first arc-shaped belt There are water holes in the shaped belt and the second arc belt, and the water holes communicate with the cold water tank, the side walls of the first arc belt are provided with through holes, and the side walls of the second arc belt are inserted An insertion rod is connected, and a block is fixedly connected to the outer end of the insertion rod, and a first spring is fixedly connected between the other end of the insertion rod and the second arc belt.

Preferably, the lifting mechanism includes a seat plate, a second set of rods is fixedly connected to the lower end of the seat plate, the other end of the second set of rods extends into the cavity of the cold compress device body, and the other end of the second set of rods is fixed A second threaded block is connected, and the two opposite side walls of the second threaded block are fixedly connected with a limit rod. Two screws, and the second set of rods is sleeved on the outside of the second screw, the bottom end of the second screw is fixedly connected with a second bevel gear, one side of the second bevel gear is meshed with a first bevel gear, and the first bevel gear is engaged with the second bevel gear. The other end of the bevel gear is fixedly connected with a connecting rod, the other end of the connecting rod extends outside the body of the cold compress device, and the other end of the connecting rod is fixedly connected with the second turntable.

Preferably, the pedal mechanism includes a pedal, and the pedal is movably connected to one end of the cold compress device body. A square groove is opened on the inner wall of the cold compress device body on one side of the pedal, and two opposite side walls of the pedal are opened. There is a groove, and a second spring is fixedly connected in the groove, the other end of the second spring is fixedly connected with an insert block, the side wall of the insert block is fixedly connected with a pull rod, and the other end of the pull rod extends outside the body of the cold compress device .

Preferably, the top of the body of the cold compress device is fixed with a limiting collar, and the second hose is inserted through the limiting collar.

Preferably, the side wall of the cold compress device body is provided with an observation window directly below the water inlet.

The utility model provides a nursing cold compress device through improvement. Compared with the prior art, it has the following improvements and advantages:

One: when the utility model is in use, first pour cold water into the cold water tank, and then let the patient sit on the seat board. If the patient needs to apply ice to the back, he can directly lean against the side wall of the cold compress device body, If the patient needs to apply ice to the head, the first turntable can be rotated to drive the first screw to rotate, thereby driving the first threaded block and the first set of rods to move horizontally. By starting the first electric push rod on the connecting block, the cold compress The headgear is close to the patient's head, and then the water pump is started to pump cold water into the cavity of the cold compress headgear and the arc plate. At the same time, through the water pump and the third hose, the water after the cold compress can be pumped into the cold water tank to realize the cooling of the cold water. cycle, if you need to apply ice to the patient's forehead, you can start the second electric push rod, and slowly bring the arc plate close to the patient's forehead; if you need to apply ice to the patient's waist, you can put the first arc and the The second arc-shaped belt is around the waist. After adjustment, turn the insertion rod 90 degrees and press it outward so that the insertion rod passes through the first arc-shaped belt. The cold compress mechanism is closely attached to the patient's waist. This device can not only be adjusted according to the patient's body shape, but also apply ice compress to multiple parts of the patient at the same time, which is very convenient and saves time and effort;

Second: when the utility model is in use, after the patient sits on the seat plate, the second turntable can be rotated, and then the second turntable drives the connecting rod and the first bevel gear to rotate, thereby driving the second bevel gear in the vertical direction and the first bevel gear. The second screw rod rotates, and then the second threaded block and the second set of rods move upward, so that the seat plate can be adjusted according to the body shape of the patient. After pulling the pull rod inward, the insert block can be separated from the square groove, and then the pedal rod can be pulled out. Allows the patient to place their feet on the running bars while applying ice for added patient comfort.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the utility model is further explained:

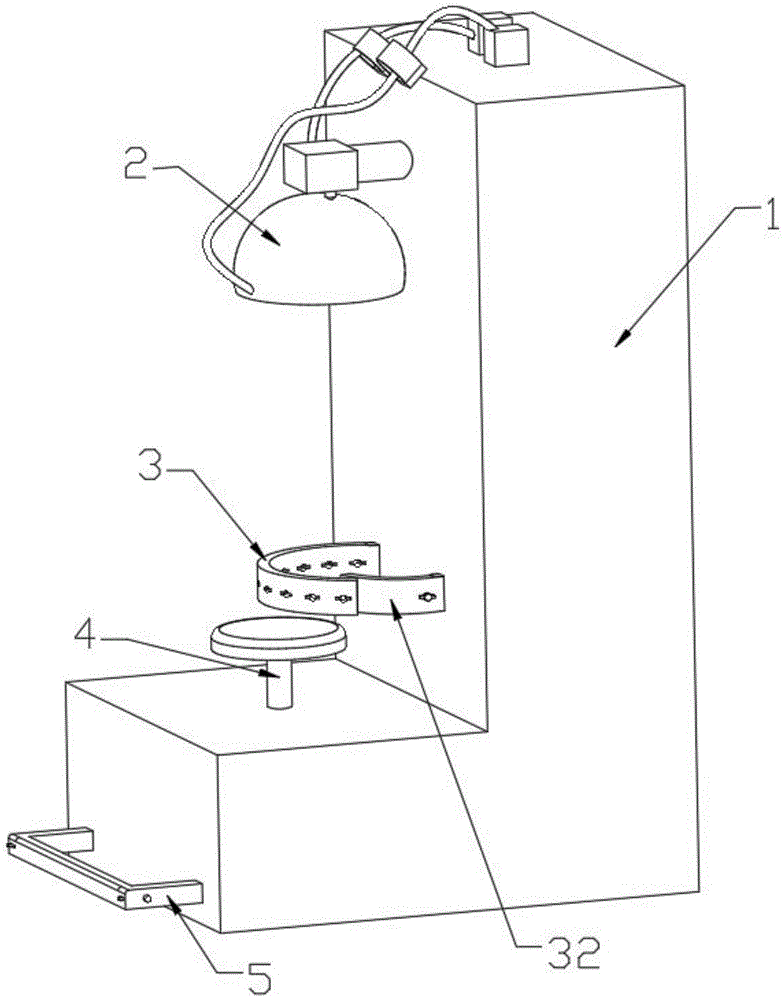

Fig. 1 is the three-dimensional structure schematic diagram one of the present utility model;

Fig. 2 is the three-dimensional structure schematic diagram two of the present utility model;

Fig. 3 is an internal perspective view of the main body of the cold compress device in the present invention;

Fig. 4 is the top view of the utility model;

Fig. 5 is a side view of the utility model;

Fig. 6 is an enlarged view of part A in Fig. 5;

Fig. 7 is an enlarged view of part B in Fig. 4;

FIG. 8 is an enlarged view of part C in FIG. 3 .

Explanation of reference signs:

1. Cold compress device body; 2. Head cold compress mechanism; 21. First turntable; 22. First screw rod; 23. First thread block; 24. First set of rods; 25. Water pump; 26. Connecting block; 27 , the first electric push rod; 28, cold compress hood; 29, the second electric push rod; 210, arc plate; 211, the first hose; 212, the second hose; 213, catheter; 214, limit ring ; 215, the third hose; 3, the waist cold compress mechanism; 31, the first arc belt; 32, the second arc belt; 33, the through hole; 34, the water hole; 35, the block; 36, the first Spring; 37, plunger; 4, lifting mechanism; 41, seat plate; 42, the second turntable; 43, connecting rod; 44, the first bevel gear; 45, the second bevel gear; 46, the second screw rod; 47, The second thread block; 48, limit rod; 49, the second set of rods; 5, pedal mechanism; 51, pedal rod; 52, insert block; 53, pull rod; 54, second spring; 6, cold water tank; 7 , water inlet; 8, observation window; 9, water outlet.

Detailed ways

The utility model is described in detail below, and the technical solutions in the embodiments of the utility model are clearly and completely described. Obviously, the described embodiments are only some embodiments of the utility model, not all embodiments. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The utility model provides a kind of nursing cold compress device through improving here, and the technical scheme of the utility model is:

As shown in Figures 1-8, a nursing cold compress device includes a cold compress device body 1, a cold water tank 6 is provided in the inner cavity of the cold compress device body 1, and a water inlet 7 and a water outlet 9 are provided on the side wall of the cold water tank 6. The cold compress device The body 1 is provided with a head cold compress mechanism 2. The head cold compress mechanism 2 includes a first turntable 21. The first turntable 21 is bolted to the side wall of the cold compress device body 1. The output end of the first turntable 21 is fixedly connected with a first screw rod. 22. The outer wall of the first screw 22 is threaded with a first threaded block 23, and the end of the first threaded block 23 away from the first turntable 21 is fixedly connected with a first set of rods 24, and the first set of rods 24 is sleeved on the first screw 22 On the outside, the other end of the first set of rods 24 is fixedly connected with a connecting block 26. A cold compress headgear 28 is arranged below the connecting block 26. A first electric push rod 27 is fixedly connected between the connecting block 26 and the cold compressing headgear 28. The opposite inner wall of the cold compress headgear 28 A second electric push rod 29 is fixedly connected, and the other end of the second electric push rod 29 is fixedly connected with an arc-shaped plate 210. Both the arc-shaped plate 210 and the cold compress headgear 28 are provided with cavities, and the arc-shaped plate 210 and the cold compress headgear 28 The cavity of the cold compress device body 1 is connected by a first hose 211. Two water pumps 25 are fixedly connected to the top of the cold compress device body 1, and a second hose 212 is connected between one of the water pumps 25 and the upper cavity of the cold compress headgear 28. The water pump 25 A conduit 213 is connected to the cold water tank 6, and a third hose 215 is connected between the other water pump 25 and the cavity bottom of the cold compress hood 28;

The side wall of the cold compress device body 1 is located directly below the head cold compress mechanism 2 and is provided with a waist cold compress mechanism 3 .

Further, when in use, first pour cold water into the cold water tank 6, and then let the patient sit on the seat plate 41. If the patient needs to apply ice to the back, he can directly lean against the side wall of the cold compress device body 1, If the patient needs to apply ice to the head, the first turntable 21 can be rotated to drive the first screw 22 to rotate, thereby driving the first threaded block 23 and the first set of rods 24 to move horizontally. The push rod 27 brings the cold compress headgear 28 close to the patient's head, and then starts the water pump 25 to draw cold water into the cavity of the cold compress headgear 28 and the arc-shaped plate 210, and simultaneously passes through the water pump 25 and the third hose 215. The water after the cold compress is pumped into the cold water tank 6 to realize the circulation of cold water. If it is necessary to apply ice to the vicinity of the patient's forehead, the second electric push rod 29 can be started, and the curved plate 210 is slowly approached to the patient's forehead. Patient's waist carries out ice compress, can be treated by waist cold compress mechanism 3, can adjust the height of seat board 41 according to the build of patient, also can allow patient to put foot on pedal bar 51 when ice compress, allows patient more comfortable.

The waist cold compress mechanism 3 includes a first arc-shaped band 31 and a second arc-shaped band 32, one end of the first arc-shaped band 31 and the second arc-shaped band 32 are both rotatably connected to the side wall of the cold compress device body 1, and the first arc-shaped band There is a water hole 34 in the belt 31 and the second arc belt 32, and the water hole 34 communicates with the cold water tank 6. The side wall of the first arc belt 31 is provided with a through hole 33, and the side wall of the second arc belt 32 An insertion rod 37 is plugged in, and the outer end of the insertion rod 37 is fixedly connected with a stopper 35 , and a first spring 36 is fixedly connected between the other end of the insertion rod 37 and the second arc-shaped belt 32 .

Further, surround the first arc-shaped belt 31 and the second arc-shaped belt 32 around the waist, after adjustment, turn the insertion rod 37 ninety degrees and then press outward, so that the insertion rod 37 passes through the first arc-shaped belt 31, and then The insertion rod 37 is released, and the waist cold compress mechanism 3 is closely attached to the patient's waist through the cooperation of the stopper 35 and the through hole 33 .

The lifting mechanism 4 includes a seat plate 41, the lower end of the seat plate 41 is fixedly connected with a second set of rods 49, the other end of the second set of rods 49 extends into the cavity of the cold compress device body 1, and the other end of the second set of rods 49 is fixedly connected with a The second threaded block 47, the two opposite side walls of the second threaded block 47 are fixedly connected with the limit rod 48, and the other end of the limit rod 48 is slidably connected to the inner wall of the cavity of the cold compress device body 1, and the inner wall of the second threaded block 47 is threadedly connected with the first Two screw rods 46, and the second sleeve rod 49 is sleeved on the outside of the second screw rod 46, the second bevel gear 45 is fixedly connected to the bottom end of the second screw rod 46, and the first bevel gear 44 is meshed with the second bevel gear 45 side, and The other end of a bevel gear 44 is fixedly connected to the connecting rod 43 , the other end of the connecting rod 43 extends out of the cold compress device body 1 , and the other end of the connecting rod 43 is fixedly connected to the second turntable 42 .

Further, after the patient sits on the seat plate 41, the second turntable 42 can be rotated, and then the second turntable 42 drives the connecting rod 43 and the first bevel gear 44 to rotate, thereby driving the second bevel gear 45 and the second bevel gear in the vertical direction. The screw rod 46 rotates, and then the second threaded block 47 and the second sleeve rod 49 are moved upwards, so that the seat board 41 can be adjusted according to the body shape of the patient.

The pedal mechanism 5 includes a step rod 51, which is movably inserted into one end of the cold compress device body 1, and the inner wall of the cold compress device body 1 is provided with a square groove on one side of the step rod 51, and two opposite side walls of the step rod 51 are provided with grooves. And a second spring 54 is fixedly connected in the groove, the other end of the second spring 54 is fixedly connected with an insert block 52 , the side wall of the insert block 52 is fixedly connected with a pull rod 53 , and the other end of the pull rod 53 extends outside the cold compress device body 1 .

Further, after pulling the pull rod 53 inward, the plug 52 can be disengaged from the square groove, and then the pedal 51 can be pulled out, allowing the patient to put his feet on the pedal 51 when applying ice, so that the patient feels more comfortable.

The top of the cold compress device body 1 is fixedly connected with a limiting collar 214 , and the second hose 212 penetrates through the limiting collar 214 .

Further, the second hose 212 is limited to prevent the second hose 212 from deviating.

The side wall of the cold compress device body 1 is located directly below the water inlet 7 and is provided with an observation window 8 .

Further, the height of the water level can be known through the observation window 8, and then an appropriate amount of cold water can be added.

Working principle: After the patient sits on the seat plate 41, he can rotate the second turntable 42, and then the second turntable 42 drives the connecting rod 43 and the first bevel gear 44 to rotate, thereby driving the second bevel gear 45 and the second bevel gear in the vertical direction. The screw rod 46 rotates, and then the second threaded block 47 and the second cover rod 49 are moved upwards, so that the seat plate 41 can be adjusted according to the body shape of the patient. When in use, first pour cold water into the cold water tank 6, and then let the patient Sit on the seat plate 41, if the patient needs to apply ice to the back, he can directly lean against the side wall of the cold compress device body 1, if the patient needs to apply ice to the head, he can turn the first turntable 21 to drive the first screw 22 rotates, thereby driving the first threaded block 23 and the first set of rods 24 to move horizontally, by starting the first electric push rod 27 on the connecting block 26, the cold compress headgear 28 is brought close to the patient's head, and then the water pump 25 is started to pump the cold water Draw it into the cavity of the cold compress headgear 28 and the arc plate 210, and simultaneously pass the water pump 25 and the third hose 215, and the water after the cold compress can be drawn into the cold water tank 6 to realize the circulation of cold water. For ice compressing nearby, the second electric push rod 29 can be started, and the arc-shaped plate 210 is slowly approached to the patient's forehead. Around the waist, after adjustment, turn the insertion rod 37 ninety degrees and press it outward, so that the insertion rod 37 passes through the first arc belt 31, then loosen the insertion rod 37, and through the cooperation of the stopper 35 and the through hole 33, the The waist cold compress mechanism 3 is closely attached to the patient's waist. After pulling the pull bar 53 inward, the insert block 52 can be separated from the square groove, and then the pedal bar 51 can be pulled out, so that the patient can put his feet on the pedal bar 51 when applying ice. Make the patient feel more comfortable, and can know the height of the water level through the observation window 8 simultaneously, and then can add an appropriate amount of cold water.

The above description enables those skilled in the art to realize or use the utility model. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the general principles defined herein may be implemented in other embodiments without departing from the spirit or scope of the invention. Therefore, the present invention will not be limited to these embodiments shown herein, but will conform to the widest scope consistent with the principles and novel features disclosed herein.

Claims (6)

1. A nursing cold compress device, comprising a cold compress device body (1), characterized in that: the inner cavity of the cold compress device body (1) is provided with a cold water tank (6), and the side wall of the cold water tank (6) is provided with an inlet A water outlet (7) and a water outlet (9), the cold compress device body (1) is provided with a head cold compress mechanism (2), and the head cold compress mechanism (2) includes a first turntable (21), and the first A turntable (21) is bolted to the side wall of the cold compress device body (1). The output end of the first turntable (21) is fixedly connected with a first screw (22), and the outer wall of the first screw (22) is threaded. There is a first threaded block (23), and the end of the first threaded block (23) away from the first turntable (21) is fixedly connected with a first set of rods (24), and the first set of rods (24) is sleeved on the second On the outside of a screw (22), the other end of the first set of rods (24) is fixedly connected with a connecting block (26), and a cold compress headgear (28) is arranged below the connecting block (26), and the connecting block (26) A first electric push rod (27) is fixedly connected with the cold compress headgear (28), and a second electric push rod (29) is fixedly connected to the opposite inner wall of the cold compress headgear (28), and the second electric push rod (29) ) the other end is affixed with arc-shaped plate (210), and cavity is all provided with in described arc-shaped plate (210) and cold compress headgear (28), and the cavity of arc-shaped plate (210) and cold compress headgear (28) Connected through the first hose (211), two water pumps (25) are fixedly connected to the top of the cold compress device body (1), and one of the water pumps (25) is connected to the upper cavity of the cold compress headgear (28). A second hose (212) is connected, a conduit (213) is connected between the water pump (25) and the cold water tank (6), and the other water pump (25) is connected to the bottom of the cavity of the cold compress headgear (28). A third flexible pipe (215) is connected between them; The side wall of the cold compress device body (1) is located directly below the head cold compress mechanism (2), and a waist cold compress mechanism (3) is provided, and the cold compress device body (1) is provided with a lifting mechanism below the waist cold compress mechanism (3) (4) and pedal mechanism (5). 2. A nursing cold compress device according to claim 1, characterized in that: the waist cold compress mechanism (3) comprises a first arc-shaped belt (31) and a second arc-shaped belt (32), and the first arc-shaped belt (32) One end of the arc-shaped band (31) and the second arc-shaped band (32) are both rotatably connected to the side wall of the cold compress device body (1), and the first arc-shaped band (31) and the second arc-shaped band (32) are provided with There is a water hole (34), the water hole (34) communicates with the cold water tank (6), the side wall of the first arc belt (31) is provided with a through hole (33), the second arc Shaped band (32) side wall is plugged with inserting rod (37), and the outer end of described inserting rod (37) is fixedly connected with stopper (35), and inserting rod (37) other end and the second arc band ( 32) are fixedly connected with the first spring (36). 3. A nursing cold compress device according to claim 1, characterized in that: the lifting mechanism (4) includes a seat plate (41), and the lower end of the seat plate (41) is fixedly connected with a second set of rods (49 ), the other end of the second set of rods (49) extends into the cavity of the cold compress device body (1), and the other end of the second set of rods (49) is fixedly connected with a second threaded block (47), the first The two opposite side walls of the two threaded blocks (47) are fixedly connected to the limit rod (48), and the other end of the limit rod (48) is slidably connected to the inner wall of the cavity of the cold compress device body (1), and the second threaded block (47) The inner wall is threadedly connected with a second screw rod (46), and the second sleeve rod (49) is sleeved on the outside of the second screw rod (46), and the bottom end of the second screw rod (46) is fixedly connected with a second bevel gear (45) , one side of the second bevel gear (45) is meshed with a first bevel gear (44), and the other end of the first bevel gear (44) is fixedly connected with a connecting rod (43), and the connecting rod (43) The other end of the connecting rod (43) extends to the outside of the cold compress device body (1), and the other end of the connecting rod (43) is fixedly connected with a second turntable (42). 4. A nursing cold compress device according to claim 1, characterized in that: the pedal mechanism (5) includes a pedal (51), and the pedal (51) is movably inserted into the cold compress device body (1 ) at one end, the inner wall of the cold compress device body (1) is located on one side of the pedal (51) and a square groove is opened, and the two opposite side walls of the pedal (51) are provided with grooves, and the groove is fixed with a second Spring (54), the other end of the second spring (54) is fixedly connected with an insert (52), the side wall of the insert (52) is fixed with a pull rod (53), and the other end of the pull rod (53) extends to the outside of the cold compress device body (1). 5. A nursing cold compress device according to claim 1, characterized in that: the top of the cold compress device body (1) is fixedly connected with a limiting collar (214), and the second hose (212) is connected from the limiting Penetrate in the ring sleeve (214). 6. A nursing cold compress device according to claim 1, characterized in that: the side wall of the cold compress device body (1) is located directly below the water inlet (7) and is provided with an observation window (8).
