Abstract
The utility model relates to the technical field of belt conveying lines, in particular to a height-adjustable belt conveying line, which comprises a first chassis, wherein the top of the first chassis is fixedly connected with a supporting rod, the top of the supporting rod is fixedly connected with a rotating rod, the outer side of the rotating rod is rotationally connected with a movable clamp, the top of the movable clamp is fixedly connected with a first U-shaped frame, the top of the first U-shaped frame is fixedly connected with a conveying frame, the outer side of the conveying frame is fixedly provided with a controller, the outer side of the conveying frame is fixedly provided with a motor, the inner transmission of the conveying frame is connected with a conveying belt, the bottom of the conveying frame is fixedly connected with a second U-shaped frame, the outer side of the second U-shaped frame is fixedly connected with a connecting block, and the bottom of the connecting block is provided with a sliding groove.
Description
Technical Field
The utility model relates to a belt conveying line with adjustable height, and belongs to the technical field of belt conveying lines.
Background
The belt conveyor is a conveying system for conveying loose materials or finished articles, and is widely applied to industries such as mines, metallurgy, coal and the like. The belt conveyor mainly comprises a frame, a conveying belt, a belt roller, a tensioning device, a transmission device and the like, and has the advantages of large conveying capacity, simple structure, convenience in maintenance, component standardization and the like.
But the defect is that when conveying, the height of the belt conveyor needs to be adjusted frequently, but the existing adjusting mode is complicated, so that the height of the conveying of the object is limited easily, the conveying requirement is difficult to meet, the conveying efficiency is affected, meanwhile, a small gap always exists at the joint of the conveying line and other equipment, and the conveyed material falls from the gap, so that the waste of the material is caused.
Disclosure of Invention
The utility model aims to provide a belt conveyor line with adjustable height, which has the advantages of simple structure and convenient use, can quickly adjust the height of a conveyor, and simultaneously prevents the waste of materials so as to solve the problems in the prior art.
In order to achieve the above purpose, the present utility model provides the following technical solutions:
the utility model provides a but height-adjusting's belt transfer chain, includes chassis, chassis's top fixedly connected with bracing piece, the top fixedly connected with rotary rod of bracing piece, the outside rotation of rotary rod is connected with the movable clamp, the top fixedly connected with U type frame of movable clamp, the top fixedly connected with transportation frame of U type frame, transportation frame's outside fixedly mounted has the controller, transportation frame's outside fixedly mounted has the motor, transportation frame's inside transmission is connected with the conveyer belt, transportation frame's bottom fixedly connected with U type frame No. two, the outside fixedly connected with linking piece of U type frame No. two, the spout has been seted up to the bottom of linking piece, the inside swing joint of spout has the dwang, the bottom fixedly connected with electric telescopic handle of dwang, the bottom fixedly connected with chassis No. two, the top fixedly connected with storage tank of linking piece, fixedly connected with screwed pipe in the inner wall of U type frame No. two, screwed pipe's inside rotation is connected with the motor, the outside of screw rod fixedly connected with screw rod is kept away from to the screw rod fixedly connected with extrusion cap, the one end of screw rod is kept away from to the screw rod fixedly connected with extrusion cap.
Further, the first U-shaped frame and the second U-shaped frame are symmetrically distributed at the bottom of the transportation frame, and the controller is electrically connected with the motor.
Further, the conveyer belt is connected in the inside of transportation frame through the motor rotation, spout symmetric distribution is in the inner wall of linking piece.
Further, the electric telescopic rods are symmetrically distributed at the top of the second chassis, and are electrically connected with the controller.
Further, the storage box is located at one end bottom of the conveying frame, and the threaded pipes are symmetrically distributed in the inner wall of the second U-shaped frame.
Further, the number of the extrusion rods is two, and the extrusion rods are symmetrically distributed on the outer side of the storage box.
The beneficial effects of the utility model are as follows:
according to the utility model, the motor is started through the controller arranged on the outer side of the transportation frame, so that the motor drives the conveyer belt to rotate in the transportation frame, and materials are transported, when the height of equipment is required to be adjusted, the electric telescopic rod at the top of the second chassis is started through the controller, so that the electric telescopic rod drives the pushing rod to move, at the moment, the pushing rod can generate upward pushing force to the connecting block and simultaneously slide in the sliding chute at the bottom of the connecting block, one end of the transportation frame is lifted, the first U-shaped frame at the bottom of the other end of the transportation frame is rotatably connected with the rotating rod, and then the rotating rod is matched with the supporting rod, so that one end of the transportation frame is normally lifted, the effect of conveniently adjusting the height is achieved, when the materials are required to be transported, the storage box is firstly placed in the second U-shaped frame, at the moment, the rotating cover drives the screw rod to move in the threaded pipe through rotating, and the extrusion rod is moved through the movement of the screw rod, so that the extrusion rod extrusions the storage box, and the extrusion rod symmetrically distributed in the U-shaped frame at the bottom of the other end of the transportation frame is located in the storage box, and the storage box is far away from the inside after the storage box, and the storage box is located, and the materials can be removed from the storage box after the storage box is located, and the storage box is located and can be removed.
Drawings
The accompanying drawings are included to provide a further understanding of the utility model, and are incorporated in and constitute a part of this specification, illustrate the utility model and together with the description serve to explain the utility model.

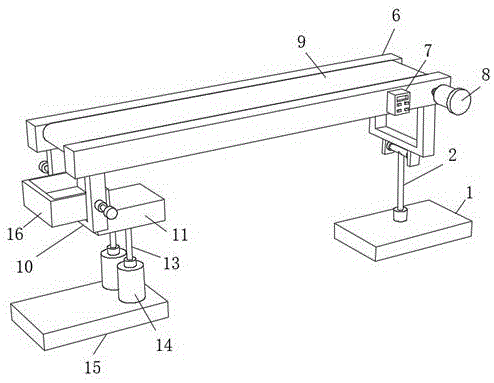

FIG. 1 is a schematic illustration of a height-adjustable belt conveyor line of the present utility model;
FIG. 2 is a schematic view of the bottom of a height-adjustable belt conveyor line according to the present utility model;
FIG. 3 is a schematic view showing the structure of the outer side of a belt conveyor storage box with adjustable height according to the present utility model;
FIG. 4 is a schematic view of the bottom of a U-shaped frame of a belt conveyor line with adjustable height according to the present utility model;
reference numerals in the drawings: 1. a first chassis; 2. a support rod; 3. a rotating rod; 4. a movable clamp; 5. a first U-shaped frame; 6. a transport frame; 7. a controller; 8. a motor; 9. a conveyor belt; 10. a second U-shaped frame; 11. a joint block; 12. a chute; 13. a push rod; 14. an electric telescopic rod; 15. a second chassis; 16. a storage box; 17. a threaded tube; 18. a screw; 19. a rotating cover; 20. and extruding the rod.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Embodiment 1 referring to fig. 1 to 4, the present utility model provides a technical solution:
the utility model provides a but height-adjusting's belt transfer chain, including chassis 1, chassis 1's top fixedly connected with bracing piece 2, bracing piece 2's top fixedly connected with rotary rod 3, rotary rod 3's outside rotation is connected with movable clamp 4, movable clamp 4's top fixedly connected with U type frame 5, U type frame 5's top fixedly connected with transportation frame 6, transportation frame 6's outside fixed mounting has controller 7, transportation frame 6's outside fixed mounting has motor 8, transportation frame 6's inside transmission is connected with conveyer belt 9, transportation frame 6's bottom fixedly connected with U type frame 10 No. two, U type frame 10's outside fixedly connected with linking piece 11, spout 12 has been seted up to linking piece 11's bottom, spout 12's inside swing joint has catch bar 13, catch bar 13's bottom fixedly connected with electric telescopic handle 14, electric telescopic handle 14's bottom fixedly connected with chassis 15 No. two.
Specifically, as shown in fig. 1, the first U-shaped frame 5 and the second U-shaped frame 10 are symmetrically distributed at the bottom of the transport frame 6, the controller 7 is electrically connected with the motor 8, the conveyor belt 9 is rotatably connected inside the transport frame 6 through the motor 8, and the sliding grooves 12 are symmetrically distributed in the inner wall of the connecting block 11.
Specifically, as shown in fig. 1-4, the electric telescopic rods 14 are symmetrically distributed on the top of the second chassis 15, the electric telescopic rods 14 are electrically connected with the controller 7, the storage box 16 is located at the bottom of one end of the transport frame 6, the threaded pipes 17 are symmetrically distributed in the inner wall of the second U-shaped frame 10, the number of the extrusion rods 20 is two, and the extrusion rods 20 are symmetrically distributed on the outer side of the storage box 16.
The working principle of the utility model is as follows: through the arrangement of the transport frame 6, the motor 8 is started through the controller 7 at the outer side of the transport frame 6, so that the motor 8 drives the conveyer belt 9 to rotate in the transport frame 6, and materials are transported, when the height of equipment is required to be adjusted, the electric telescopic rod 14 at the top of the chassis No. two 15 is started through the controller 7, so that the electric telescopic rod 14 drives the pushing rod 13 to move, at the moment, the pushing rod 13 can generate upward pushing force to the connecting block 11 and simultaneously slide in the sliding groove 12 at the bottom of the connecting block 11, one end of the transport frame 6 is lifted through the cooperation of the connecting block 11 and the U-shaped frame No. two 10, and as the rotating rod 3 is rotationally connected to the bottom of the U-shaped frame No. 5 at the bottom of the other end of the transport frame 6, and then the pushing rod 3 and the supporting rod 2 are used through the cooperation of the rotating rod 3, can make the one end of transportation frame 6 normally rise, the effect of convenient height-adjusting has been reached, when the material that needs to transport makes, at first place storage tank 16 in the inside of No. two U type framves 10, at this moment through rotatory cover 19 that rotates, make the cover 19 drive screw rod 18 and remove in the inside of screwed pipe 17, the removal through screw rod 18 drives extrusion rod 20 and removes, thereby make extrusion rod 20 produce the extrusion to storage tank 16, because extrusion rod 20 symmetric distribution is in the outside of storage tank 16, consequently can fix a position the inside storage tank 16 of No. two U type framves 10, thereby the material that drops from transportation frame 6 one end can enter into the inside of storage tank 16 at this moment and collect, after the work, rotate screw rod 18, make extrusion rod 20 keep away from storage tank 16, the case storage tank 16 again takes out can, the waste of preventing the material has been reached.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a but height-adjusting's belt transfer chain, includes chassis (1), its characterized in that: the utility model discloses a novel electric power storage box, which is characterized in that a supporting rod (2) is fixedly connected with the top of a chassis (1), a rotating rod (3) is fixedly connected with the top of the supporting rod (2), a movable clamp (4) is rotationally connected with the outer side of the rotating rod (3), a U-shaped frame (5) is fixedly connected with the top of the movable clamp (4), a transport frame (6) is fixedly connected with the top of the U-shaped frame (5), a controller (7) is fixedly arranged on the outer side of the transport frame (6), a motor (8) is fixedly arranged on the outer side of the transport frame (6), a conveying belt (9) is connected with the inner transmission of the transport frame (6), a U-shaped frame (10) is fixedly connected with the bottom of the transport frame (6), a connecting block (11) is fixedly connected with the outer side of the U-shaped frame (10), a sliding groove (12) is formed in the bottom of the connecting block (11), a pushing rod (13) is movably connected with the inner side of the sliding groove (12), an electric rod (14) is fixedly connected with the bottom of the pushing rod (13), an electric rod (14), a screw thread is fixedly connected with the bottom of the electric rod (14) and a storage box (17) is fixedly connected with the top of the inner wall of the chassis (17), the inside rotation of screwed pipe (17) is connected with screw rod (18), the outside fixedly connected with of screw rod (18) rotates cover (19), the one end that rotates cover (19) was kept away from to screw rod (18) is fixedly connected with extrusion rod (20).
2. The height-adjustable belt conveyor line of claim 1, wherein: the first U-shaped frame (5) and the second U-shaped frame (10) are symmetrically distributed at the bottom of the conveying frame (6), and the controller (7) is electrically connected with the motor (8).
3. The height-adjustable belt conveyor line of claim 1, wherein: the conveying belt (9) is rotationally connected to the inside of the conveying frame (6) through a motor (8), and the sliding grooves (12) are symmetrically distributed in the inner wall of the connecting block (11).
4. The height-adjustable belt conveyor line of claim 1, wherein: the electric telescopic rods (14) are symmetrically distributed at the top of the second chassis (15), and the electric telescopic rods (14) are electrically connected with the controller (7).
5. The height-adjustable belt conveyor line of claim 1, wherein: the storage box (16) is positioned at the bottom of one end of the conveying frame (6), and the threaded pipes (17) are symmetrically distributed in the inner wall of the second U-shaped frame (10).
6. The height-adjustable belt conveyor line of claim 1, wherein: the number of the extrusion rods (20) is two, and the extrusion rods (20) are symmetrically distributed on the outer side of the storage box (16).
